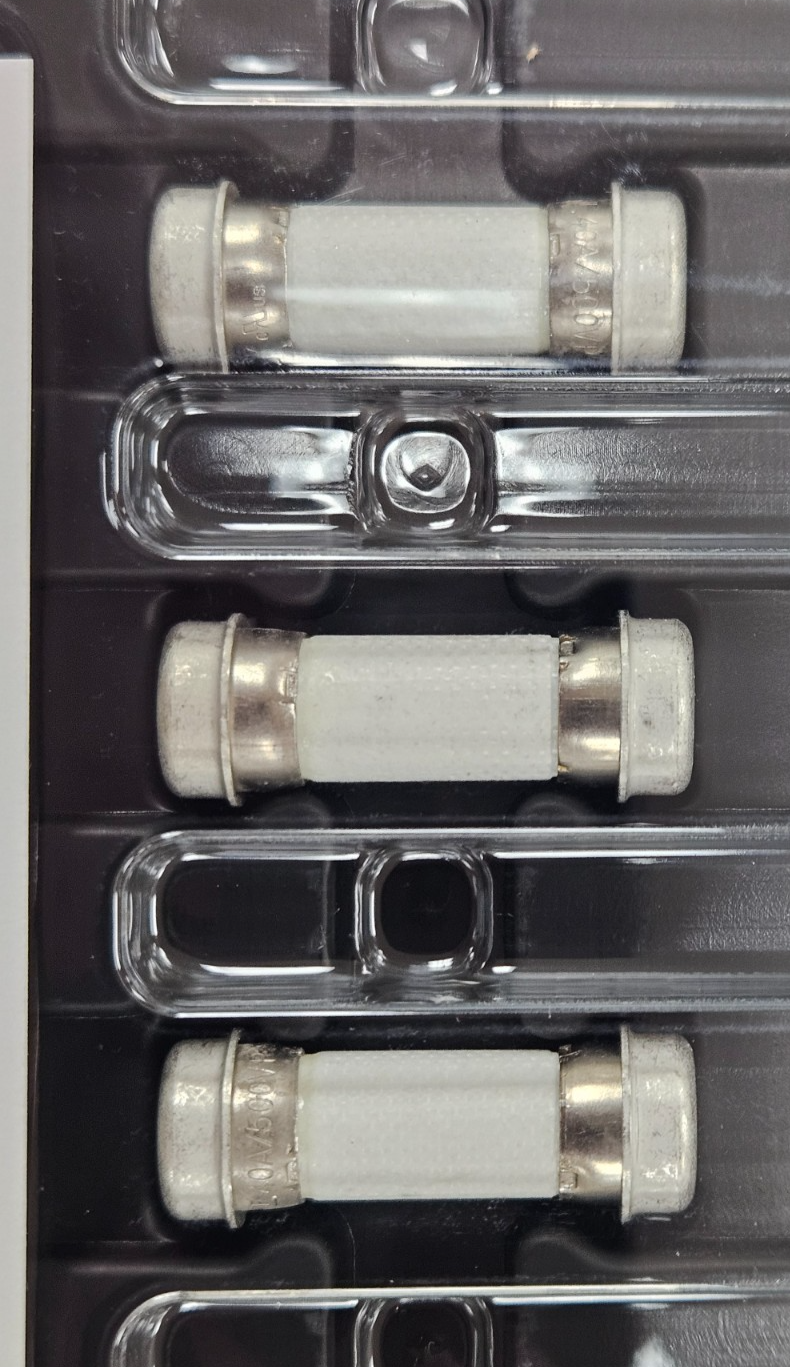

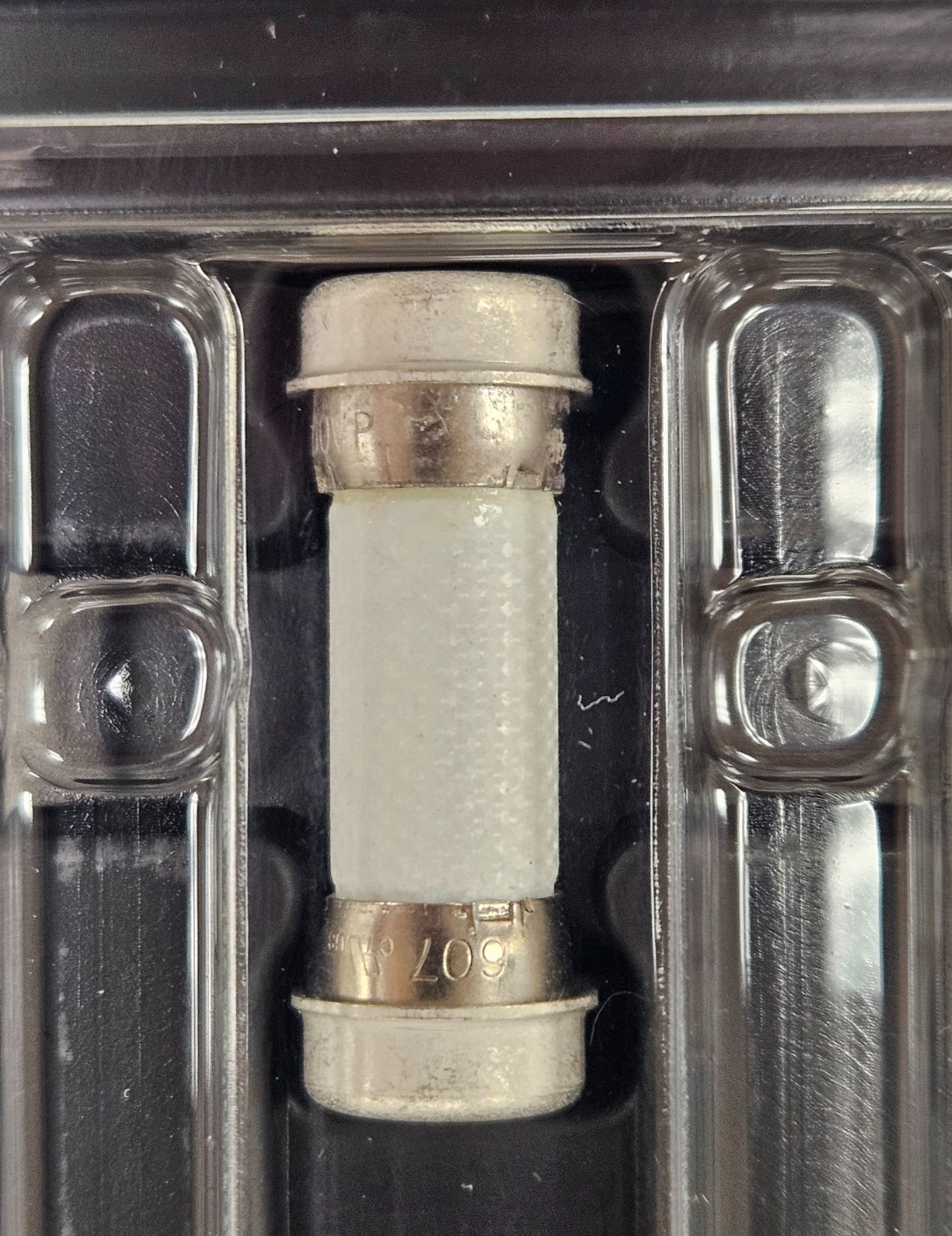

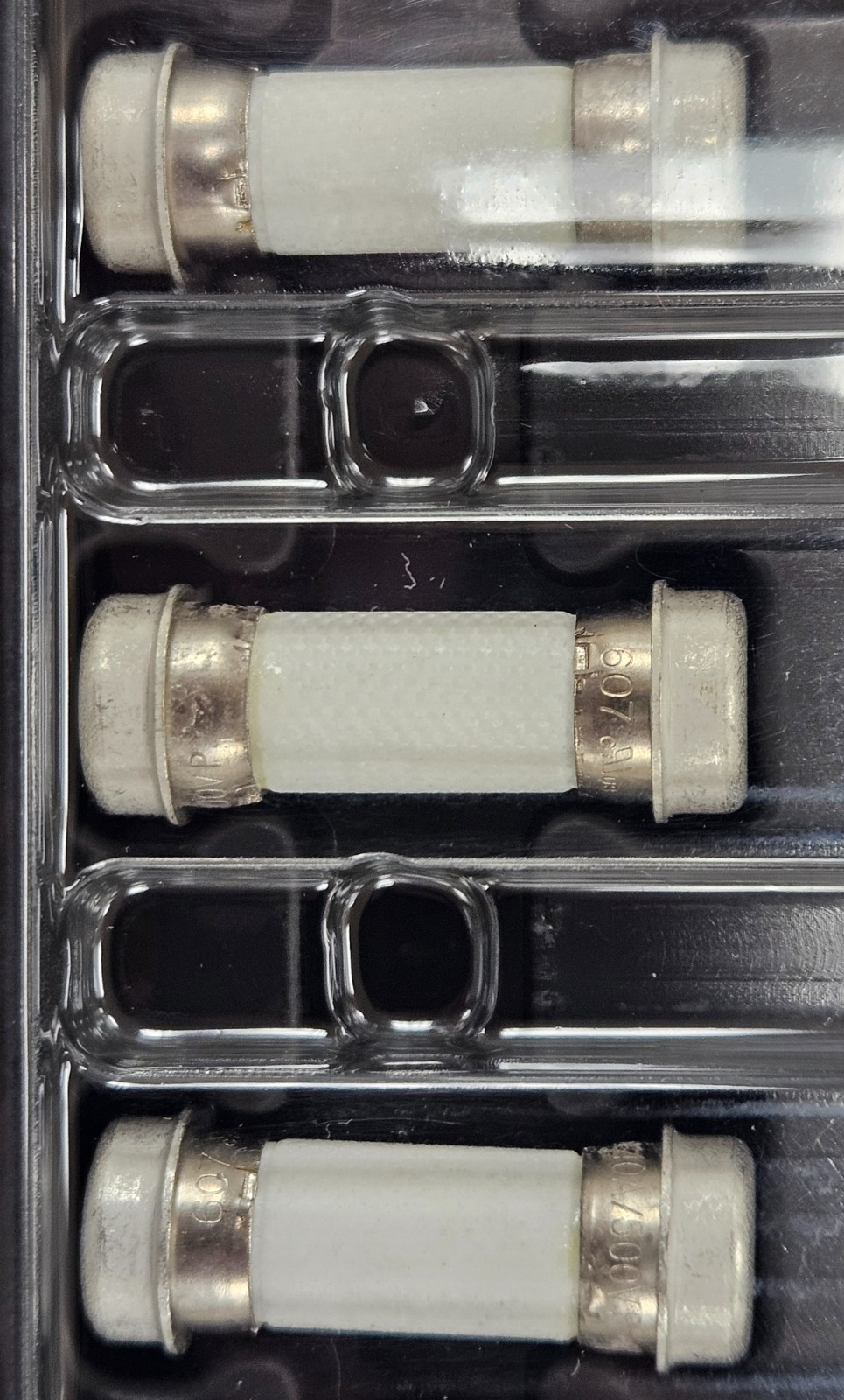

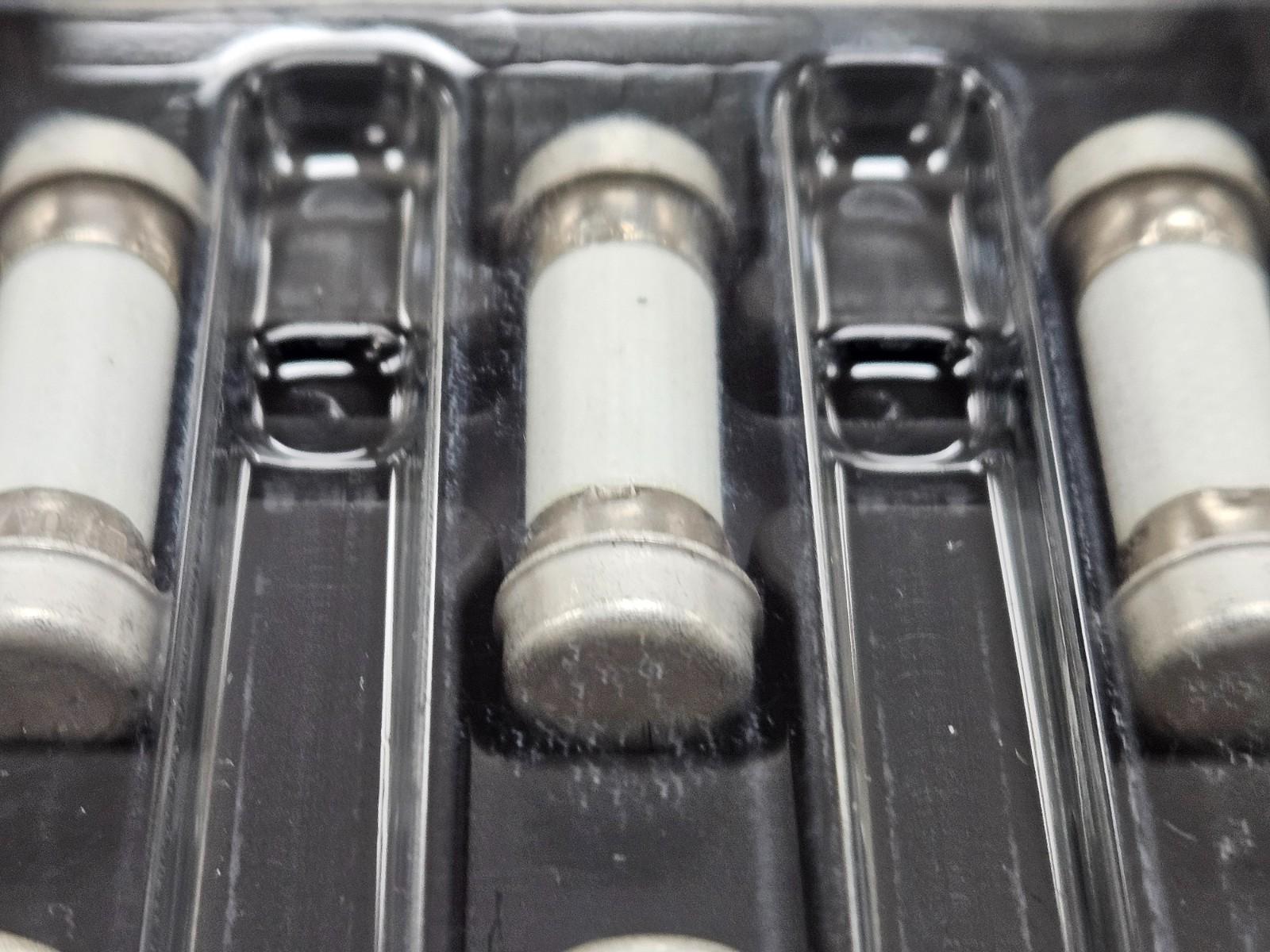

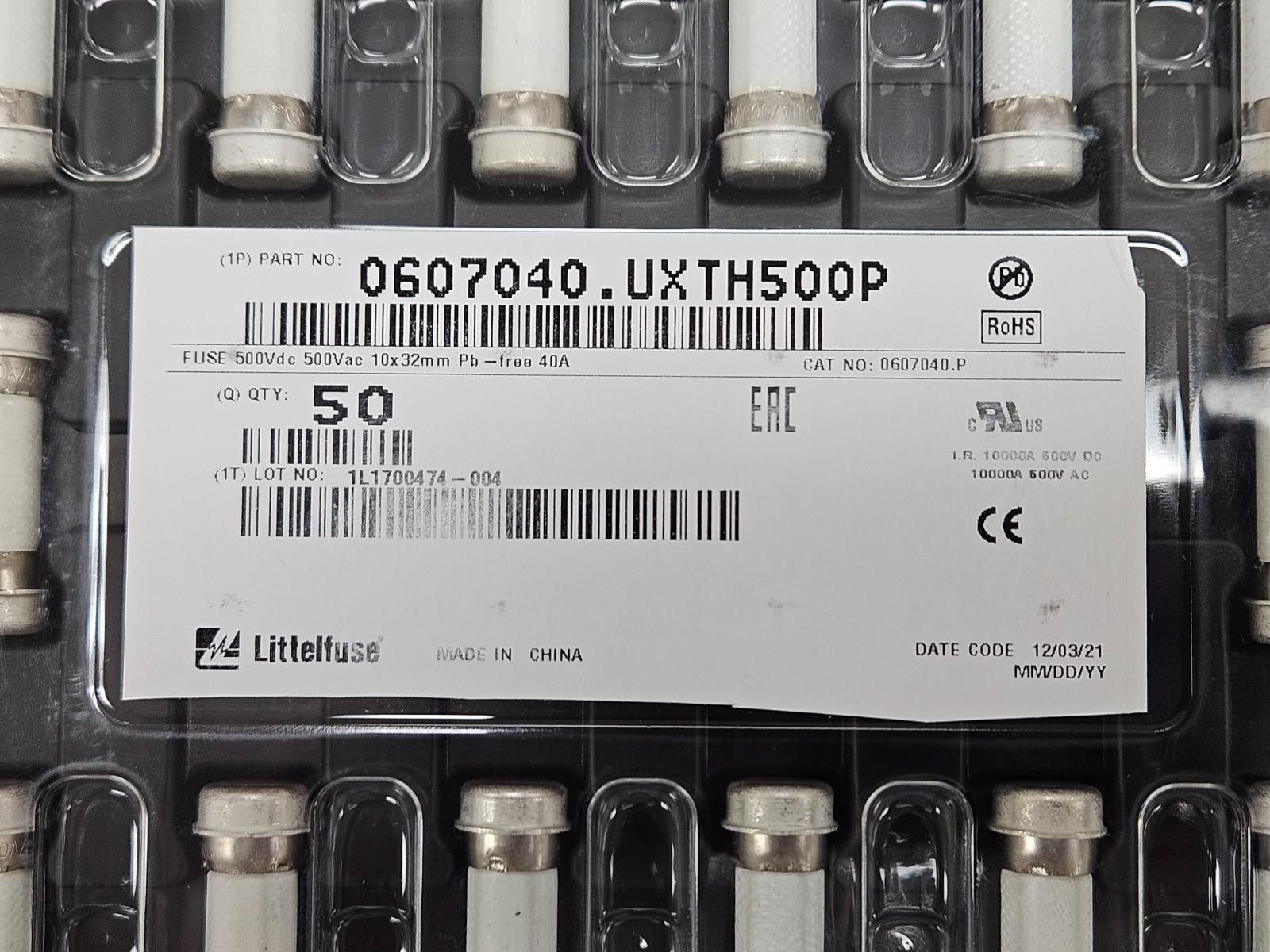

(10PCS) 0607040.UXTH500P Electric Fuse, 40A, 500VAC, 500VDC, 10 x 32 mm
Tax included.
This listing is for (10PCS) of 0607040.UXTH500P by Littelfuse
Status Active
Body Height (mm) 33.4000
Body Length or Diameter (mm) 12.2500
Circuit Protection Type ELECTRIC FUSE
Fuse Size 10x32mm
Joule-integral-Nom (J) 2570.00000000
Mounting Feature THROUGH HOLE
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Packing Method TRAY
Rated Breaking Capacity (A) 10000.00000000
Rated Current (A) 40.00000000
Rated Voltage (AC) (V) 500.00000000
Rated Voltage (DC) (V) 500.00000000
Screening Level / Reference Standard CUL; TUV; UL
Terminal Shape TAB/BLADE
Trip Time or Delay (Seconds) 120.000000000000000
