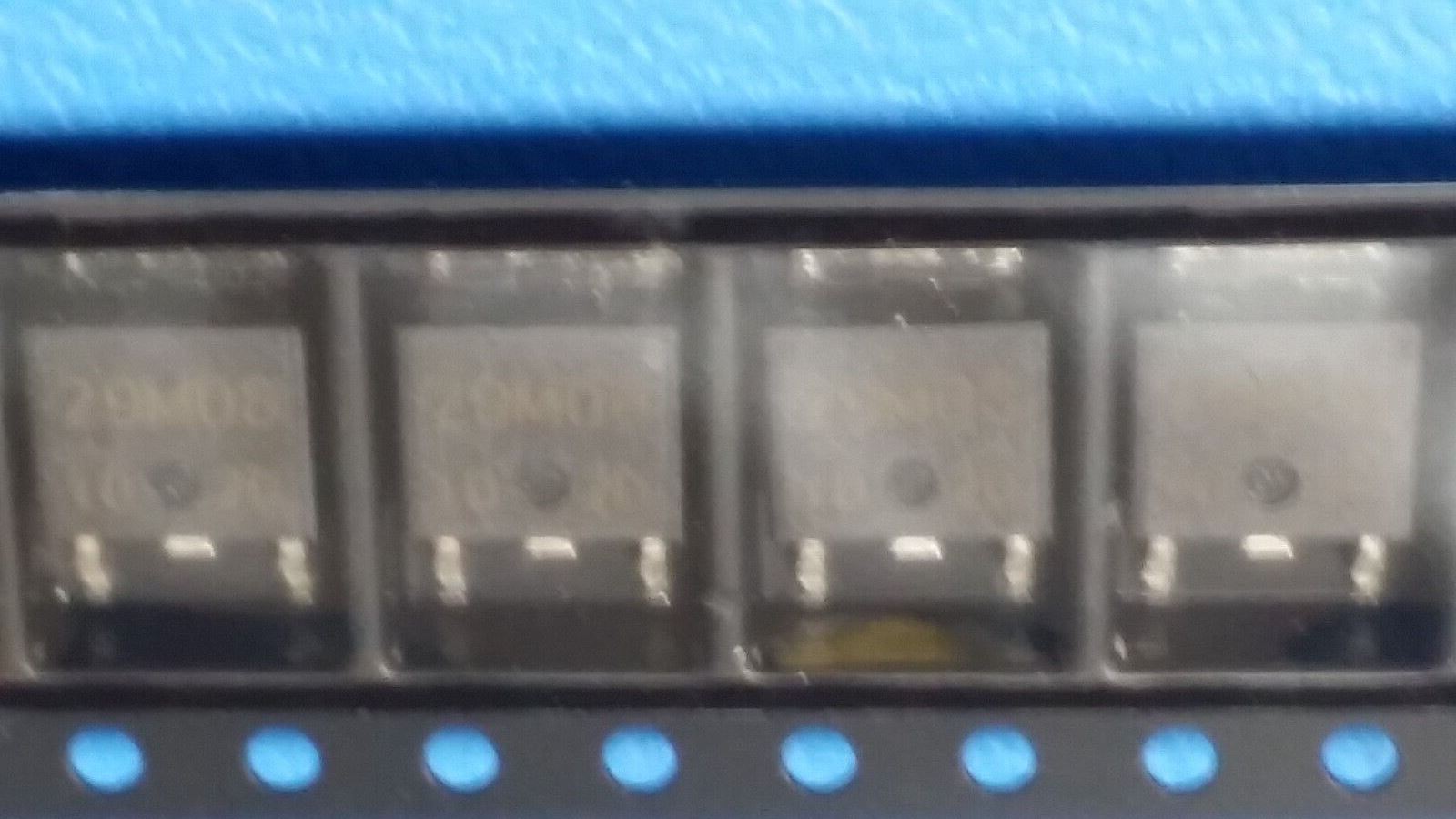

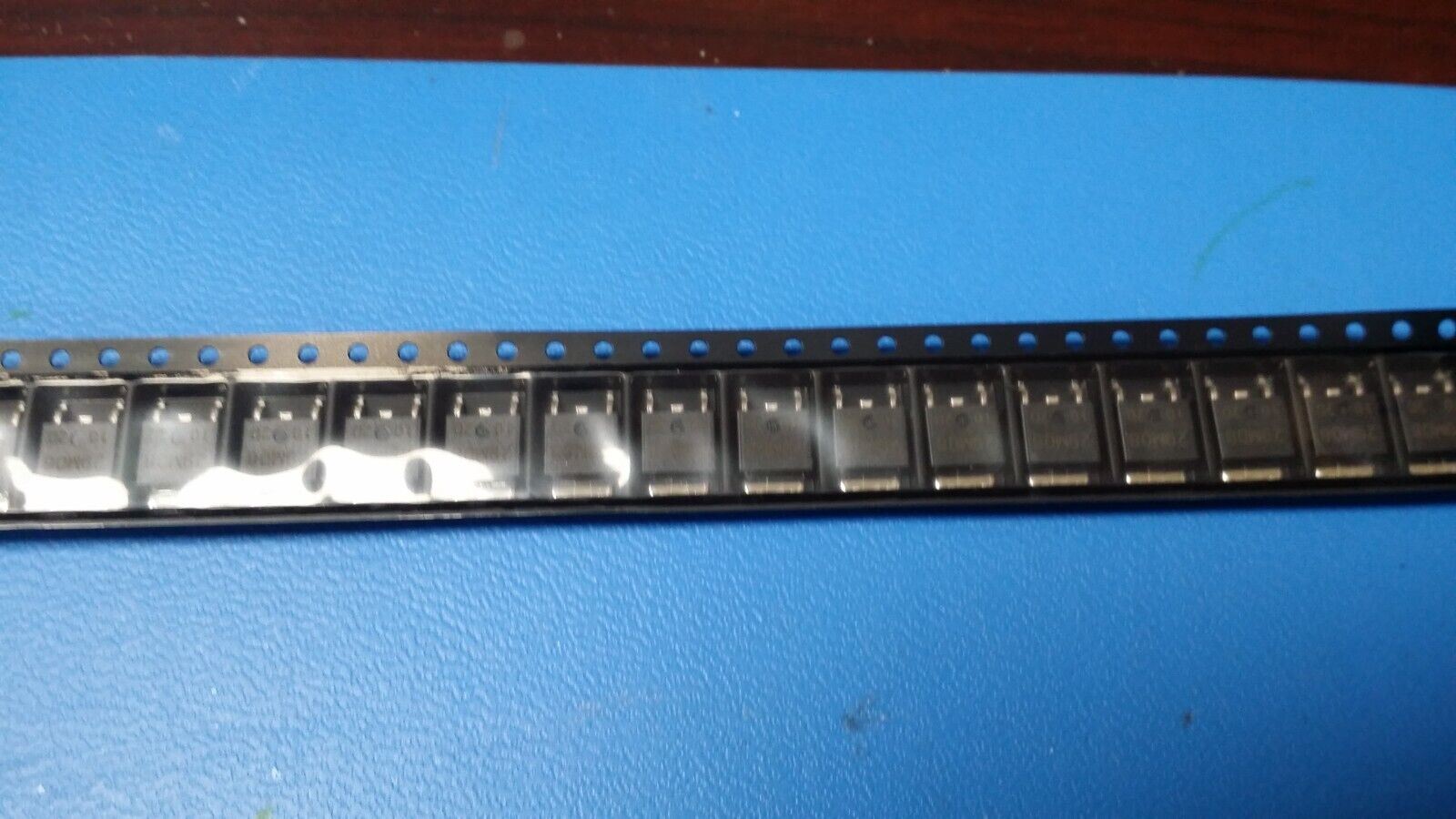

(10PC) UPC29M08T-E1 Fixed Positive LDO Regulator, 8V, 1V Dropout, BIPolar, SC-63

$7.95
Unit price per

Tax included.

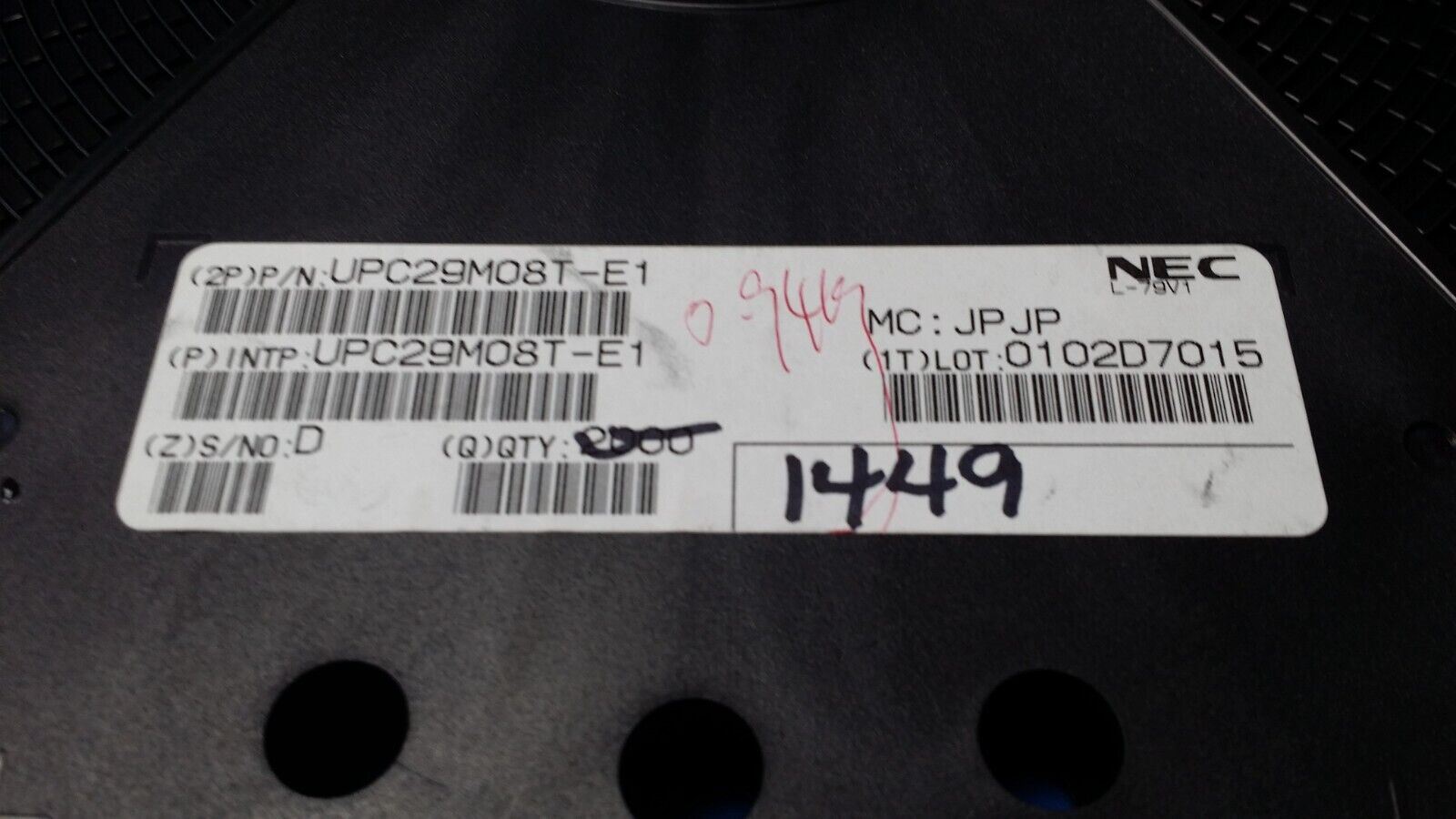

THIS IS FOR (10PC) OF UPC29M08T-E1 BY NEC

Fixed Positive LDO Regulator, 8V, 1V Dropout, BIPolar, SC-63

Part #: UPC29M08T-E1

Part Category: Regulators

Manufacturer: NEC Corporation

Description: Fixed Positive LDO Regulator, 8V, 1V Dropout, BIPolar, PSSO2

Mfr Package Description SC-63, 3 PIN

REACH Compliant Yes

Status Transferred

Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Dropout Voltage1-Max 1.0 V

Input Voltage-Min 9.0 V

Input Voltage-Max 18.0 V

JESD-30 Code R-PSSO-G2

JESD-609 Code e0

Number of Functions 1

Number of Terminals 2

Operating Temperature, TJ-Min -30.0 Cel

Operating Temperature, TJ-Max 125.0 Cel

Output Current1-Max 0.5 A

Output Voltage1-Nom 8.0 V

Output Voltage1-Min 7.6 V

Output Voltage1-Max 8.4 V

Package Body Material PLASTIC/EPOXY

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Qualification Status Not Qualified

Seated Height-Max 2.8 mm

Surface Mount YES

Technology BIPOLAR

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch 2.3 mm

Terminal Position SINGLE

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Length 6.5 mm

Width 5.5 mm
