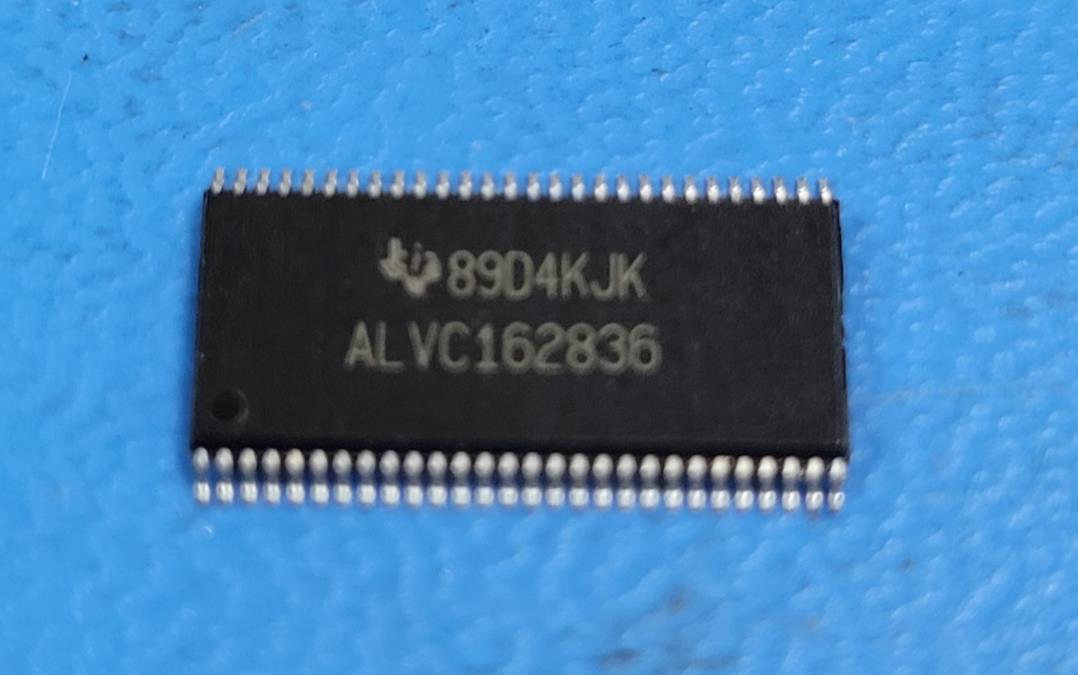

(10PC) SN74ALVC162836DGGR 20-Bit Universal Bus Driver, 3-State Outputs 56-TSSOP
Tax included.
This listing is for (10PC) of SN74ALVC162836DGGR by Texas Instruments
Status Active
Control Type ENABLE LOW
Direction UNIDIRECTIONAL
Family ALVC/VCX/A
JESD-30 Code R-PDSO-G56
J-STD-609 Code e4
Length (mm) 18.4150
Load Capacitance (pF) 50.0000
Logic IC Type BUS DRIVER
Output Low Current-Max (mA) 12.000000000000000
Moisture Sensitivity Level 1
Number of Bits 20
Number of Functions 20
Number of Ports 2
Number of Terminals 56
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Output Characteristics 3-STATE WITH SERIES RESISTOR
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP56,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH

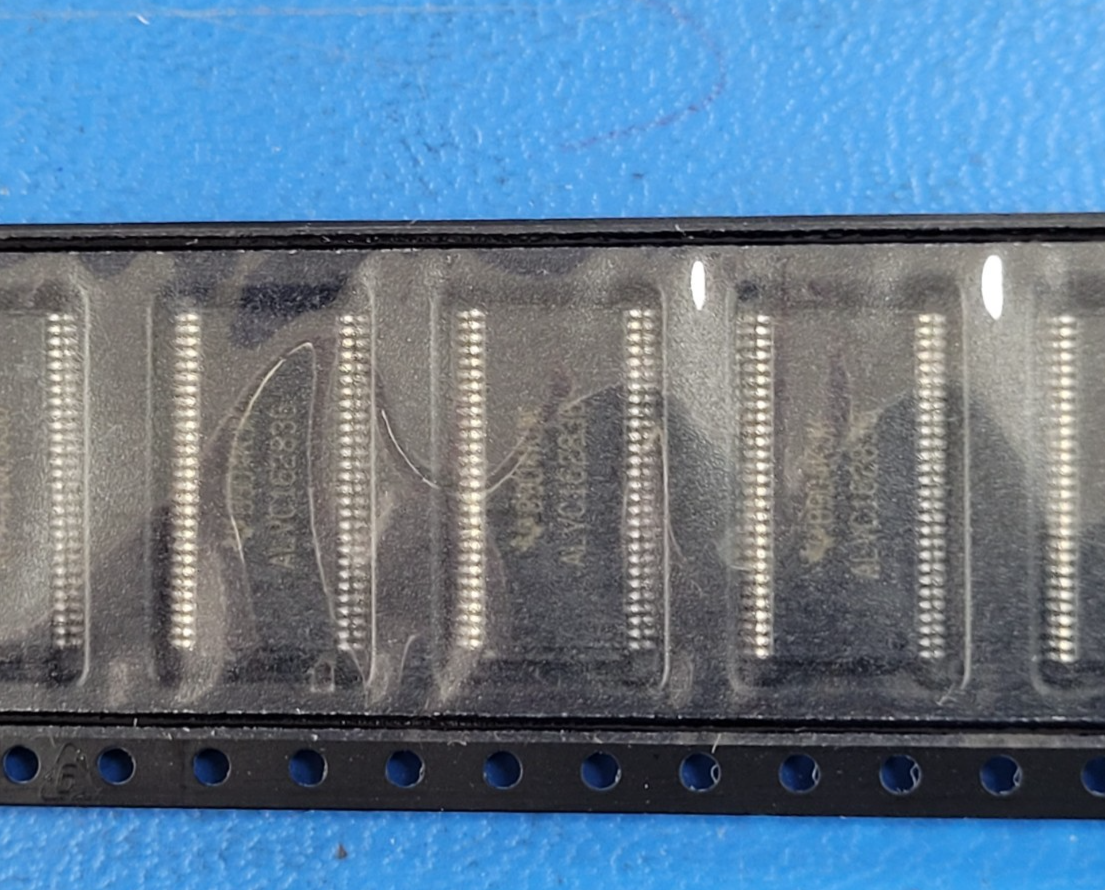

Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Supply Current-Max (mA) 0.04000000
Propagation Delay-Max@Nom-Sup (ns) 4.000000000000000000
Propagation Delay (ns) 5.5000
DLA Qualification Not Qualified
Seated Height-Max (mm) 2.7900
Supply Voltage-Max (V) 3.6000
Supply Voltage-Min (V) 1.6500
Supply Voltage-Nom (V) 1.8
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch (mm) 0.635
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width (mm) 7.4900
