(10PC) MKT1820433255 VISHAY Film Capacitor Polyester 250V 10% 0.33uF Radial ROHS
Tax included.

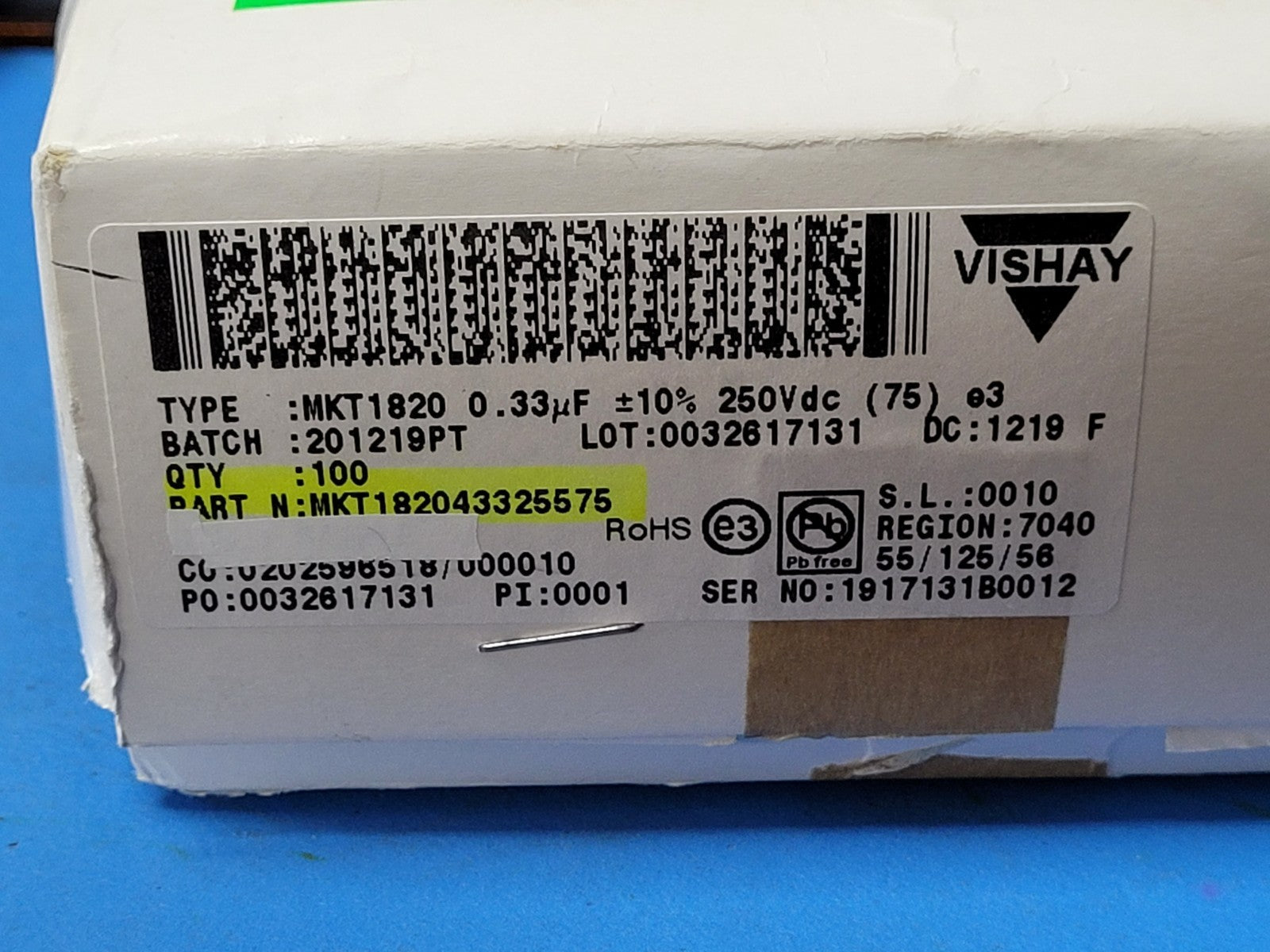

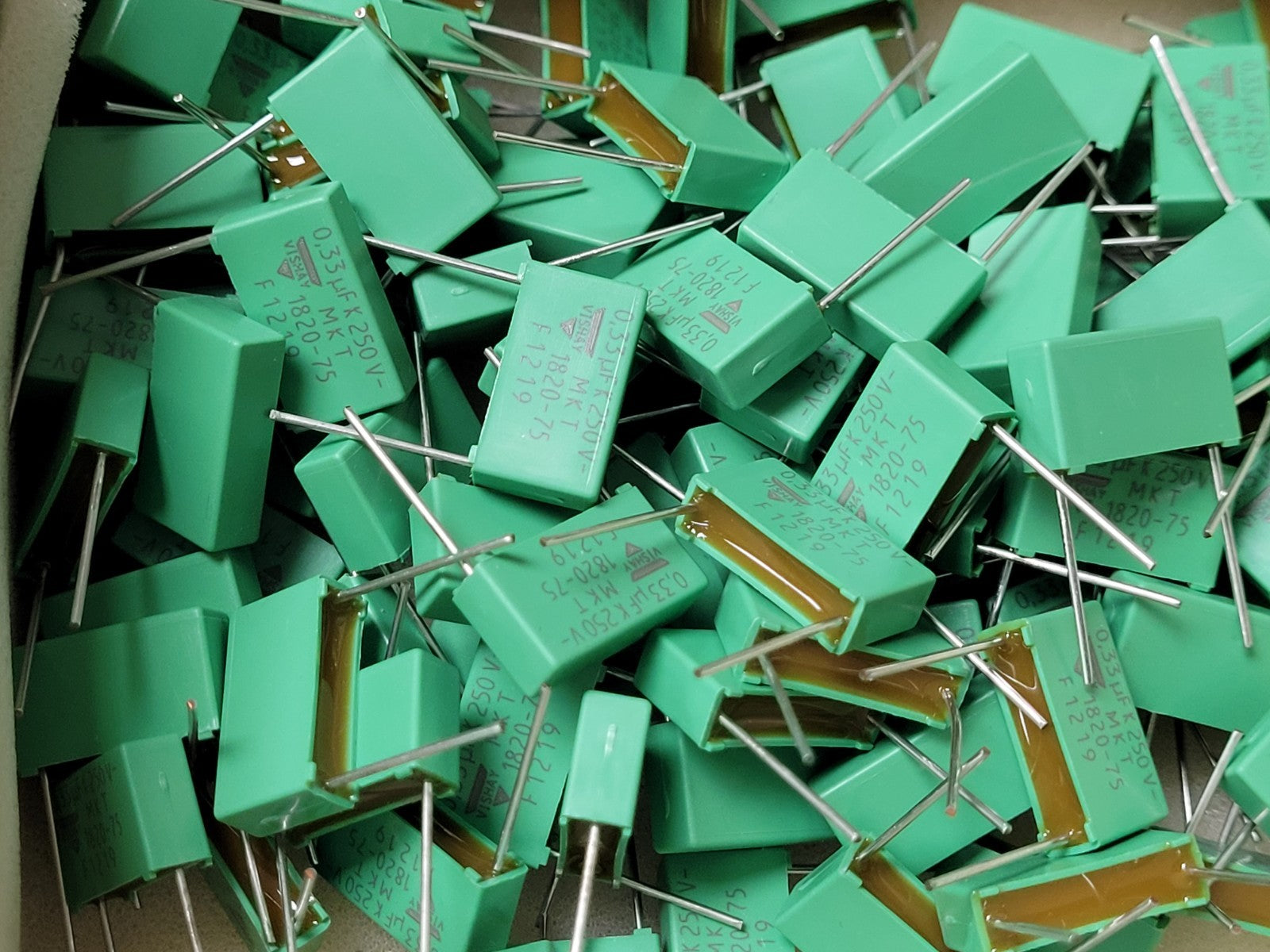

THIS IS FOR (10 PCS) OF MKT1820433255 BY VISHAY
Film Capacitor Polyester 250V 10% 0.33uF Radial ROHS
Part #: MKT1820433255
Active
Part Category: Fixed Capacitors
Manufacturer: VISHAY INTERTECHNOLOGY INC
Description: Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 0.33uF, Through Hole Mount
Status Active
Capacitance (uF) 0.3300000000000000
Capacitor Type FILM CAPACITOR
Dielectric Material POLYESTER
Height (mm) 10.500000
J-STD-609 Code e3
Length (mm) 18.0000
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance (%) 10.0000
Number of Terminals 2
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Package Shape RECTANGULAR PACKAGE
Package Style Radial
Packing Method BULK
Positive Tolerance (%) 10.0000
Rated AC Voltage (URac) (V) 160.0000
Rated DC Voltage (URdc) (V) 250.0000
Screening Level / Reference Standard AEC-Q200
Terminal Finish Tin (Sn)
Terminal Pitch (mm) 15.0000
Terminal Shape WIRE
Width (mm) 5.5000
