(10PC) MC68HC11E9CFU2 MOT Microcontroller 8-Bit MROM 68HC11 CPU 2MHz HCMOS QFP64
Tax included.

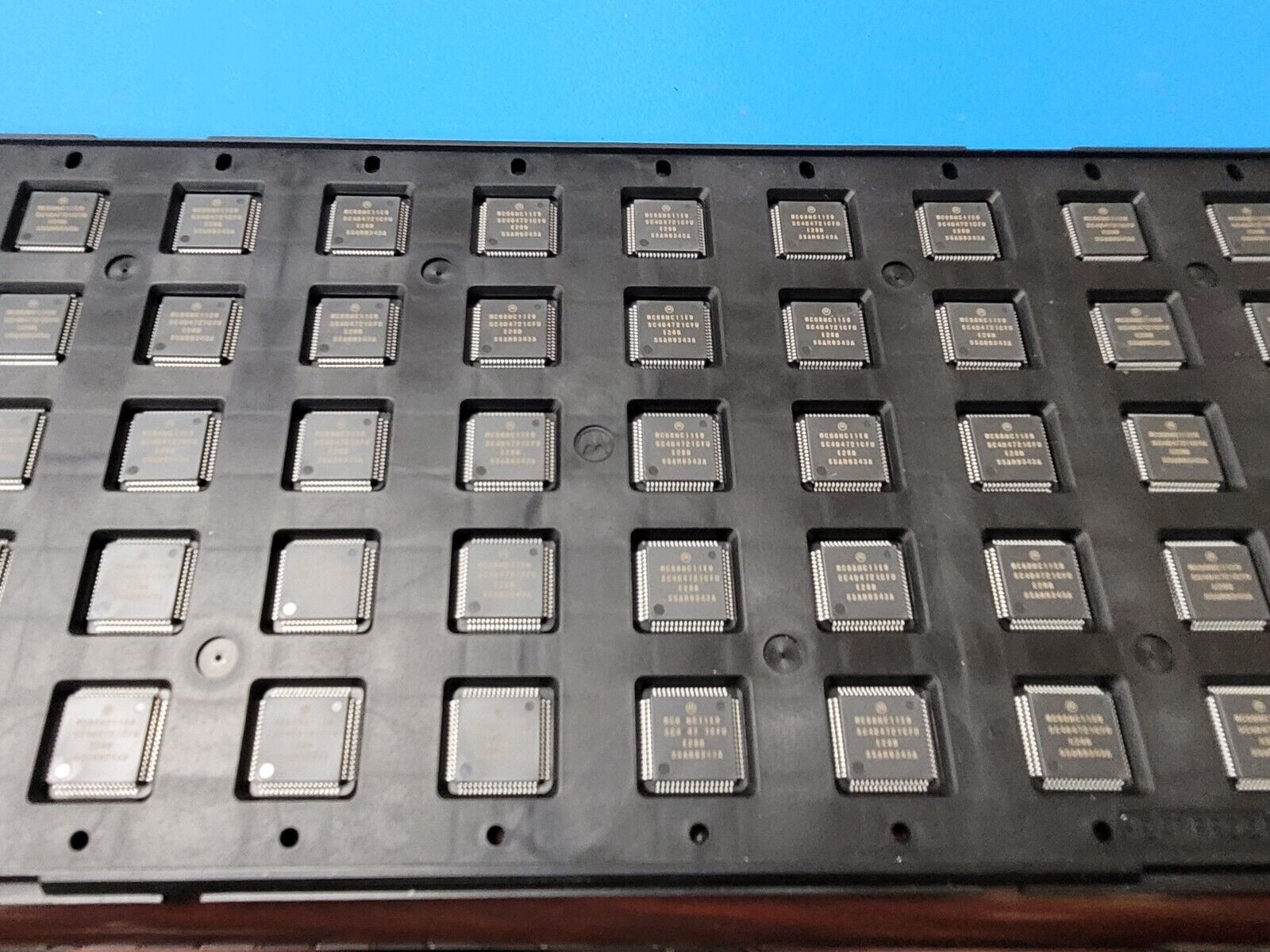

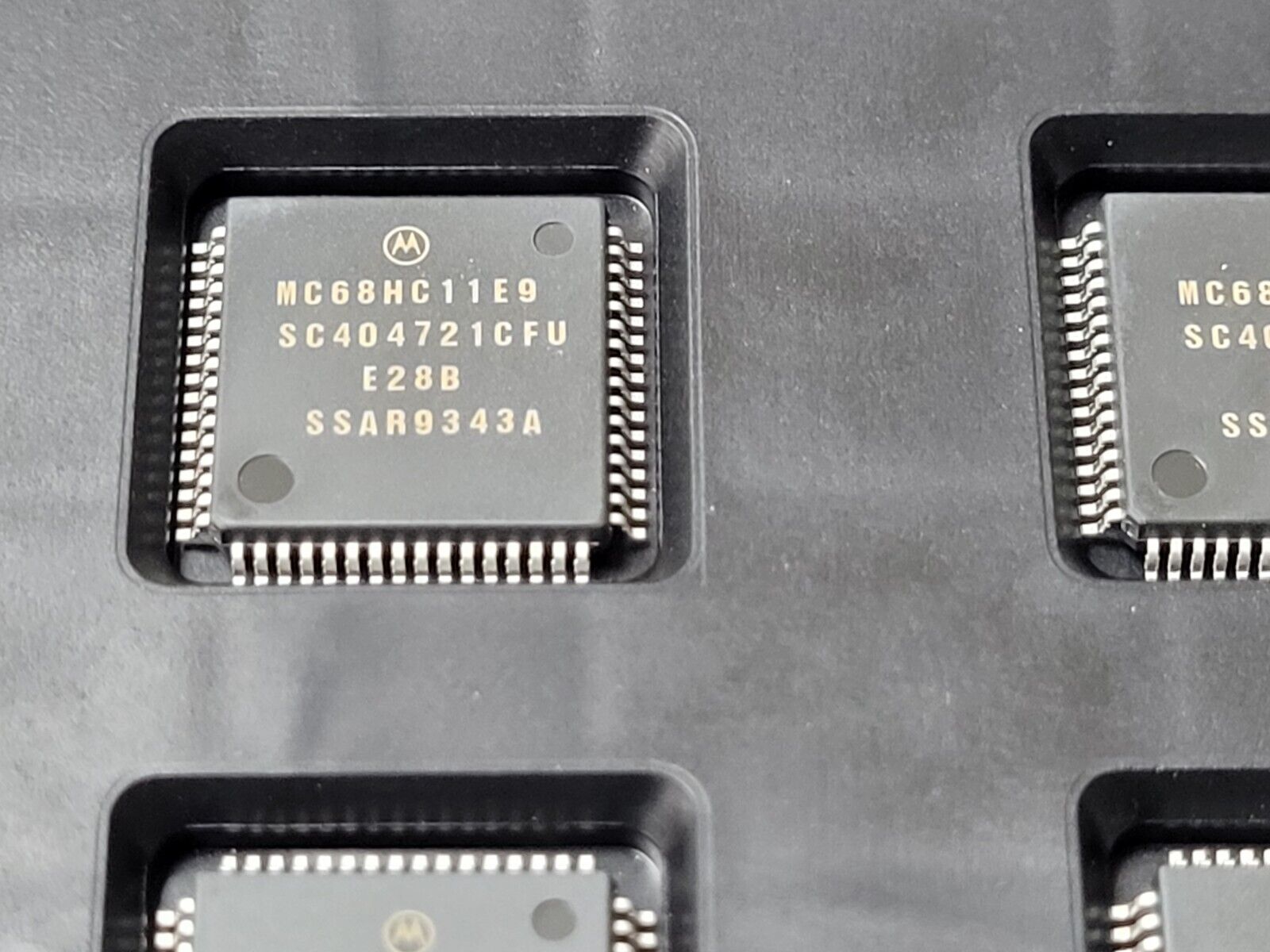

THIS IS FOR (10 PCS) OF MC68HC11E9CFU2 BY MOT
Microcontroller 8-Bit MROM 68HC11 CPU 2MHz HCMOS QFP64
Part #: MC68HC11E9CFU2
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Motorola Solutions, Inc.
Description: Microcontroller, 8-Bit, MROM, 6800 CPU, 2MHz, HCMOS, PQFP64
Mfr Package Description QFP-64
Status Discontinued
ADC Channels YES
Address Bus Width 16.0
Bit Size 8
Clock Frequency-Max 8.0 MHz
CPU Family 6800
DAC Channels NO
DMA Channels NO
External Data Bus Width 8.0
JESD-30 Code S-PQFP-G64
JESD-609 Code e0
Number of I/O Lines 38.0
Number of Terminals 64
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP64,.66SQ,32
Package Shape SQUARE
Package Style FLATPACK
Power Supplies 5
PWM Channels NO
Qualification Status Not Qualified
RAM (bytes) 512.0
ROM Programmability MROM
ROM (words) 12288
Seated Height-Max 2.46 mm
Speed 2.0 MHz
Sub Category Microcontrollers
Supply Current-Max 27.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology HCMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Length 14.0 mm
Width 14.0 mm
