(10PC) ICS542M Clock Fanout Buffer (Distribution), Divider IC 1:2 156 MHz 8-SOIC
(10PC) ICS542M Clock Fanout Buffer (Distribution), Divider IC 1:2 156 MHz 8-SOIC
(10PC) ICS542M Clock Fanout Buffer (Distribution), Divider IC 1:2 156 MHz 8-SOIC

(10PC) ICS542M Clock Fanout Buffer (Distribution), Divider IC 1:2 156 MHz 8-SOIC

Tax included.
Only 37 left!

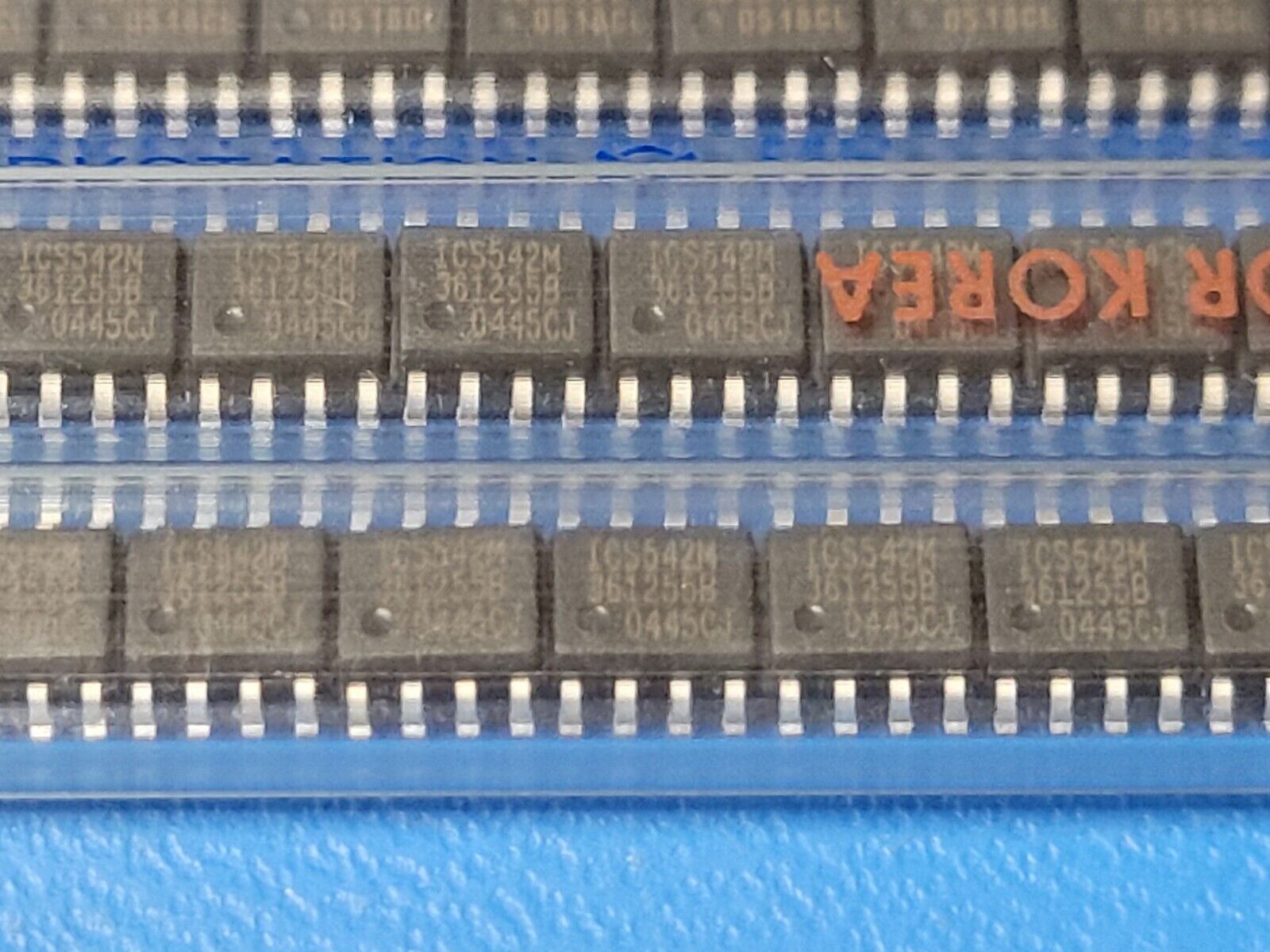

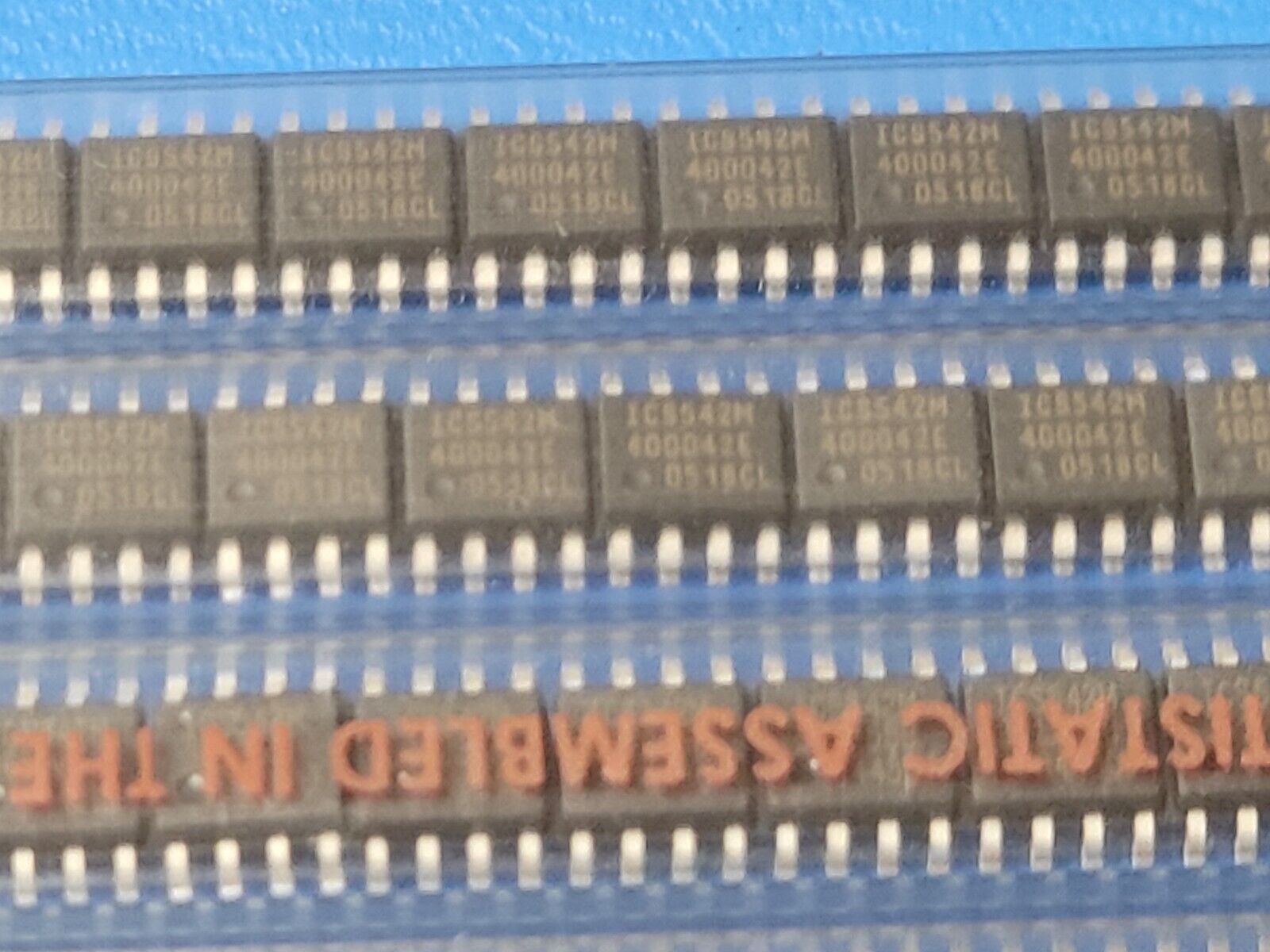

THIS IS FOR (10 PCS) OF ICS542M BY ICS/IDT
Clock Fanout Buffer (Distribution), Divider IC 1:2 156 MHz 8-SOIC

Part #: ICS542M
Part Category: Logic ICs
Manufacturer: Integrated Device Technology
Description: Low Skew Clock Driver, 542 Series, 2 True Output(s), 0 Inverted Output(s), CMOS, PDSO8

Mfr Package Description 0.150 INCH, SOIC-8
Status Transferred
Logic IC Type LOW SKEW CLOCK DRIVER
Sub Category Prescaler/Multivibrators
Family 542
fmax-Min 156.0  MHz
Input Conditioning STANDARD
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Max Frequency@Nom-Sup 1.56E8  Hz
Number of Functions 1
Number of Inverted Outputs 0.0
Number of Terminals 8
Number of True Outputs 2.0
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Propagation Delay (tpd) 15.0  ns
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 0.5  ns
Seated Height-Max 1.75  mm
Supply Voltage-Nom (Vsup) 3.3
Supply Voltage-Min (Vsup) 3.0  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27  mm
Terminal Position DUAL
Length 4.9  mm
Width 3.9  mm
