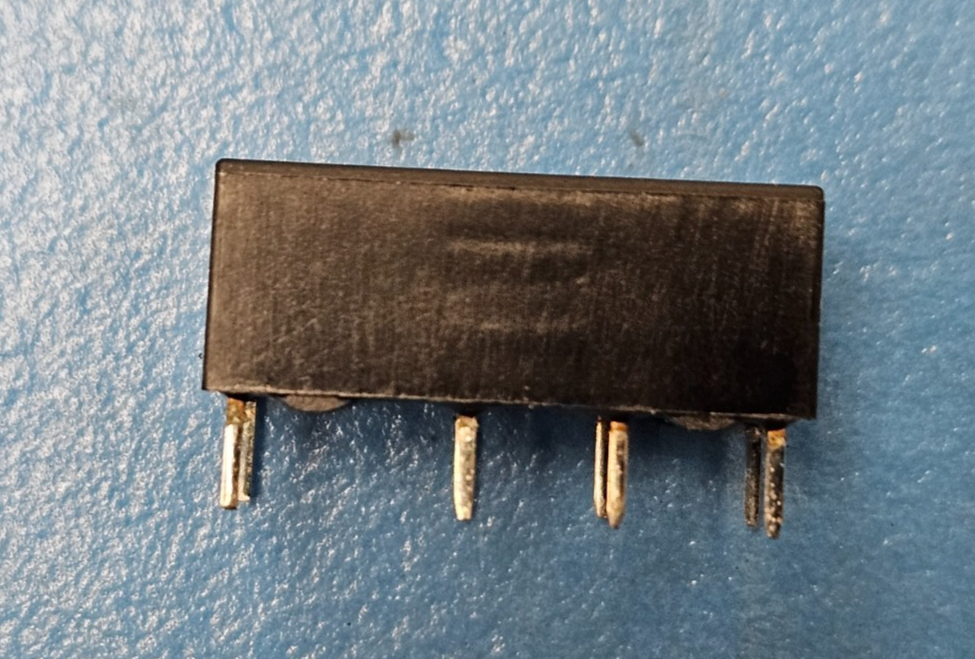

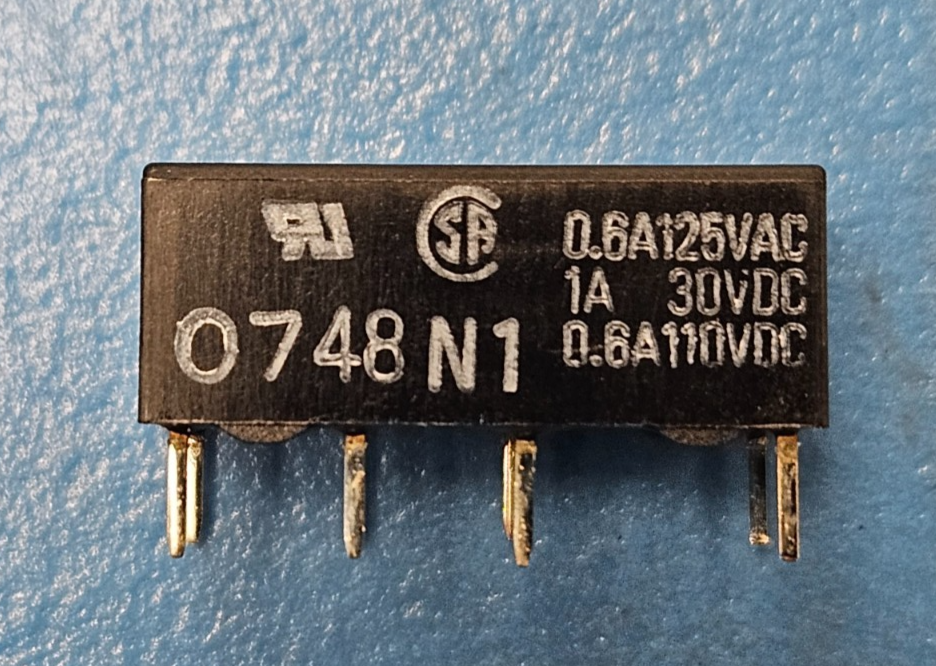

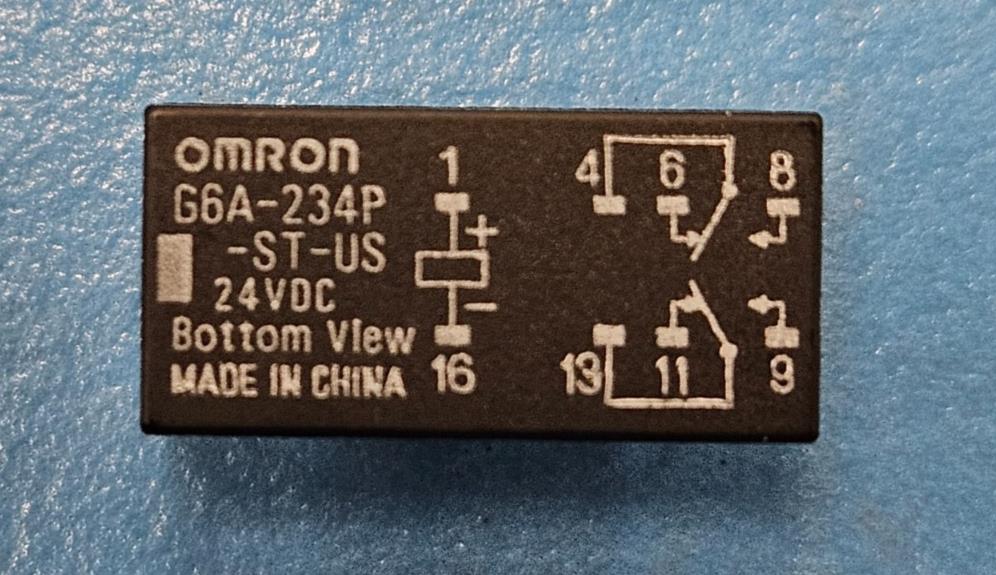

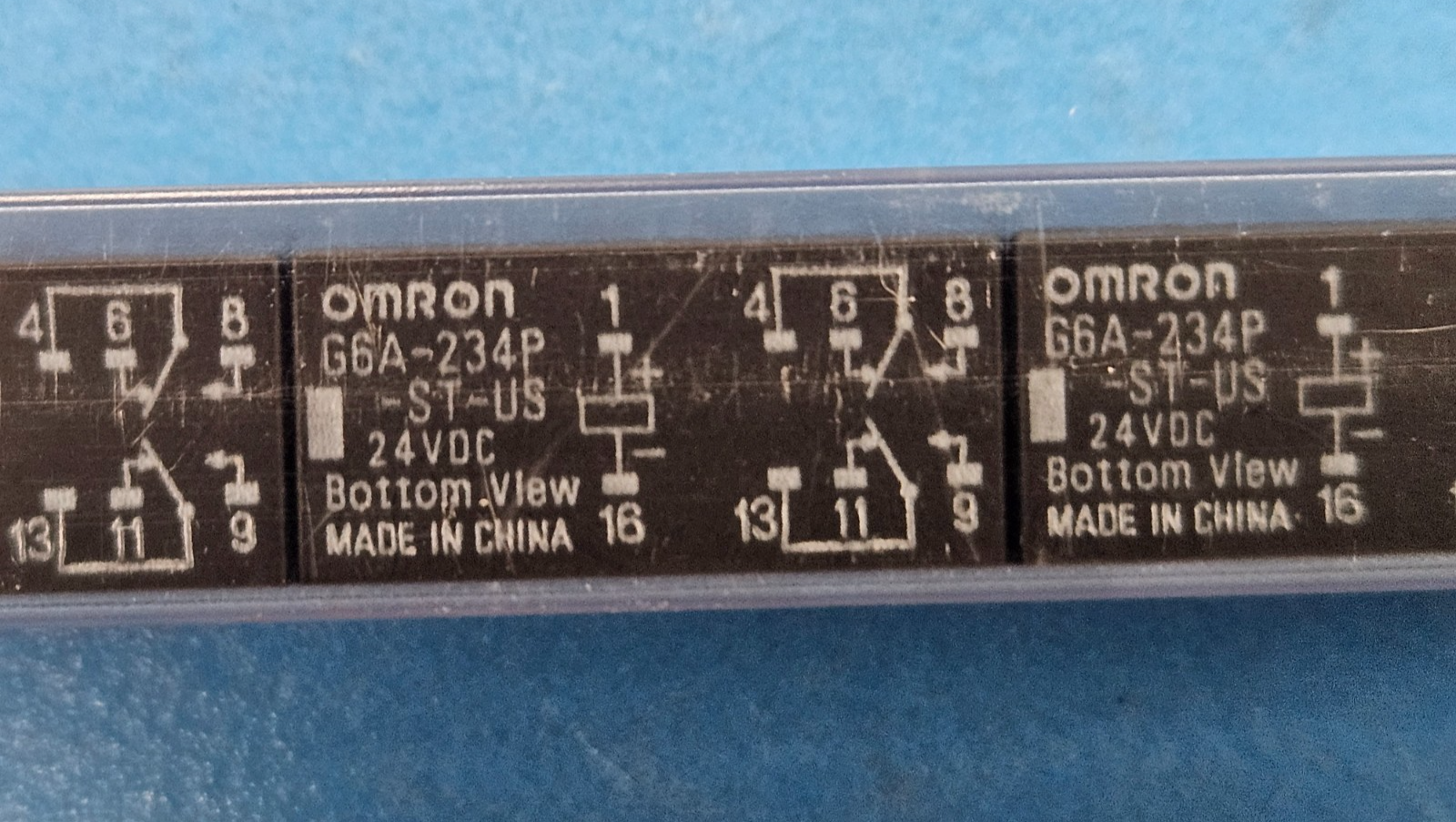

(10PC) G6A-234P-ST-US-DC24 Signal Relay,DPDT, 0.008A, 24VDC, (1A, 30VDC Contact)
Tax included.
This listing is for (10PCS) of G6A-234P-ST-US-DC24 by OMRON
Power/Signal Relay, DPDT, Momentary, 0.008A (Coil), 24VDC (Coil), 200mW (Coil), 1A (Contact), 30VDC (Contact), DC Input, AC/DC Output
Status Active
Body Breadth (mm) 10.1000
Body Height (mm) 8.4000
Body Length or Diameter (mm) 20.2000
Coil Current(DC)-Max (A) 0.00800000
Coil Operate Voltage(DC) (V) 16.80000000
Coil Power (mW) 200
Coil Release Voltage(DC) (V) 2.40000000
Coil Resistance (ohm) 2880.0000
Coil Voltage(DC)-Max (V) 24.00000000
Coil/Input Supply Type DC
Contact AC Max Rating R Load .6A@125VAC
Contact Current(AC)-Max (A) 0.60000000
Contact Current(DC)-Max (A) 1.00000000
Contact DC Max Rating R Load 1A@30VDC
Contact Voltage(AC)-Max (V) 125.00000000
Contact Voltage(DC)-Max (V) 30.00000000
Contact/Output Supply Type AC/DC
J-STD-609 Code e1
Mounting Feature THROUGH HOLE-STRAIGHT
Operate Time (ms) 5.5000
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) -40
Physical Dimension 20.2mm x 10.1mm x 8.4mm
Screening Level / Reference Standard CSA; UL
Relay Action MOMENTARY
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time (ms) 3.5000
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Termination Type SOLDER
