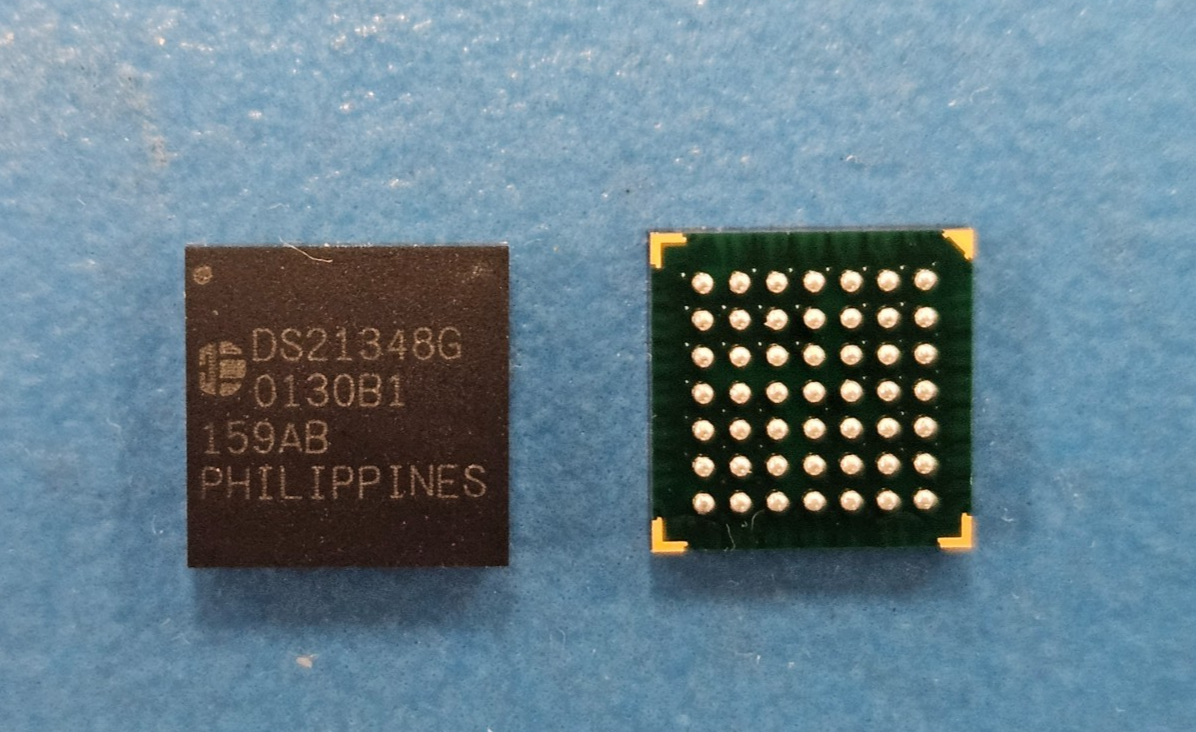

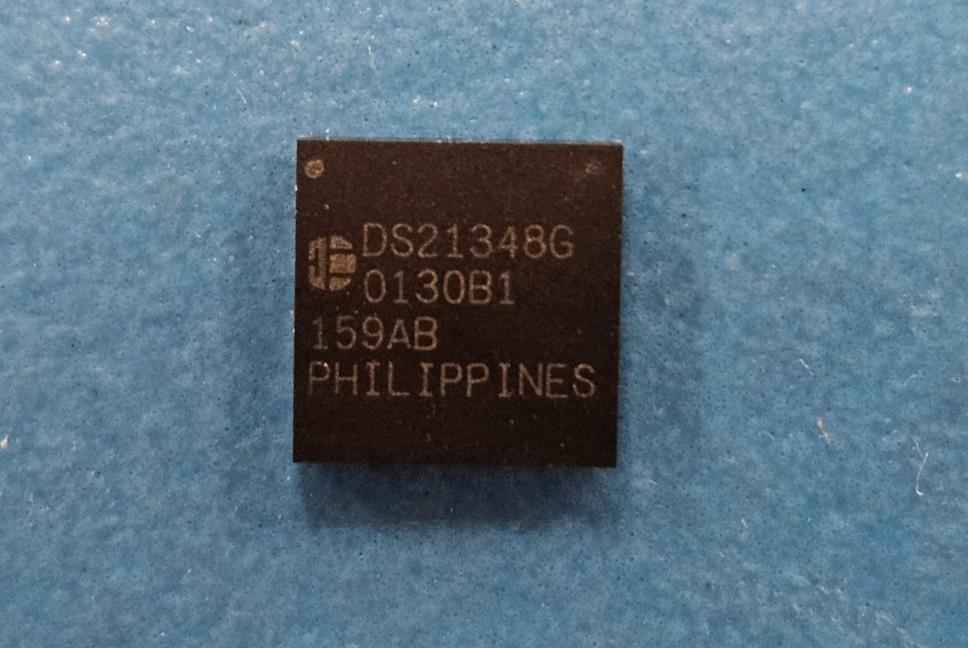

(10PC) DS21348G DALLAS SEMI Framer E1/J1/T1 3.3V 49-Pin CSBGA
Tax included.
This listing is for (10PC) of DS21348G by Dallas
Status Discontinued
JESD-30 Code S-PBGA-B49
J-STD-609 Code e0
Length (mm) 7.0000
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 49
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Package Body Material PLASTIC/EPOXY
Package Code LFBGA
Package Equivalence Code BGA49,7X7,32
Package Shape SQUARE
Package Style GRID ARRAY, LOW PROFILE, FINE PITCH
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.5000
Supply Current-Max (mA) 0.1000000000000000
Supply Voltage-Nom (V) 3.3000000000000000
Surface Mount YES
Telecom IC Type PCM TRANSCEIVER
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form BALL
Terminal Pitch (mm) 0.800
Terminal Position BOTTOM
Width (mm) 7.0000
