(10PC) DM74LS244WMX NSC Bus Driver, 2-Func, 4-Bit, True Output, TTL, SOIC20
Tax included.

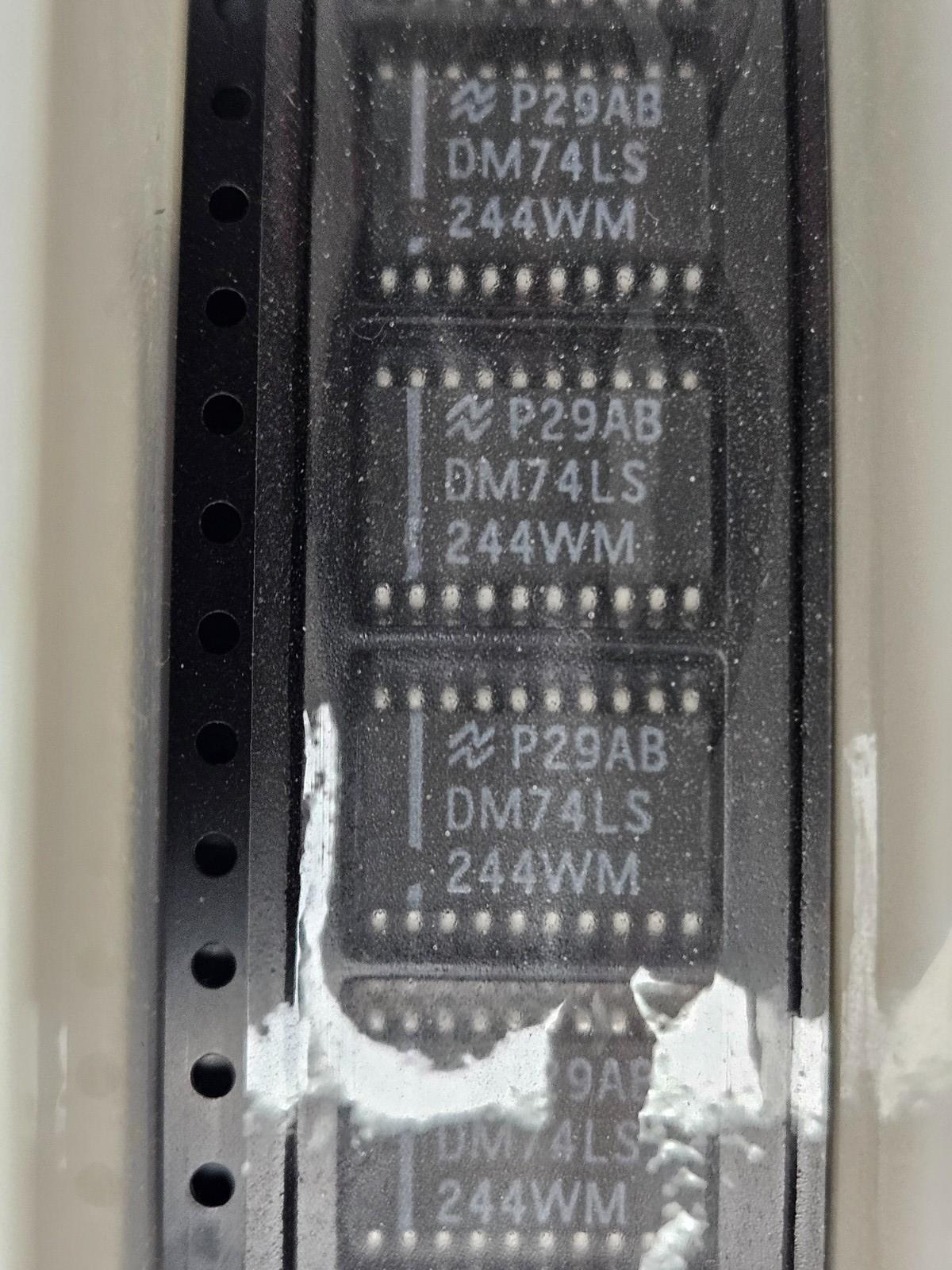

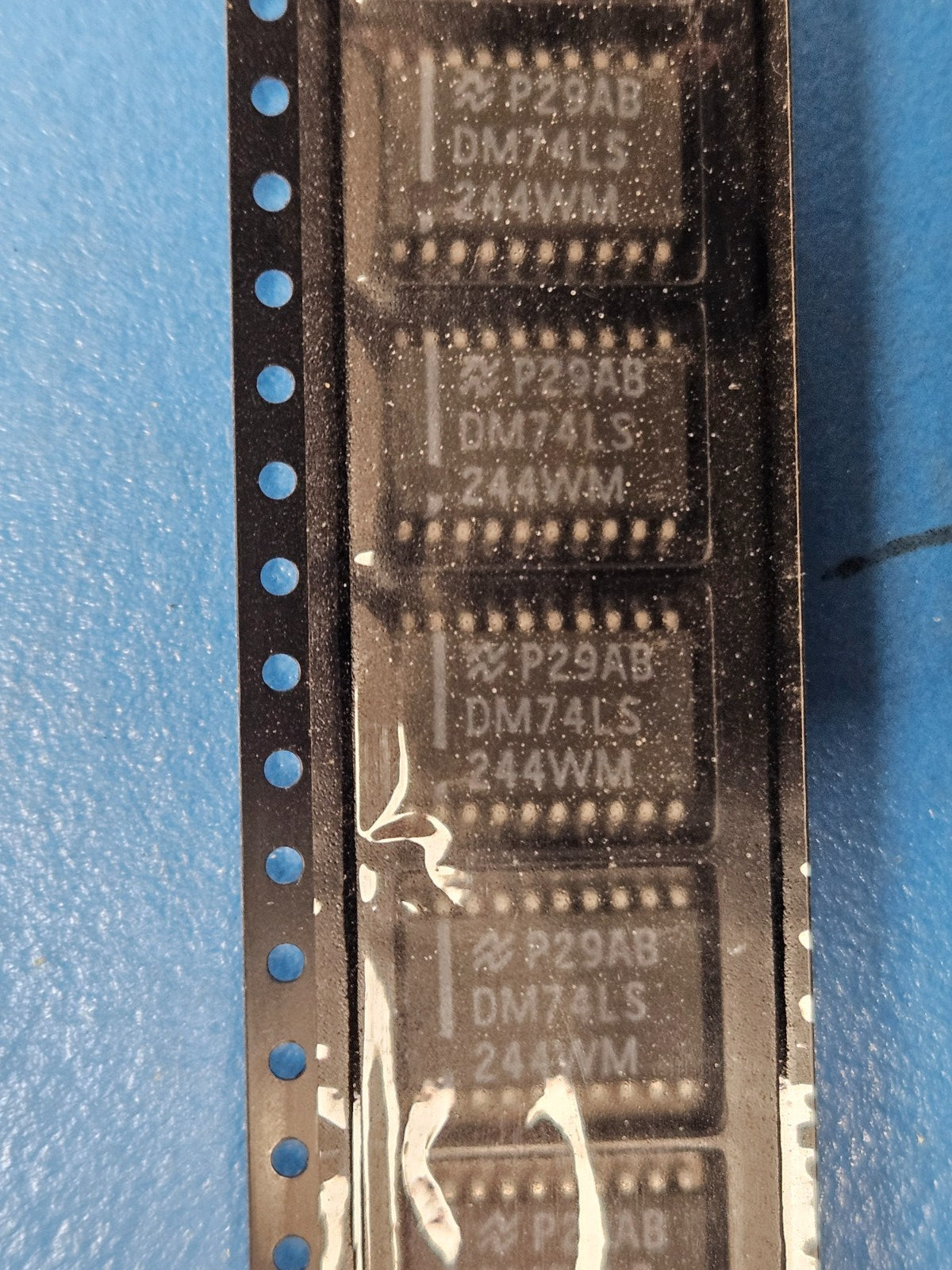

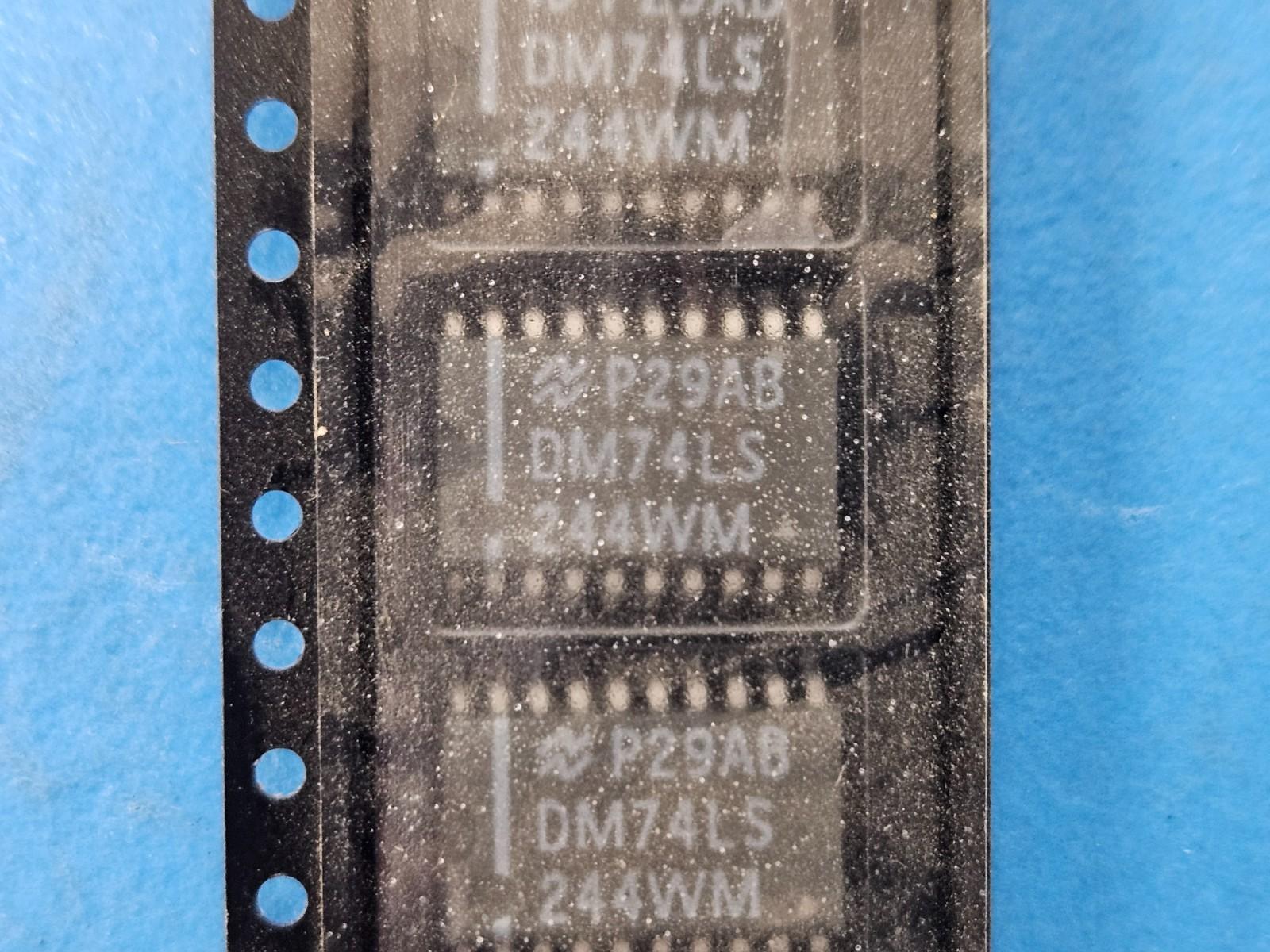

This listing is for (10PCS) of DM74LS244WMX by National Semiconductor
Mfr Package Description SOP-20
Status Transferred
Logic IC Type BUS DRIVER
Family LS
JESD-30 Code R-PDSO-G20
Load Capacitance (CL) 150.0 pF
Number of Bits 4
Number of Functions 2
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Power Supply Current-Max (ICC) 46.0 mA
Propagation Delay (tpd) 22.0 ns
Qualification Status Not Qualified
Seated Height-Max 2.641 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
