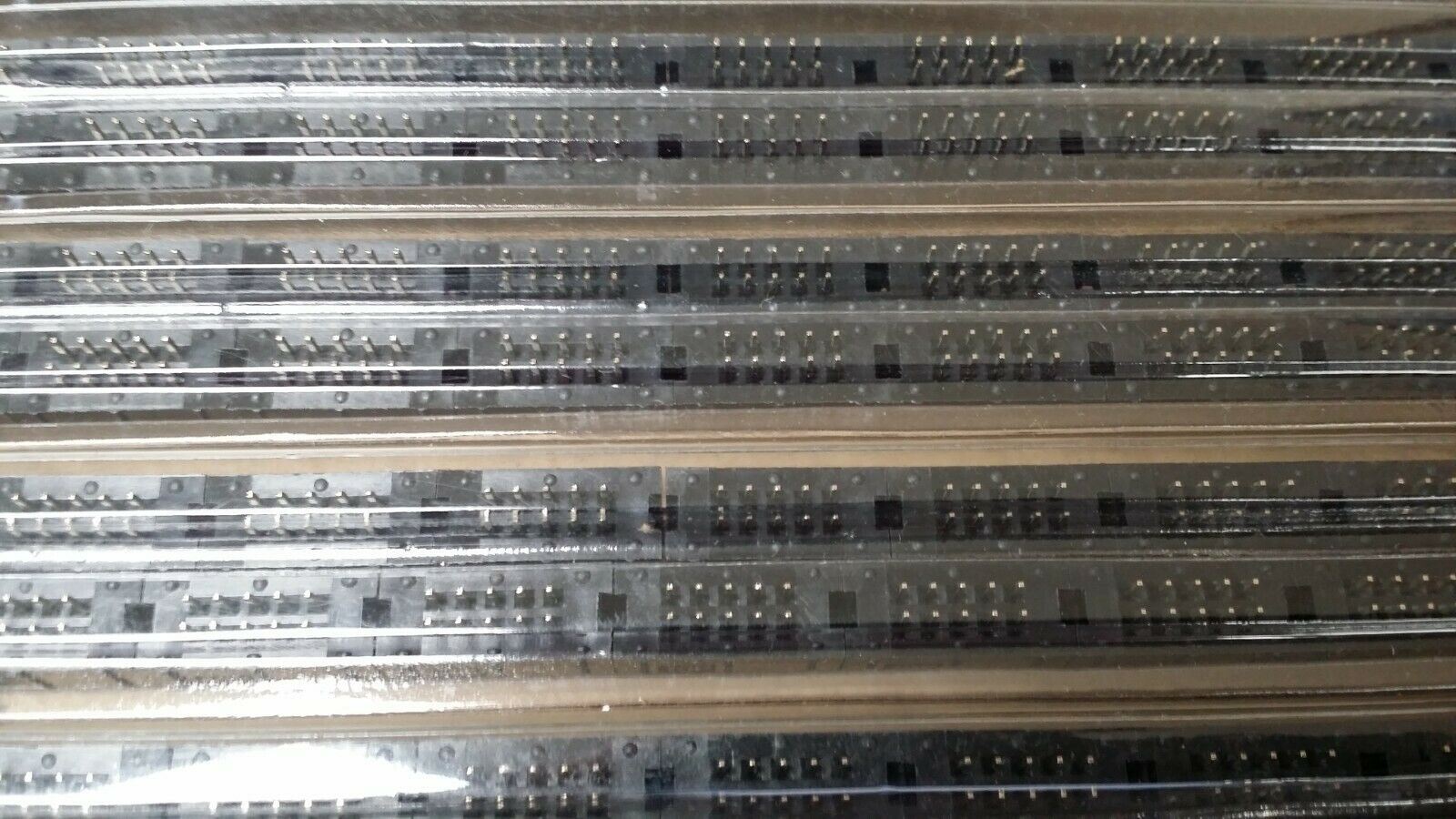

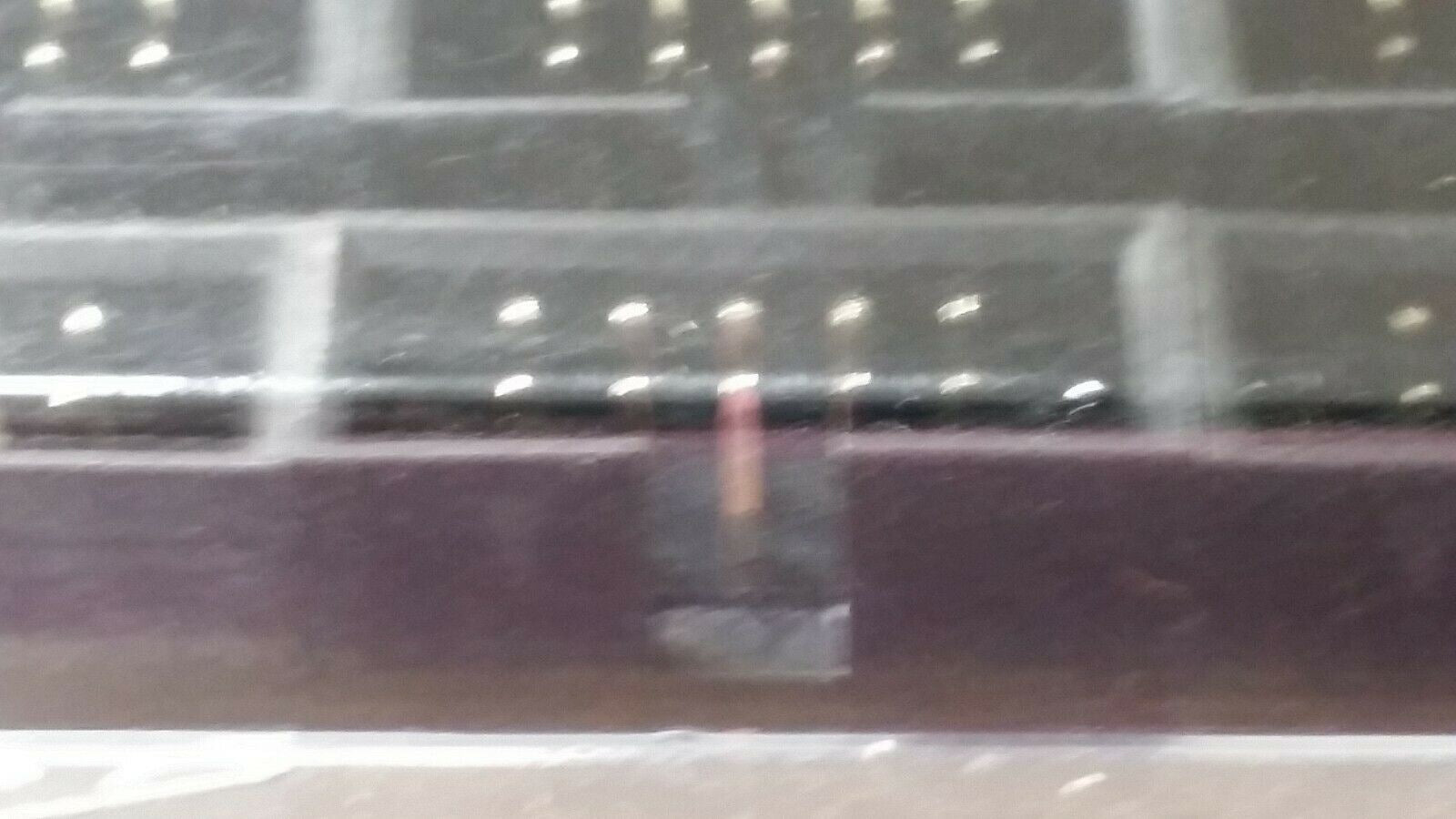

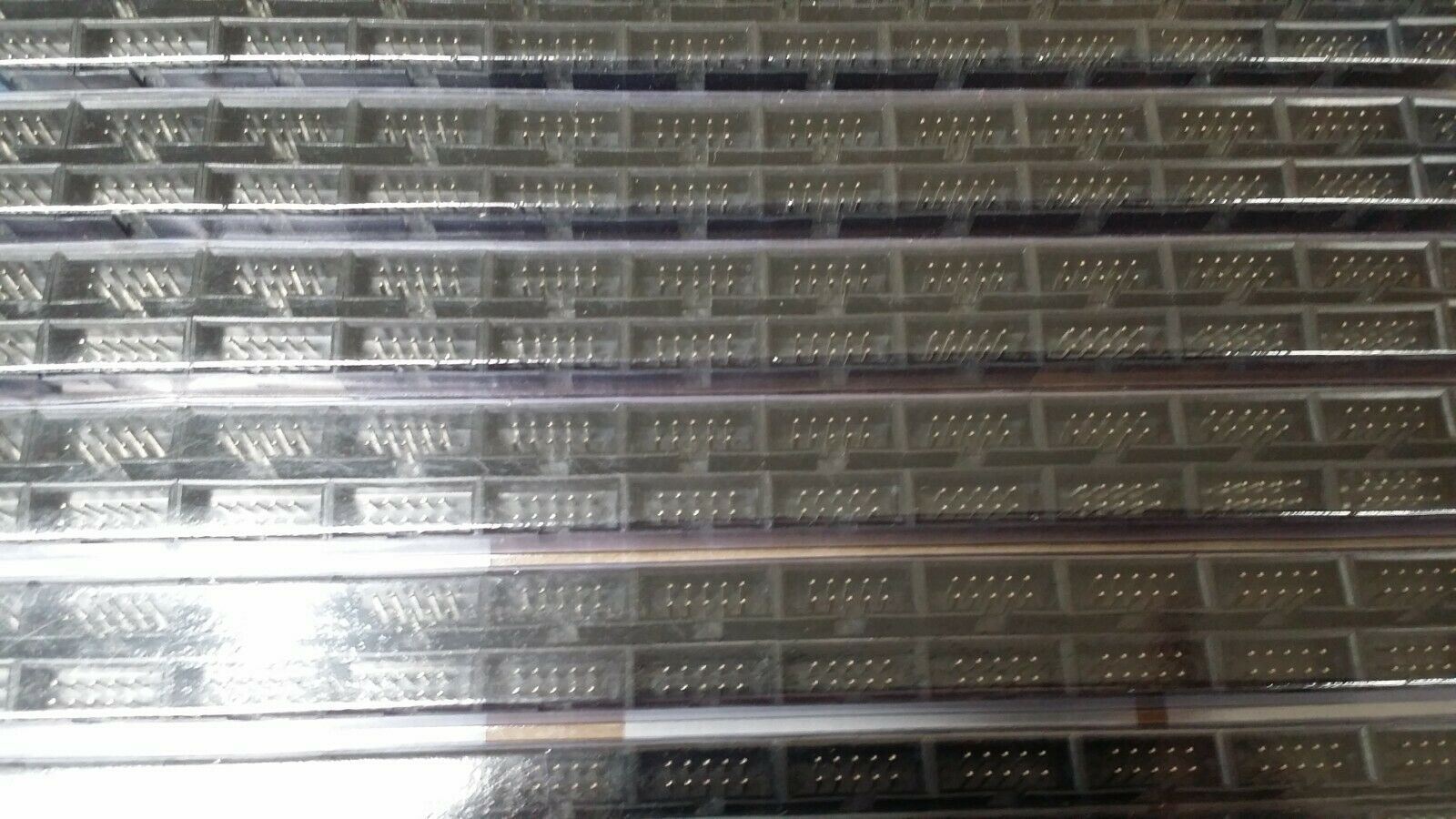

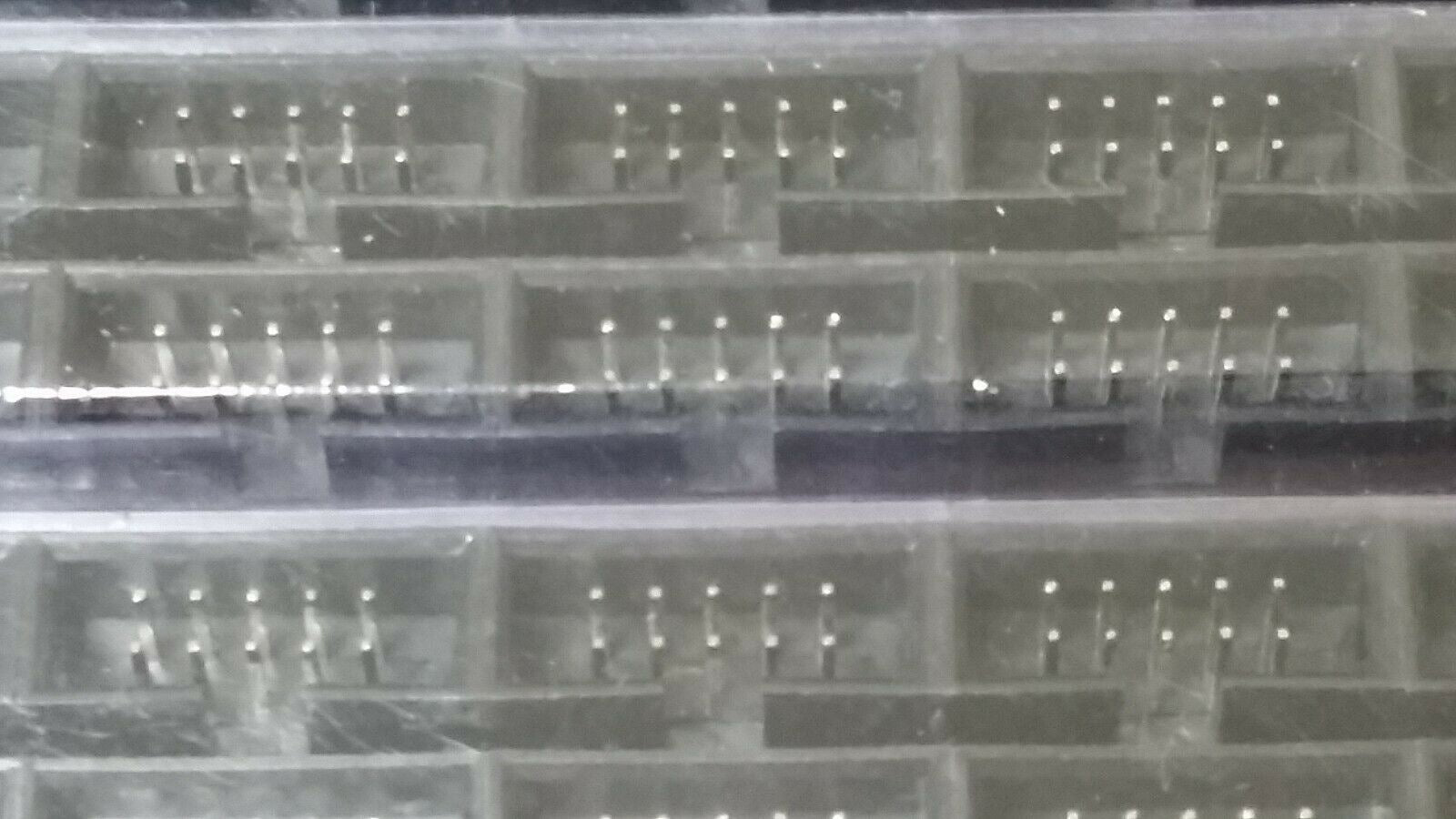

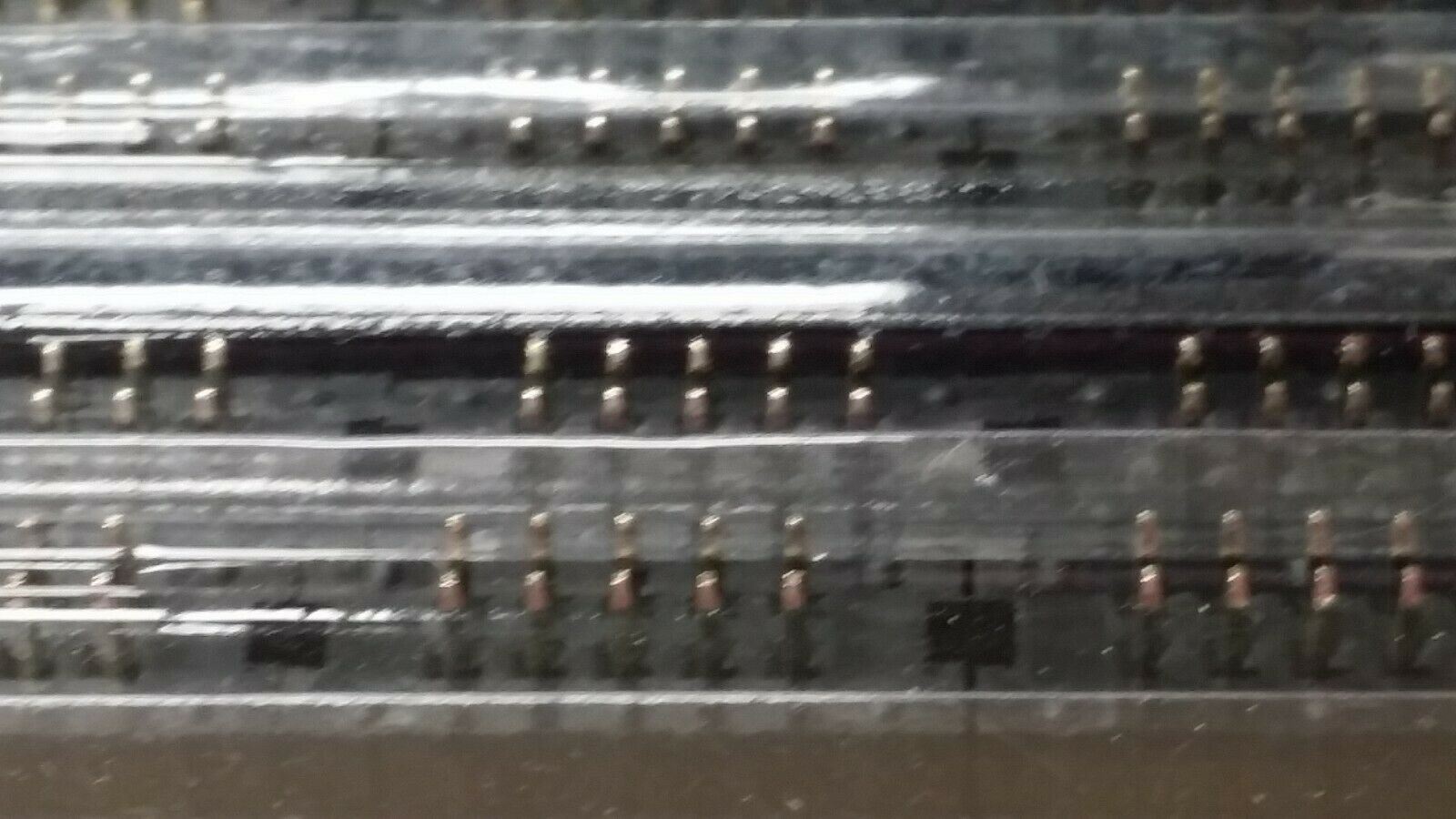

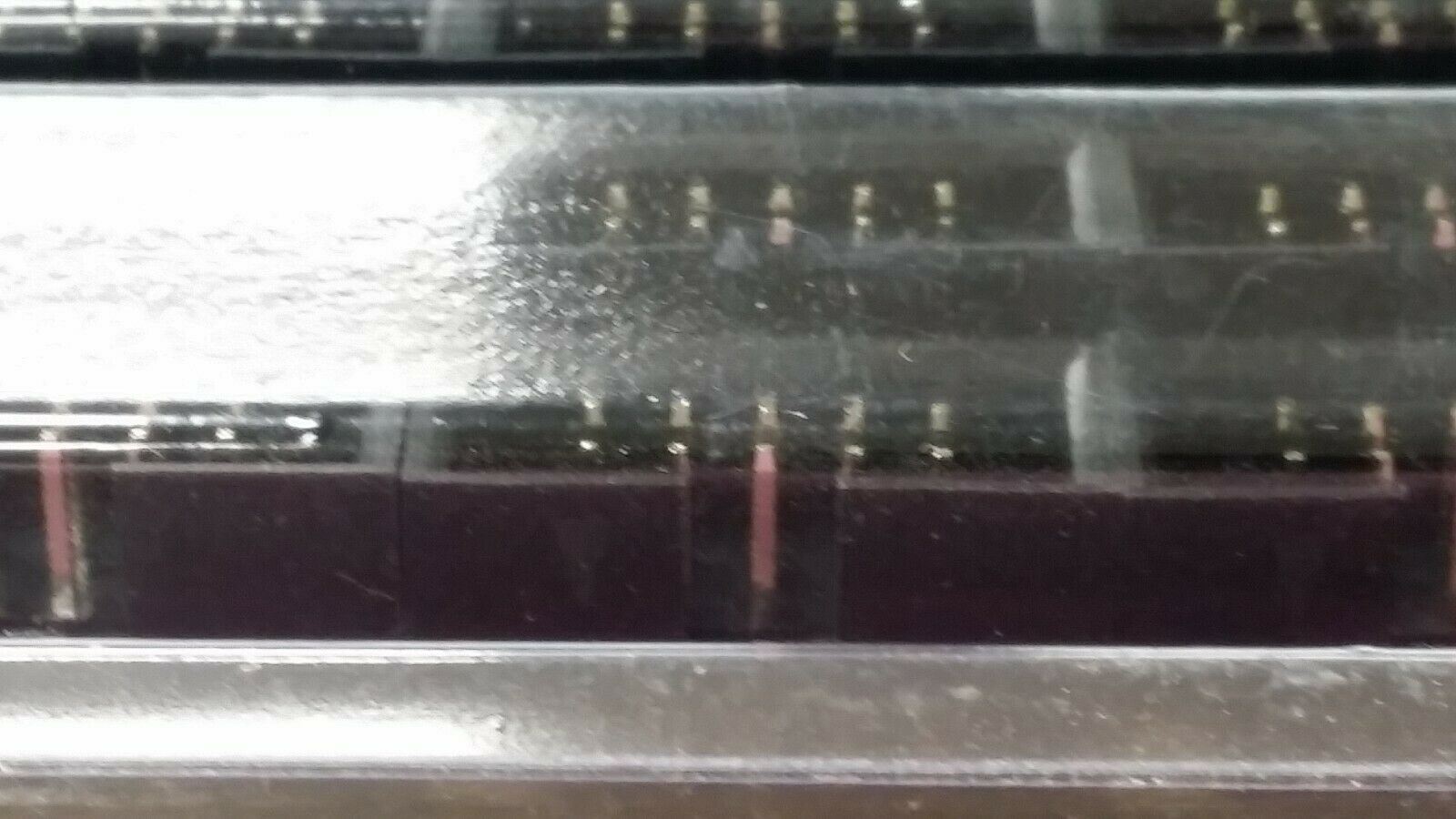

(10PC) BHR-10-VUA Connector Header Through Hole 10 position 0.100" (2.54mm) ROHS
Tax included.

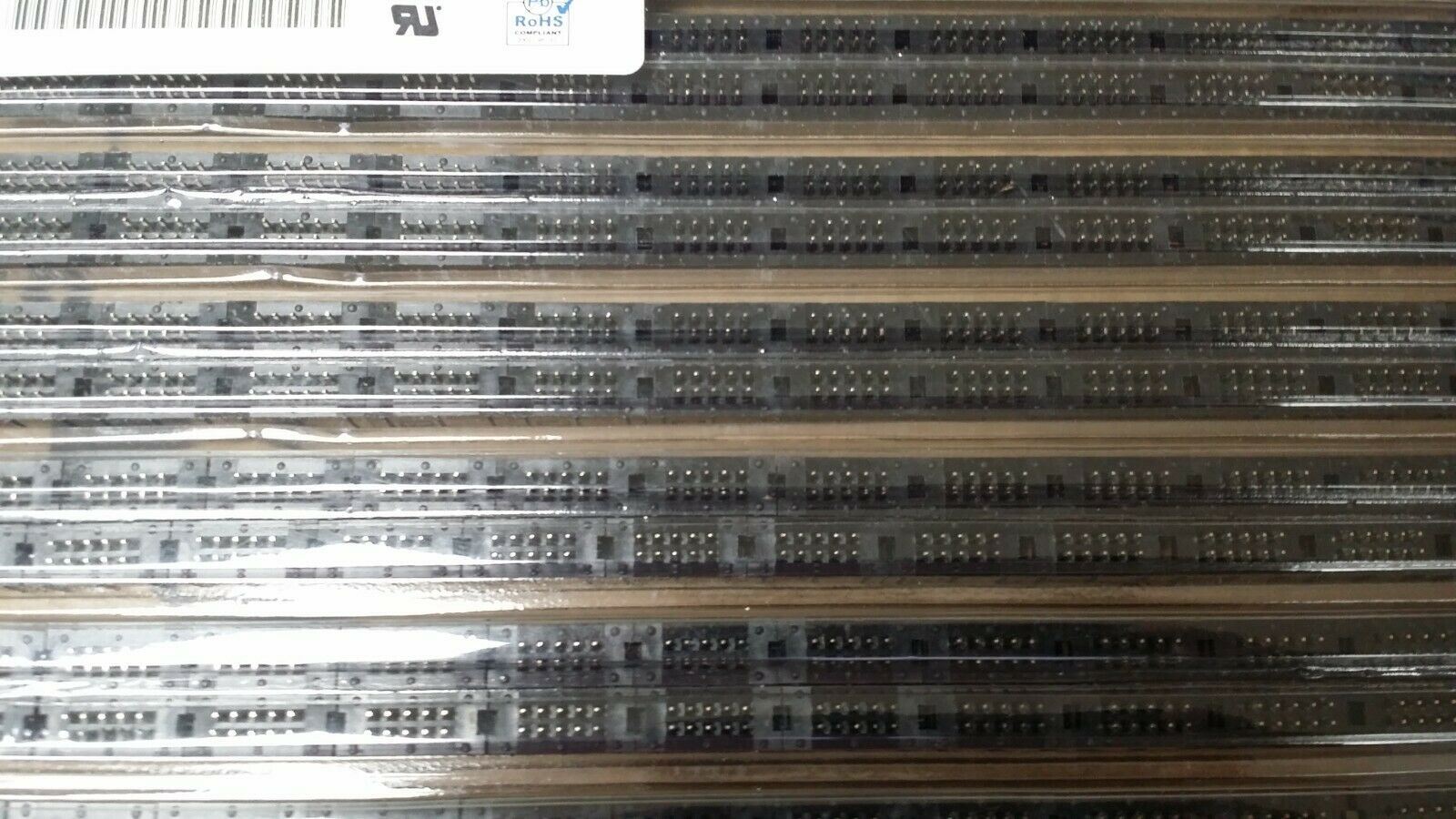

THIS IS FOR (10 PCS) OF BHR-10-VUA BY ADAM TECH
Connector Header Through Hole 10 position 0.100" (2.54mm) ROHS
Technical Attributes
No of Positions: 10
Pitch: 2.54 mm
Style/Orientation: Straight Header/Plug
Termination: IDC
Operating Temp Range: -55°C to +105°C
Voltage Rating: 250V
Current Rating: 3A
Contact Plating: Gold Flash
Material: Polybutylene Terephthalate
No of Rows: 2
Gender: Male
Type: Wire to Board
Insulation Resistance: 5000MΩ
Features & Applications
The BHR-10-VUA is a part of BHR series of Header. It has an operating temperature ranging from -55°C to +105°C.
The BHR Series .100” Box Headers are a dual row shrouded header for use with dual row IDC female socket connectors. Our low profile, space saving design has a center slot for the socket’s polarization bump.
Features:
Superior low profile design
Slot for IDC socket Polarization bump
Straight PCB, Right Angle PCB and SMT versions
Gold, Tin or Selective Gold plating
