(100PCS) SP0505BAHTG TVS Diodes 5.5V(R) 9. 9.2V-CLAMP1.2A 5-CH
Tax included.

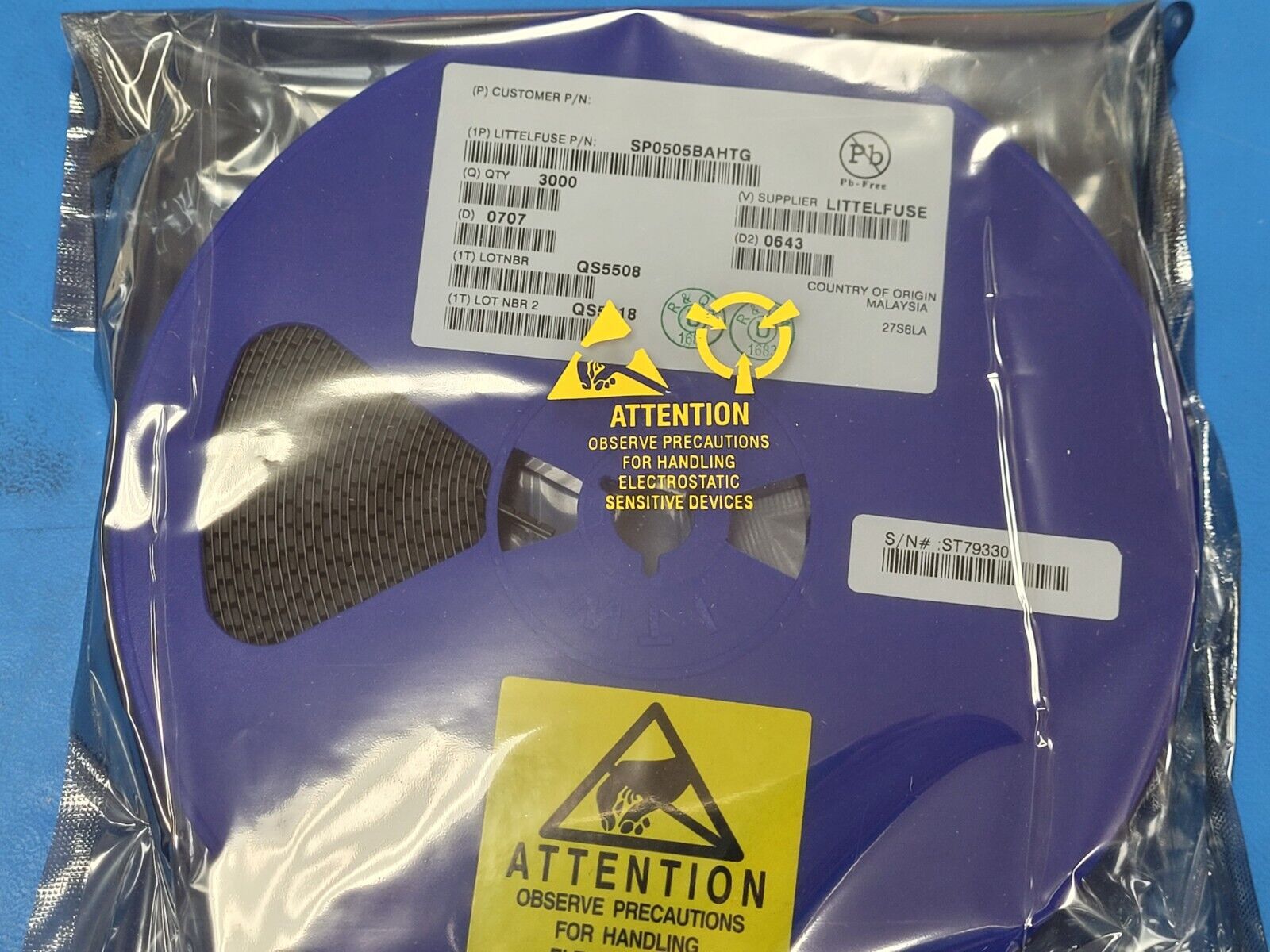

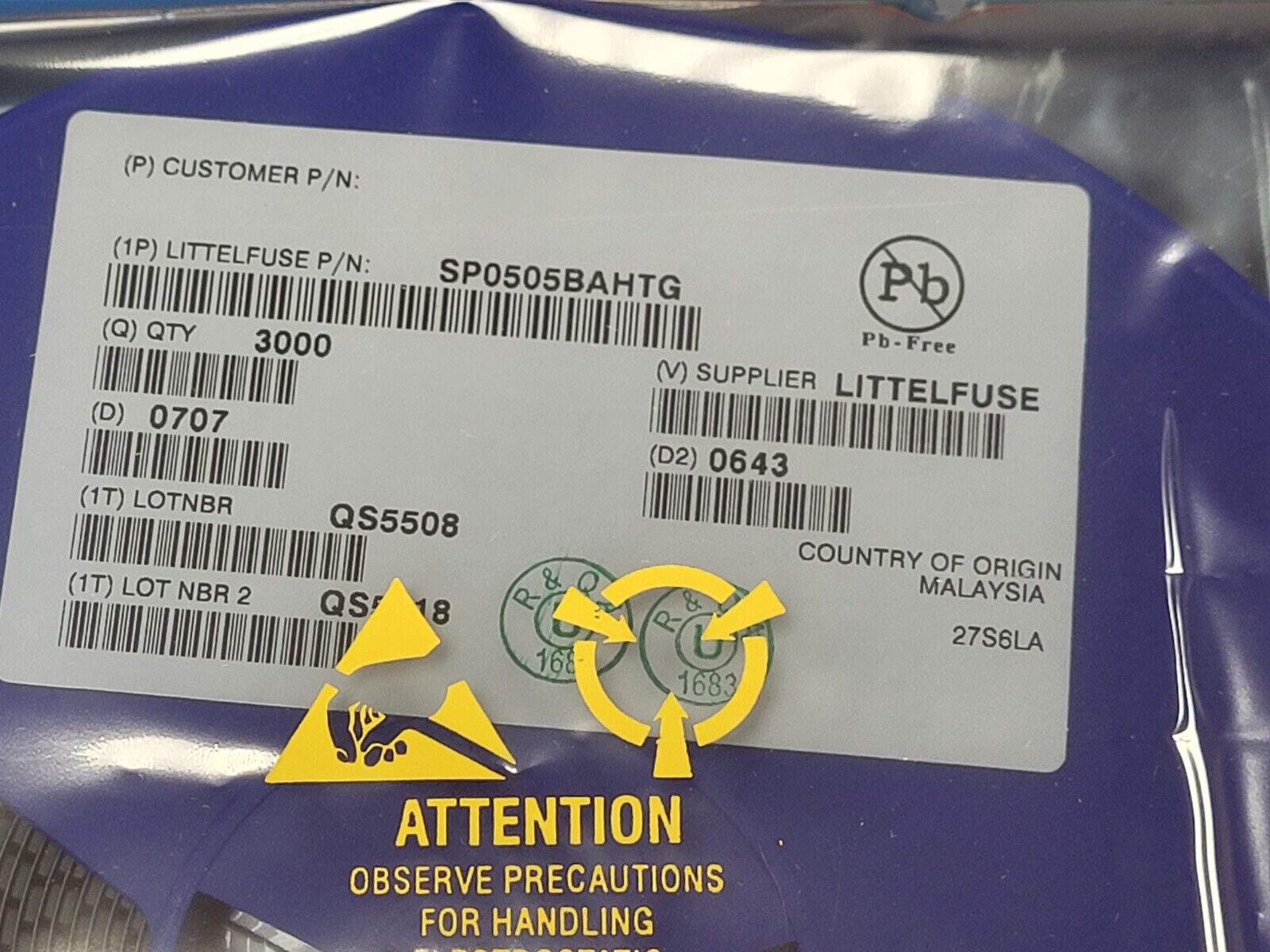

THIS LISTING IS FOR (100PCS) OF SP0505BAHTG BY LITTELFUSE
Mfr Package Description MO-178, 6 PIN
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Clamping Voltage-Max 6.8 V
Configuration COMMON ANODE, 5 ELEMENTS
Diode Element Material SILICON
JEDEC-95 Code MO-178AB
JESD-30 Code R-PDSO-G6
JESD-609 Code e3
Moisture Sensitivity Level 2
Number of Elements 5.0
Number of Terminals 6
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.225 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 5.5 V
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Additional Feature LOW CAPACITANCE
