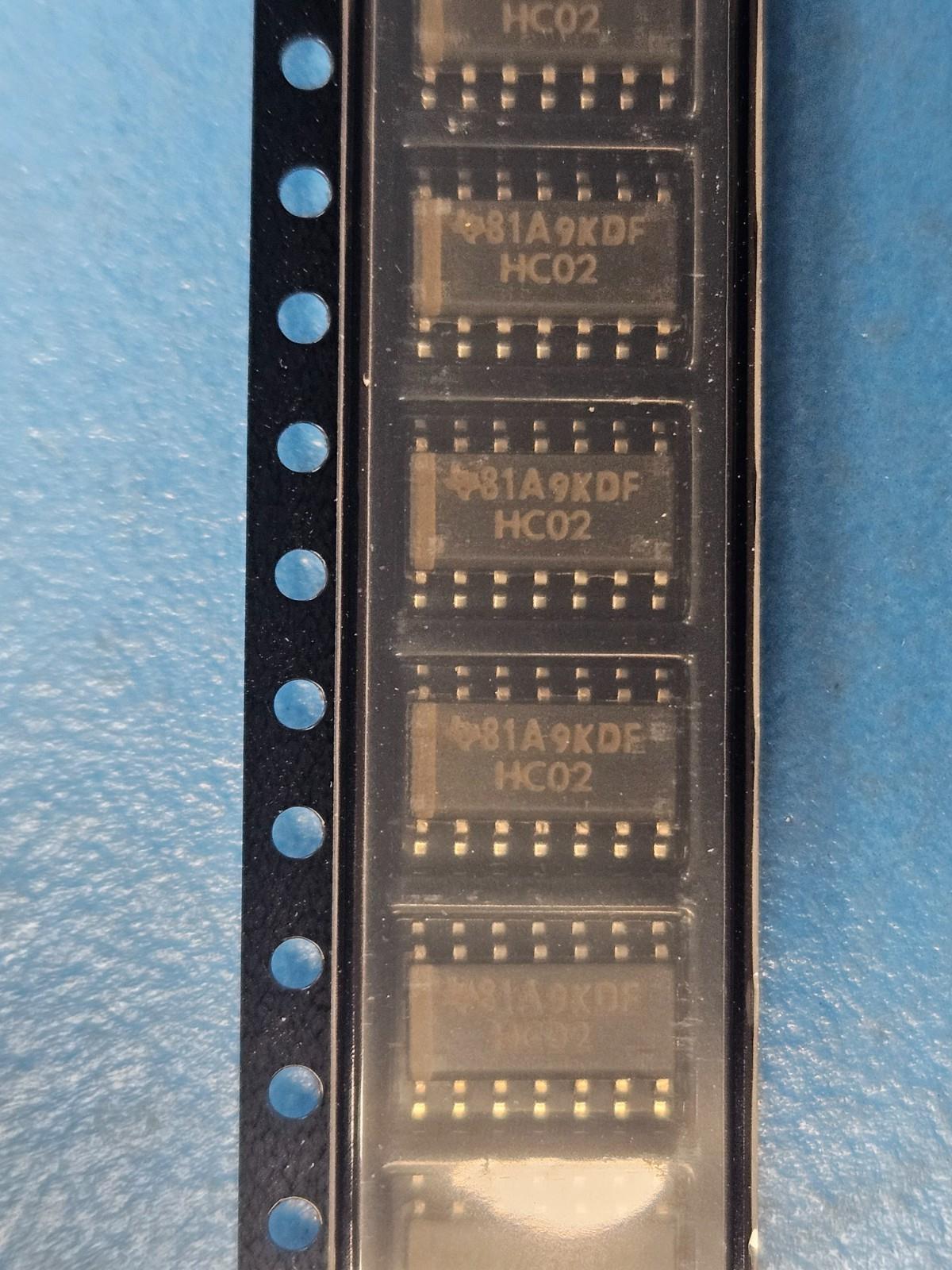

(100PCS) SN74HC02D TI NOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, SOIC14 HC02

$34.95
Unit price per

Tax included.

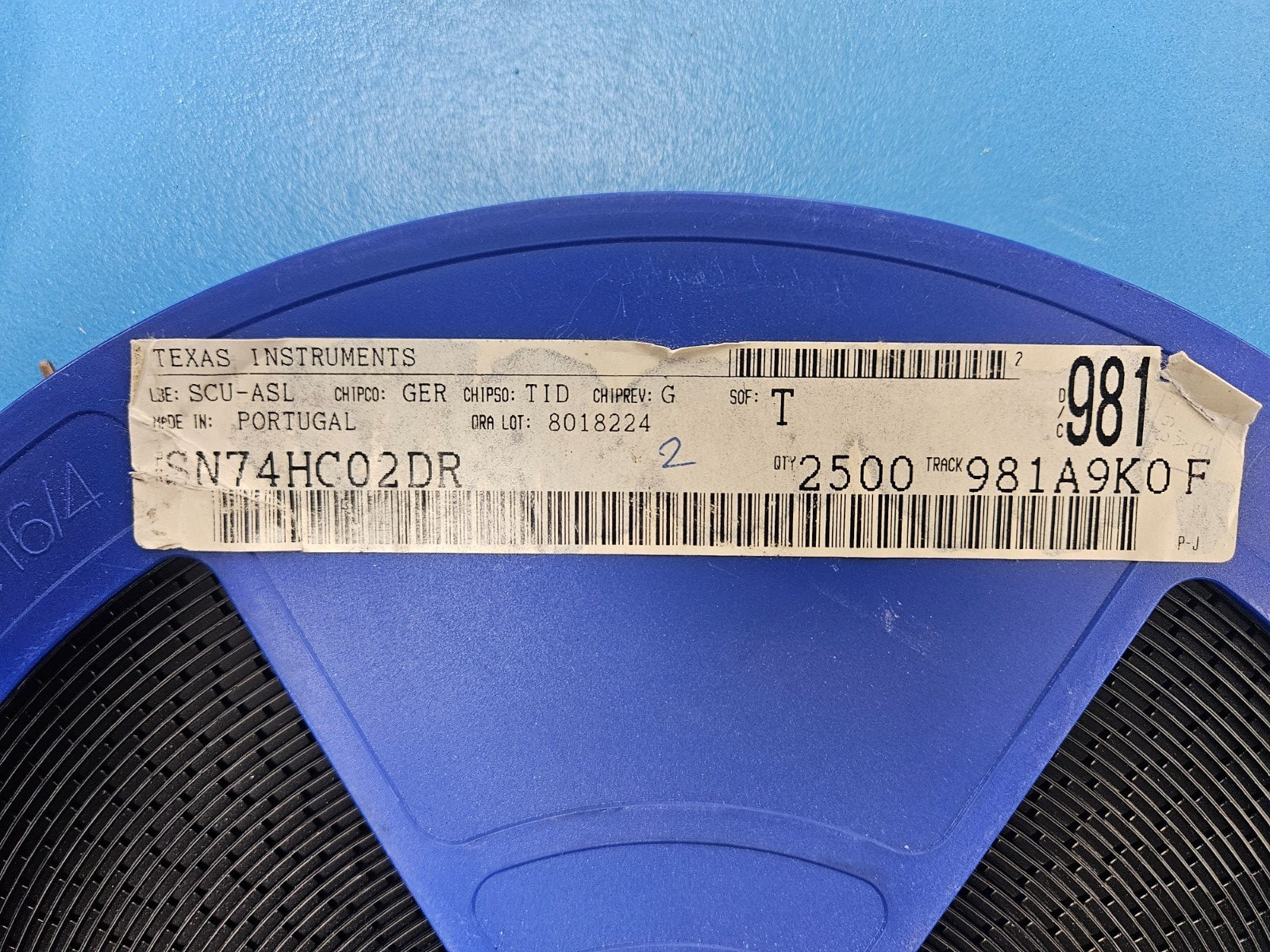

This listing is for (100PCS) of SN74HC02DR by Texas Instruments

Status Active

Family HC/UH

JESD-30 Code R-PDSO-G14

J-STD-609 Code e4

Length (mm) 8.6500

Load Capacitance (pF) 50.0000

Logic IC Type NOR GATE

Output Low Current-Max (mA) 5.200000000000000

Moisture Sensitivity Level 1

Number of Functions 4

Number of Inputs 2

Number of Terminals 14

Operating Temperature-Max (Cel) 85

Operating Temperature-Min (Cel) -40

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Equivalence Code SOP14,.25

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Packing Method TR, 13 INCH

Peak Reflow Temperature (Cel) 260

Supply Current-Max (mA) 0.02000000

Propagation Delay-Max@Nom-Sup (ns) 23.000000000000000000

Propagation Delay (ns) 115.0000

DLA Qualification Not Qualified

Schmitt Trigger NO

Seated Height-Max (mm) 1.7500

Supply Voltage-Max (V) 6.0000

Supply Voltage-Min (V) 2.0000

Supply Voltage-Nom (V) 5

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)

Terminal Form GULL WING

Terminal Pitch (mm) 1.270

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) 30

Width (mm) 3.9000
