(100PCS) MC14106BD MC14106BDR2 Inverter, 6-Func, 1-Input, CMOS, SOIC14
Tax included.

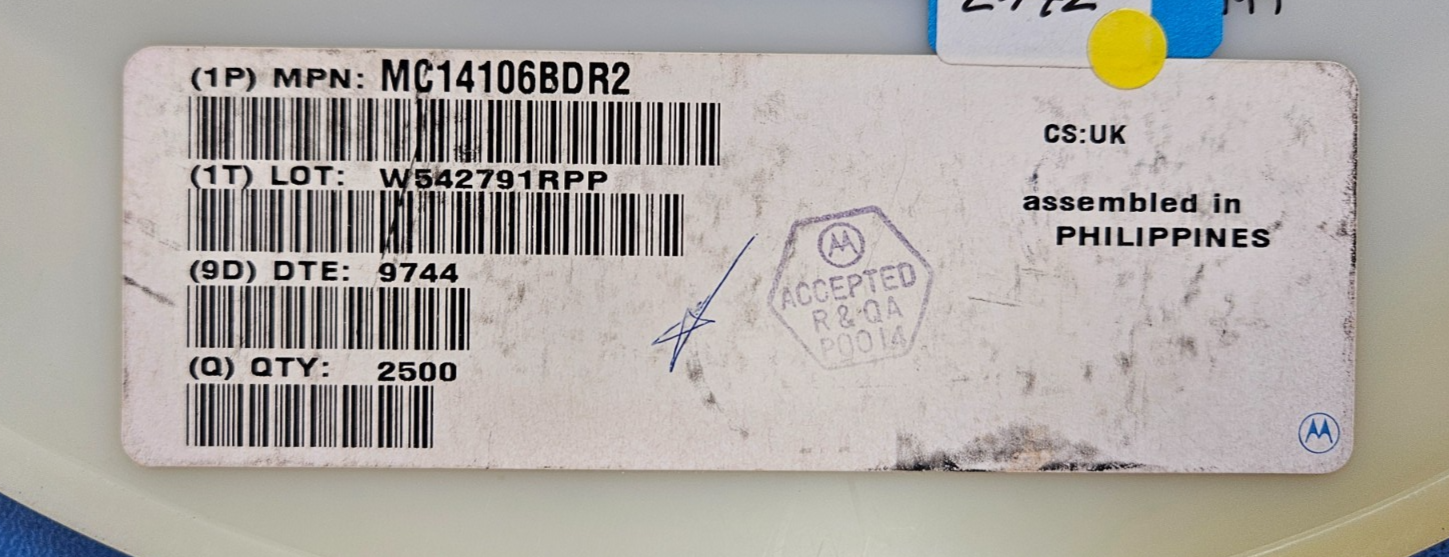

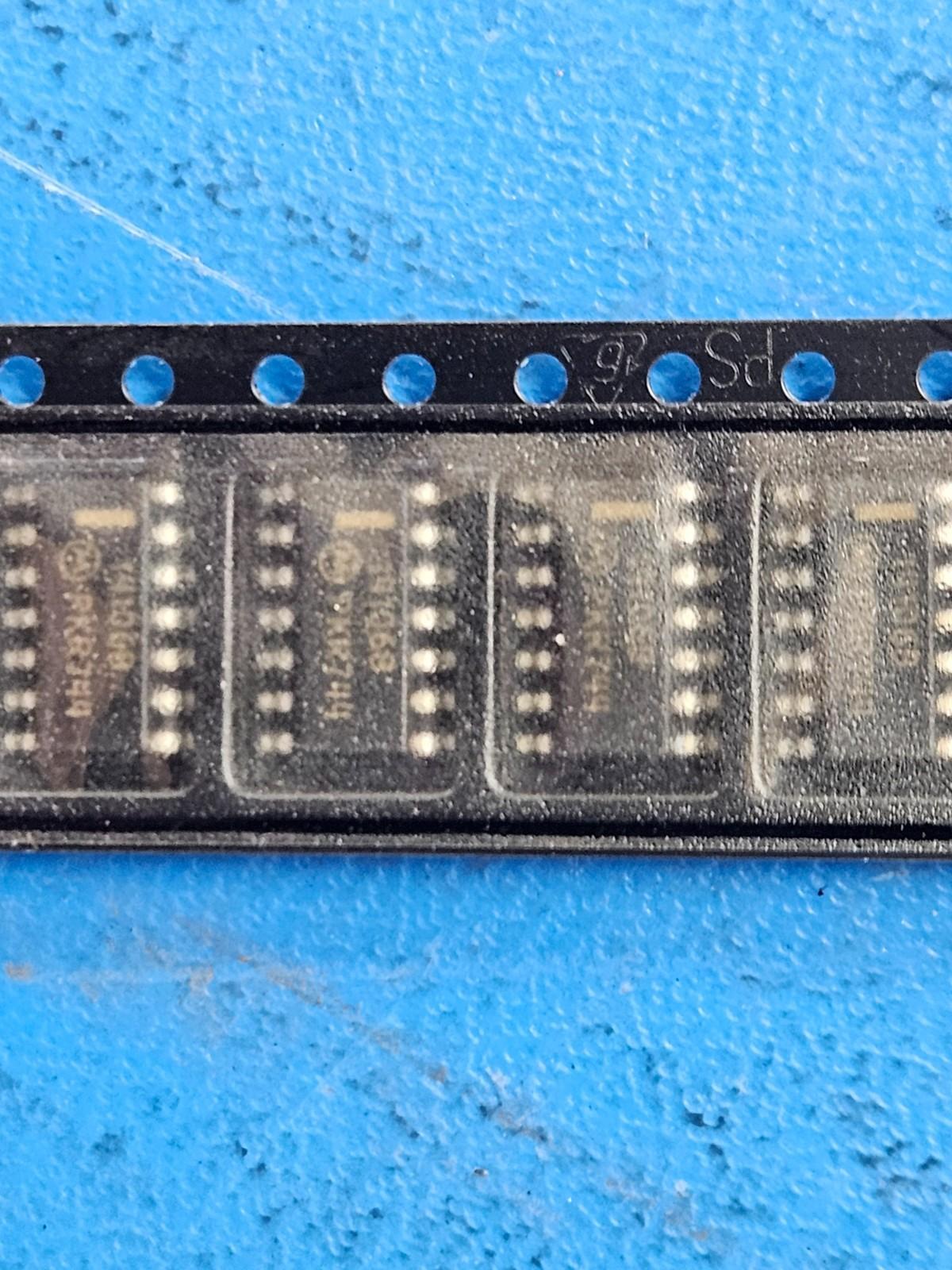

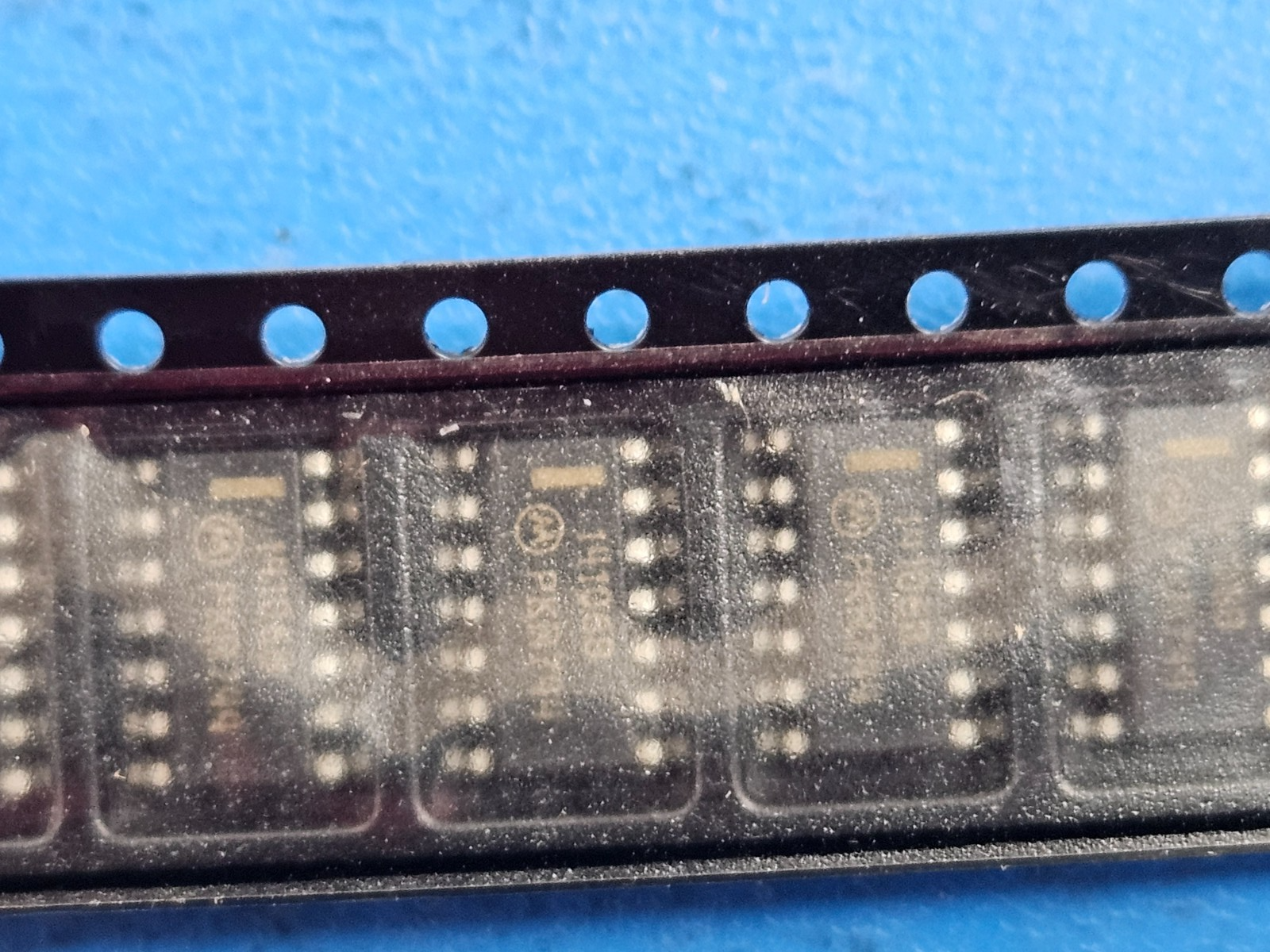

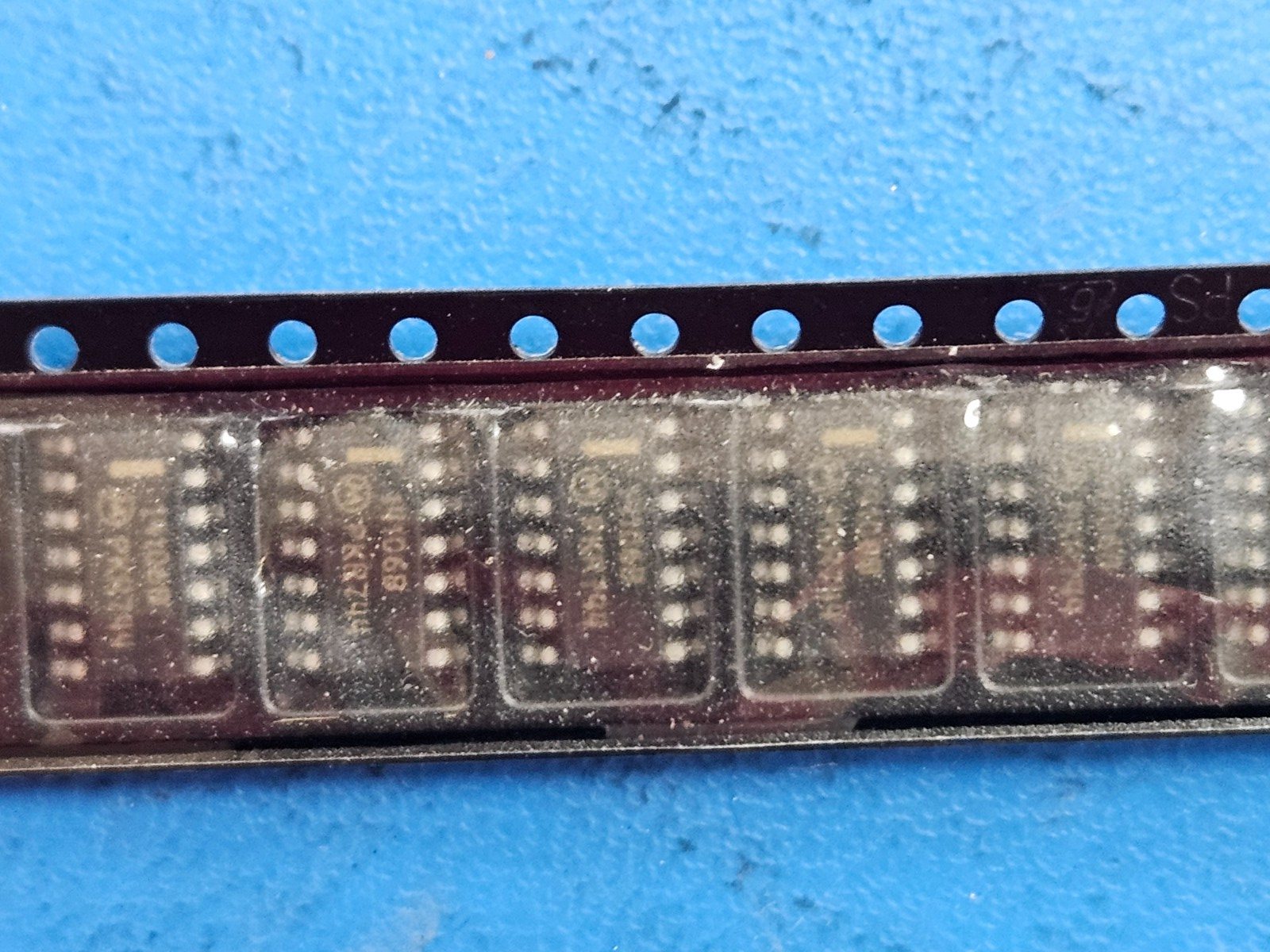

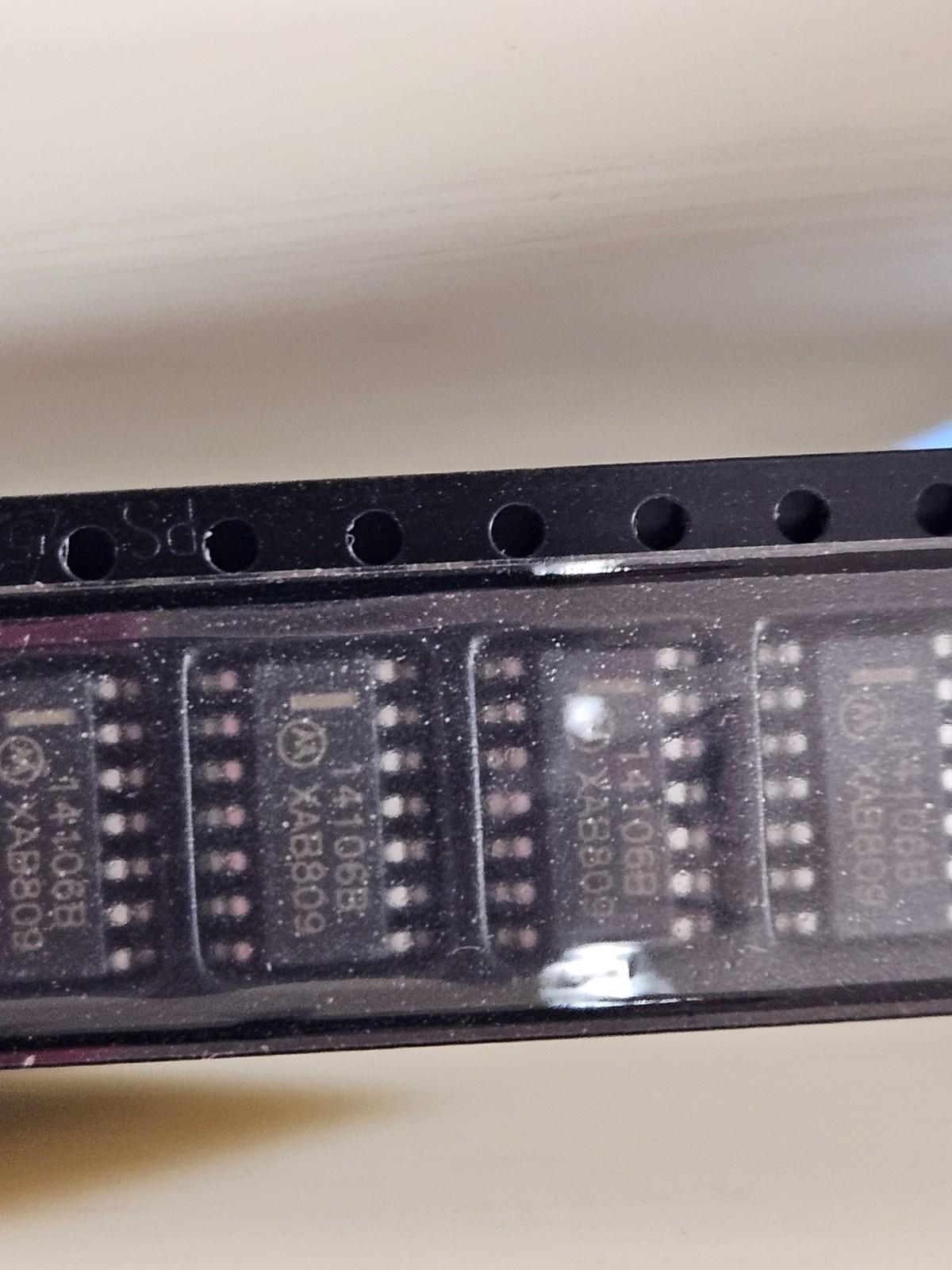

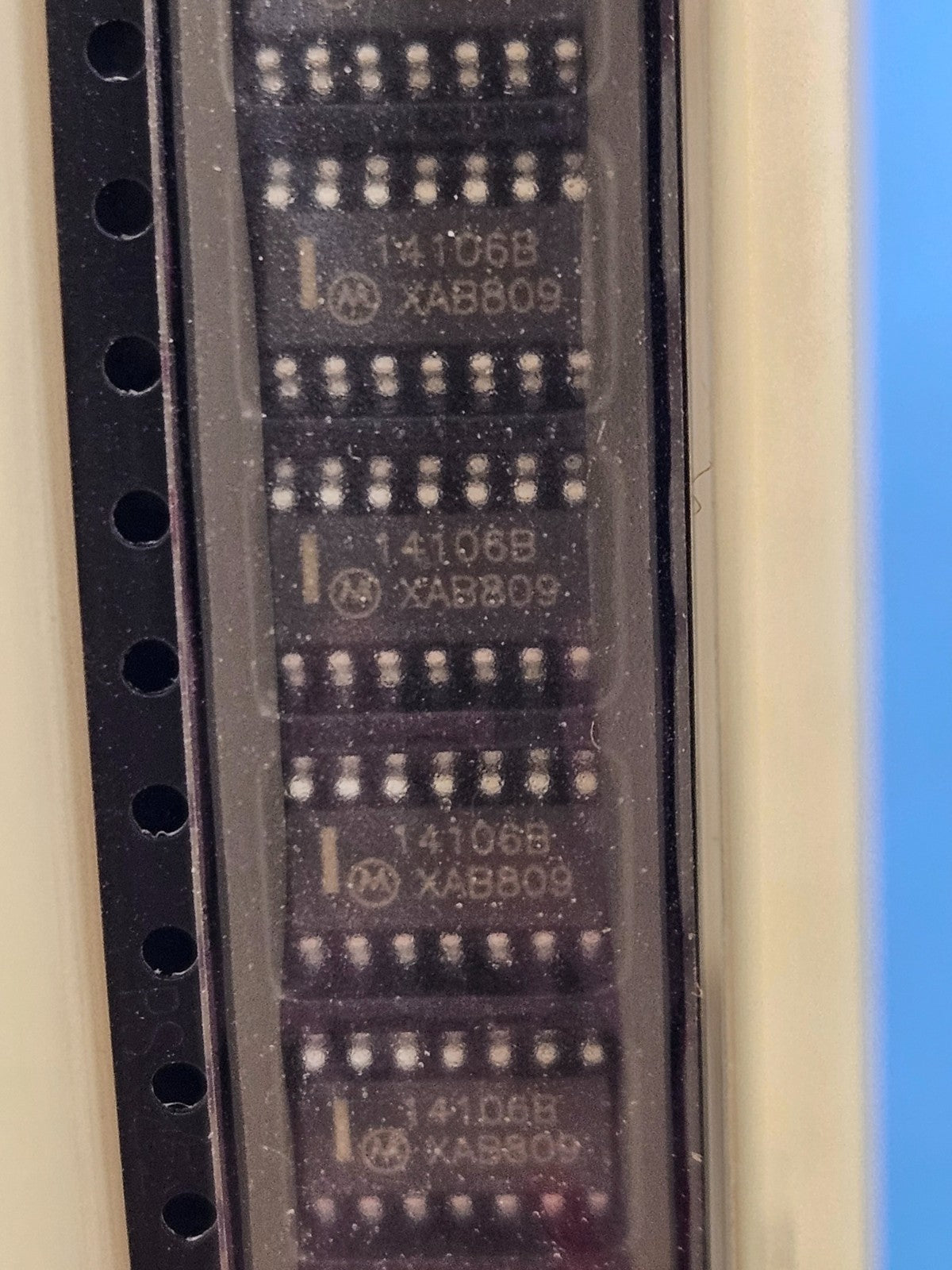

This listing is for (100PCS) of MC14106BD by Motorola
Family 4000/14000/40000
JESD-30 Code R-PDSO-G14
J-STD-609 Code e0
Length (mm) 8.6500
Load Capacitance (pF) 50.0000
Logic IC Type INVERTER
Number of Functions 6
Number of Inputs 1
Number of Terminals 14
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Propagation Delay (ns) 250.0000
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.7500
Supply Voltage-Max (V) 18.0000
Supply Voltage-Min (V) 3.0000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 3.9000
