(100PCS) M12L64164A-5TG ESMT Synchronous DRAM, 4MX16, 4.5ns, CMOS TSOP54
Tax included.

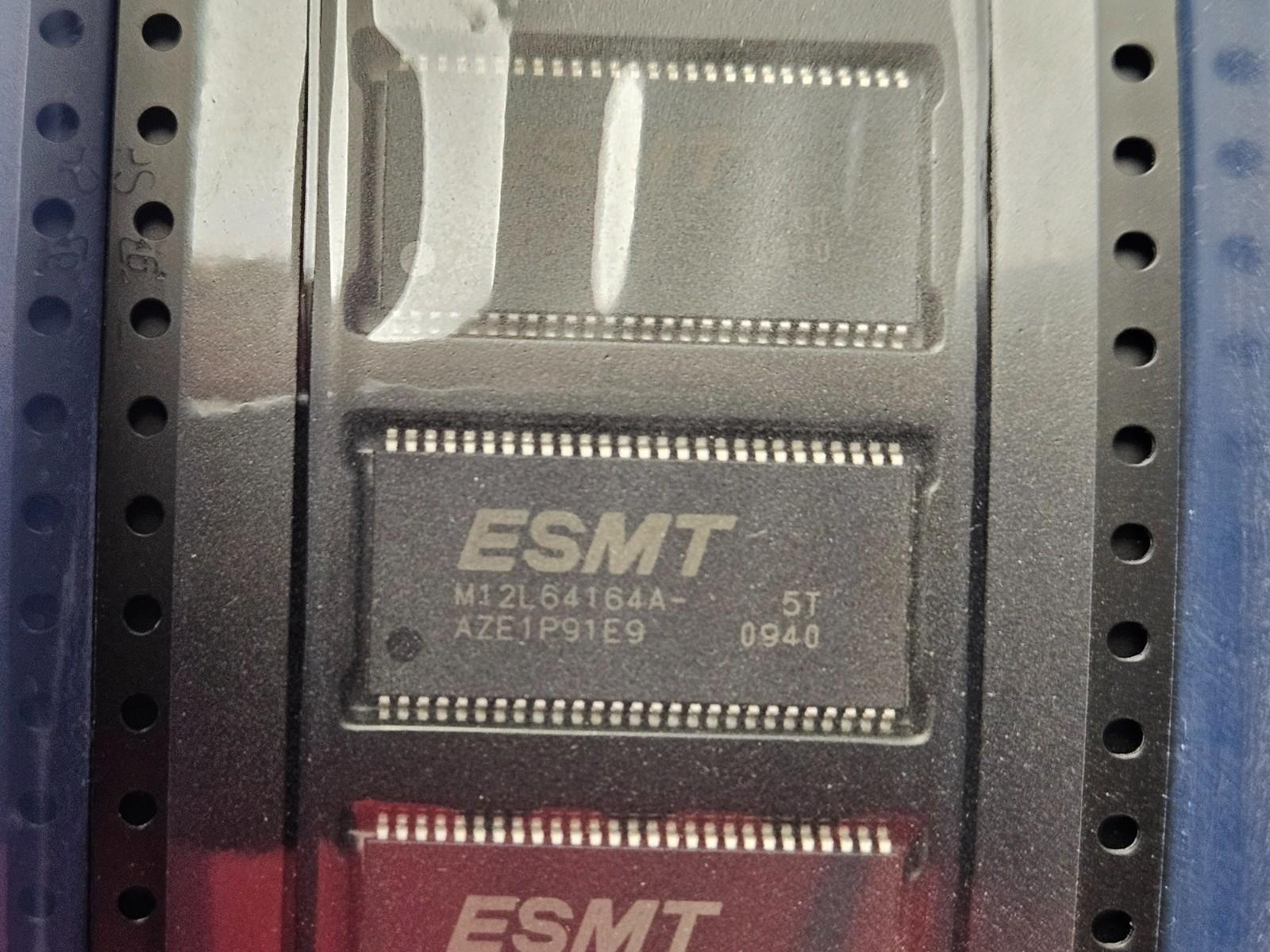

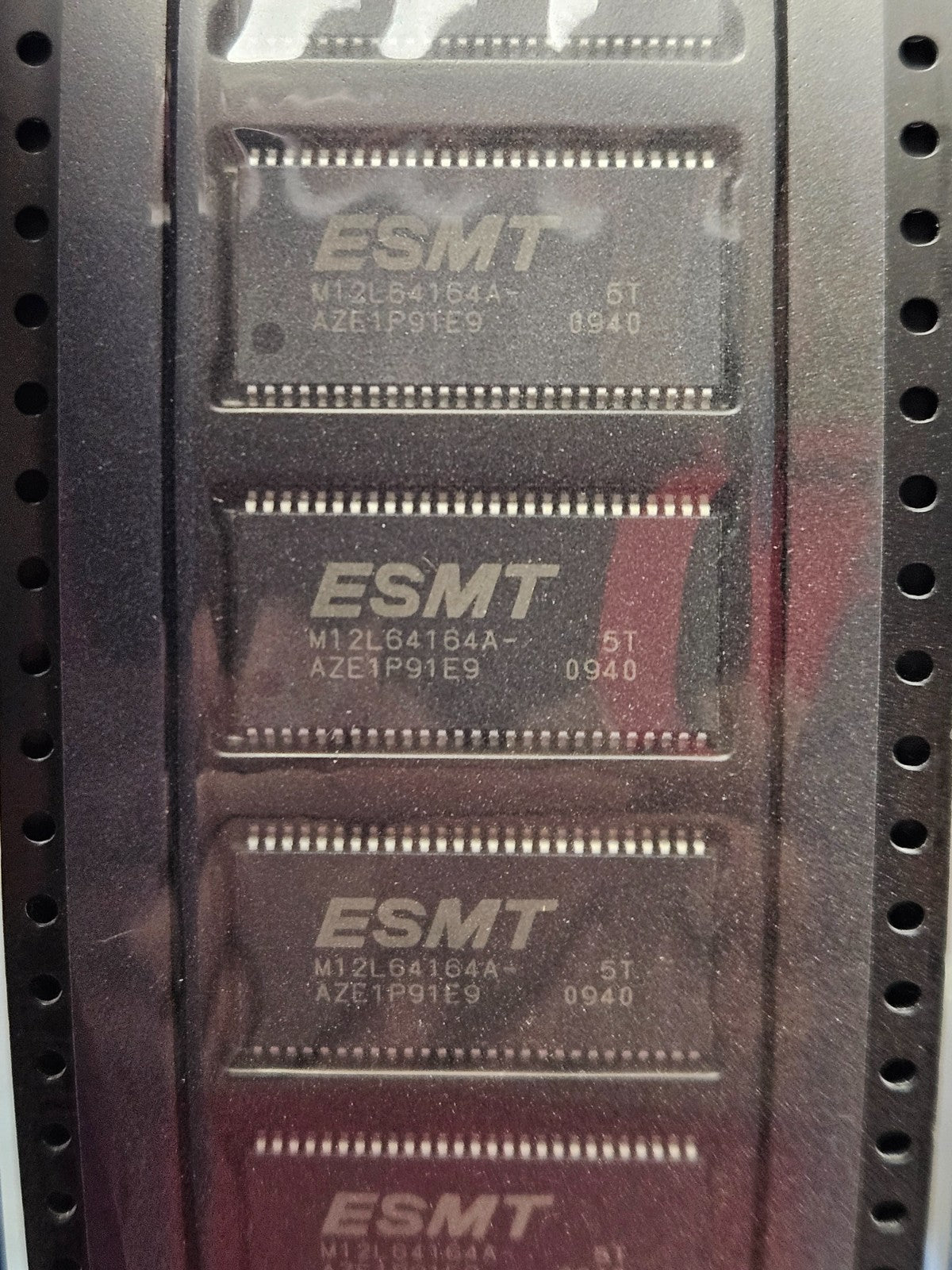

This listing is for (100PCS) of M12L64164A-5TG by ESMT
Status Active
Access Mode FOUR BANK PAGE BURST
Access Time-Max (ns) 4.5000000000000000
Additional Feature AUTO/SELF REFRESH
Clock Frequency-Max (MHz) 200.00000
I/O Type COMMON
Interleaved Burst Length 1,2,4,8
JESD-30 Code R-PDSO-G54
Length (mm) 22.2200
Memory Density (bits) 67108864.0000000000000000
Memory IC Type SYNCHRONOUS DRAM
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 54
Number of Words (words) 4194304.0000000000000000
Number of Words Code 4M
Operating Mode SYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 4MX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP2
Package Equivalence Code TSOP54,.46,32
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
DLA Qualification Not Qualified
Refresh Cycles 4096
Seated Height-Max (mm) 1.2000
Self Refresh YES
Sequential Burst Length 1,2,4,8,FP
Standby Current-Max (A) 0.001000000000000
Supply Current-Max (mA) 180.000000000000000
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch (mm) 0.800
Terminal Position DUAL
Width (mm) 10.1600
