(100PCS) BCR35PNE6327 Trans Digital BJT NPN/PNP 50V 100mA 6-Pin SOT-363
Tax included.

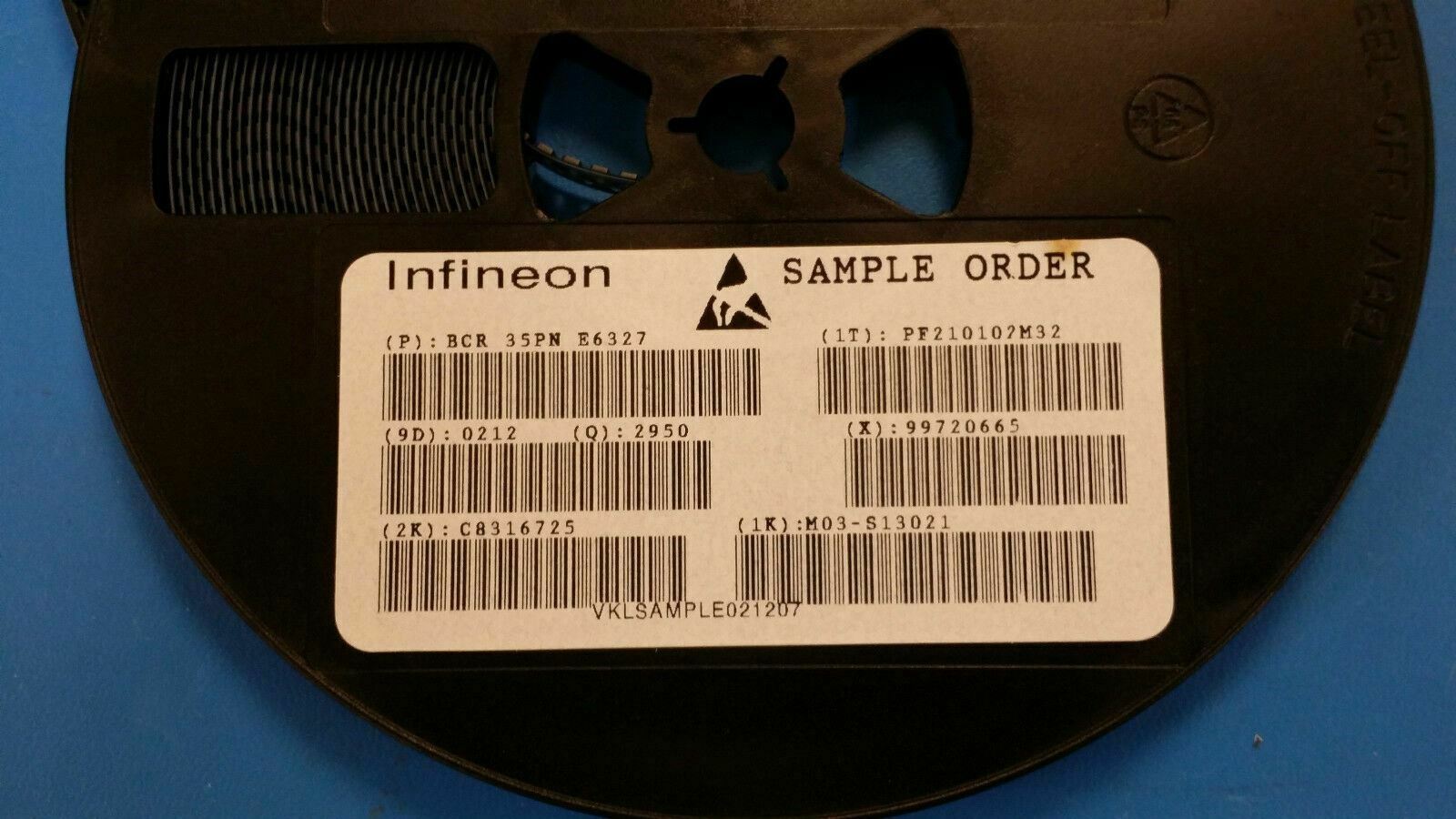

THIS LISTING IS FOR (100 PCS) OF BCR35PNE6327 BY INFINEON
Trans Digital BJT NPN/PNP 50V 100mA 6-Pin SOT-363
(2950 PCS IN STOCK. WE WILL MAKE DEALS ON LARGER QTY. SEND OFFERS)
BCR35PNE6327 Part Details & Parametric
|
|
|
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 150 |
| Configuration | Dual |
| Type | NPN|PNP |
| Maximum Power Dissipation (mW) | 250 |

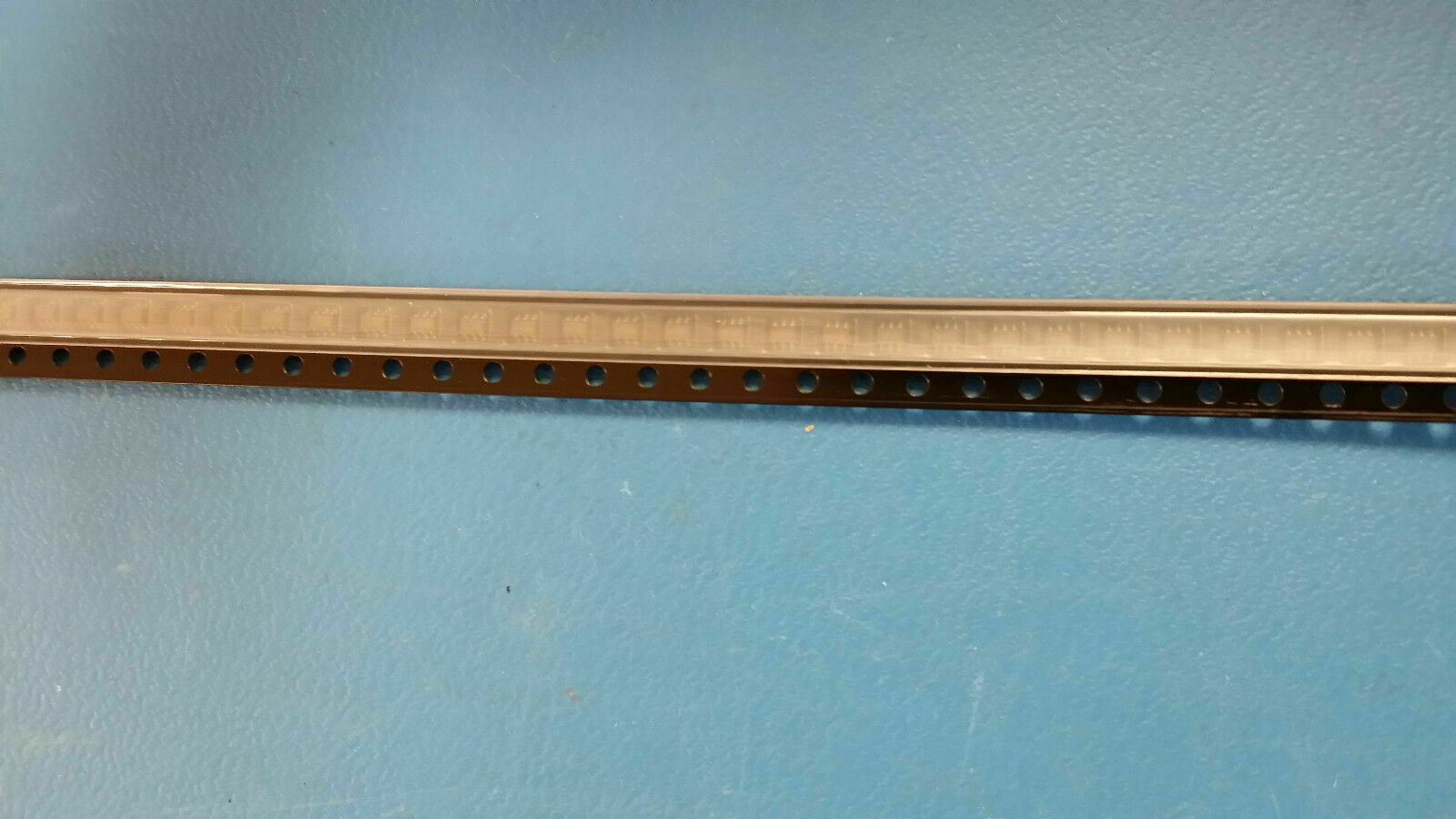

| Packaging | Tape and Reel |
| Maximum Collector Emitter Voltage (V) | 50 |
| Typical Input Resistor (kOhm) | 10 |
| Maximum Continuous DC Collector Current (mA) | 100 |
| Maximum Collector Emitter Saturation Voltage (V) | 0.3@0.5mA@10mA |
| Minimum DC Current Gain | 70@5mA@5V |
| Typical Resistor Ratio | 0.21 |
| Mounting | Surface Mount |
| Package Height (mm) | 0.9(Max) |
| Package Length (mm) | 2 |
| Package Width (mm) | 1.25 |
| PCB | 6 |
| Standard Package Name | SOT-26 |
| Supplier Package | SOT-363 |
| Pin Count | 6 |
| Lead Shape | Gull-wing |
