(100PCS) AT29C040A-15TC NOR Flash 5V 4Mbit 512K x 8bit 150ns 32Pin TSOP-I
Tax included.

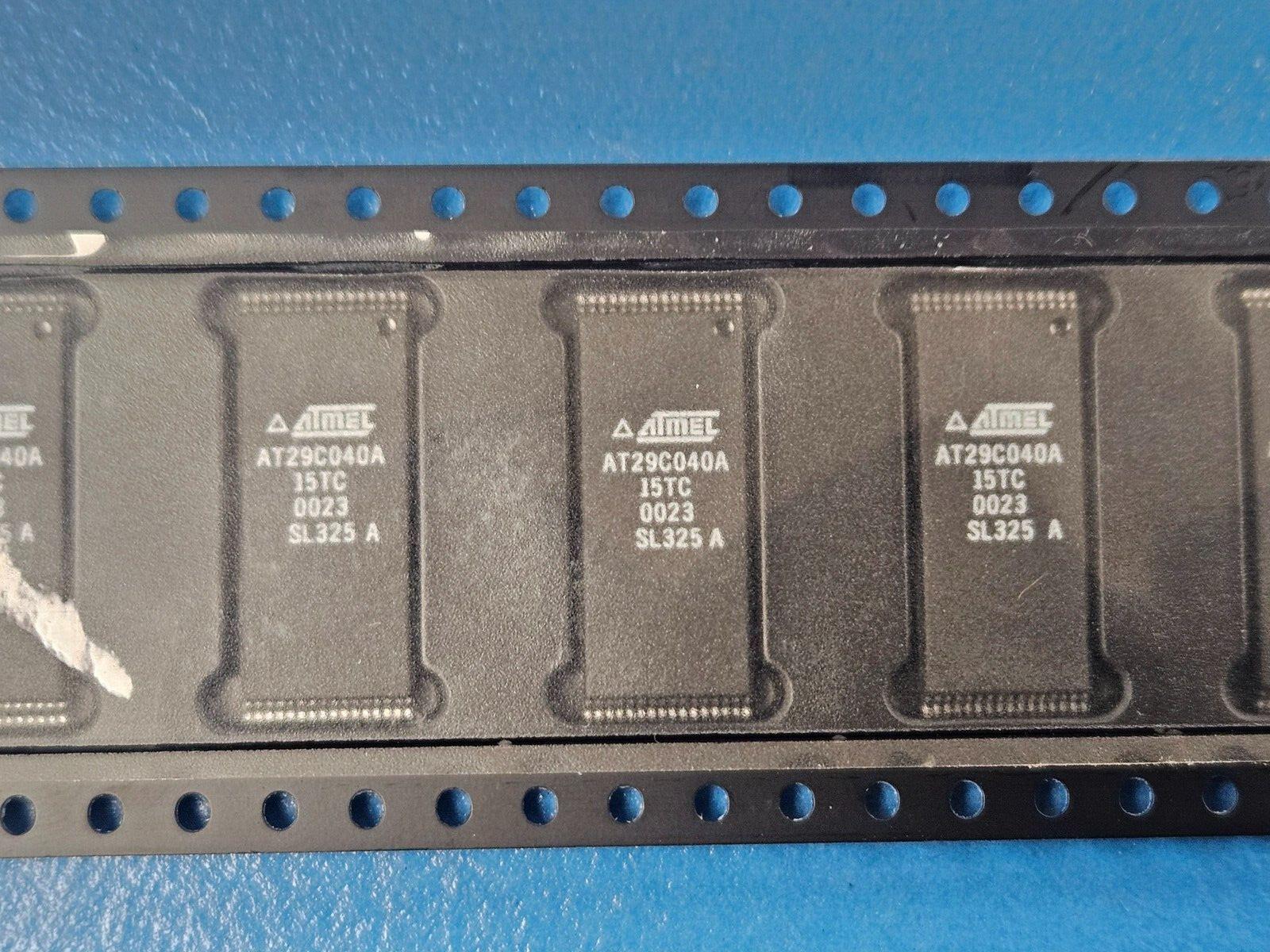

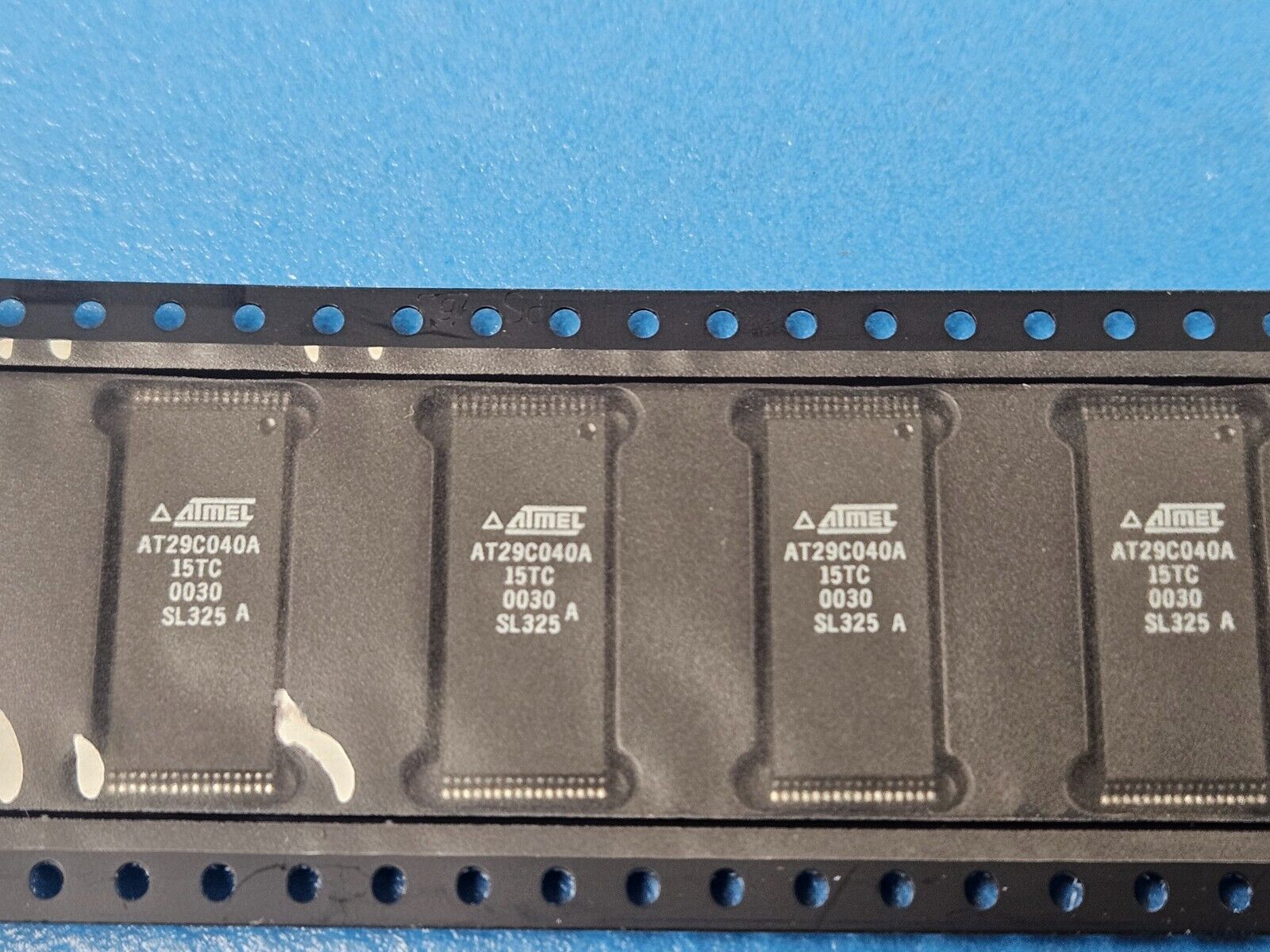

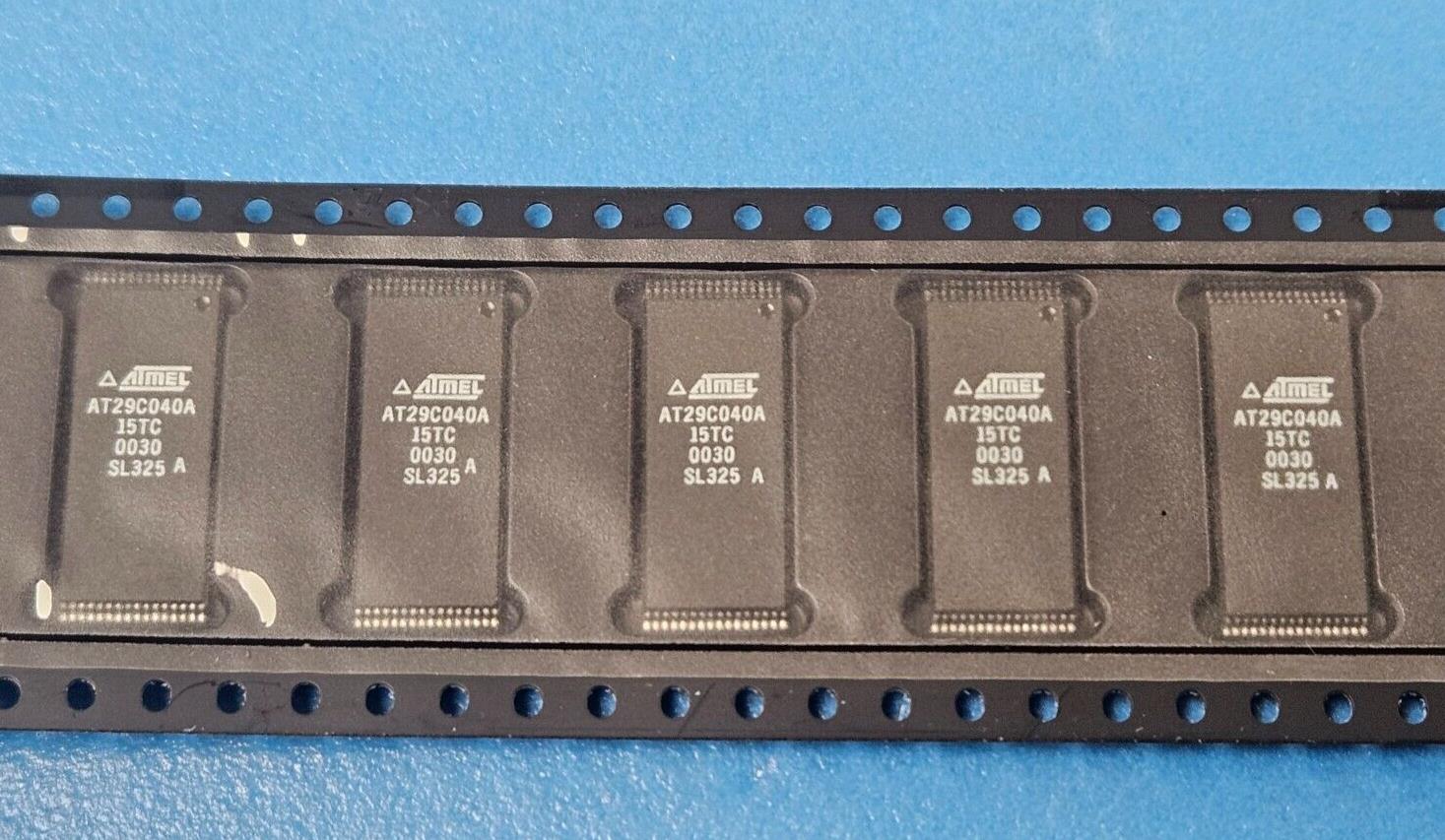

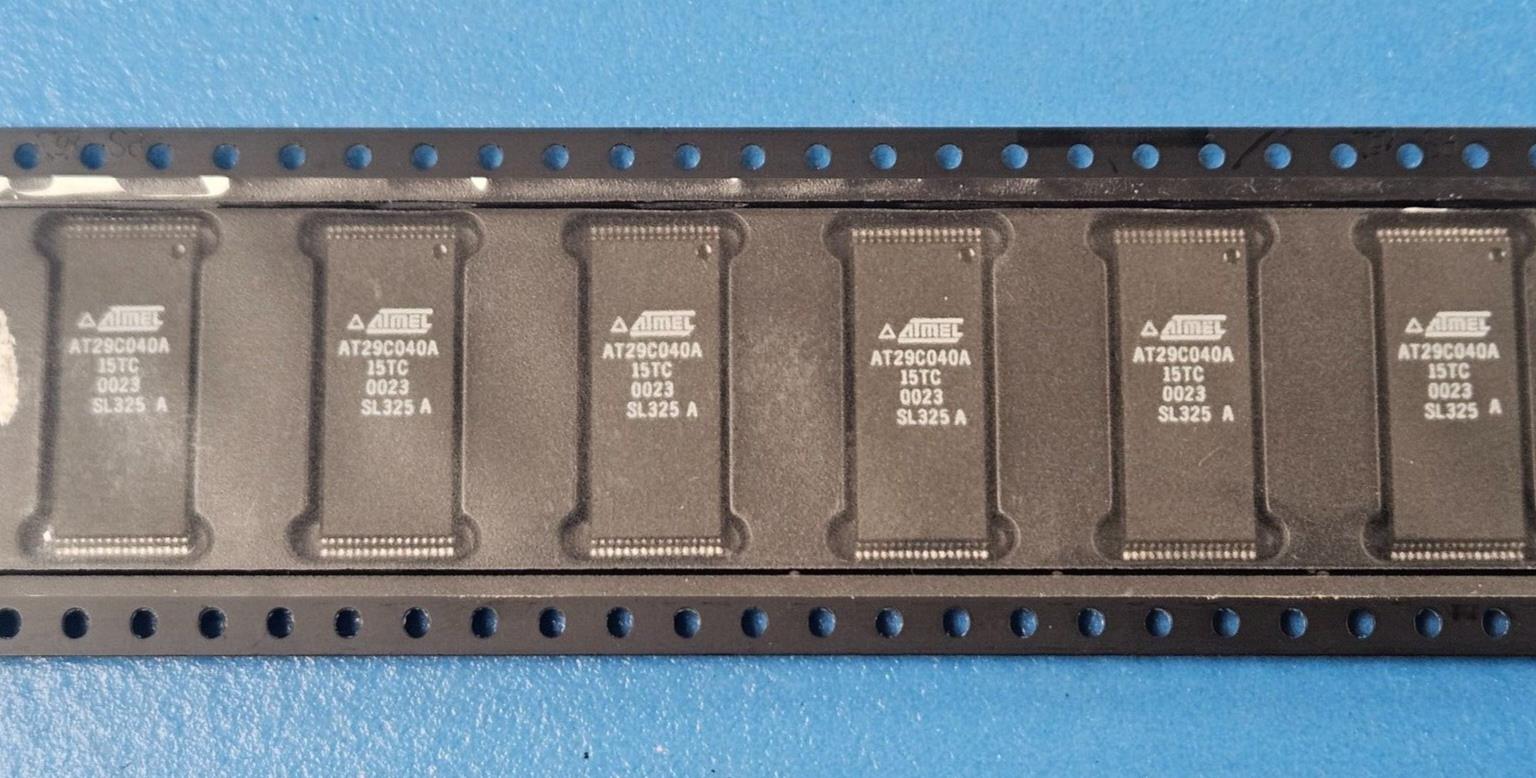

THIS LISTING IS FOR (100PCS) OF AT29C040A-15TC BY ATMEL
Mfr Package Description 8 X 20 MM, PLASTIC, MO-142BD, TSOP1-32
REACH Compliant Yes
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 150.0 ns
Boot Block BOTTOM/TOP
Command User Interface NO
Data Polling YES
JESD-30 Code R-PDSO-G32
JESD-609 Code e0
Memory Density 4194304.0 bit
Memory IC Type FLASH
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Sectors/Size 2K
Number of Terminals 32
Number of Words 524288.0 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 512KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP32,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Standby Current-Max 1.0E-4 Amp
Supply Current-Max 0.04 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Toggle Bit YES
Write Cycle Time-Max (tWC) 10.0 ms
Length 18.4 mm
Width 8.0 mm
