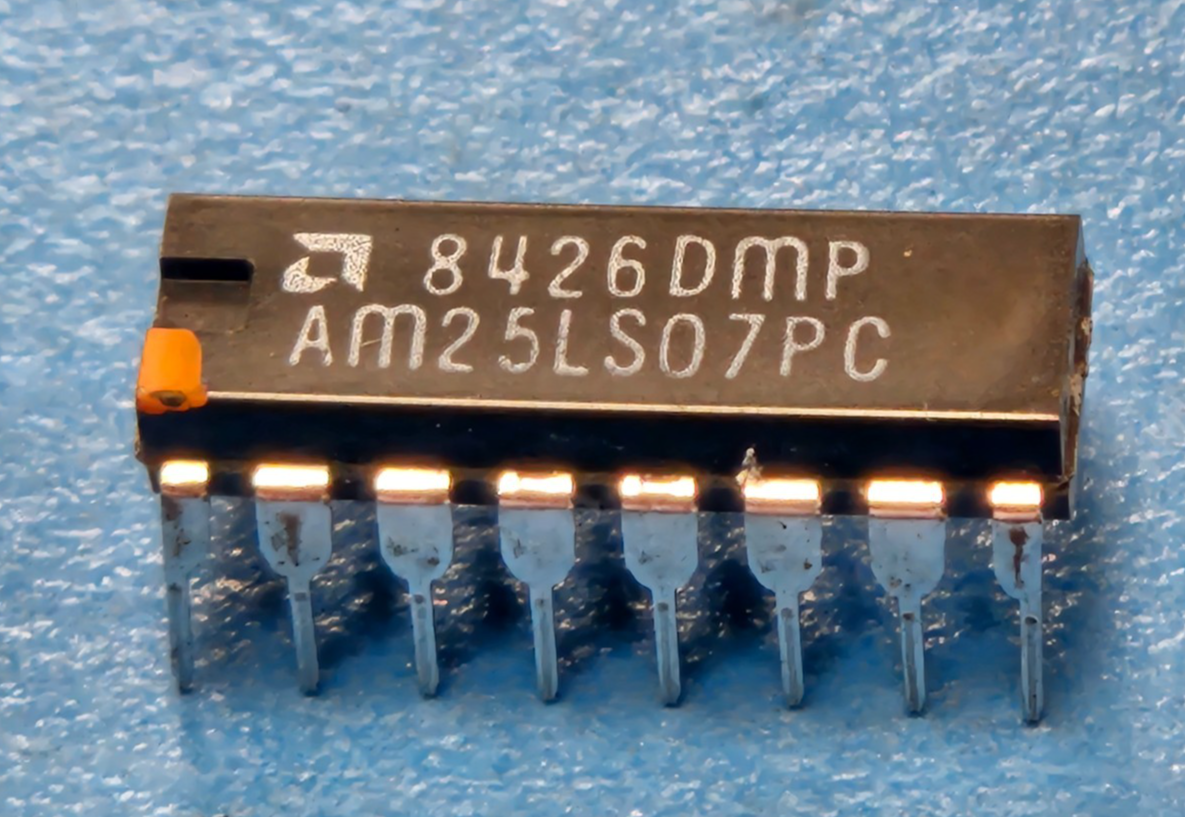

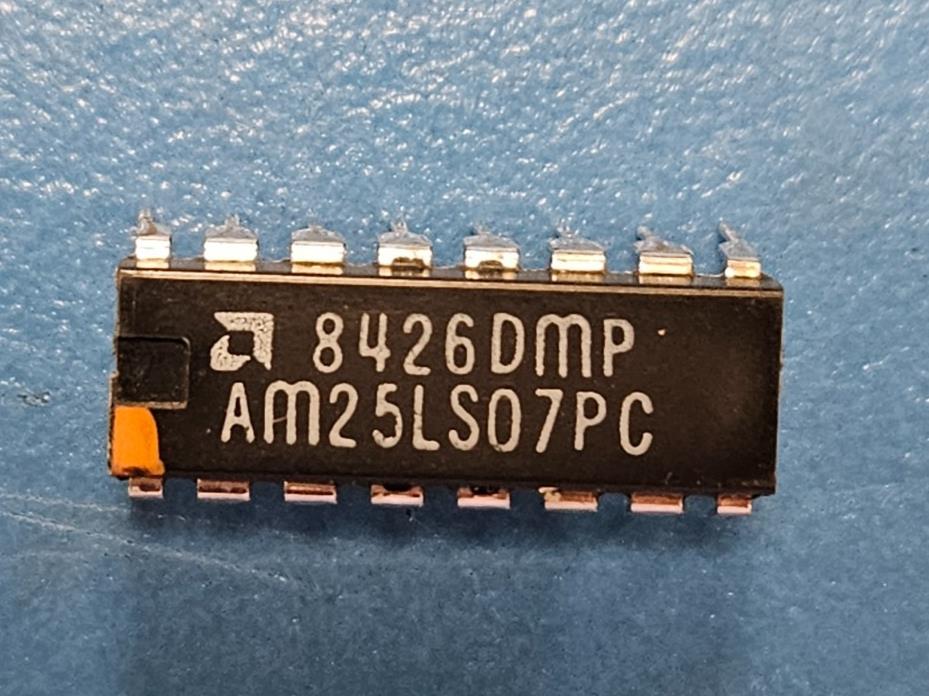

(100PCS) AM25LS07PC POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDIP16
Tax included.
This listing is for (100PCS) of AM25LS07PC by AMD
Status Discontinued
Additional Feature WITH REGISTER ENABLE
Family TTL/H/L
JESD-30 Code R-PDIP-T16
J-STD-609 Code e0
Length (mm) 19.3040
Load Capacitance (pF) 50.0000
Logic IC Type D FLIP-FLOP
Number of Bits 6
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Supply Current-Max (mA) 22.00000000
Propagation Delay (ns) 30.0000
DLA Qualification Not Qualified
Seated Height-Max (mm) 5.0800
Supply Voltage-Max (V) 5.2500
Supply Voltage-Min (V) 4.7500
Supply Voltage-Nom (V) 5
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch (mm) 2.540
Terminal Position DUAL
Trigger Type POSITIVE EDGE
Width (mm) 7.6200
fmax-Min (MHz) 30.0000
