(100PCS) 15KPA75 PROTEK TVS DIODE 15000W 75V UNIDIRECTIONAL
Tax included.

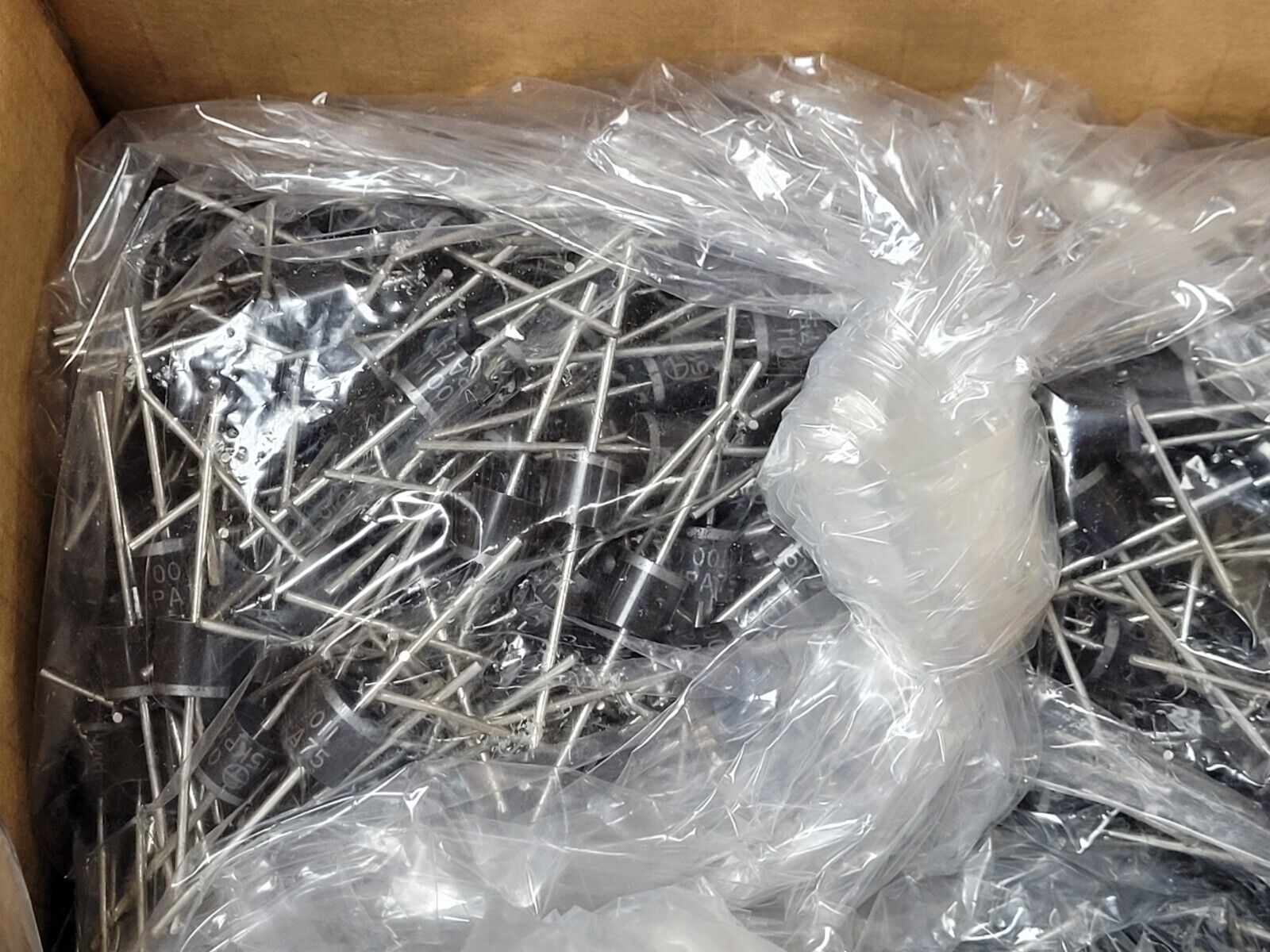

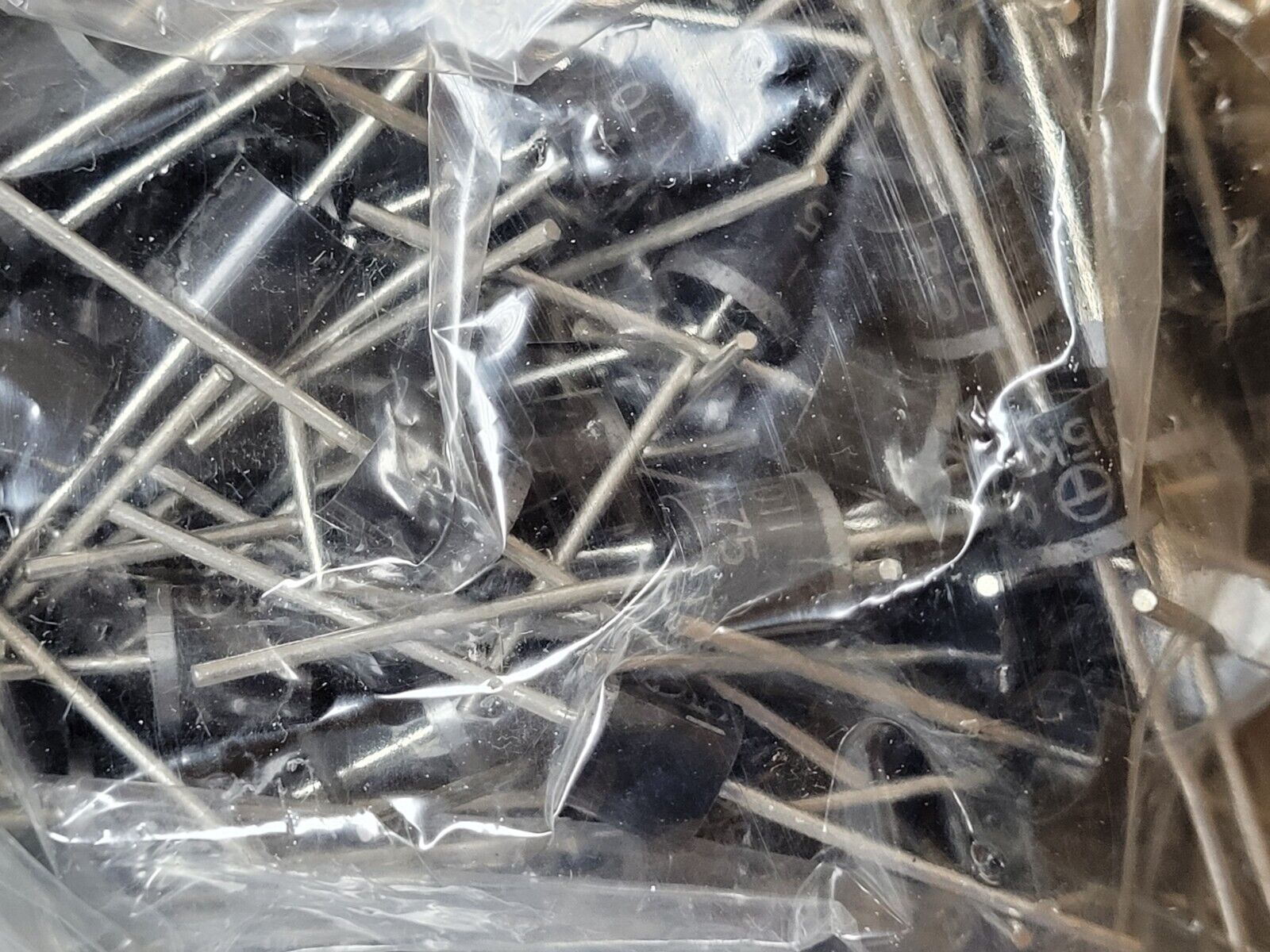

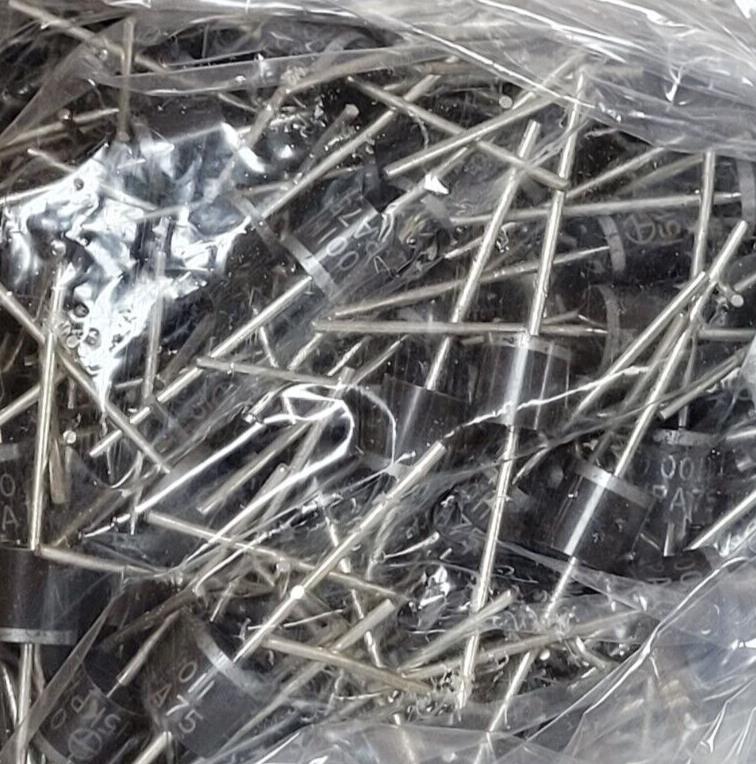

THIS LISTING IS FOR (100PCS) OF 15KPA75 BY PRO TEK DEVICES
Mfr Package Description PLASTIC PACKAGE-2
REACH Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Min 83.3 V
Case Connection ISOLATED
Clamping Voltage-Max 135.0 V
Configuration SINGLE
Diode Element Material SILICON
JESD-30 Code O-PALF-W2
JESD-609 Code e0
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 15000.0 W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 245
Polarity UNIDIRECTIONAL
Power Dissipation-Max 8.0 W
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 75.0 V
Reverse Current-Max 10.0 µA
Sub Category Transient Suppressors
Surface Mount NO
Technology AVALANCHE
Terminal Finish TIN LEAD
Terminal Form WIRE
Terminal Position AXIAL
