(100pc) SMDA05LCC TVS Array 4 Channel 13.5 Vcl 6 Vbr 15 pF Bidirectional SOIC-8
Tax included.

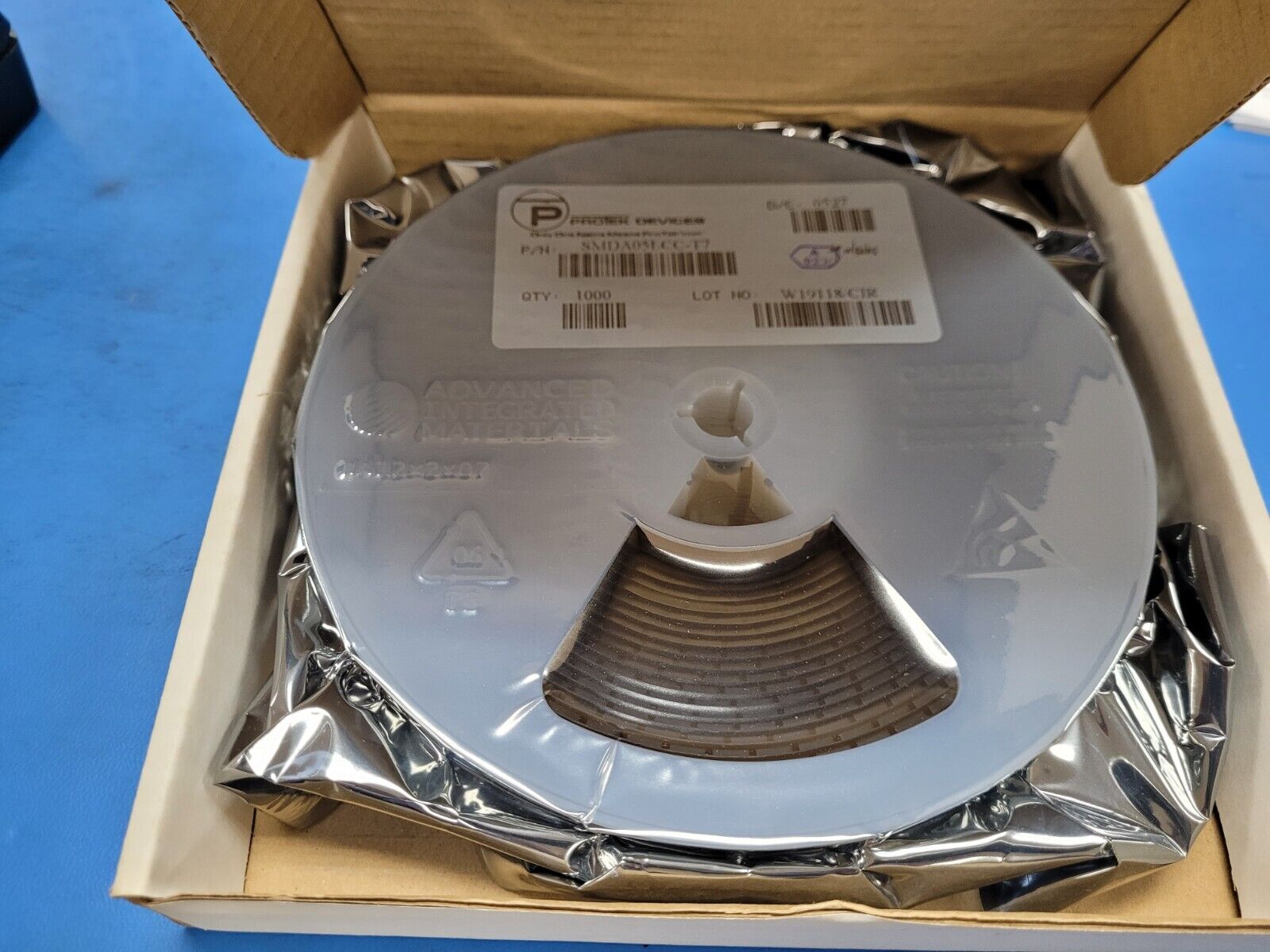

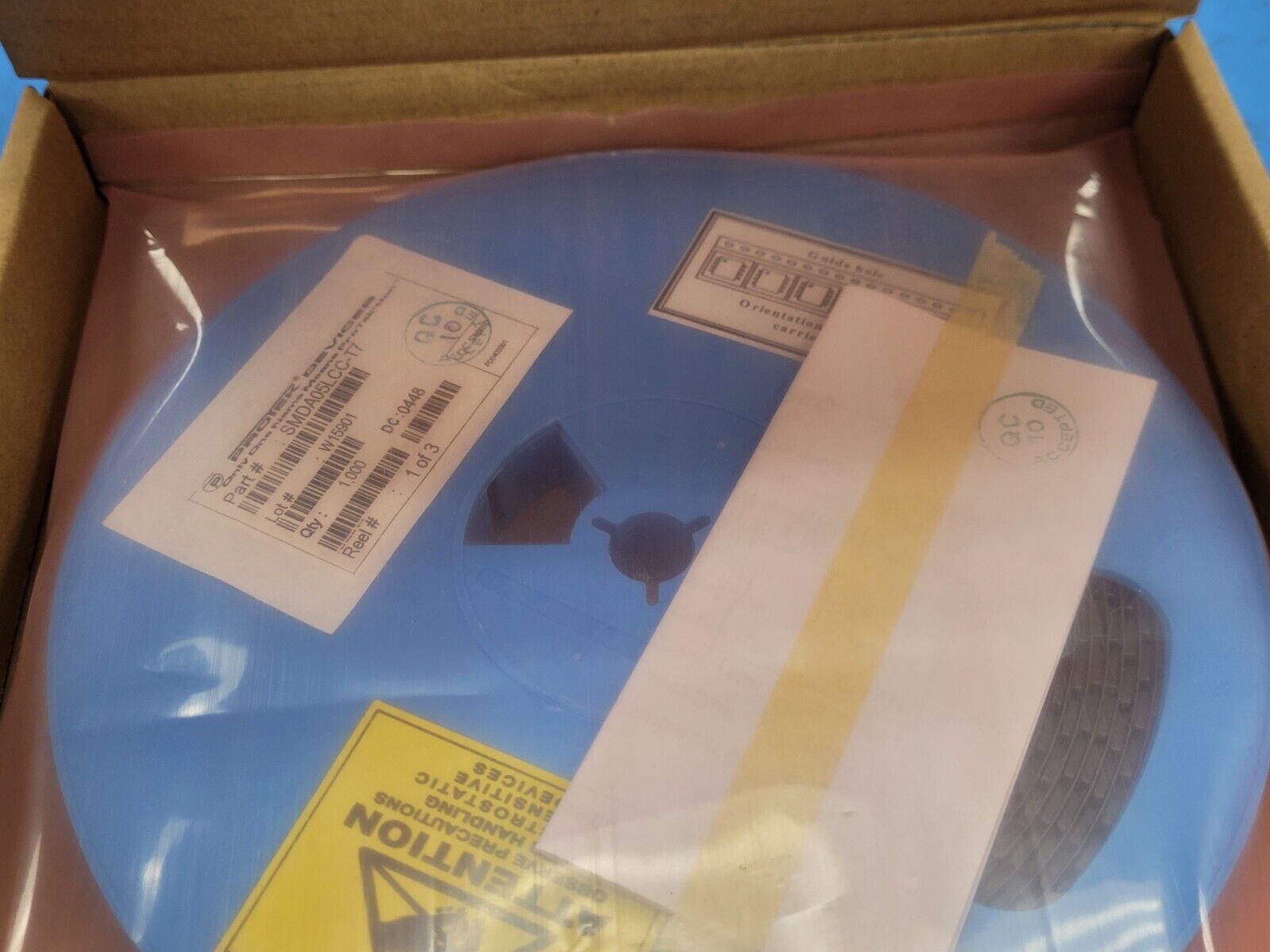

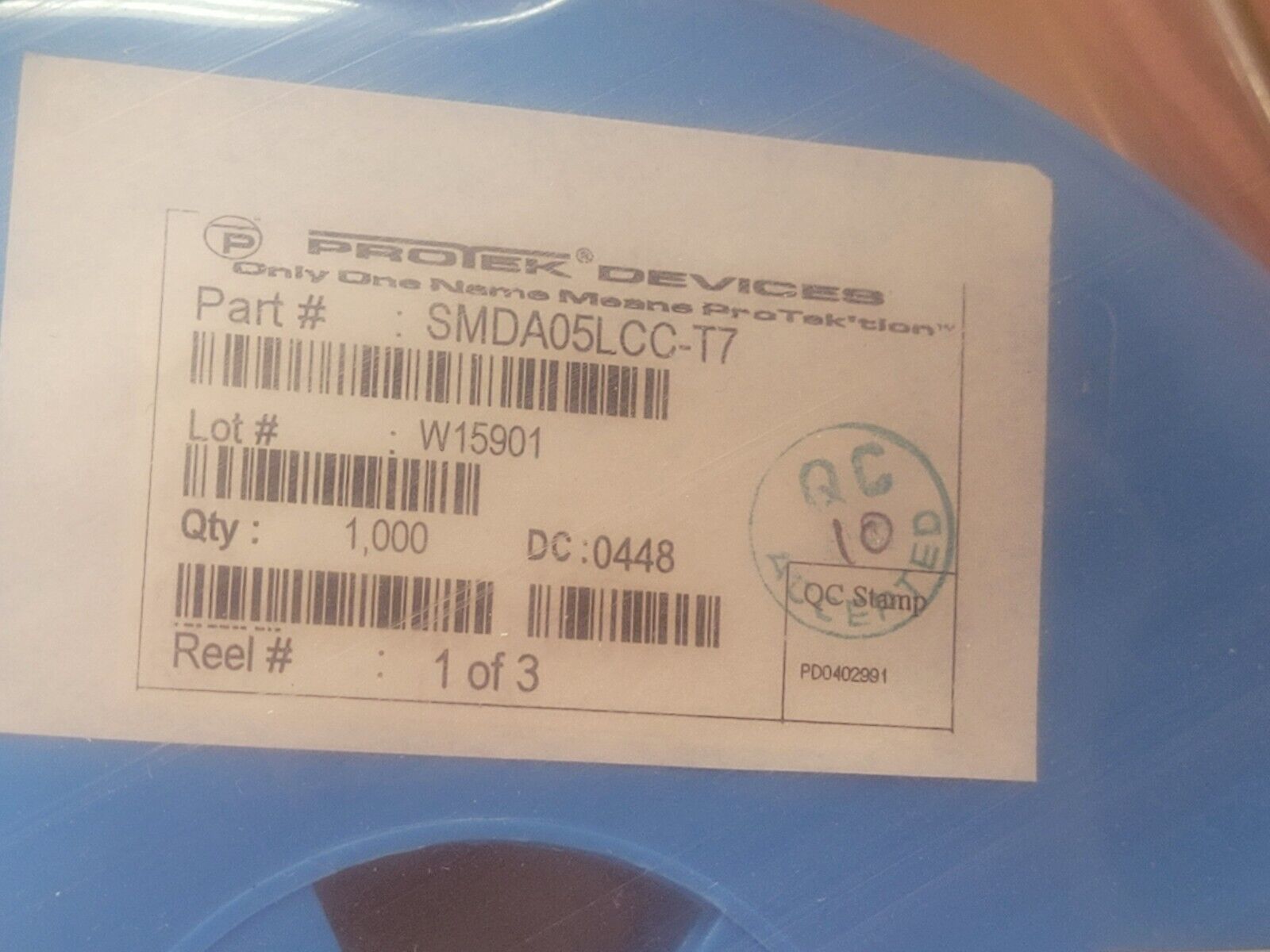

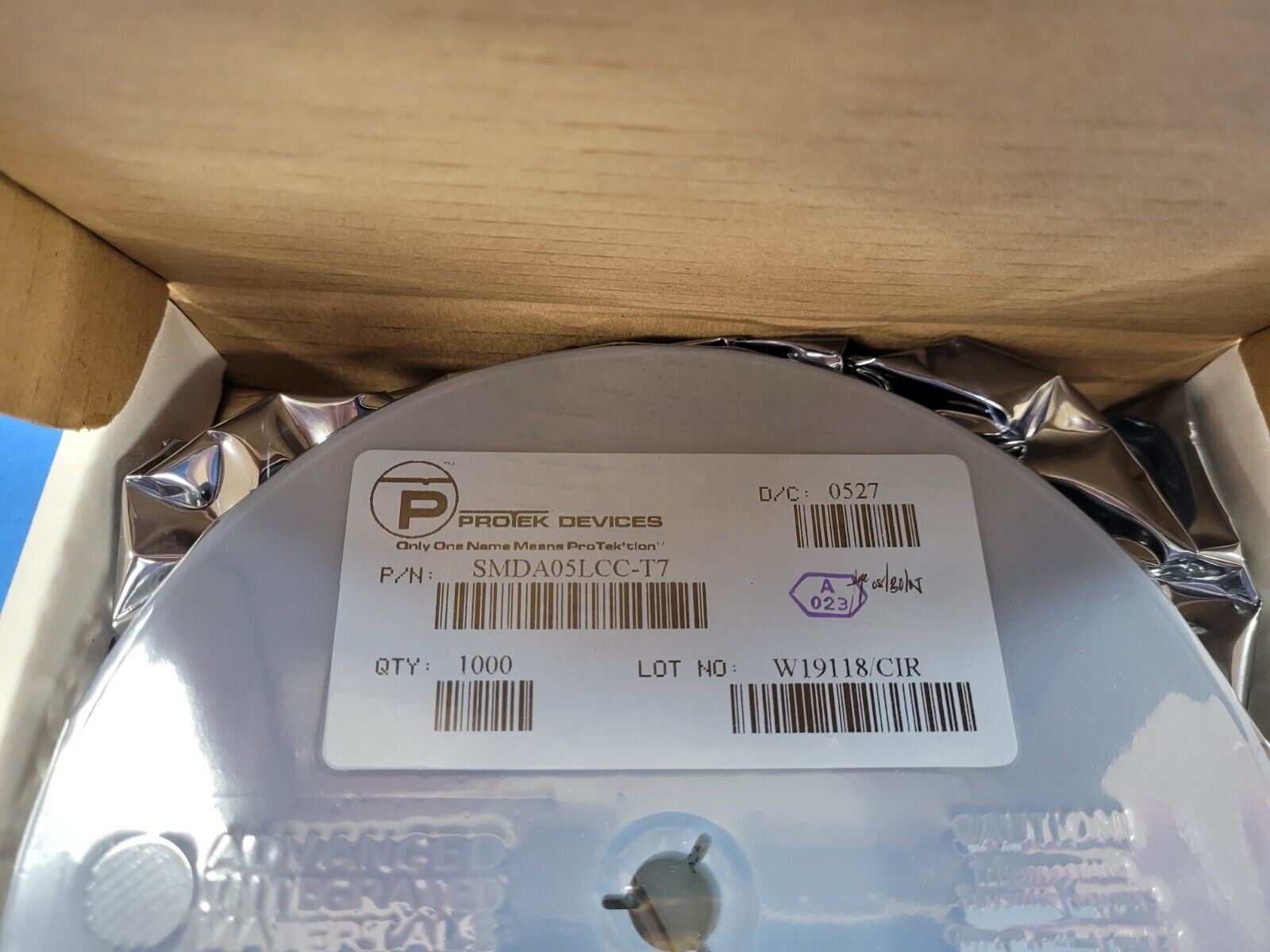

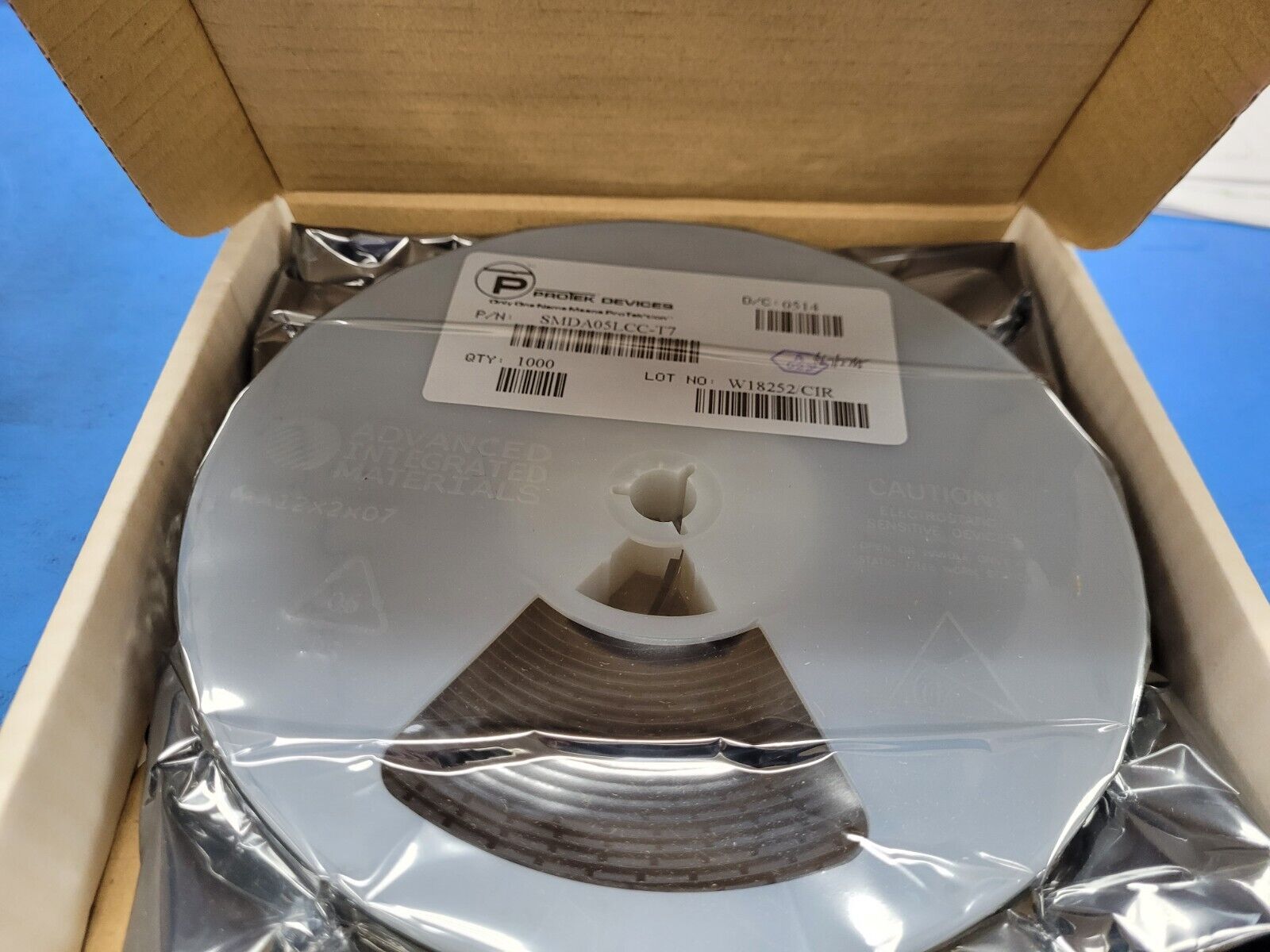

This listing is for (100pcs) of SMDA05LCC by ProTek Devices
Mfr Package Description PLASTIC, SOP-8
REACH Compliant Yes
Status Discontinued
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Min 6.0 V
Clamping Voltage-Max 13.5 V
Configuration 4 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Diode Element Material SILICON
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 500.0 W
Number of Elements 8.0
Number of Terminals 8
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 245
Polarity BIDIRECTIONAL
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 5.0 V
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Position DUAL
Additional Feature LOW CAPACITANCE
