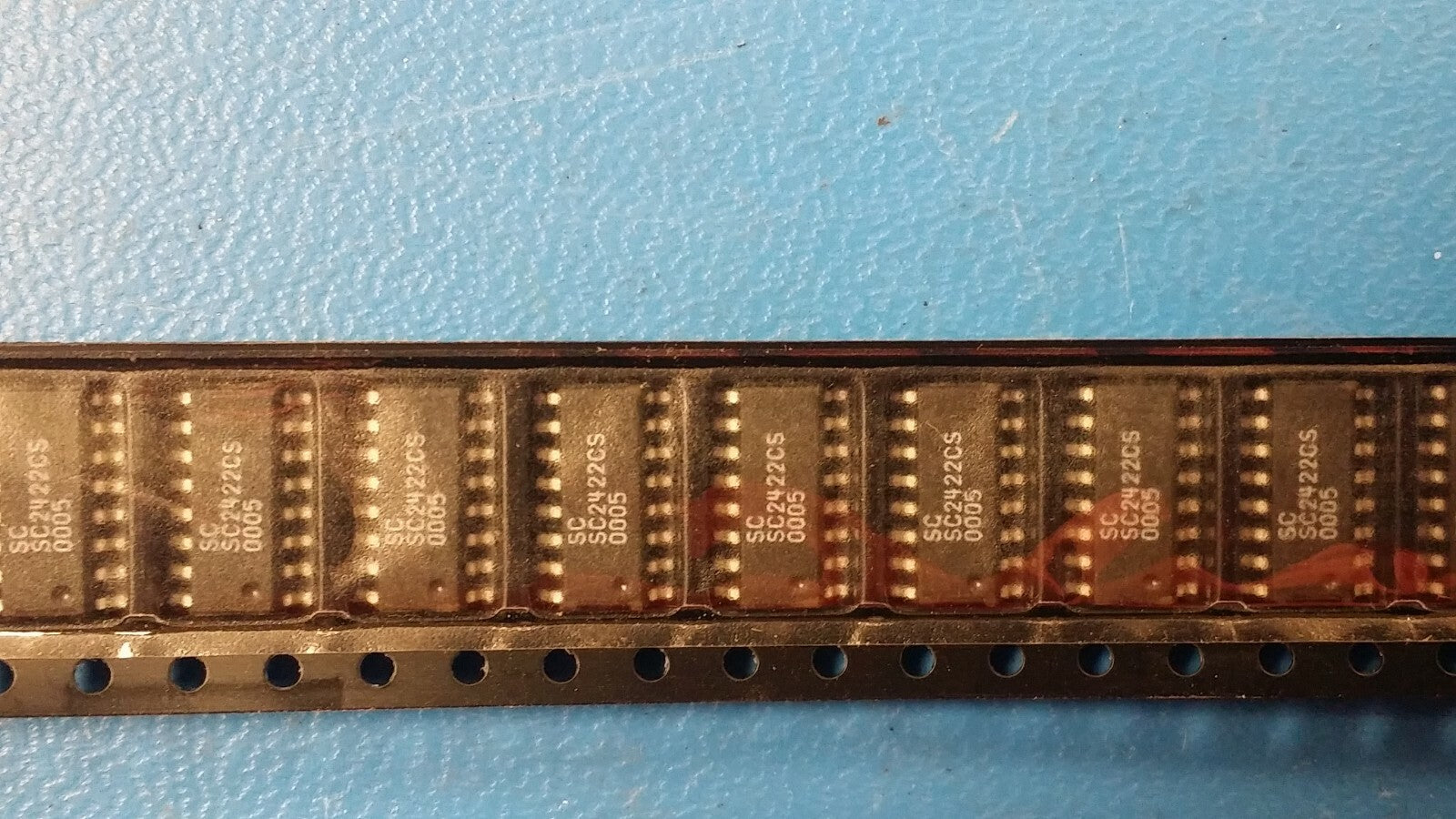

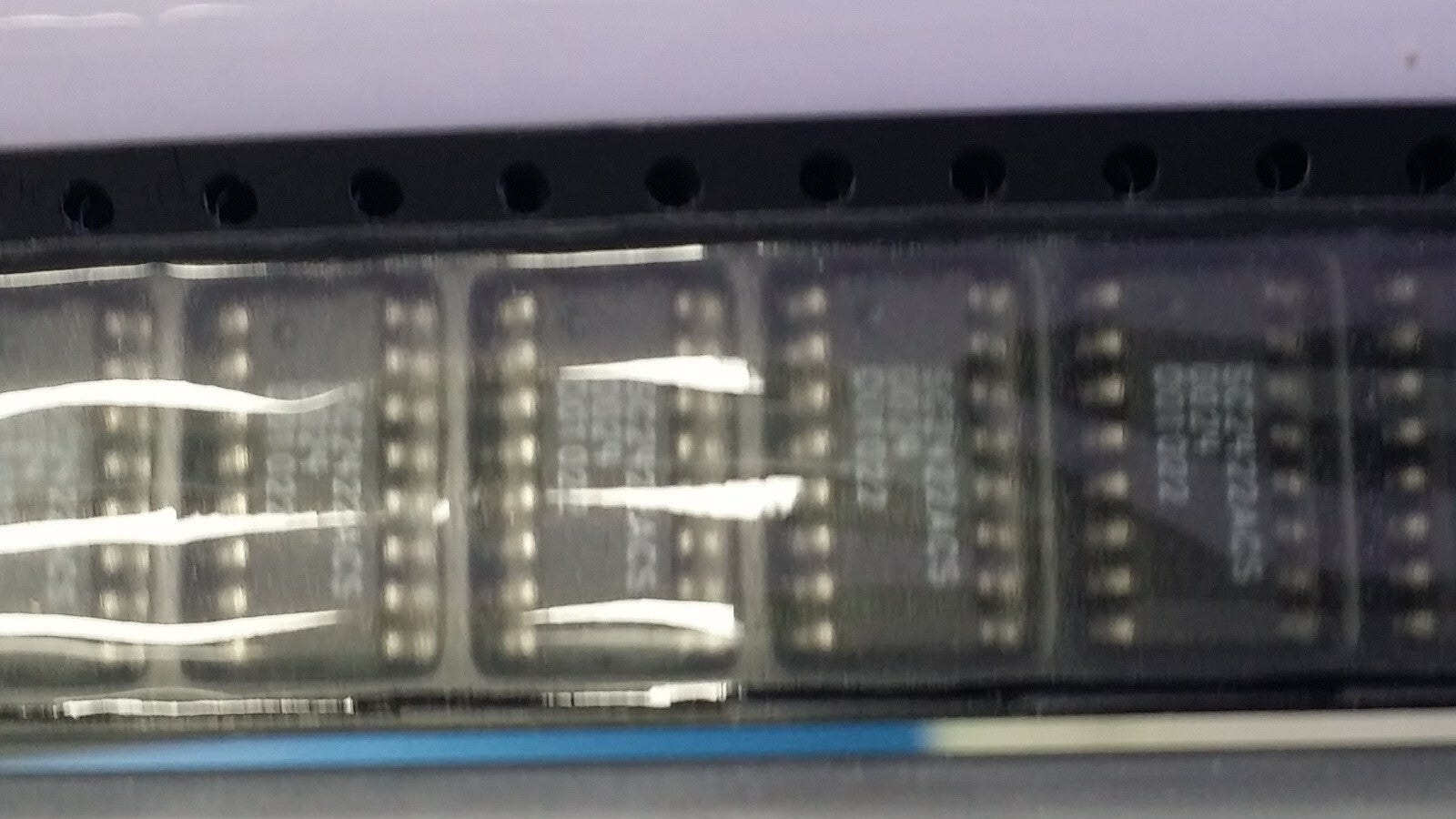

(100pc) SC2422ACS SWITCHING CONTROLLER, 1000 kHz SWITCHING FREQ-MAX, SOIC16
Tax included.
Each order is for 10pcs.

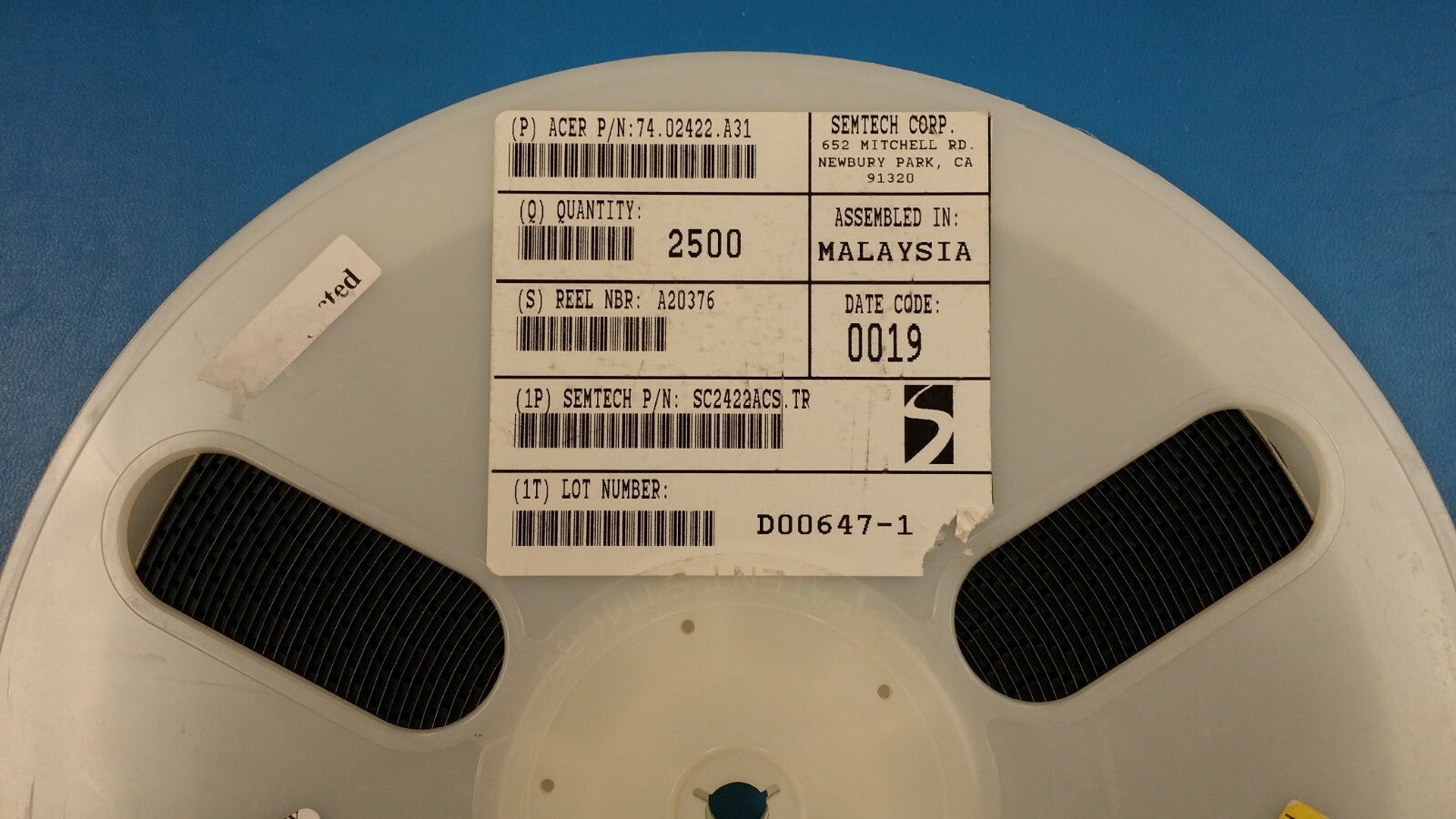

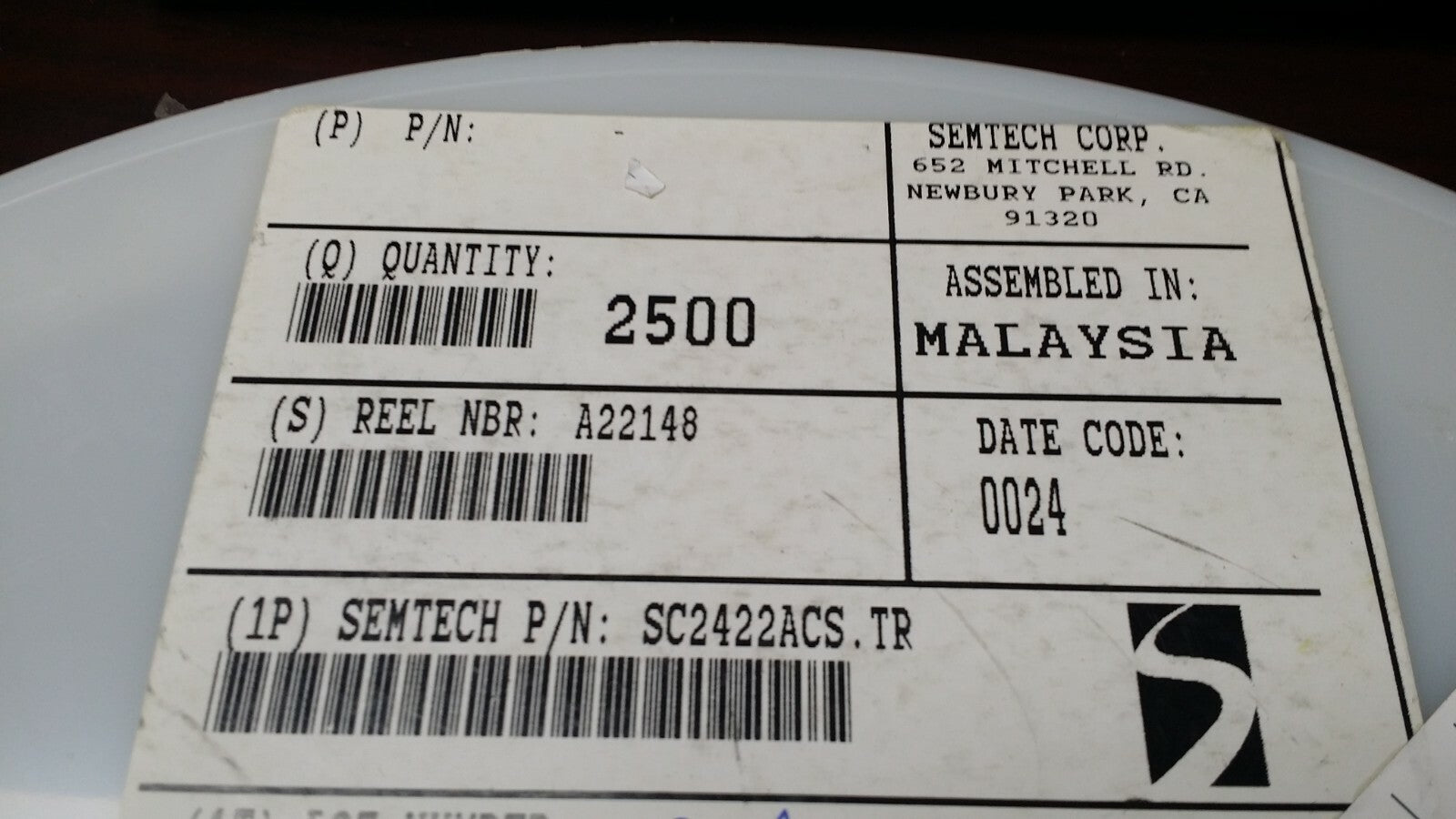

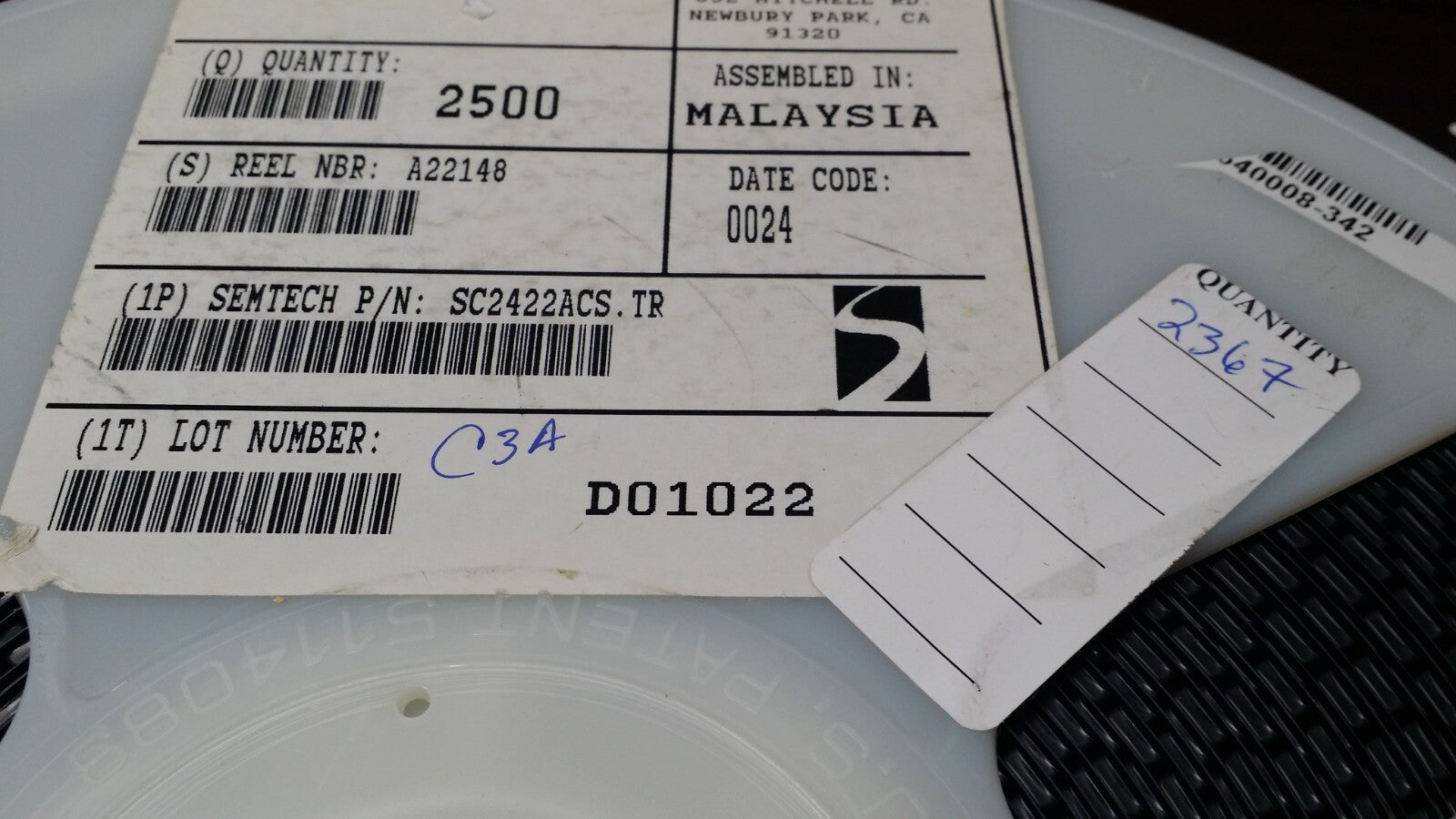

Part #: SC2422ACS.TR
Part Category: Other Semiconductors
Manufacturer: Semtech Corp.
Description: Switching Controller, Current-mode, 1000kHz Switching Freq-Max, PDSO16
Mfr Package Description SOIC-16
Status Discontinued
Analog IC - Other Type SWITCHING CONTROLLER
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Nom 5.0 V
Input Voltage-Min 4.5 V
Input Voltage-Max 14.0 V
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -20.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Surface Mount YES
Switcher Configuration PUSH-PULL
Switching Frequency-Max 1000.0 kHz
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 9.9 mm
Width 3.9 mm
