(100PC) M74HCT14RM13TR STMICRO Inverter IC 6 Channel Schmitt Trigger SOIC14 ROHS

$24.95
Unit price per

Tax included.

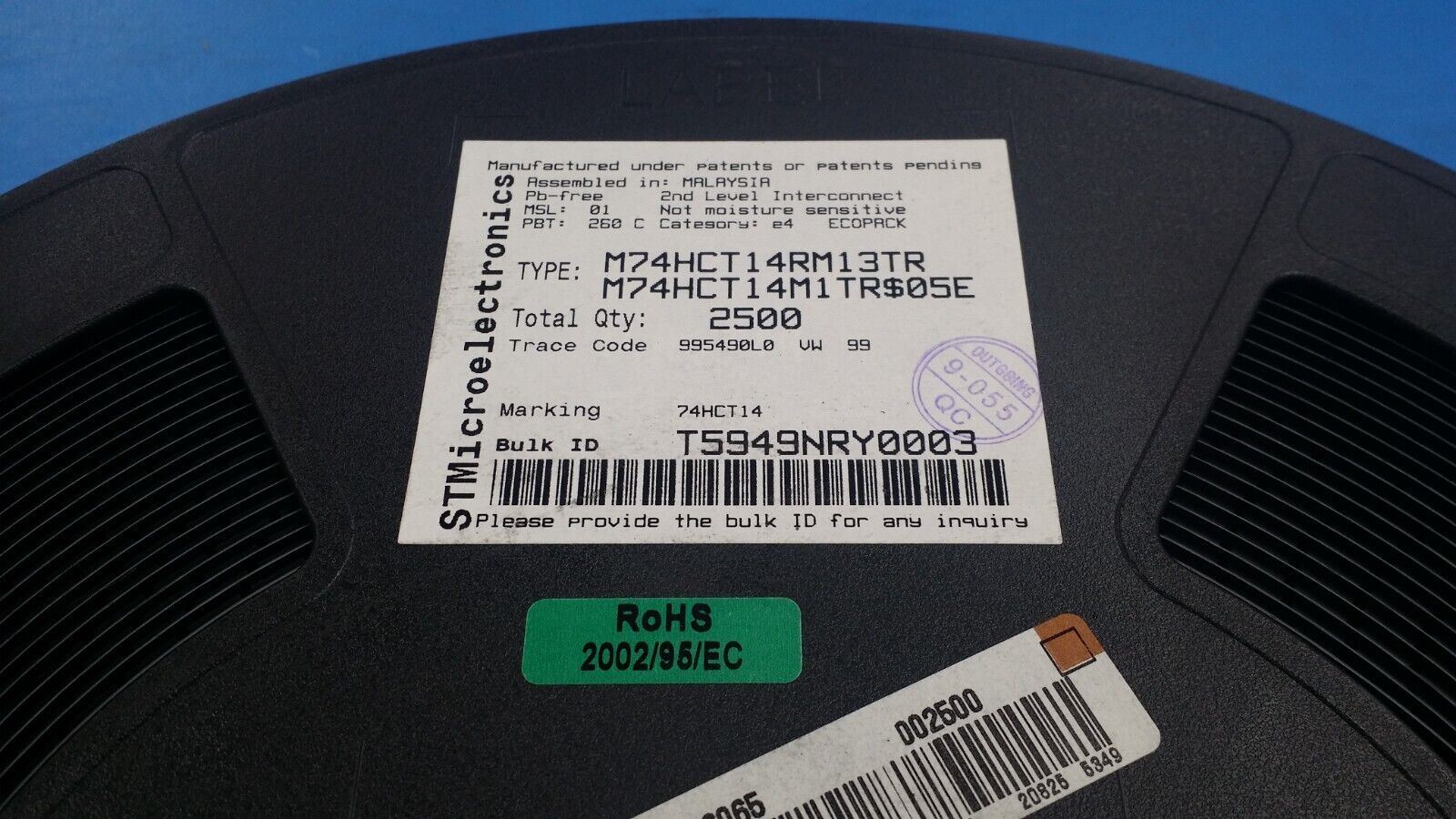

THIS IS FOR (100 PCS) OF M74HCT14RM13TR BY STMICRO

Inverter IC 6 Channel Schmitt Trigger 14-SOIC ROHS

Part #: M74HCT14RM13TR

Part Category: Logic ICs

Manufacturer: STMicroelectronics, Inc.

Description: Inverter, HCT Series, 6-Func, 1-Input, CMOS, PDSO14

Mfr Package Description SOP-14

REACH Compliant Yes

EU RoHS Compliant Yes

China RoHS Compliant Yes

Status Discontinued

Logic IC Type INVERTER

Sub Category Gates

Family HCT

JESD-30 Code R-PDSO-G14

JESD-609 Code e4

Load Capacitance (CL) 50.0 pF

Max I(ol) 0.004 Amp

Moisture Sensitivity Level 1

Number of Functions 6

Number of Inputs 1.0

Number of Terminals 14

Operating Temperature-Min -55.0 Cel

Operating Temperature-Max 125.0 Cel

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Equivalence Code SOP14,.25

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Packing Method TR

Peak Reflow Temperature (Cel) 260

Prop. Delay@Nom-Sup 45.0 ns

Propagation Delay (tpd) 45.0 ns

Qualification Status Not Qualified

Schmitt Trigger YES

Seated Height-Max 1.75 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.5 V

Supply Voltage-Max (Vsup) 5.5 V

Surface Mount YES

Technology CMOS

Temperature Grade MILITARY

Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)

Terminal Form GULL WING

Terminal Pitch 1.27 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) 40

Length 8.65 mm

Width 3.9 mm
