(100PC) 89PR1K BI Technologies Res Cermet Trimmer 1K Ohm 10% 0.75W(3/4W) 20-turn
Tax included.

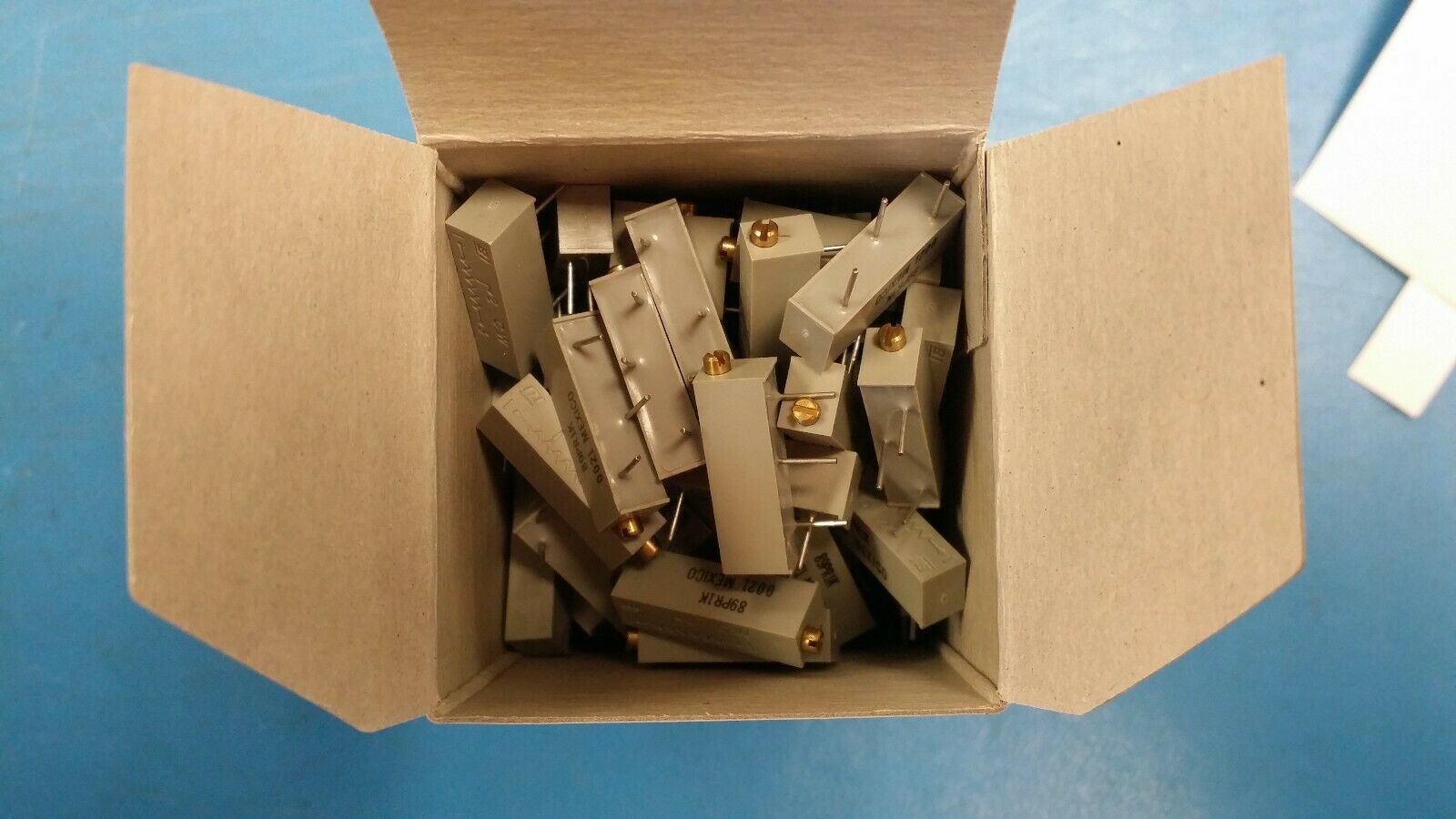

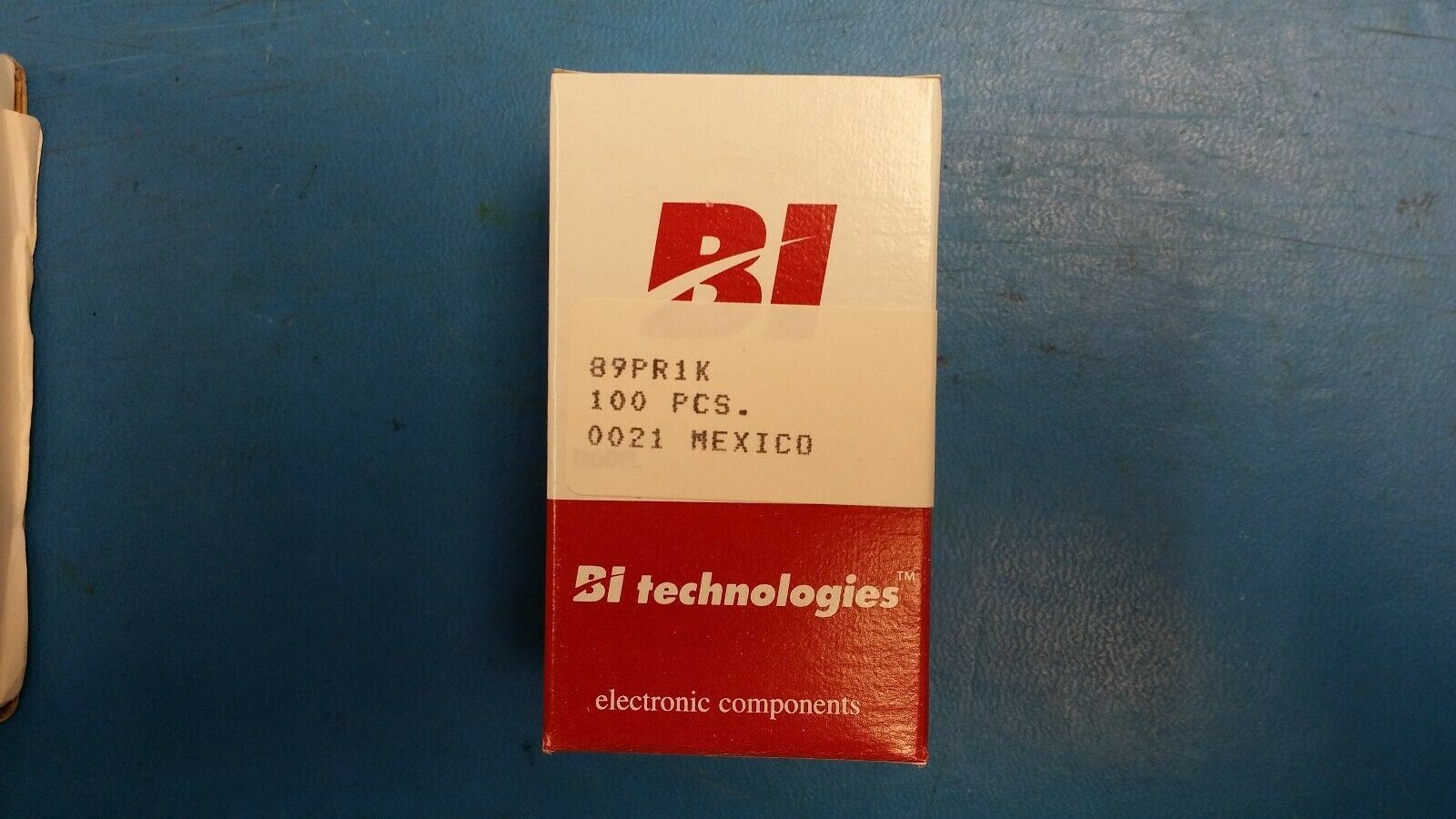

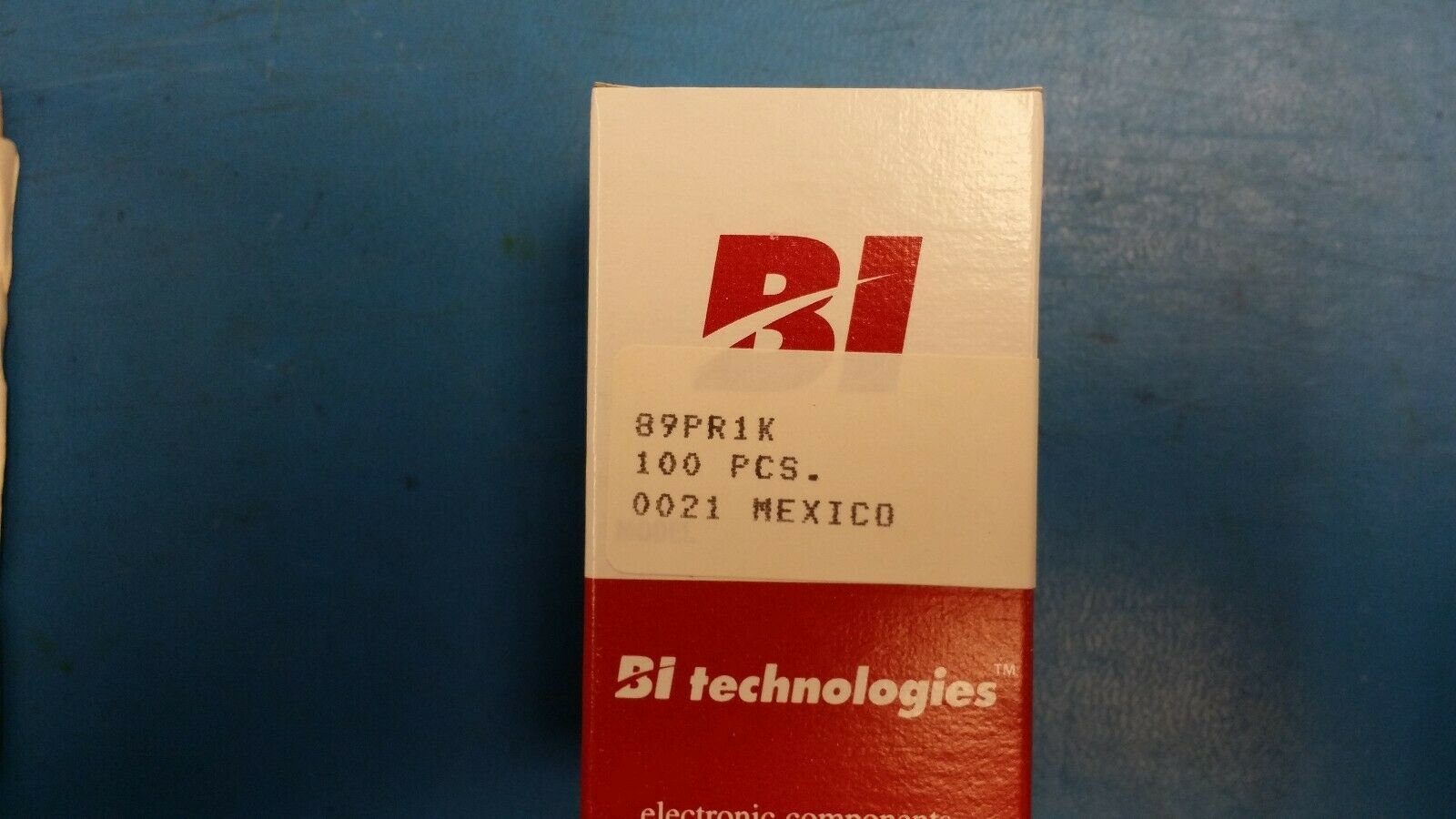

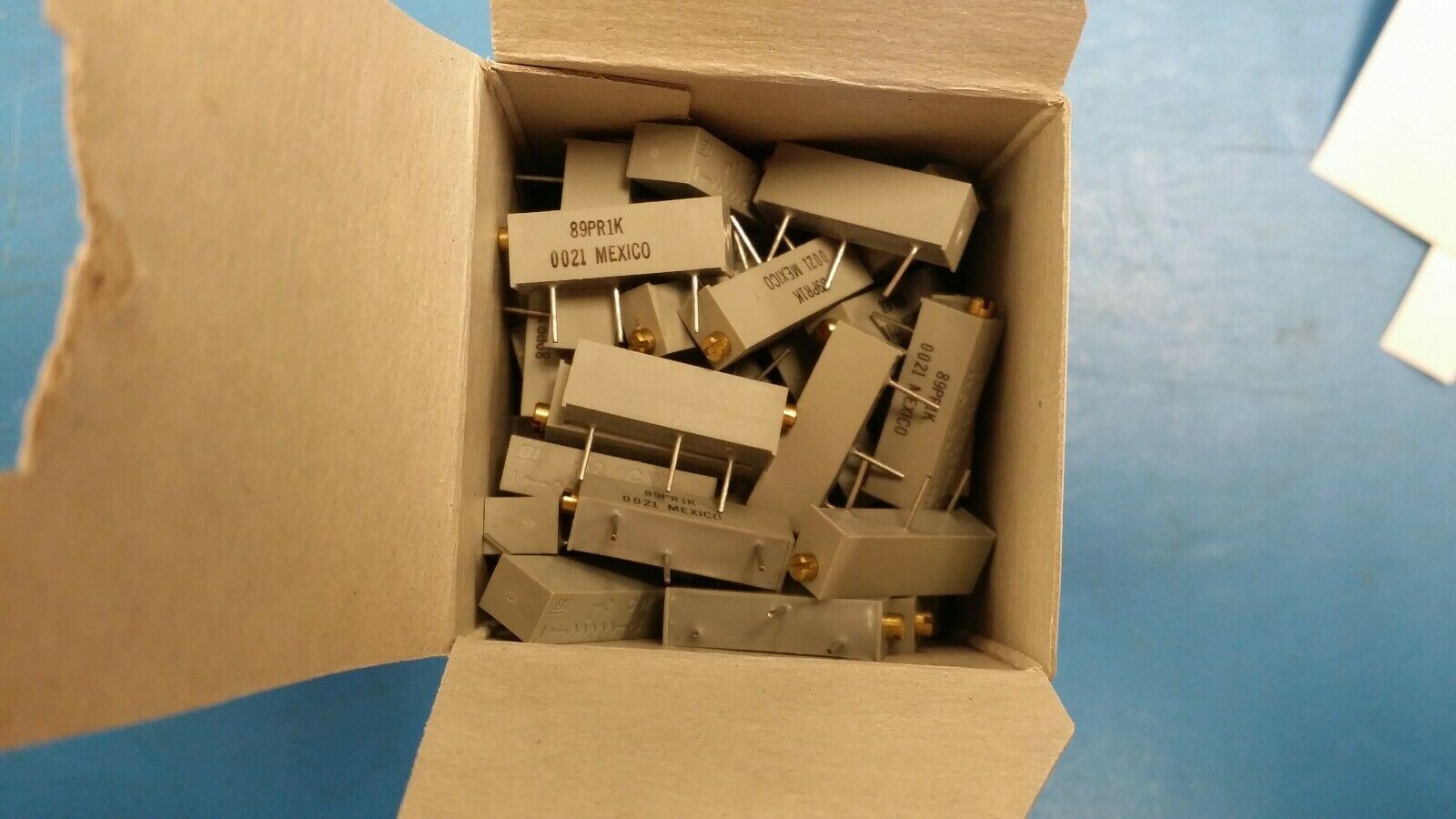

THIS LISTING IS FOR (100 PCS) OF 89PR1K BY BI Technologies
Res Cermet Trimmer 1K Ohm 10% 0.75W(3/4W) 20-turn
Description: Trimmer, Cermet, 0.75W, 1000ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 20 Turn(s)
Mfr Package Description 3/4 INCH, RECTANGULAR, 3 PINS
REACH Compliant Yes
Status Active
Resistor Type TRIMMER
Actuator Orientation HORIZONTAL
Actuator Type SCREW
Construction Trimmer Pot
JESD-609 Code e0
Lead Diameter 0.533 mm
Lead Length 4.445 mm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 3
Number of Turns 20
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Height 6.35 mm
Package Length 19.05 mm
Package Shape RECTANGULAR PACKAGE
Package Style PCB Mount
Package Width 4.83 mm
Packing Method BULK
Rated Power Dissipation (P) 0.75 W
Rated Temperature 85.0 Cel
Resistance 1000.0 ohm
Resistance Law LINEAR
Rotational Angle 7200.0 deg
Size Code 7519
Sub Category Variable Resistors
Technology CERMET
Terminal Finish TIN LEAD
Tolerance 10.0 %
Working Voltage 200.0 V
