(1000PCS) FZT949TA Power Bipolar Transistor, 5.5A, 30V, 1-Element, PNP, RoHS
Tax included.

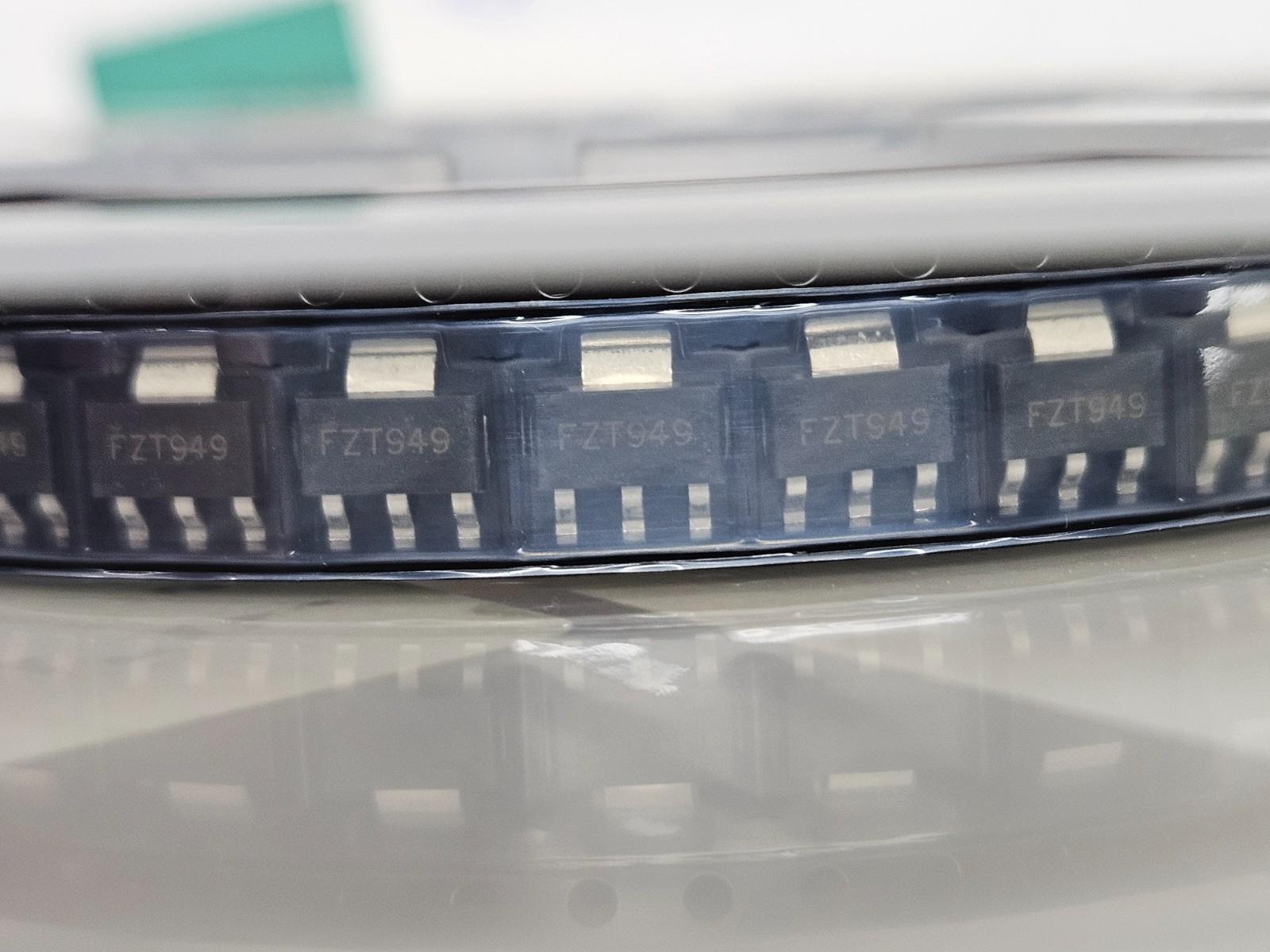

This listing is for (1000PCS) of FZT949TA by Zetex
Status Transferred
Case Connection COLLECTOR
Collector Current-Max (IC) (A) 5.5000000000000000
Collector-emitter Voltage-Max (V) 30.0000000000000000
Configuration SINGLE
DC Current Gain-Min (hFE) 100.0000000000000000
JESD-30 Code R-PDSO-G4
J-STD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 4
Operating Temperature-Max (Cel) 150
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type PNP
Power Dissipation Ambient-Max (W) 3.0000
DLA Qualification Not Qualified
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) (MHz) 100.0000000000000000
VCEsat-Max (V) 0.4400000000000000
