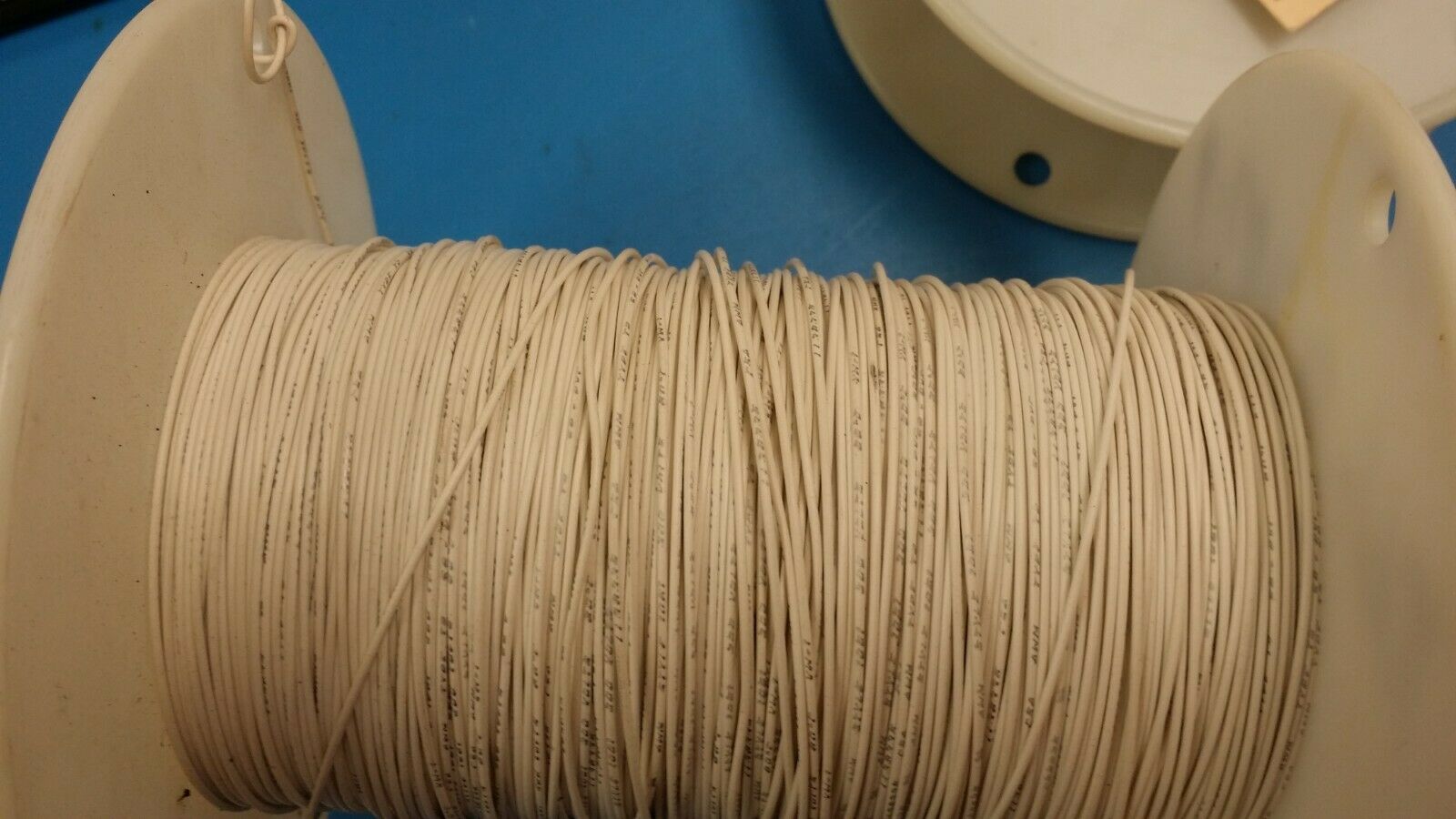

(1000FT) WPC-2207-9 HOOK-UP/LEAD WIRE - 22 AWG - PVC - 300 V RMS - WHITE
Tax included.
THIS LISTING IS FOR (1000FT) OF WPC-2207-9 HOOK-UP/LEAD WIRE - 22 AWG - PVC - 300 V RMS - WHITE
Details Download Datasheet
Tinned copper conductor. Semi-rigid PVC insulation. Can be used for internal wiring of electronic equipment. (Solid conductors suitable for wire wrap applications)
Specifications
SKU WPC-2207-9
MANUFACTURER IWC Approved
VOLTAGE, MAX. OPERATING 300 V RMS
TEMP RATING, UL 80ºC (UL AWM Style 1061)
TYPE Hook-up/Lead
WEIGHT 3.0700
CONDUCTOR SIZE (AWG) 22
CONDUCTOR MATERIAL TC - Tinned Copper
CONDUCTOR STRANDING 7x30
INSULATION MATERIAL PVC - Polyvinyl Chloride
INSULATION WALL THICKNESS .009
OVERALL NOMINAL DIAMETER 0.051
ROHS Yes
EU CE MARK Yes
UL AWM STYLE 1061
CSA TYPE AWM I. A/B
