(1000 PCS) TC7W08F, TC7W08F(TE12L) AND Gate IC 2 Channel 8-SSOP
Tax included.

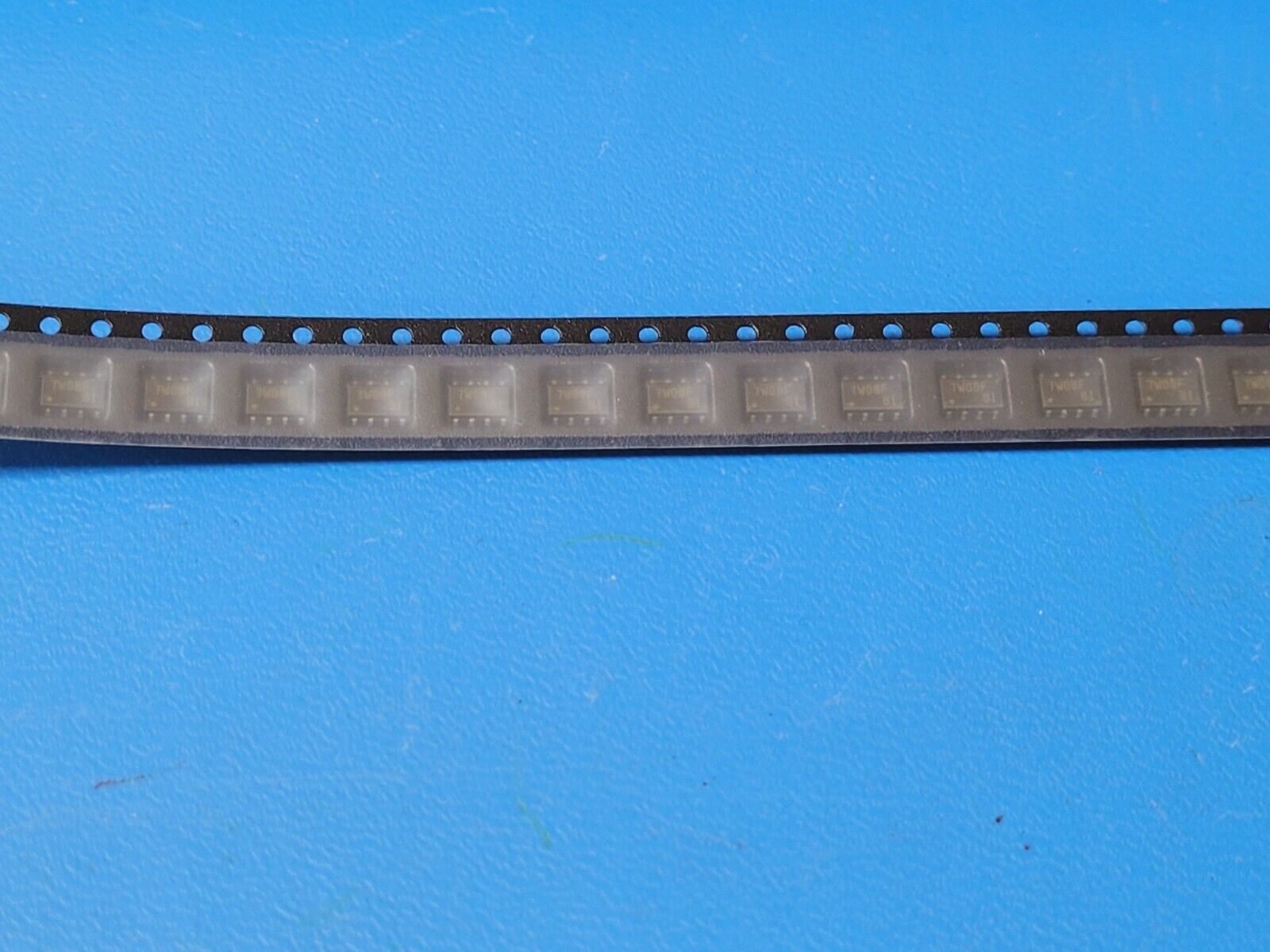

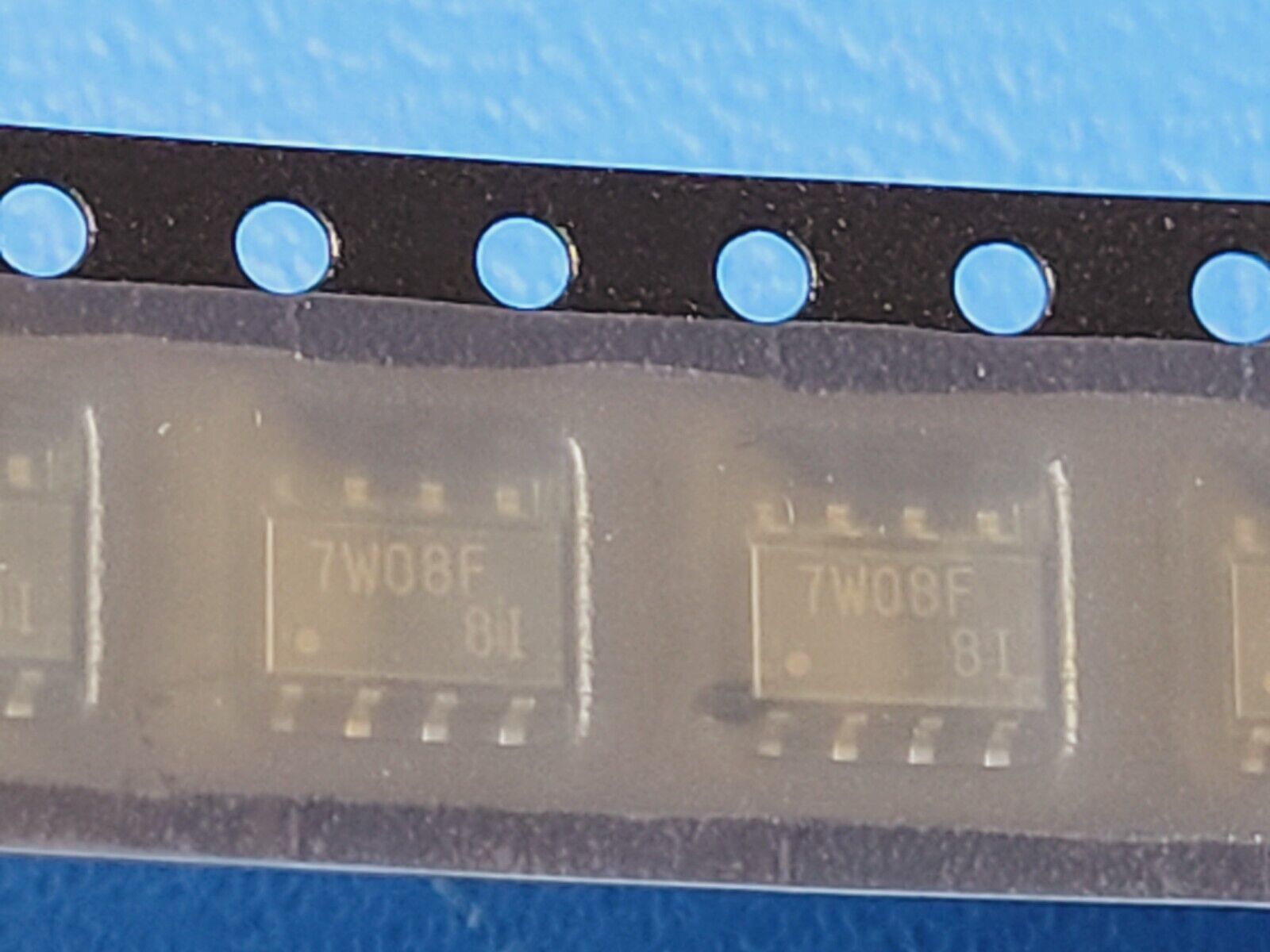

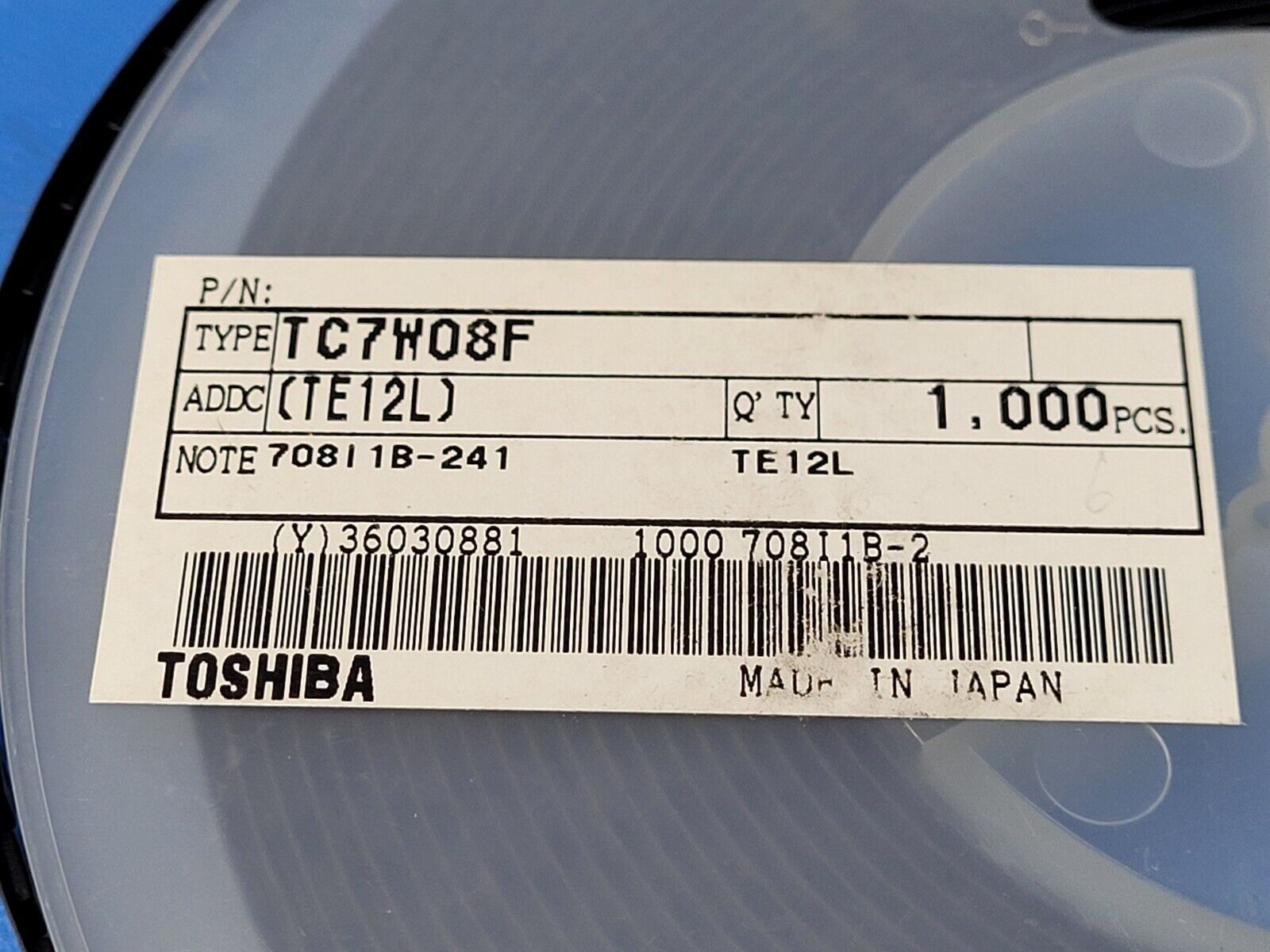

THIS IS FOR (1000 PCS) OF TC7W08F, TC7W08F(TE12L) BY TOSHIBA
AND Gate IC 2 Channel 8-SSOP
Part #: TC7W08F(TE12LF)
Part Category: Logic ICs
Manufacturer: Toshiba America Electronic Components, Inc.
Description: AND Gate, HC/UH Series, 2-Func, 2-Input, CMOS, PDSO8
Mfr Package Description SOP-8
Status Active-Unconfirmed
Logic IC Type AND GATE
Family HC/UH
JESD-30 Code R-PDSO-G8
Number of Functions 2
Number of Inputs 2.0
Number of Terminals 8
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Propagation Delay (tpd) 95.0 ns
Seated Height-Max 1.95 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 2.0 V
Supply Voltage-Max (Vsup) 6.0 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 5.0 mm
Width 3.1 mm
