(1000 PCS) SC1187ASW SEMTECH Switching Controller Voltage-mode 1A 225kHz SOIC-24

$1,499.95
Unit price per

Tax included.

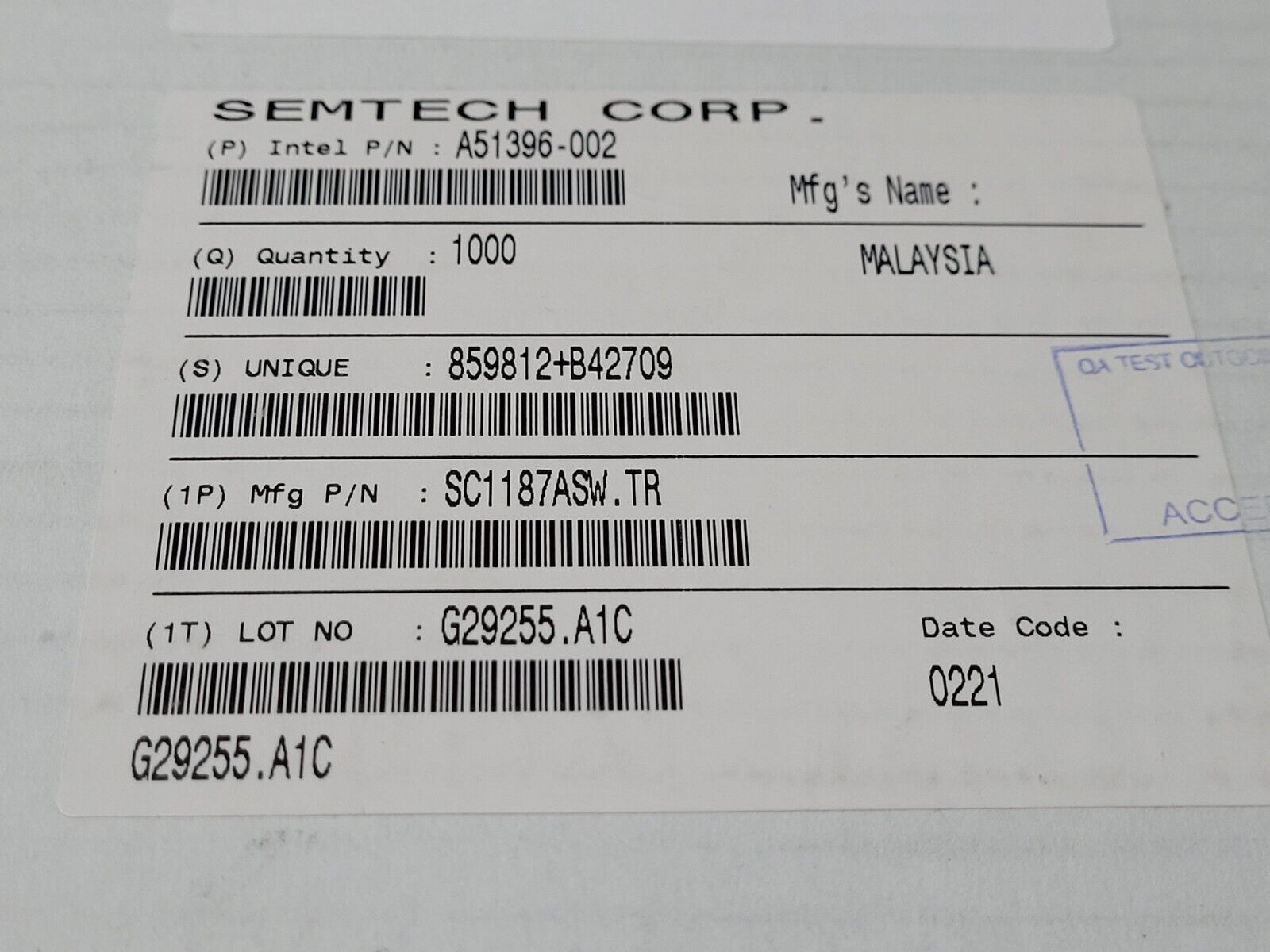

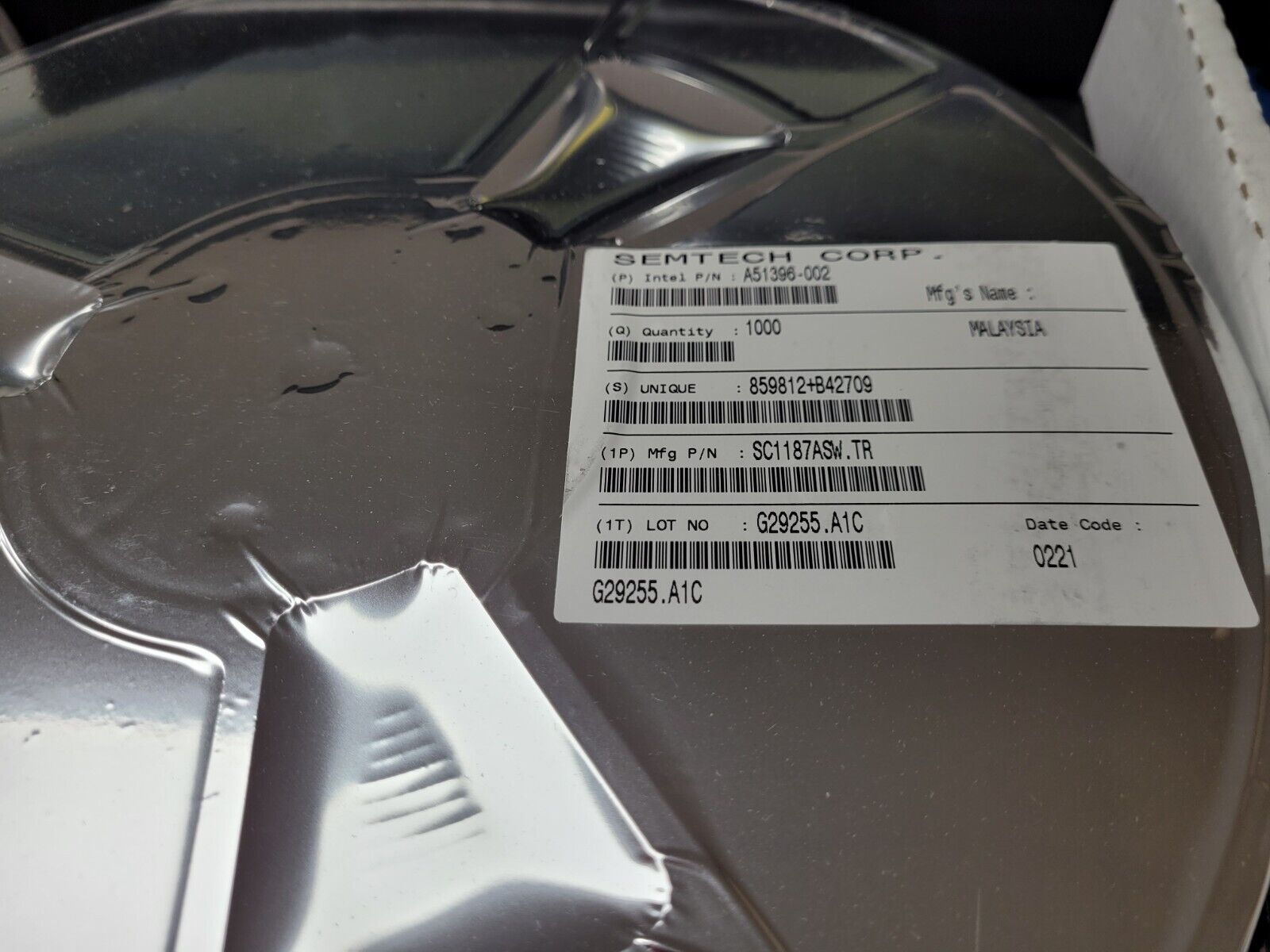

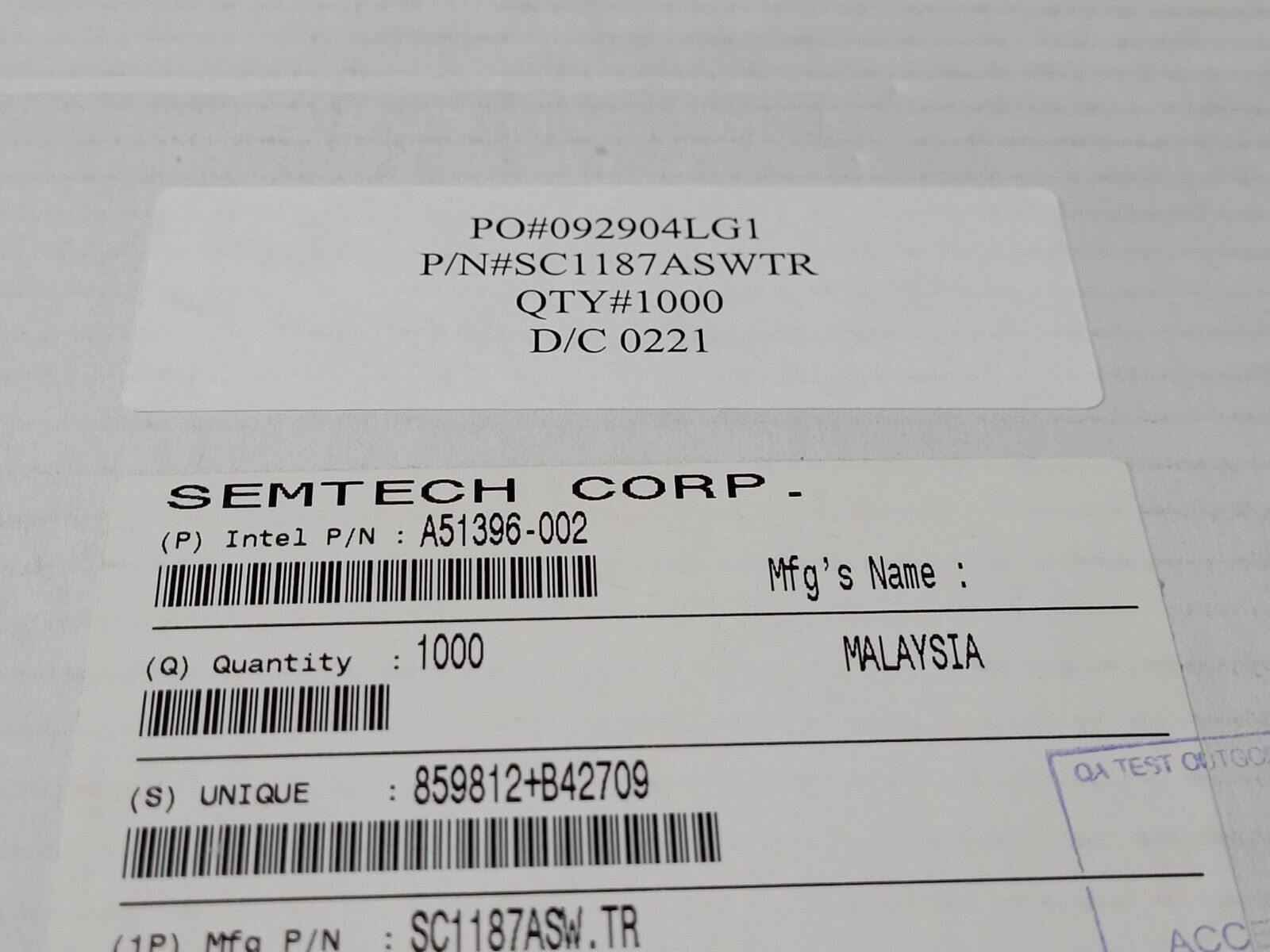

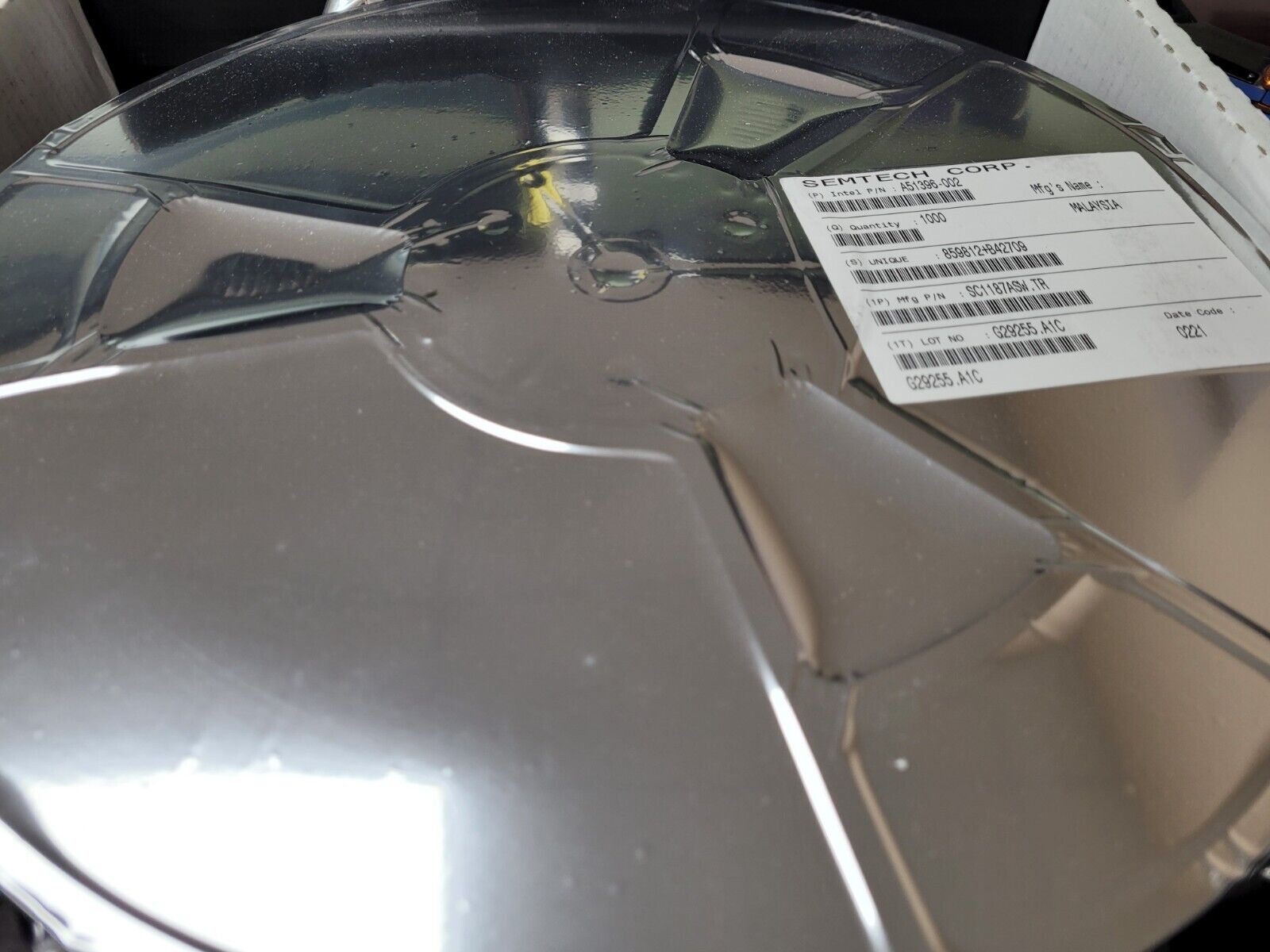

THIS IS FOR (1000 PCS) OF SC1187ASW BY SEMTECH

Switching Controller, Voltage-mode, 1A, 225kHz SOIC-24

Part #: SC1187SWTR

Part Category: Other Semiconductors

Manufacturer: Semtech Corp.

Description: Switching Controller, Voltage-mode, 1A, 225kHz Switching Freq-Max, PDSO24

Mfr Package Description SOIC-24

Status Discontinued

Analog IC - Other Type SWITCHING CONTROLLER

Control Mode VOLTAGE-MODE

Control Technique PULSE WIDTH MODULATION

Input Voltage-Nom 5.0 V

Input Voltage-Min 4.5 V

Input Voltage-Max 7.0 V

JESD-30 Code R-PDSO-G24

JESD-609 Code e0

Number of Functions 1

Number of Terminals 24

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Output Current-Max 1.0 A

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Equivalence Code SOP24,.4

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Qualification Status Not Qualified

Seated Height-Max 2.65 mm

Sub Category Switching Regulator or Controllers

Surface Mount YES

Switcher Configuration PUSH-PULL

Switching Frequency-Max 225.0 kHz

Temperature Grade COMMERCIAL

Terminal Finish TIN LEAD

Terminal Form GULL WING

Terminal Pitch 1.27 mm

Terminal Position DUAL

Length 15.4 mm

Width 7.5 mm
