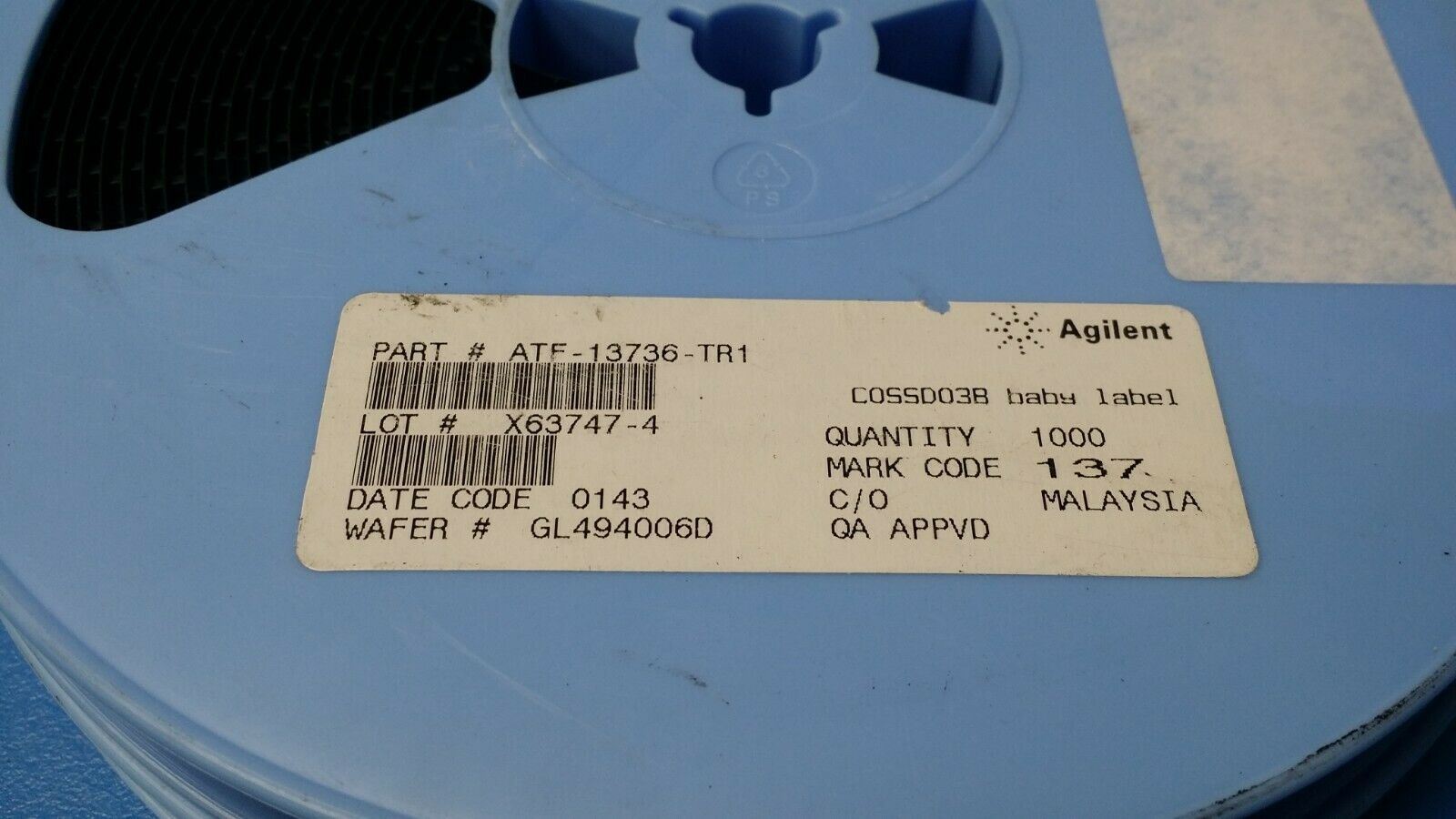

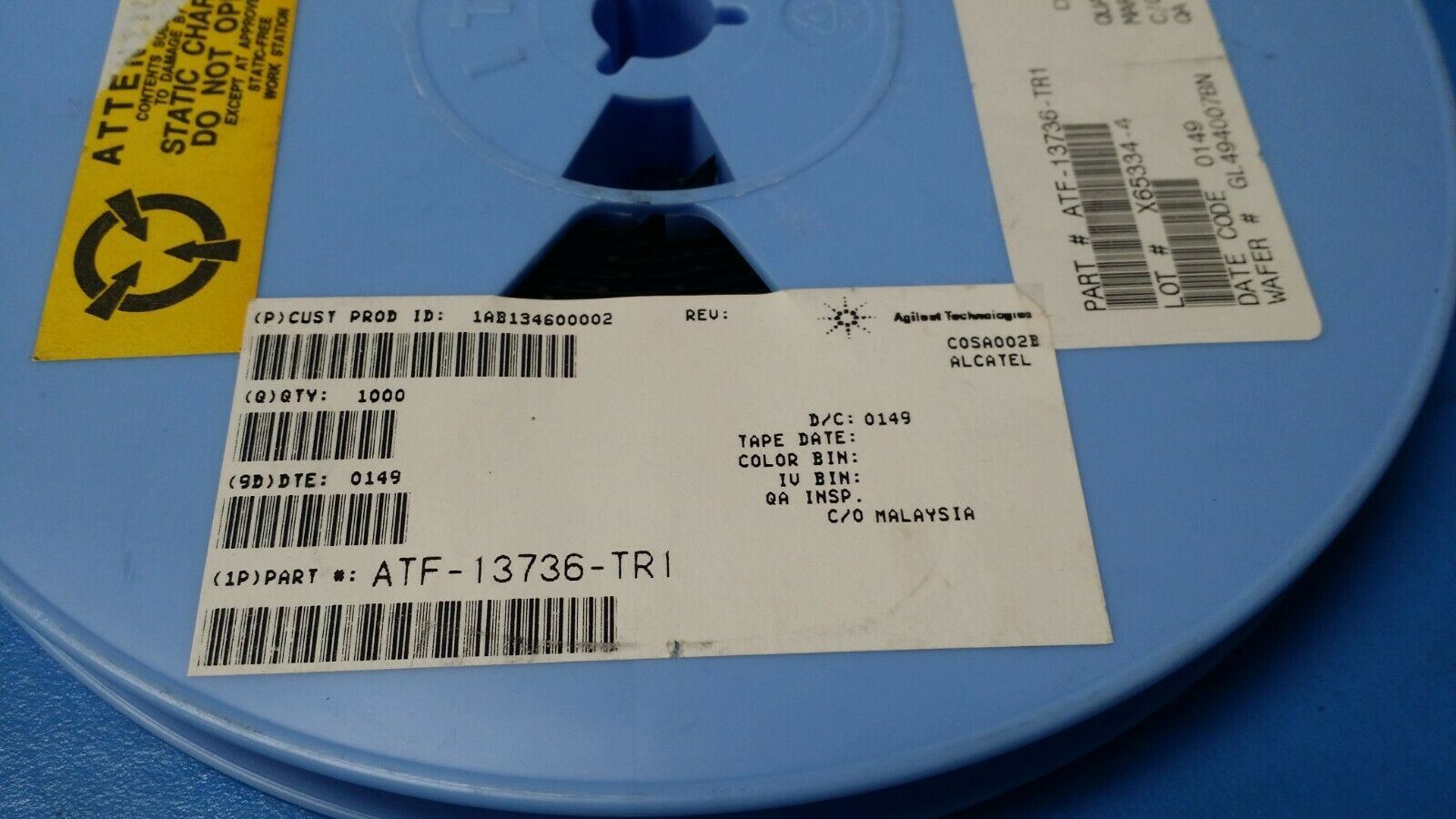

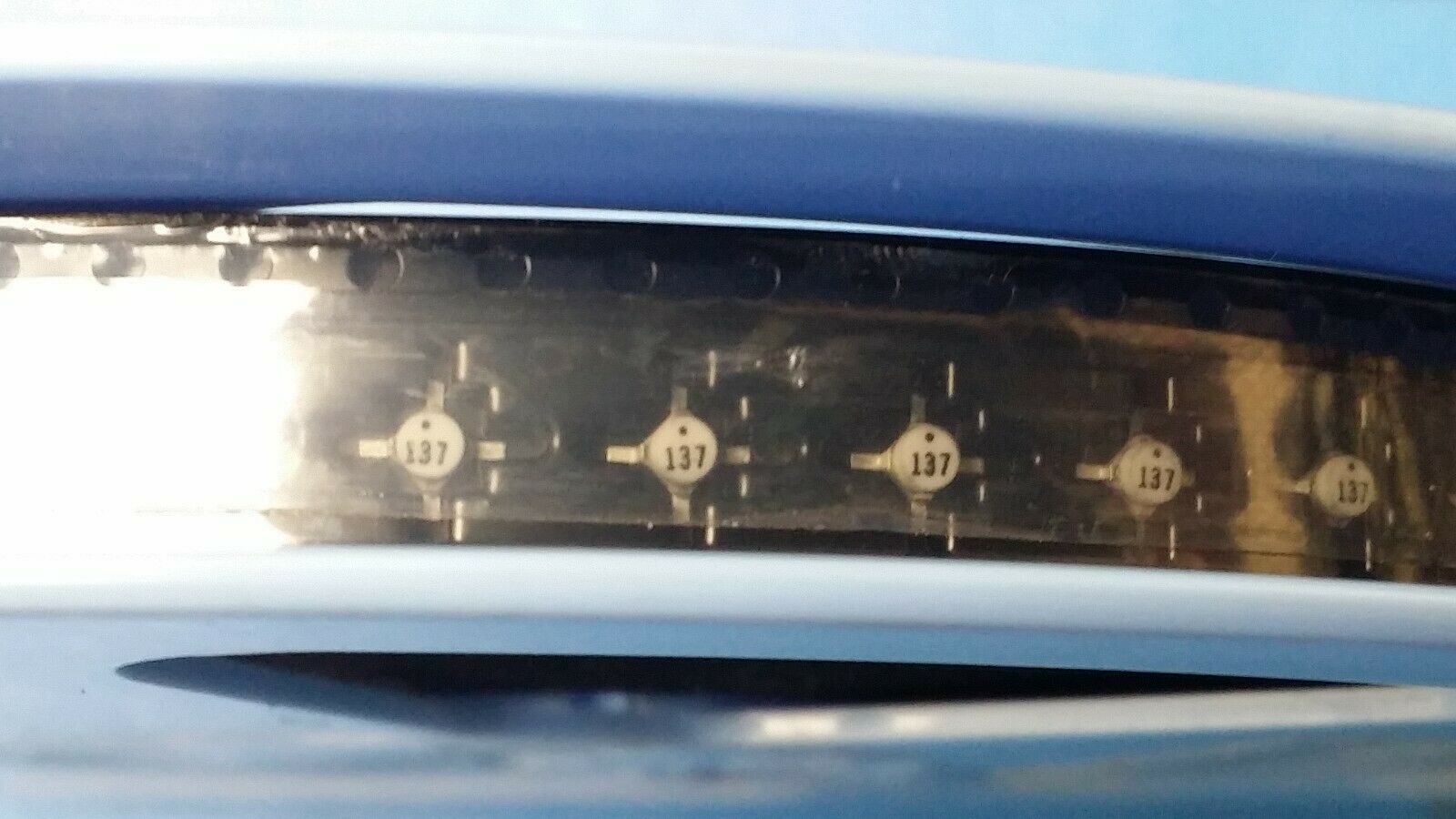

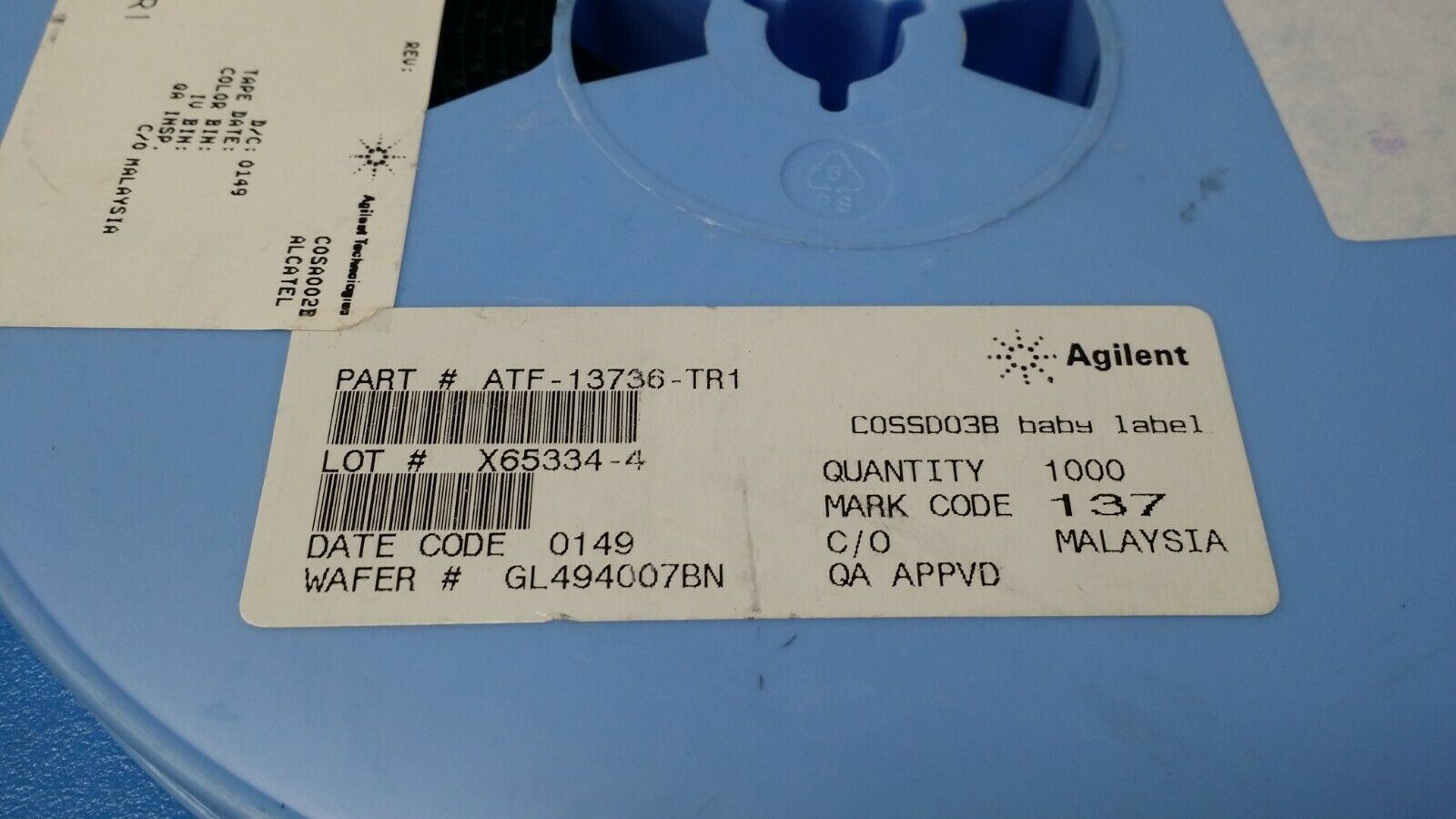

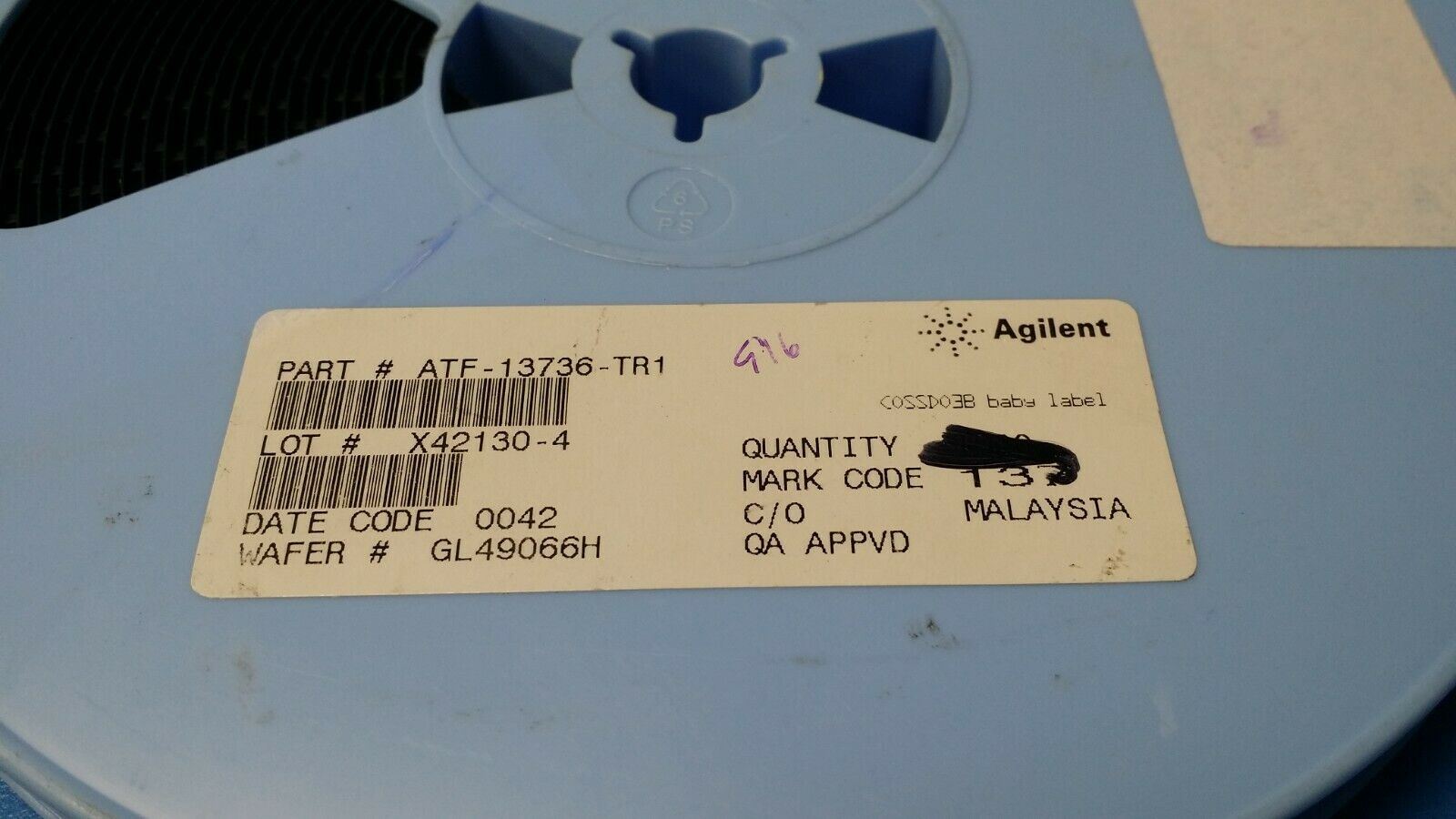

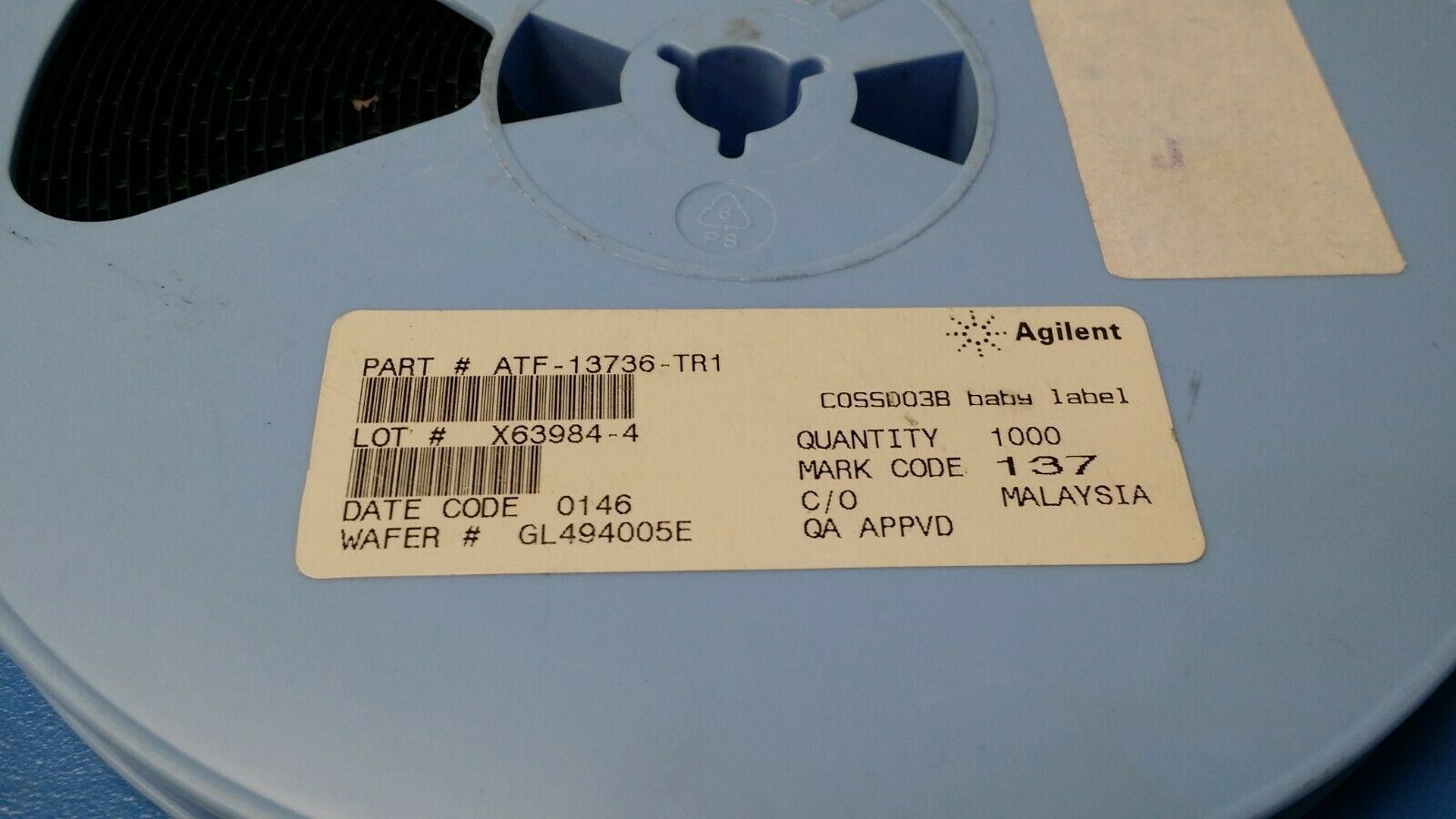

(1000 PCS) ATF-13736-TR1 HP/AGILENT Trans JFET 4V 100mA 4-Pin SMD
Tax included.
THIS LISTING IS FOR (10 PCS) OF ATF-13736-TR1 BY HP/AGILENT
Trans JFET 4V 100mA 4-Pin SMD
Part #: ATF-13736-TR1
Part Category: Transistors
Manufacturer: Hewlett-Packard
Description: RF Small Signal Field-Effect Transistor, 1-Element, KU Band, Gallium Arsenide, N-Channel, Metal Semiconductor FET
Mfr Package Description CERAMIC, MICROSTRIP PACKAGE-4
Status Discontinued
Configuration SINGLE
Drain Current-Max (ID) 0.09 A
DS Breakdown Voltage-Min 5.0 V
FET Technology METAL SEMICONDUCTOR
Highest Frequency Band KU BAND
JESD-30 Code S-CXMW-F4
Number of Elements 1.0
Number of Terminals 4
Operating Mode DEPLETION MODE
Operating Temperature-Max 175.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Shape SQUARE
Package Style MICROWAVE
Polarity/Channel Type N-CHANNEL
Power Dissipation Ambient-Max 0.225 W
Power Gain-Min (Gp) 8.0 dB
Qualification Status Not Qualified
Surface Mount YES
Terminal Form FLAT
Terminal Position UNSPECIFIED
Transistor Application AMPLIFIER
Transistor Element Material GALLIUM ARSENIDE
Additional Feature LOW NOISE
