(100 ) ZXMN3F318DN8TA ZETEX Mosfet Transistor 4.6A 30V 2-Element N-Channel SOIC8
Tax included.

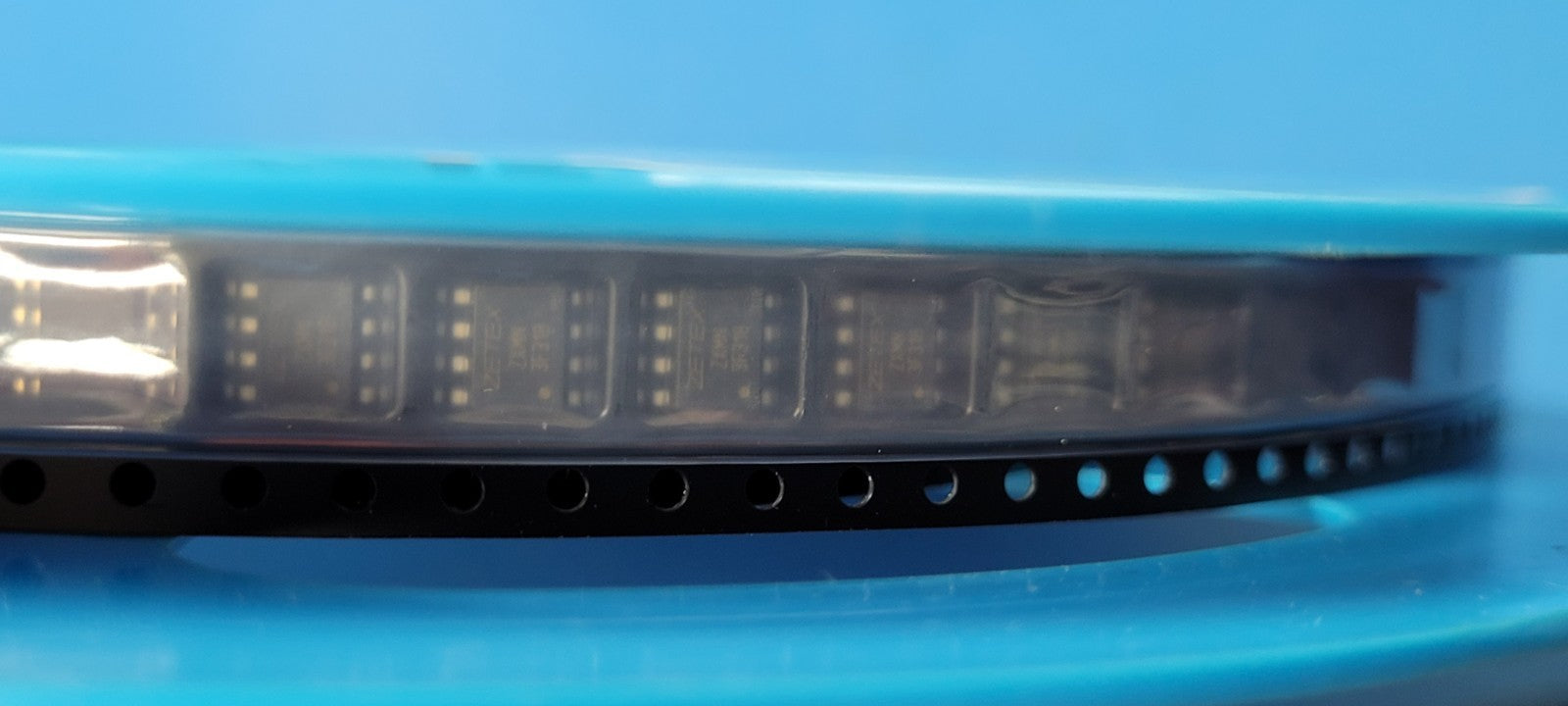

THIS IS FOR (100 PCS ) OF ZXMN3F318DN8TA BY ZETEX
Mosfet Transistor 4.6A 30V 2-Element N-Channel SOIC-8
Part #: ZXMN3F318DN8TA
Other
Part Category: Small Signal Field-Effect Transistors
Manufacturer: ZETEX PLC
Description:
Small Signal Field-Effect Transistor, 4.6A I(D), 30V, 2-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET
Status Transferred
Configuration SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min (V) 30.0000000000000000
Drain Current-Max (ID) (A) 4.6000000000000000
Drain-source On Resistance-Max (ohm) 0.0350000000000000
FET Technology METAL-OXIDE SEMICONDUCTOR
JESD-30 Code R-PDSO-G8
Number of Elements 2
Number of Terminals 8
Operating Mode ENHANCEMENT MODE
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity/Channel Type N-CHANNEL
DLA Qualification Not Qualified
Surface Mount YES
Terminal Form GULL WING
Terminal Position DUAL
Application SWITCHING
Transistor Element Material SILICON
