(100) RN1201(TPE4) Small Signal Bipolar Transistor .1A 50V 1-Element NPN Silicon
Tax included.

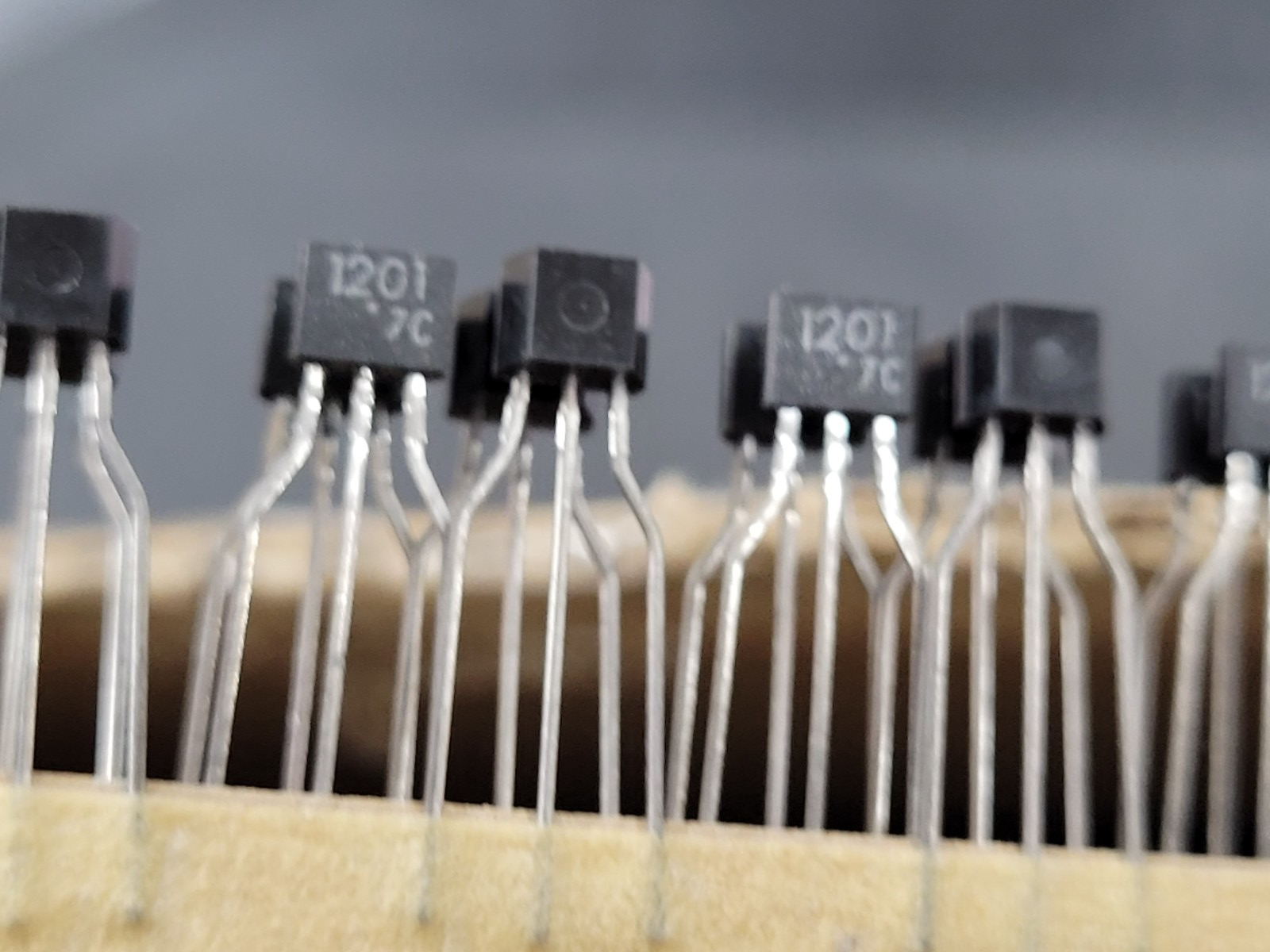

THIS IS FOR (100 PCS) OF RN1201(TPE4) BY TOSHIBA
Small Signal Bipolar Transistor 0.1A 50V 1-Element NPN Silicon
Part #: RN1201(TPE4)
Obsolete
Part Category: Small Signal Bipolar Transistors
Manufacturer: TOSHIBA CORP
Description:
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon
Status Discontinued
Additional Feature BUILT IN BIAS RESISTOR RATIO IS 1
Collector Current-Max (IC) (A) 0.1000000000000000
Collector-base Capacitance-Max (pF) 6.0000000000000000
Collector-emitter Voltage-Max (V) 50.0000000000000000
Configuration SINGLE WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE) 30.0000000000000000
JESD-30 Code R-PSIP-T3
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max (Cel) 150
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style IN-LINE
Polarity/Channel Type NPN
DLA Qualification Not Qualified
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) (MHz) 250.0000000000000000
VCEsat-Max (V) 0.3000000000000000
