(100 PCS) TC74HC157AFN TOSHIBA Multiplexer 1-Element CMOS 8-IN SOL-16

$39.95
Unit price per

Tax included.

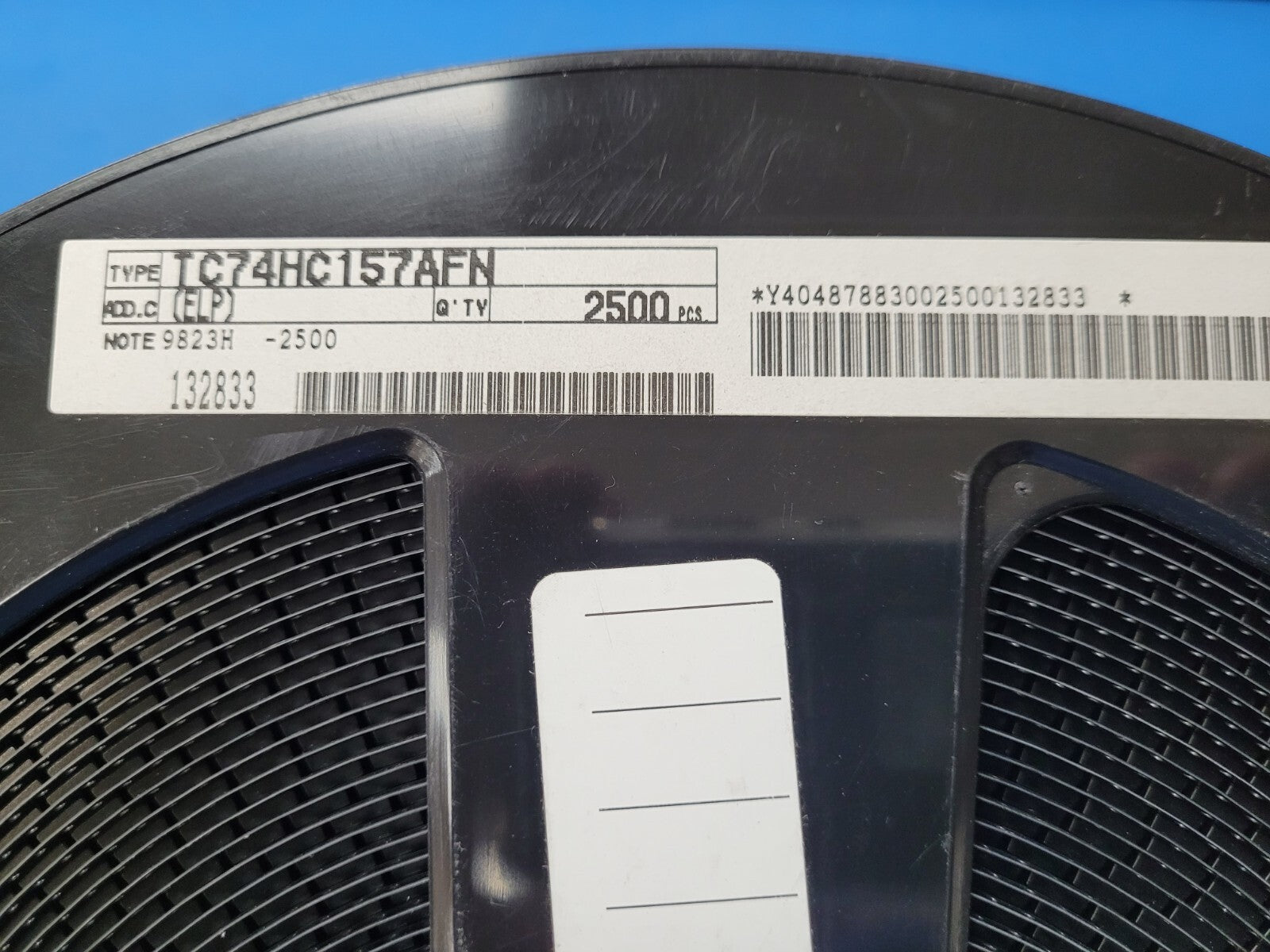

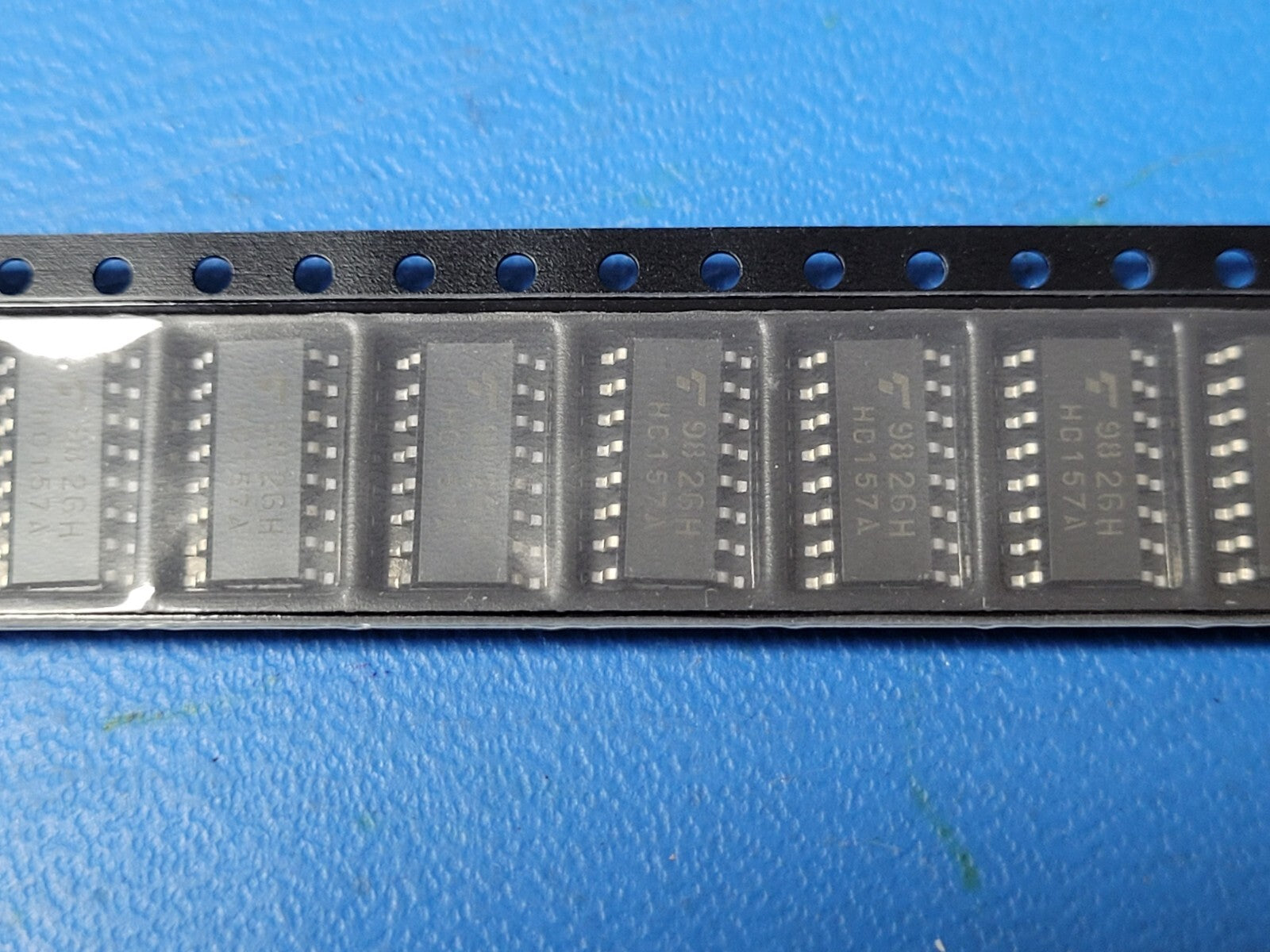

THIS IS FOR (100 PCS) OF TC74HC157AFN BY TOSHIBA

Multiplexer 1-Element CMOS 8-IN SOL-16

Part #: TC74HC157AFN-ELP

Part Category: Logic ICs

Manufacturer: Toshiba America Electronic Components, Inc.

Description: Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, PDSO16

Mfr Package Description 0.150 INCH, PLASTIC, SOL-16

Status Discontinued

Logic IC Type MULTIPLEXER

Sub Category Multiplexer/Demultiplexers

Family HC/UH

JESD-30 Code R-PDSO-G16

JESD-609 Code e0

Load Capacitance (CL) 50.0 pF

Max I(ol) 0.004 Amp

Number of Functions 4

Number of Inputs 2.0

Number of Outputs 1.0

Number of Terminals 16

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code SOP

Package Equivalence Code SOP16,.25

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Packing Method TR

Prop. Delay@Nom-Sup 31.0 ns

Propagation Delay (tpd) 31.0 ns

Qualification Status Not Qualified

Seated Height-Max 1.75 mm

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 2.0 V

Supply Voltage-Max (Vsup) 6.0 V

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish TIN LEAD

Terminal Form GULL WING

Terminal Pitch 1.27 mm

Terminal Position DUAL

Length 9.9 mm

Width 3.9 mm
