(100 PCS) SMBT2907AE6327 TRANSISTOR PNP 60V 0.6A SOT-23
Tax included.

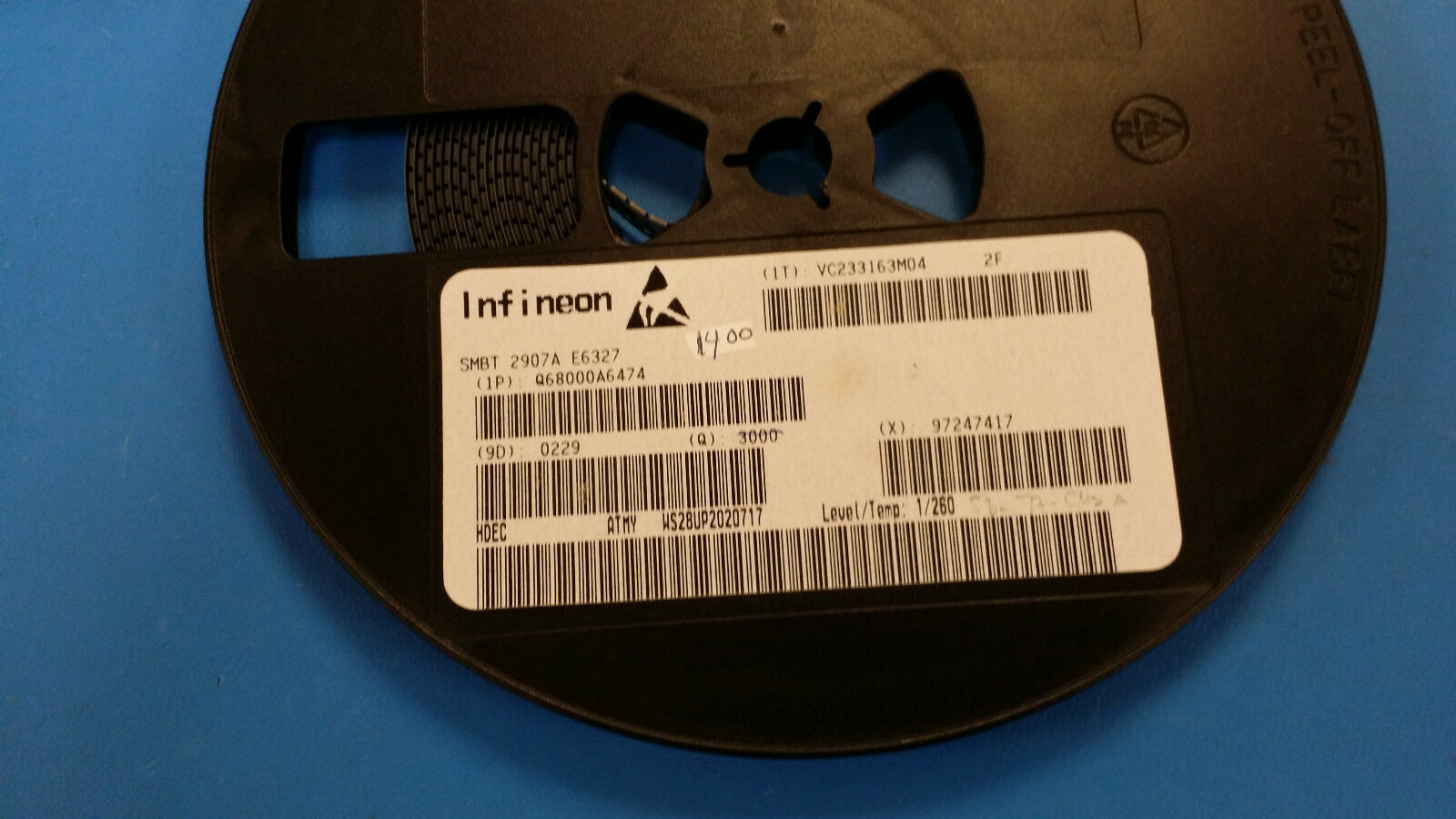

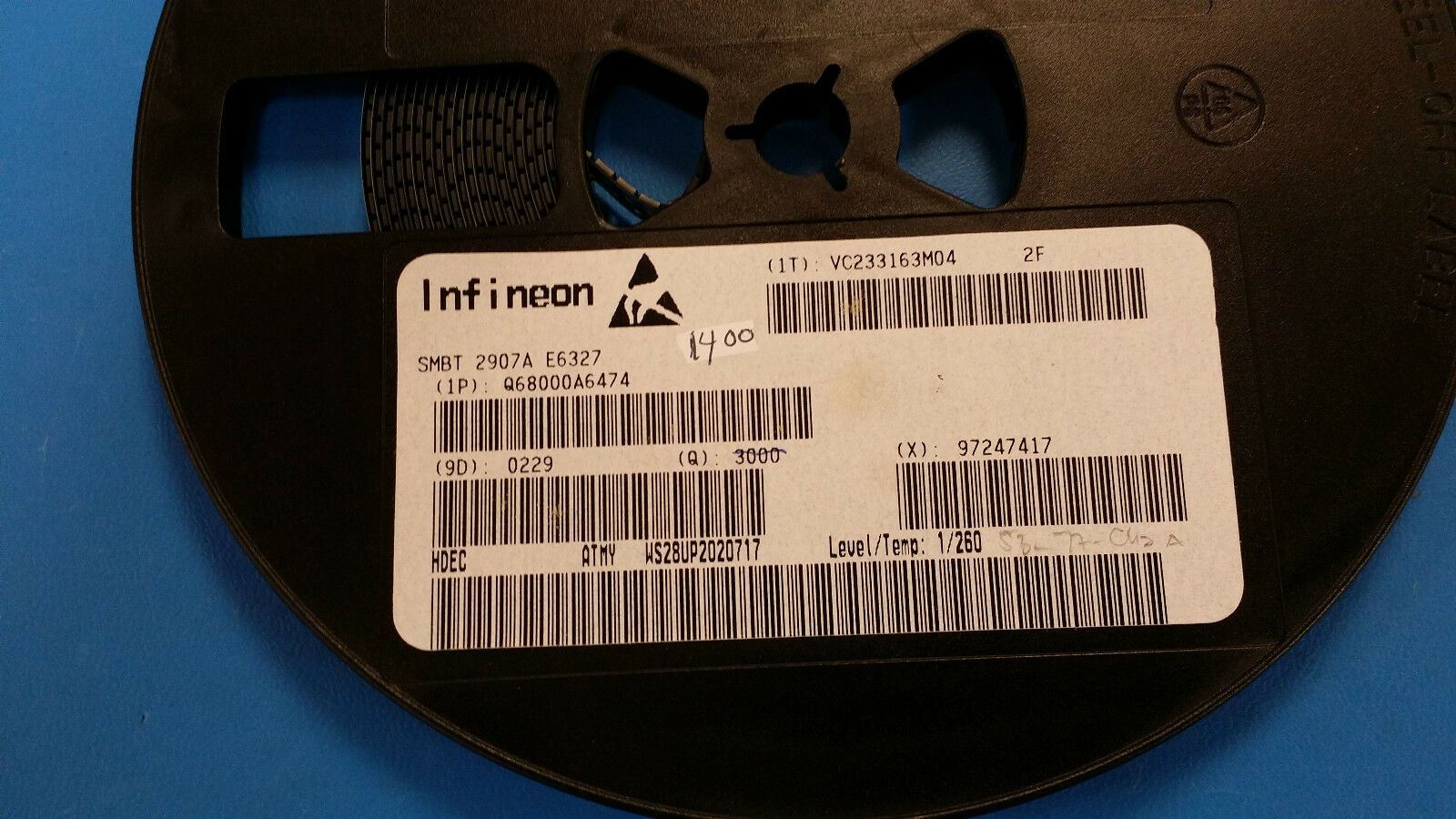

THIS LISTING IS FOR (100 PCS) OF SMBT2907AE6327 BY INFINEON
TRANSISTOR PNP 60V 0.6A SOT-23
(15000 PCS IN STOCK. WE WILL MAKE DEALS ON LARGER QTY. SEND OFFERS)
|
SMBT2907AE6327 |
|
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 150 |
| Type | PNP |
| Maximum Collector Base Voltage (V) | 60 |
| Maximum Emitter Base Voltage (V) | 5 |
| Maximum Collector Emitter Voltage (V) | 60 |
| Maximum Power Dissipation (mW) | 330 |
| Maximum DC Collector Current (A) | 0.6 |
| Packaging | Tape and Reel |
| Minimum DC Current Gain | 75@100uA@10V|100@1mA@10V|100@10mA@10V|100@150mA@10V|50@500mA@10V |
| Number of Elements per Chip | 1 |
| Maximum Transition Frequency (MHz) | 200(Min) |
| Category | Bipolar Small Signal |
| Mounting | Surface Mount |
| Package Height (mm) | 1(Max) |
| Package Length (mm) | 2.9 |
| Package Width (mm) | 1.3 |
| PCB | 3 |
| Standard Package Name | SOT-23 |
| Supplier Package | SOT-23 |
| Pin Count | 3 |
| Lead Shape | Gull-wing |
