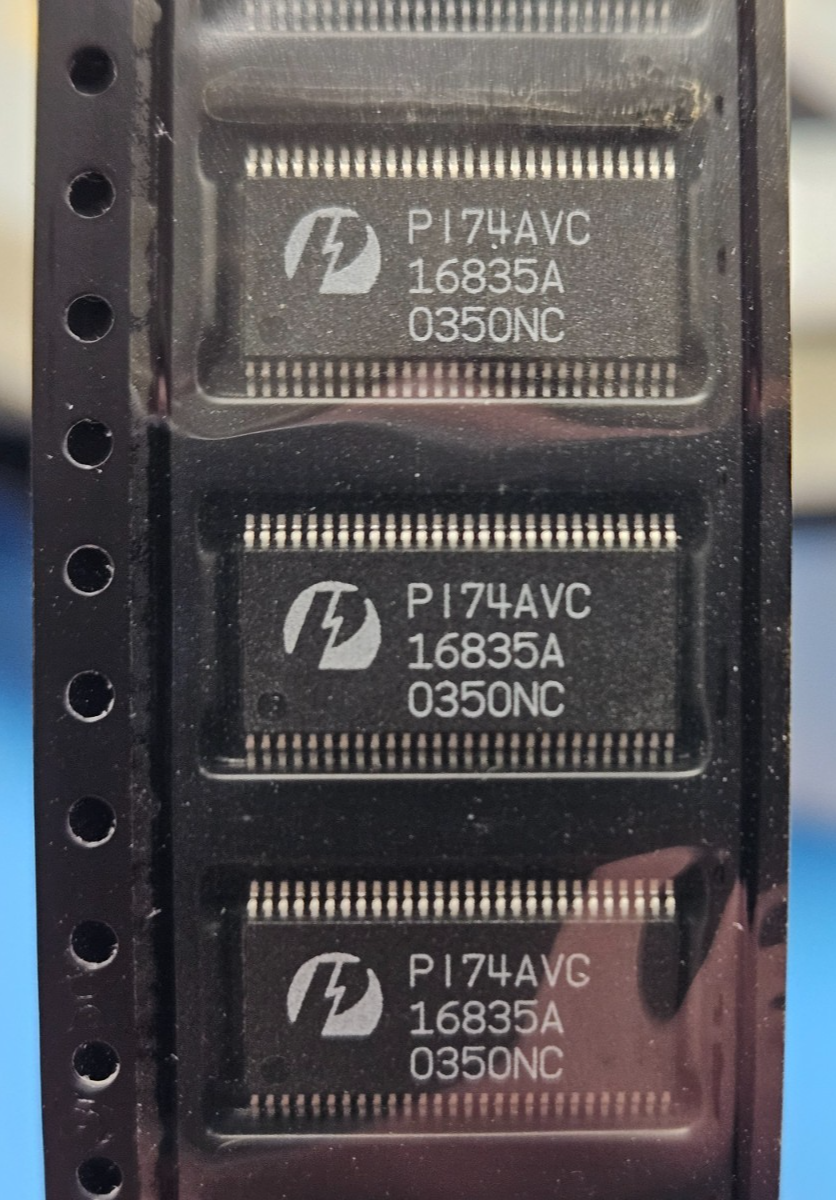

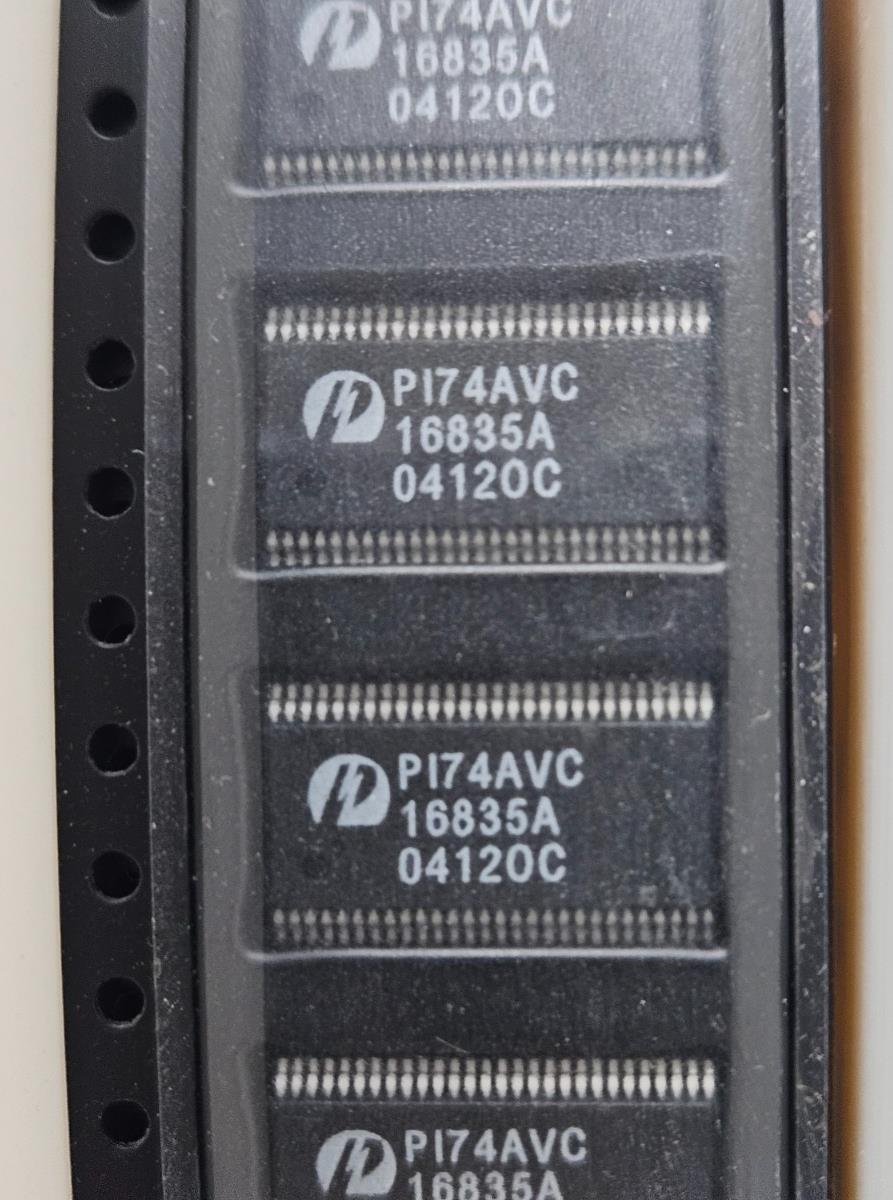

(100 PCS) PI74AVC16835AX Pericom Universal Bus Driver 18-Bit 56-TSSOP

$174.95
Unit price per

Tax included.

This listing is for (100 pcs) of PI74AVC16835AX by Pericom

Status Discontinued

Control Type ENABLE LOW

Family AVC

JESD-30 Code R-PDSO-G56

J-STD-609 Code e0

Length (mm) 14.0000

Load Capacitance (pF) 50.0000

Logic IC Type BUS DRIVER

Output Low Current-Max (mA) 12.000000000000000

Moisture Sensitivity Level 1

Number of Bits 18

Number of Functions 1

Number of Ports 2

Number of Terminals 56

Operating Temperature-Max (Cel) 85

Operating Temperature-Min (Cel) -40

Output Characteristics 3-STATE

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code TSSOP

Package Equivalence Code TSSOP56,.3,20

Package Shape RECTANGULAR

Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

Packing Method TR

Propagation Delay-Max@Nom-Sup (ns) 2.500000000000000000

Propagation Delay (ns) 4.5000

DLA Qualification Not Qualified

Seated Height-Max (mm) 1.2000

Supply Voltage-Max (V) 3.6000

Supply Voltage-Min (V) 1.6500

Supply Voltage-Nom (V) 2.5

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish TIN LEAD

Terminal Form GULL WING

Terminal Pitch (mm) 0.500

Terminal Position DUAL

Width (mm) 6.1000
