(100 PCS) PHP36N03LT NXP MOSFET Trans MOSFET N-CH 30V 43.4A 3-Pin

  • $86.95
    Unit price per
Tax included.

Only 50 left!

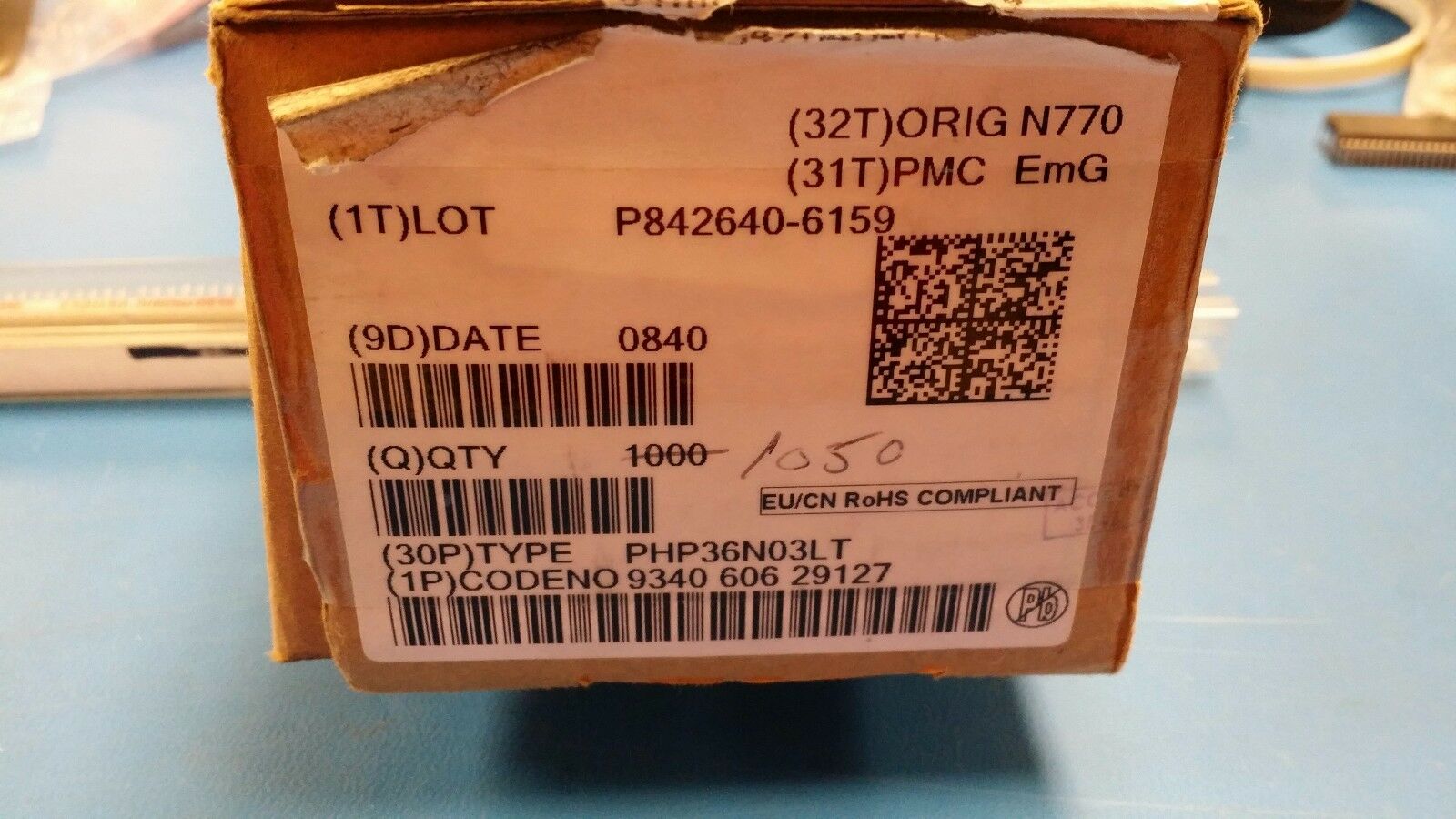

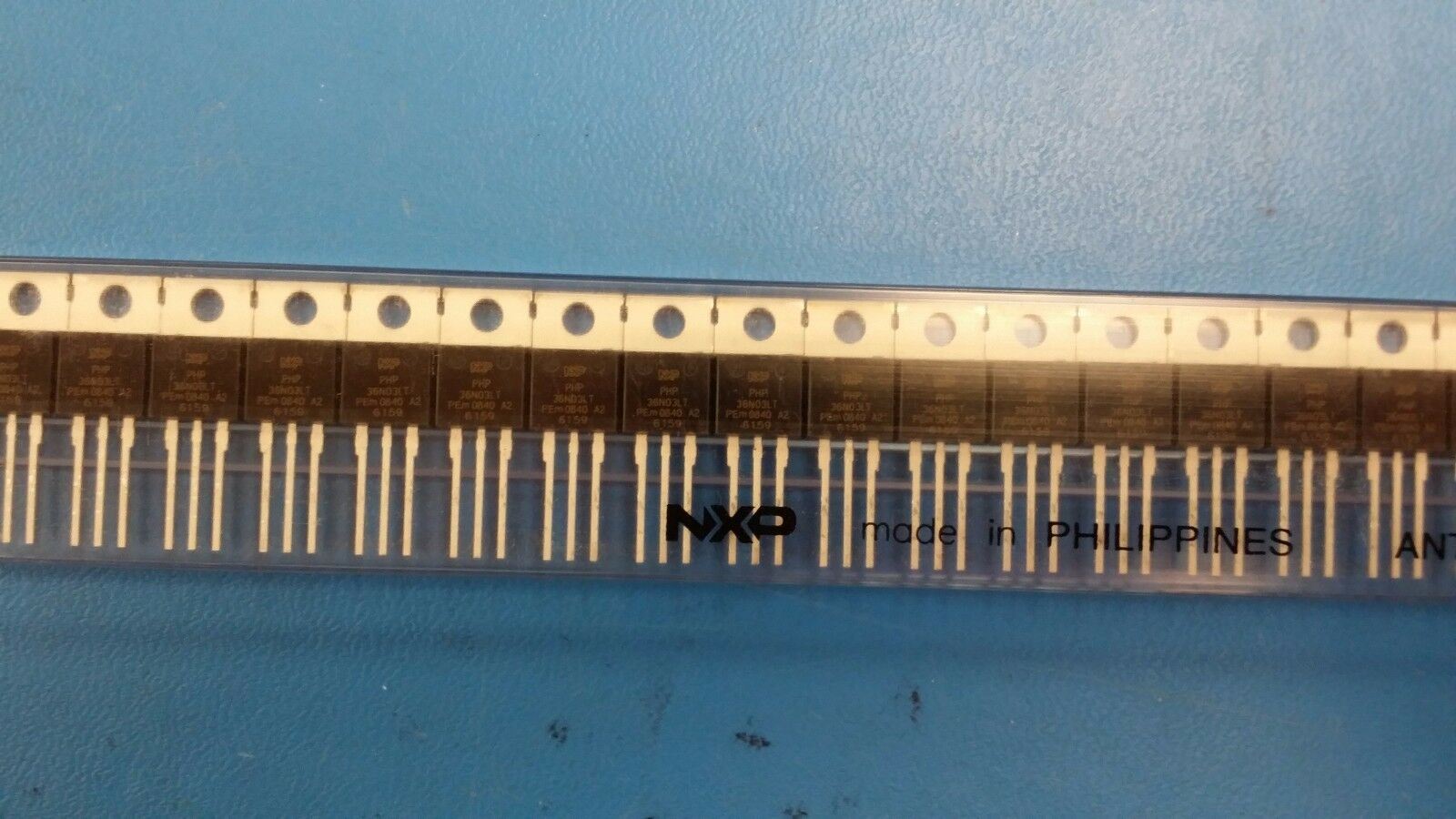

THIS LISTING IS FOR (100 PCS) OF PHP36N03LT BY NXP
MOSFET Trans MOSFET N-CH 30V 43.4A 3-Pin
Product Category: MOSFET
Manufacturer: NXP
RoHS: YES
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 30 V
Id - Continuous Drain Current: 43.4 A
Rds On - Drain-Source Resistance: 40 mOhms
Vgs - Gate-Source Voltage: 20 V
Vgs th - Gate-Source Threshold Voltage: 2.2 V
Qg - Gate Charge: 18.5 nC
Maximum Operating Temperature: + 175 C
Packaging: Reel
Channel Mode: Enhancement
Brand: NXP Semiconductors
Configuration: Single
Fall Time: 19 ns
Height: 9.4 mm
Length: 10.3 mm
Minimum Operating Temperature: - 55 C
Pd - Power Dissipation: 57.6 W
Rise Time: 10 ns


Transistor Type: 1 N-Channel
Type: N-Channel TrenchMOS Logic Level FET
Typical Turn-Off Delay Time: 33 ns
Typical Turn-On Delay Time: 6 ns
Width: 4.7 mm
Unit Weight: 0.211644 oz
