(100 PCS) PCKV857DGV Philips PLL Based Clock Driver, 10 True Outputs SOP48
(100 PCS) PCKV857DGV Philips PLL Based Clock Driver, 10 True Outputs SOP48
(100 PCS) PCKV857DGV Philips PLL Based Clock Driver, 10 True Outputs SOP48

(100 PCS) PCKV857DGV Philips PLL Based Clock Driver, 10 True Outputs SOP48

Tax included.
Only 19 left!

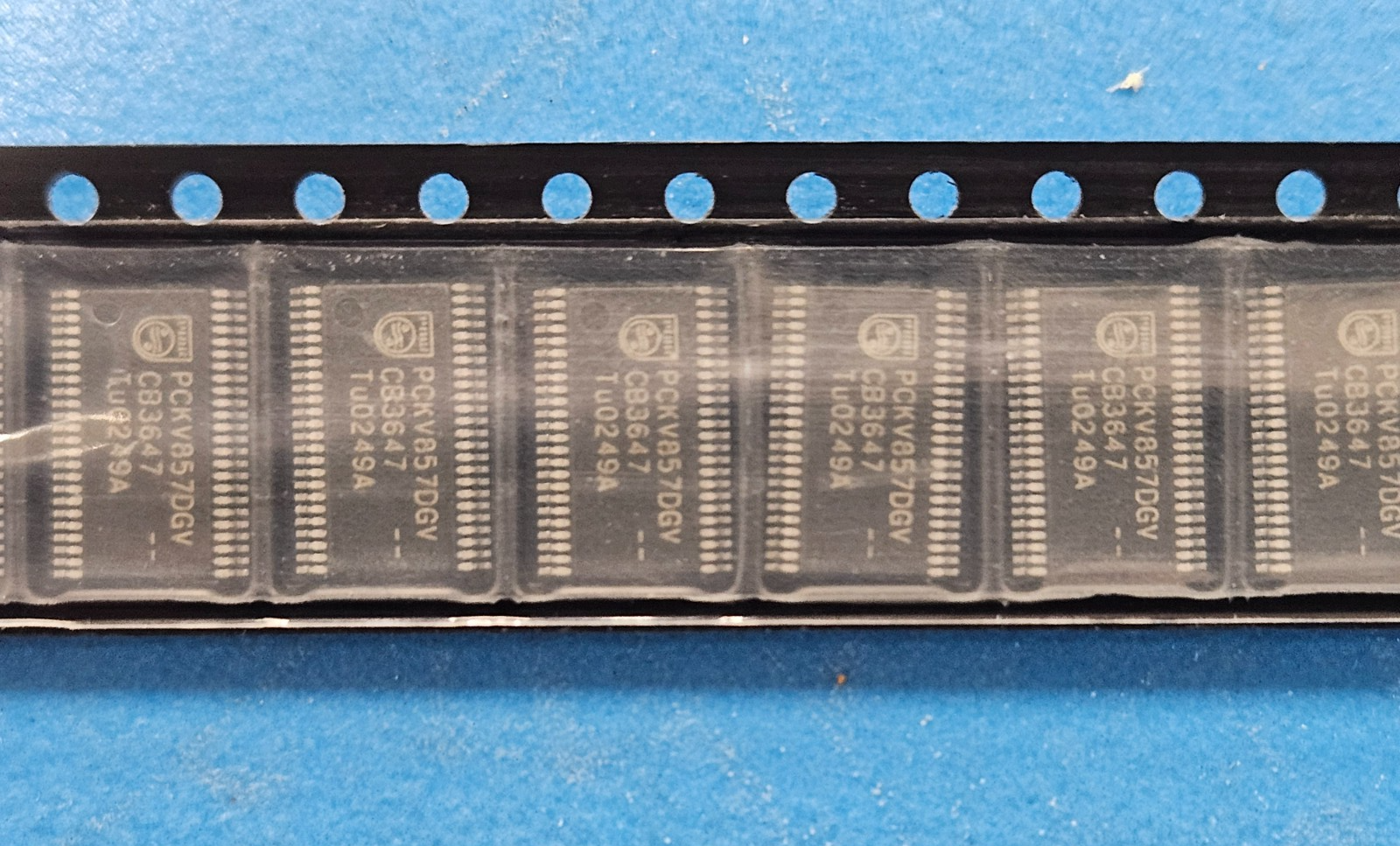

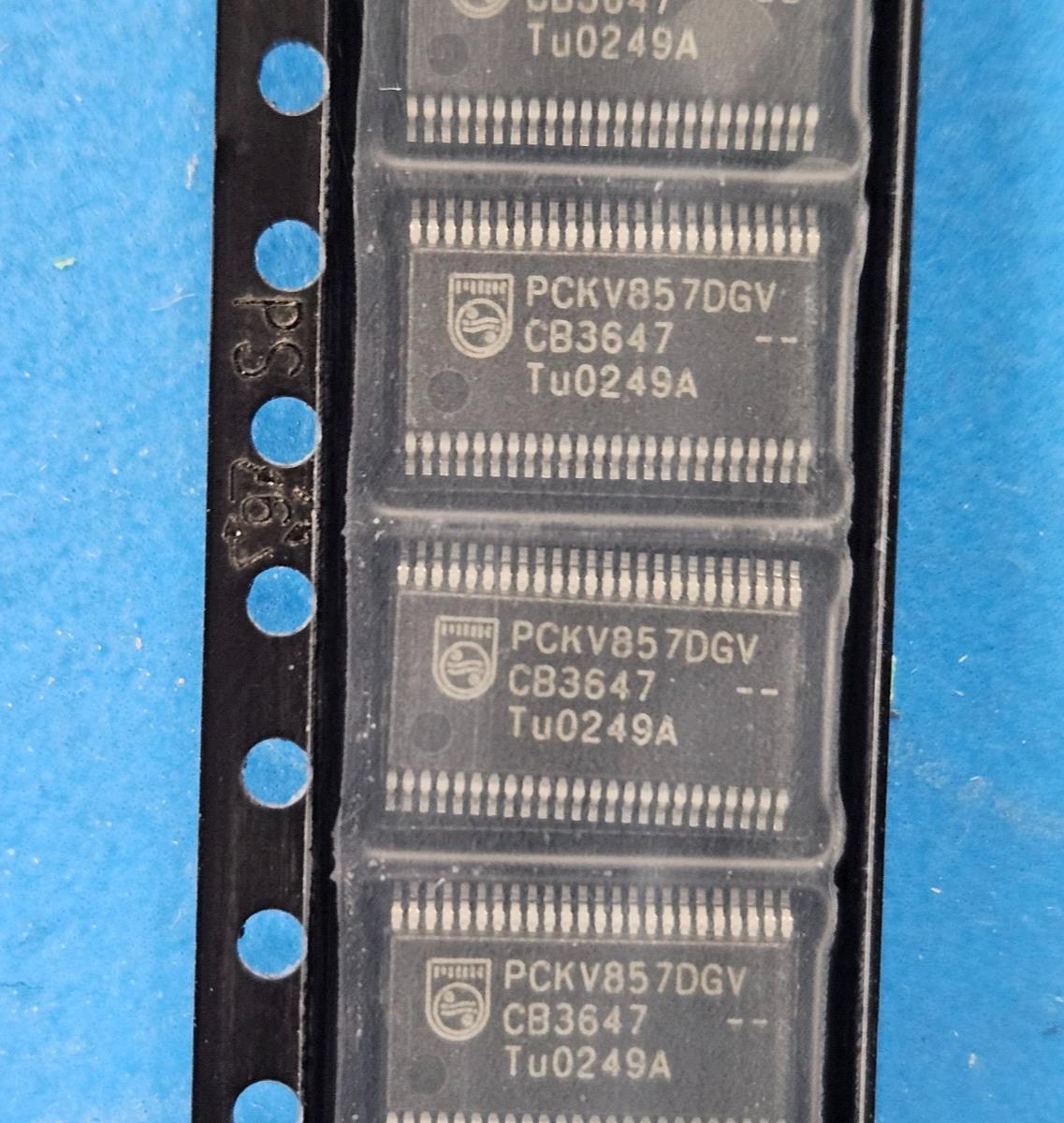

This listing is for (100 PCS) of PCKV857DGV by Philips

Status Discontinued
Input Conditioning DIFFERENTIAL
JESD-30 Code R-PDSO-G48
J-STD-609 Code e3
Length (mm) 9.7000
Logic IC Type PLL BASED CLOCK DRIVER
Number of Functions 1
Number of Inverted Outputs 0
Number of Terminals 48
Number of True Outputs 10
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
DLA Qualification Not Qualified
Same Edge Clock Skew Delay-Max (ns) 0.0750
Seated Height-Max (mm) 1.1000
Supply Voltage-Max (V) 2.7000
Supply Voltage-Min (V) 2.3000
Supply Voltage-Nom (V) 2.5
Surface Mount YES
Temperature Grade COMMERCIAL
Terminal Finish TIN
Terminal Form GULL WING
Terminal Pitch (mm) 0.400
Terminal Position DUAL
Width (mm) 4.4000
fmax-Min (MHz) 190.0000
