(100 PCS) P6KE6.8A, Taiwan Semiconductor, TVS Diode, 5.8V, 600W, DO-15,
Tax included.

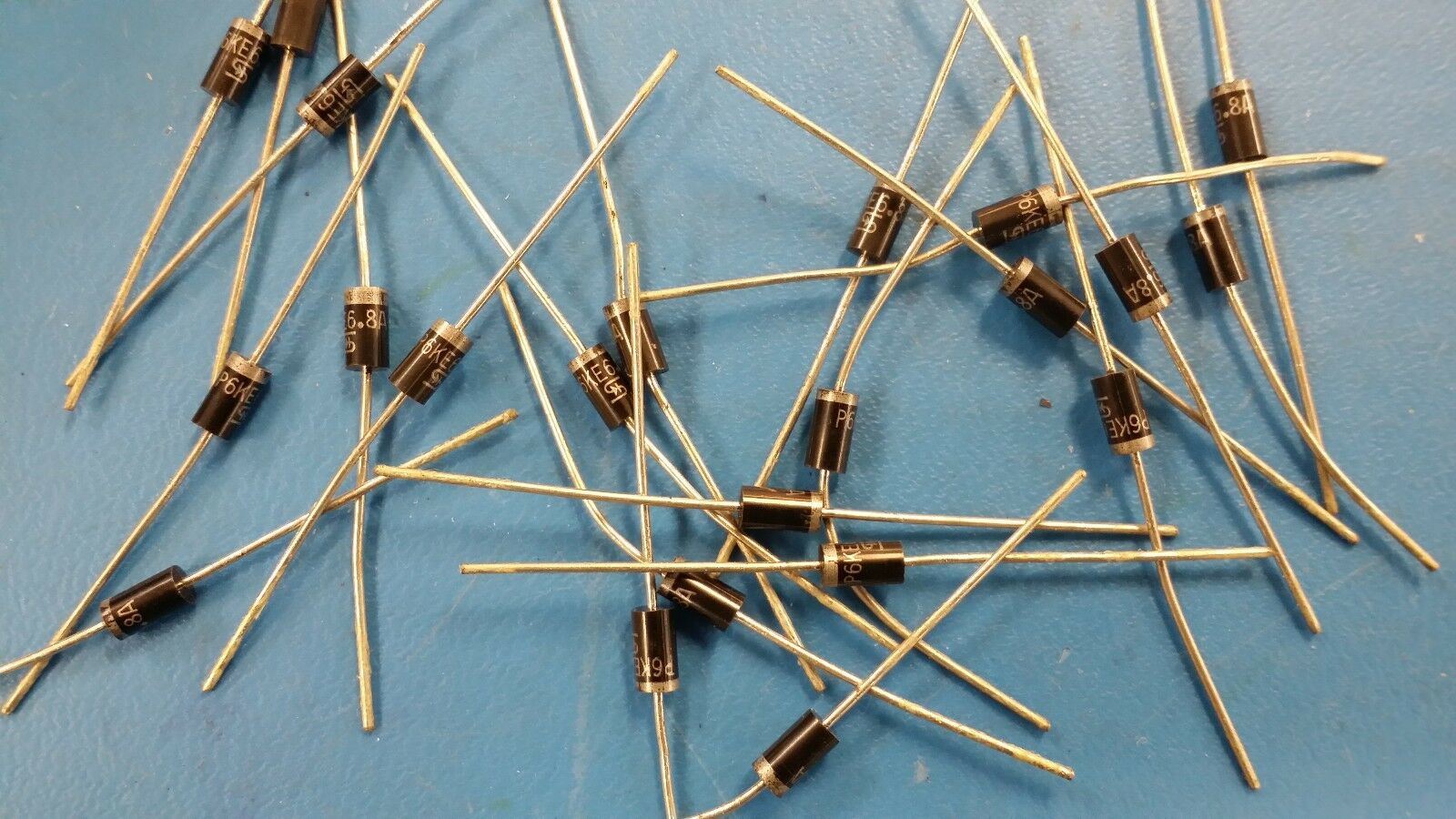

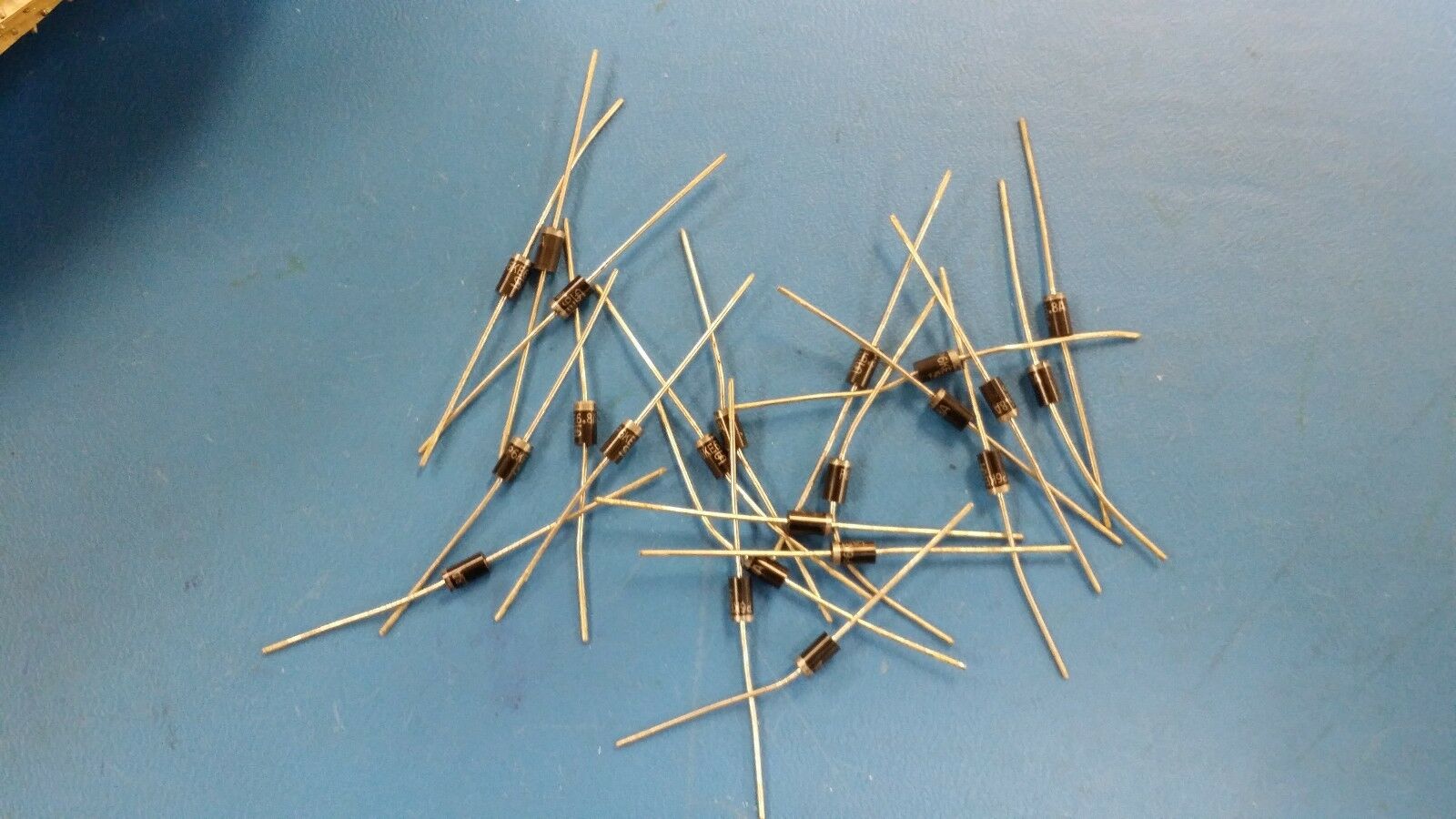

THIS LISTING IS FOR (100 PCS) OF P6KE6.8A BY TAIWAN SEMICONDUCTOR
Part Specifications:
| Number of Elements | 1 |
| Polarity | Uni-Directional |
| Package Type | DO-15 |
| Operating Temperature Classification | Military |
| Reverse Breakdown Voltage | 6.45V |
| Clamping Voltage | 10.5V |
| Reverse Stand-off Voltage | 5.8V |
| Leakage Current (Max) | 1mA |
| Peak Pulse Current | 60A |
| Peak Pulse Power Dissipation | 600W |
| Test Current (It) | 10mA |
| Operating Temp Range | -55C to 175C |
| Mounting | Through Hole |
| Pin Count | 2 |
