(100 PCS) MA45436-287 M/A-COM Diode VAR Cap Single 30V 4.23pF 3-Pin SOT-23

  • $54.95
    Unit price per
Tax included.

Only 30 left!

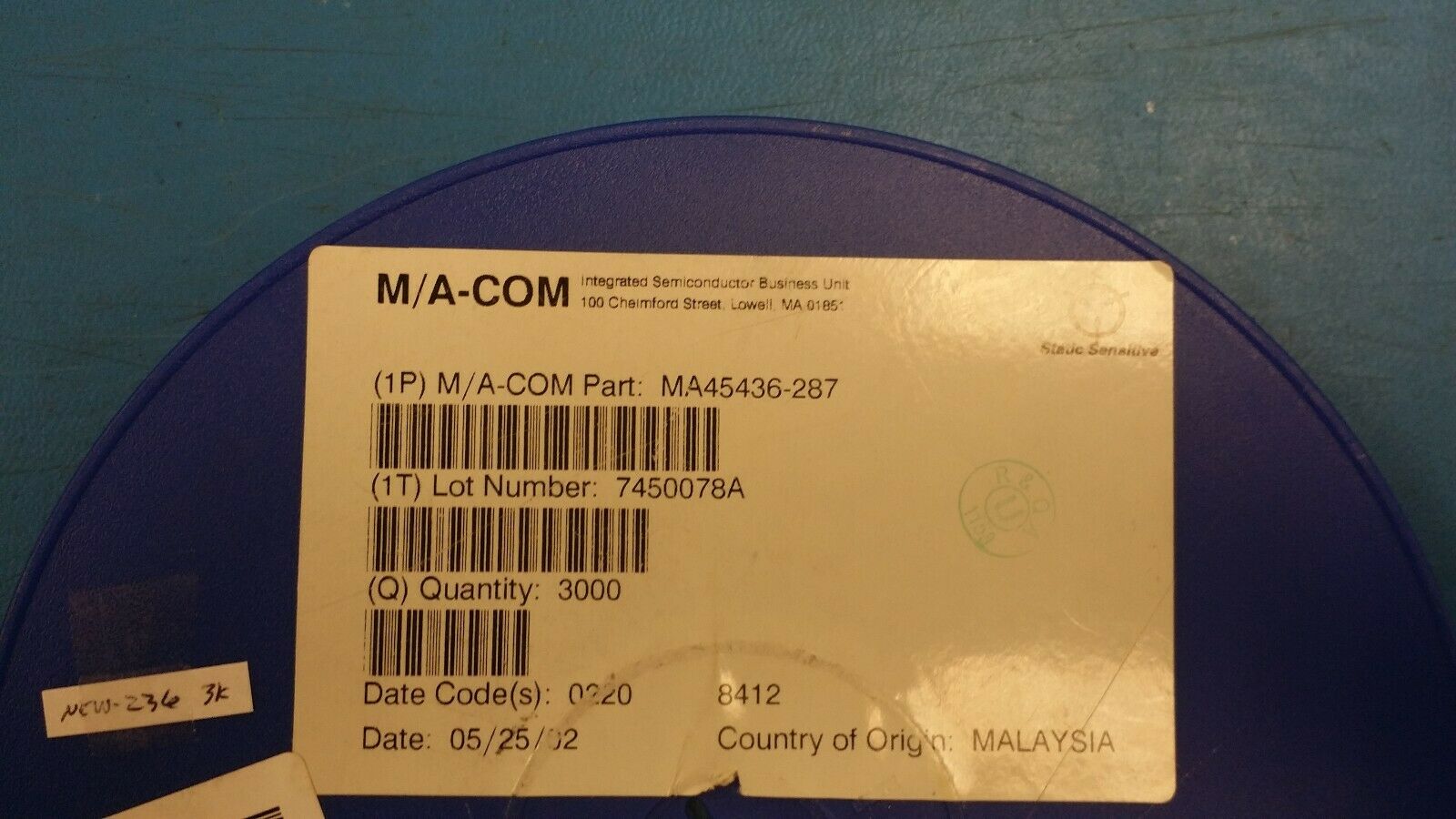

THIS LISTING IS FOR (100 PCS) OF MA45436-287 BY M/A-COM
Diode VAR Cap Single 30V 4.23pF 3-Pin SOT-23

Mfr Package Description PLASTIC, CASE 287, 3 PIN
Status Transferred
Diode Type VARIABLE CAPACITANCE DIODE
Breakdown Voltage-Min 30.0  V
Configuration SINGLE
Diode Cap Tolerance 10.0  %
Diode Capacitance-Nom 4.7  pF
Diode Capacitance Ratio-Min 4.5
Diode Element Material SILICON
Frequency Band HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JESD-30 Code R-PDSO-G3
JESD-609 Code e0
Number of Elements 1.0
Number of Terminals 3
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Quality Factor-Min 1800.0
Surface Mount YES
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Position DUAL
Variable Capacitance Diode Classification ABRUPT
