(100 PCS) FMMT591ATC ZETEX Trans GP BJT PNP 40V 1A 3-Pin SOT-23 T/R ROHS
Tax included.

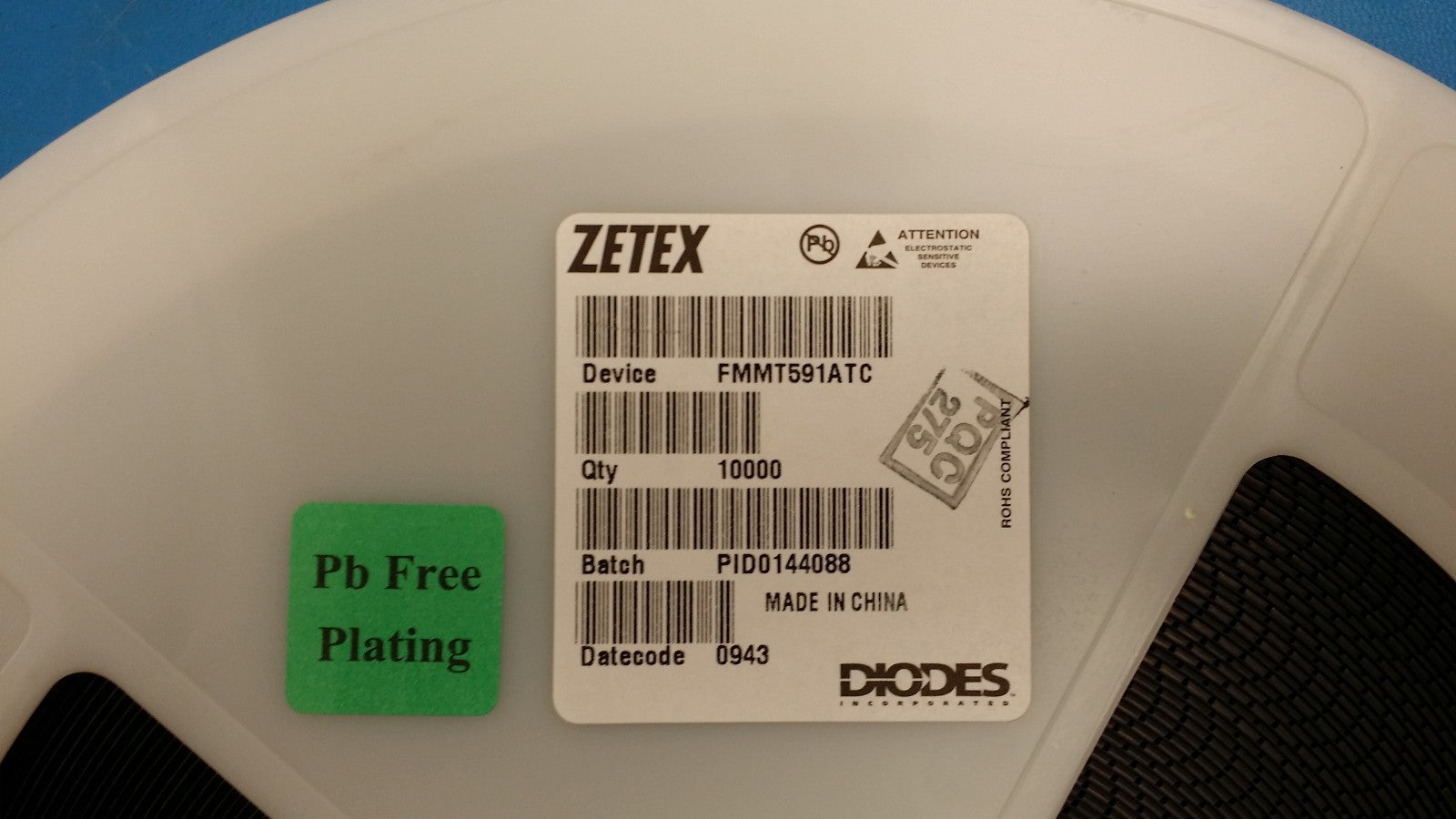

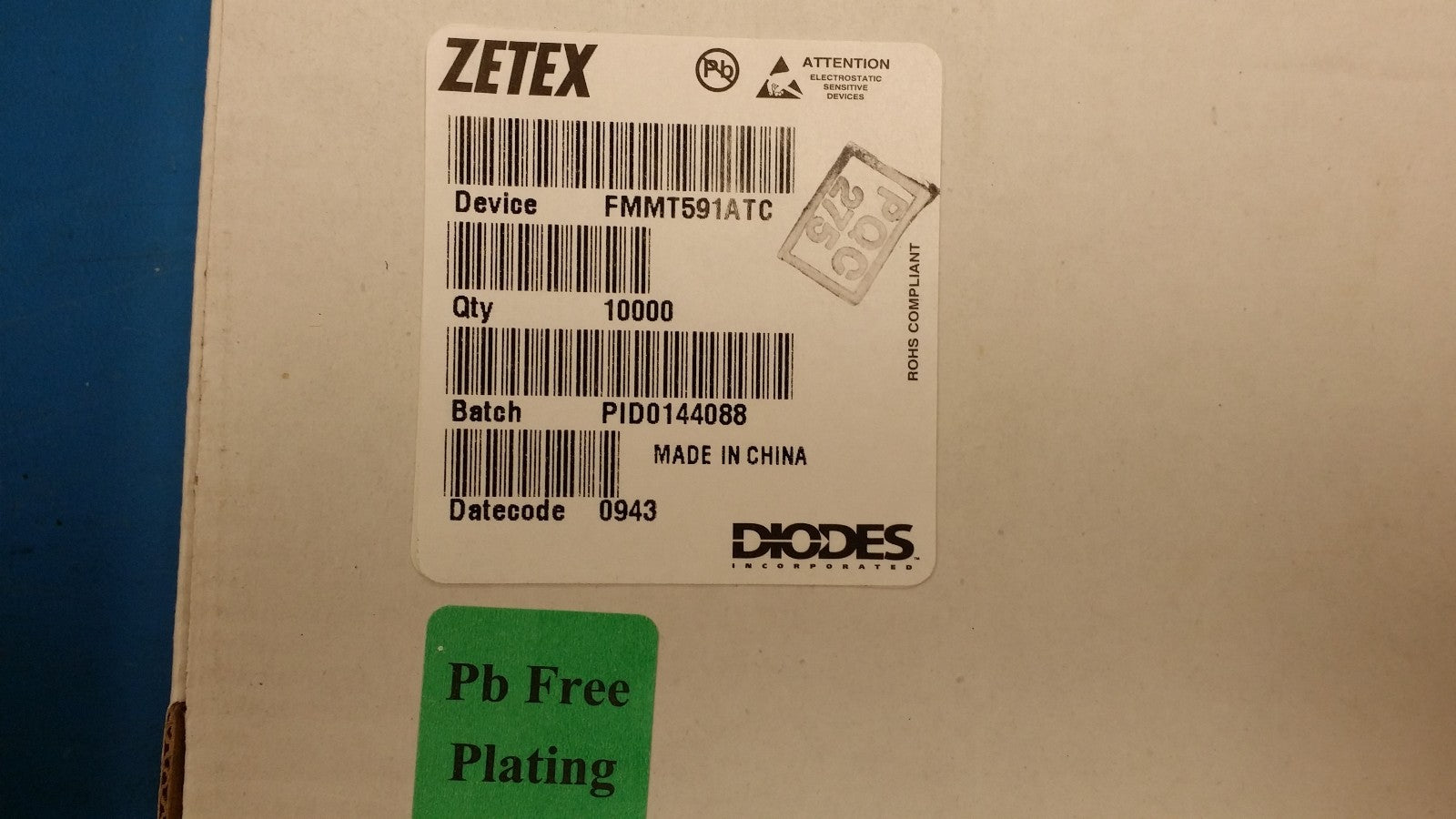

THIS LISTING IS FOR (100 PCS) OF FMMT591ATC BY ZETEX
Trans GP BJT PNP 40V 1A 3-Pin SOT-23 T/R ROHS
Manufacturer: ZETEX Diodes Incorporated
Product Category: Bipolar Transistors - BJT
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: SOT-23-3
Transistor Polarity: PNP
Configuration: Single
Collector- Emitter Voltage VCEO Max: 40 V
Collector- Base Voltage VCBO: 40 V
Emitter- Base Voltage VEBO: 7 V
Collector-Emitter Saturation Voltage: 500 mV
Maximum DC Collector Current: 1 A
Pd - Power Dissipation: 500 mW
Gain Bandwidth Product fT: 150 MHz
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Series: FMMT59

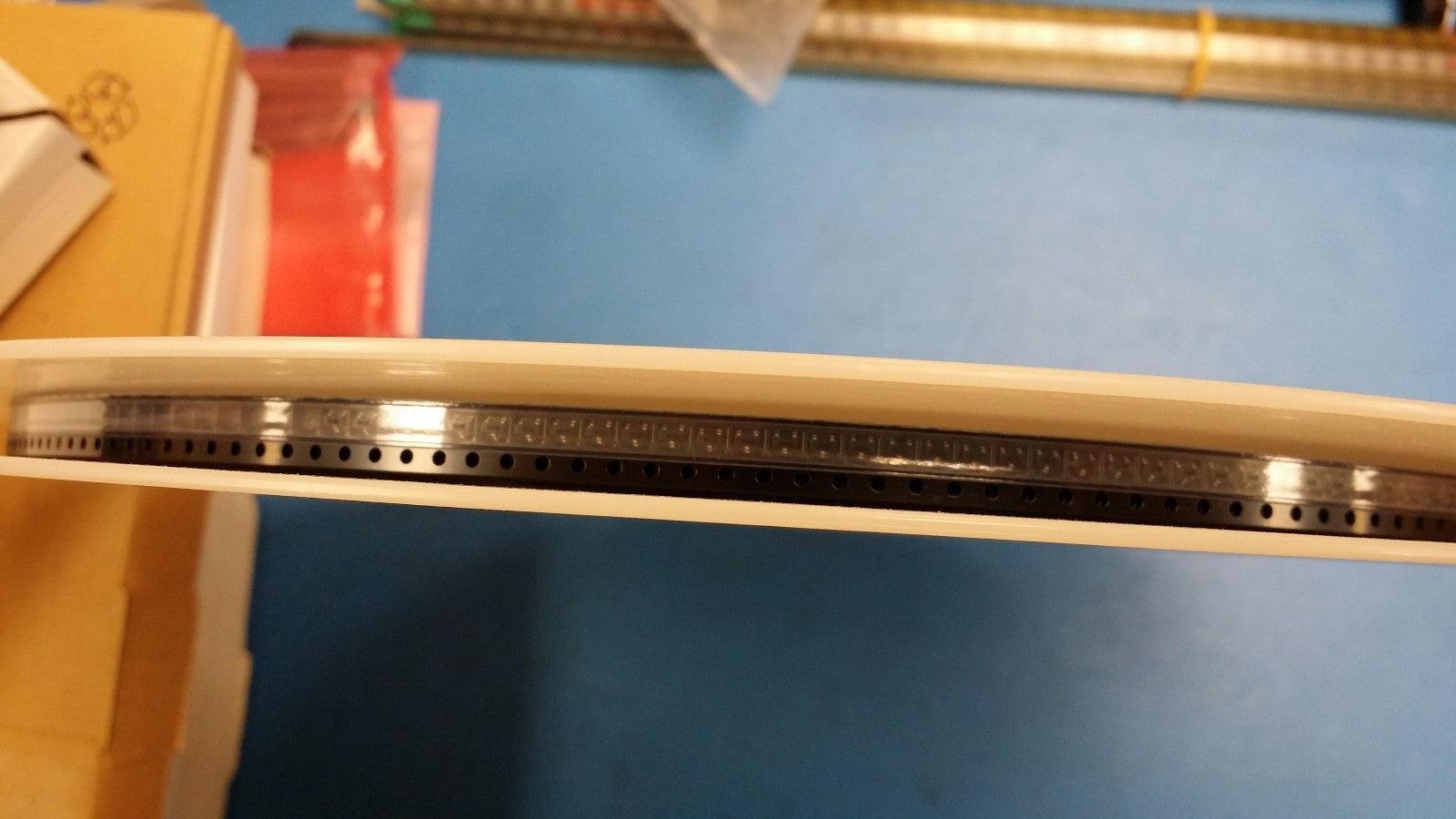

Packaging: Reel
Packaging: Cut Tape
Brand: ZETEX Diodes Incorporated
Continuous Collector Current: - 1 A
DC Collector/Base Gain hfe Min: 300 at 1 mA, 5 V, 300 at 100 mA, 5 V, 250 at 500 mA, 5 V, 160 at 1 A, 5 V, 30 at 2 A, 5 V
DC Current Gain hFE Max: 300 at 1 mA, 5 V
Height: 1 mm
Length: 3.05 mm
Product Type: BJTs - Bipolar Transistors
10000
Subcategory: Transistors
Technology: Si
Width: 1.4 mm
Unit Weight: 0.000282 oz
