(100 PCS) EPM570F100C5N ALTERA FLASH PLD, PBGA100

$950.00
Unit price per

Tax included.

Quantity

Only 0 left!

Will be in stock after

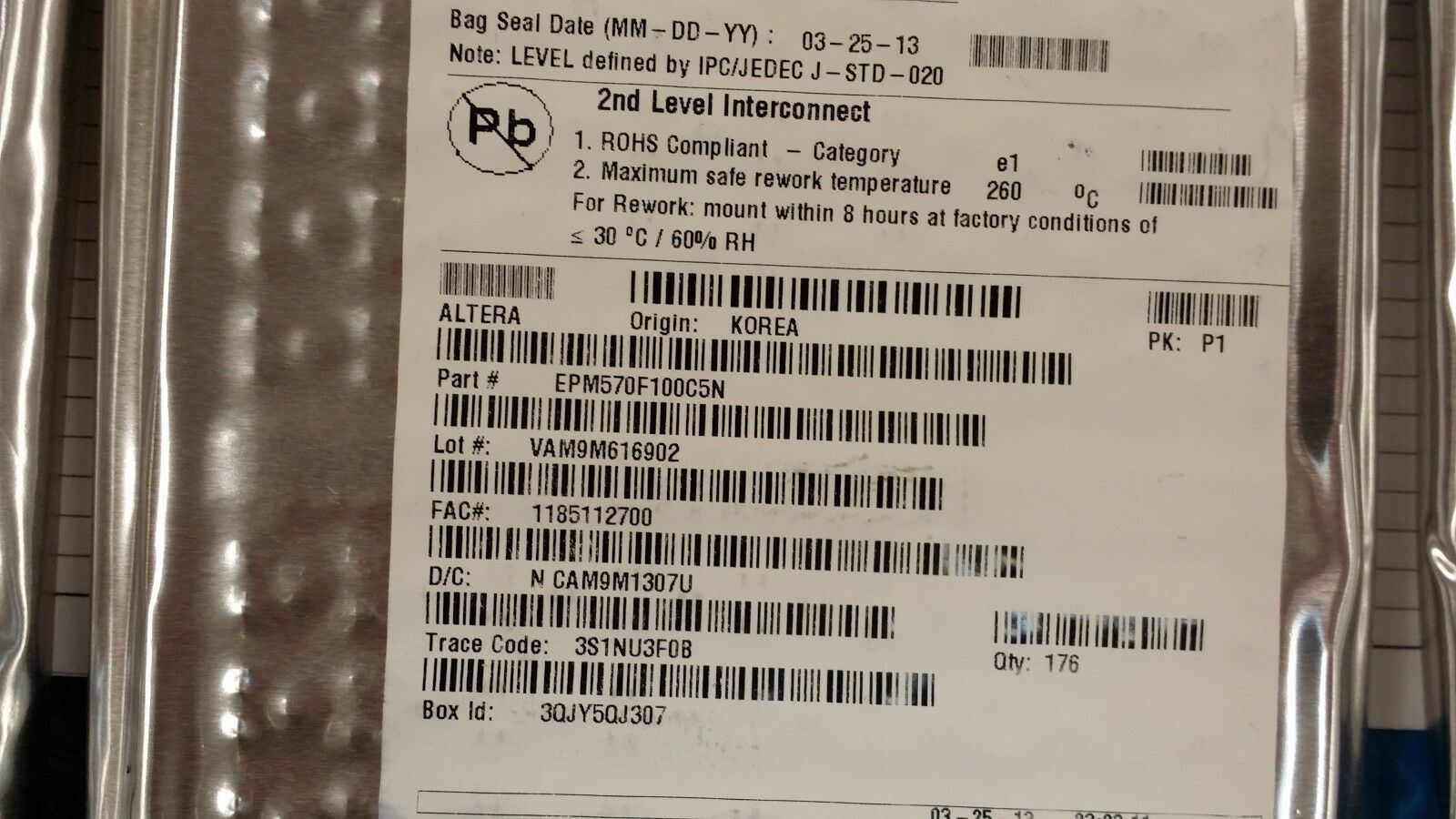

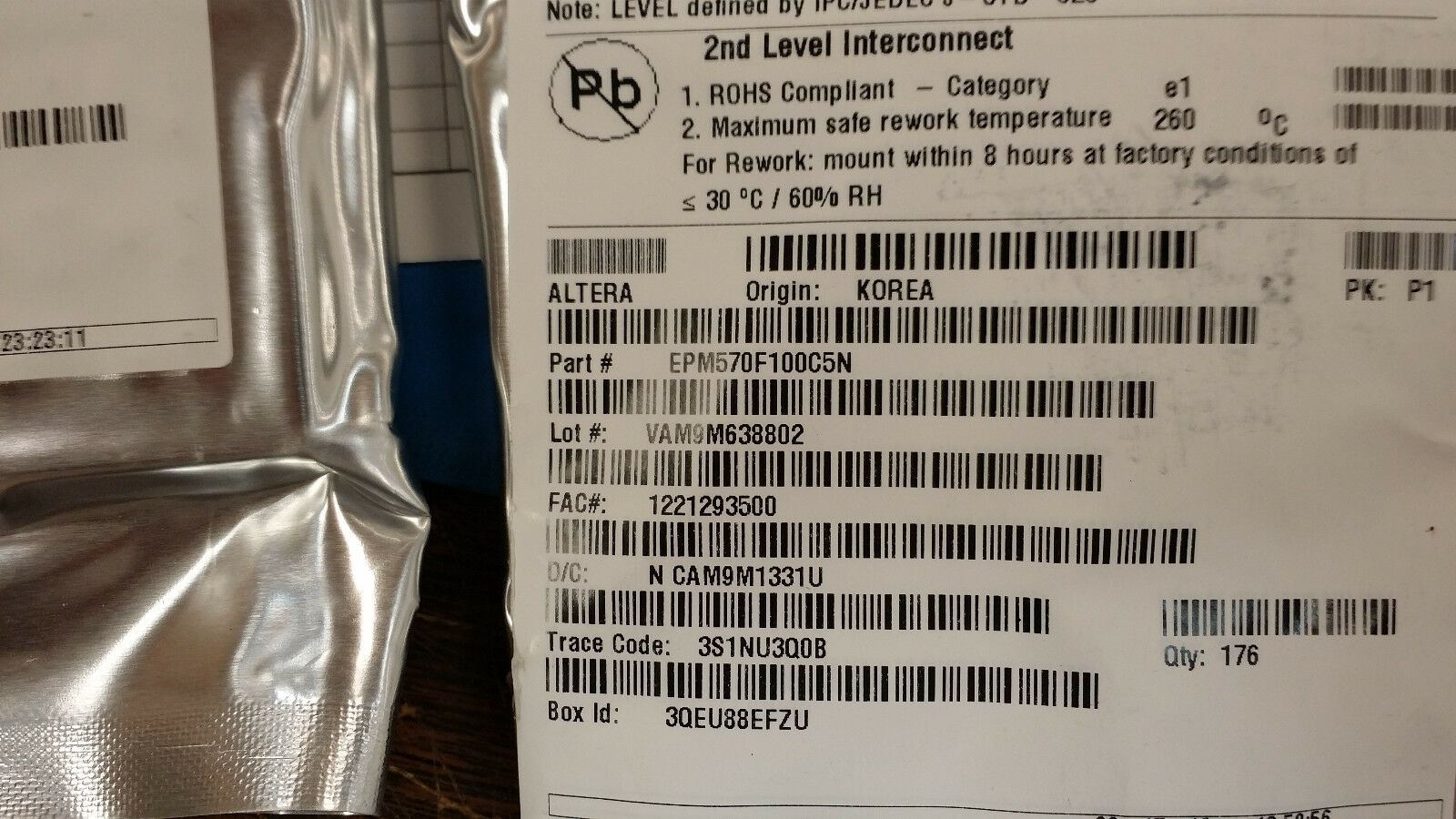

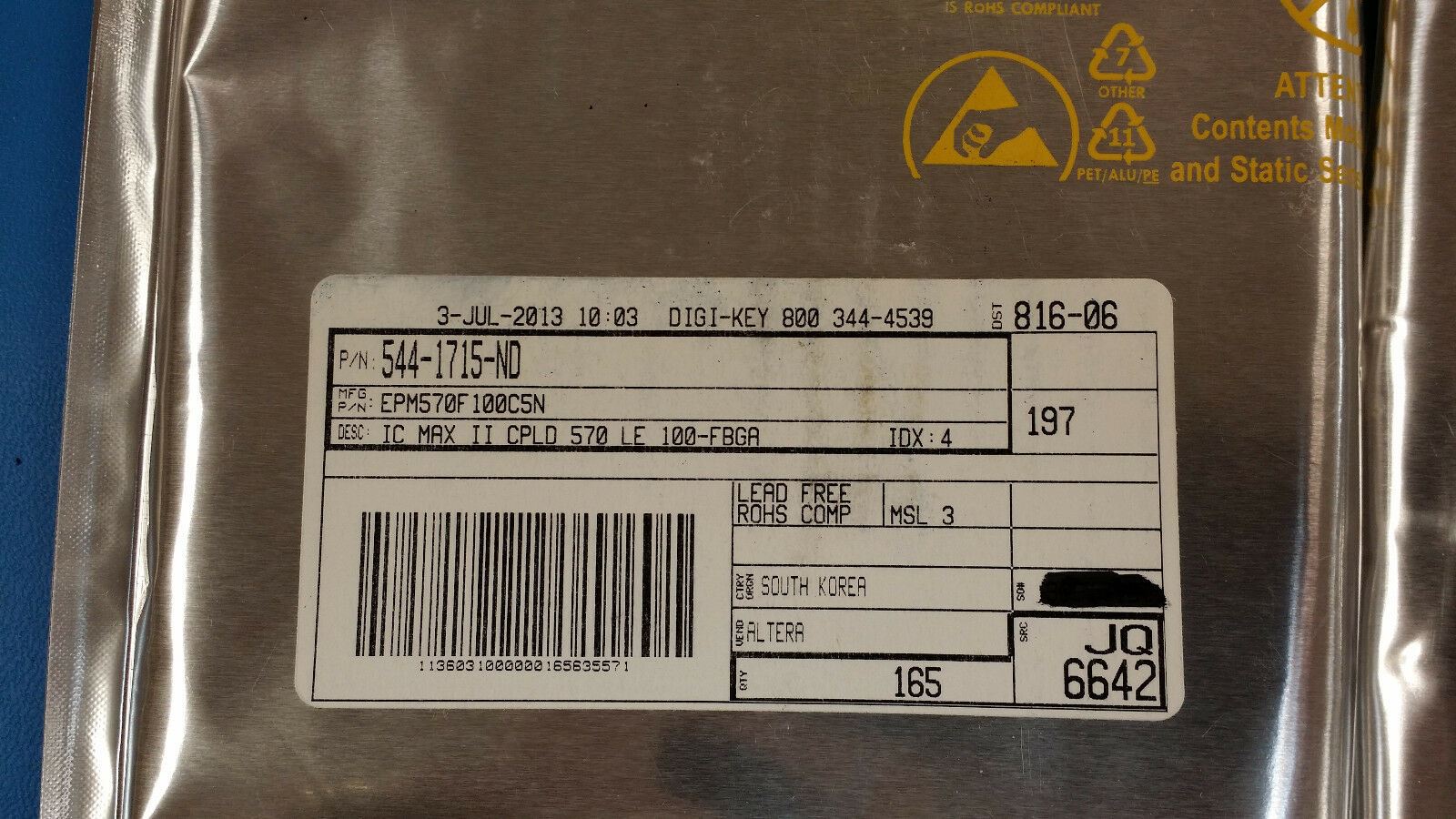

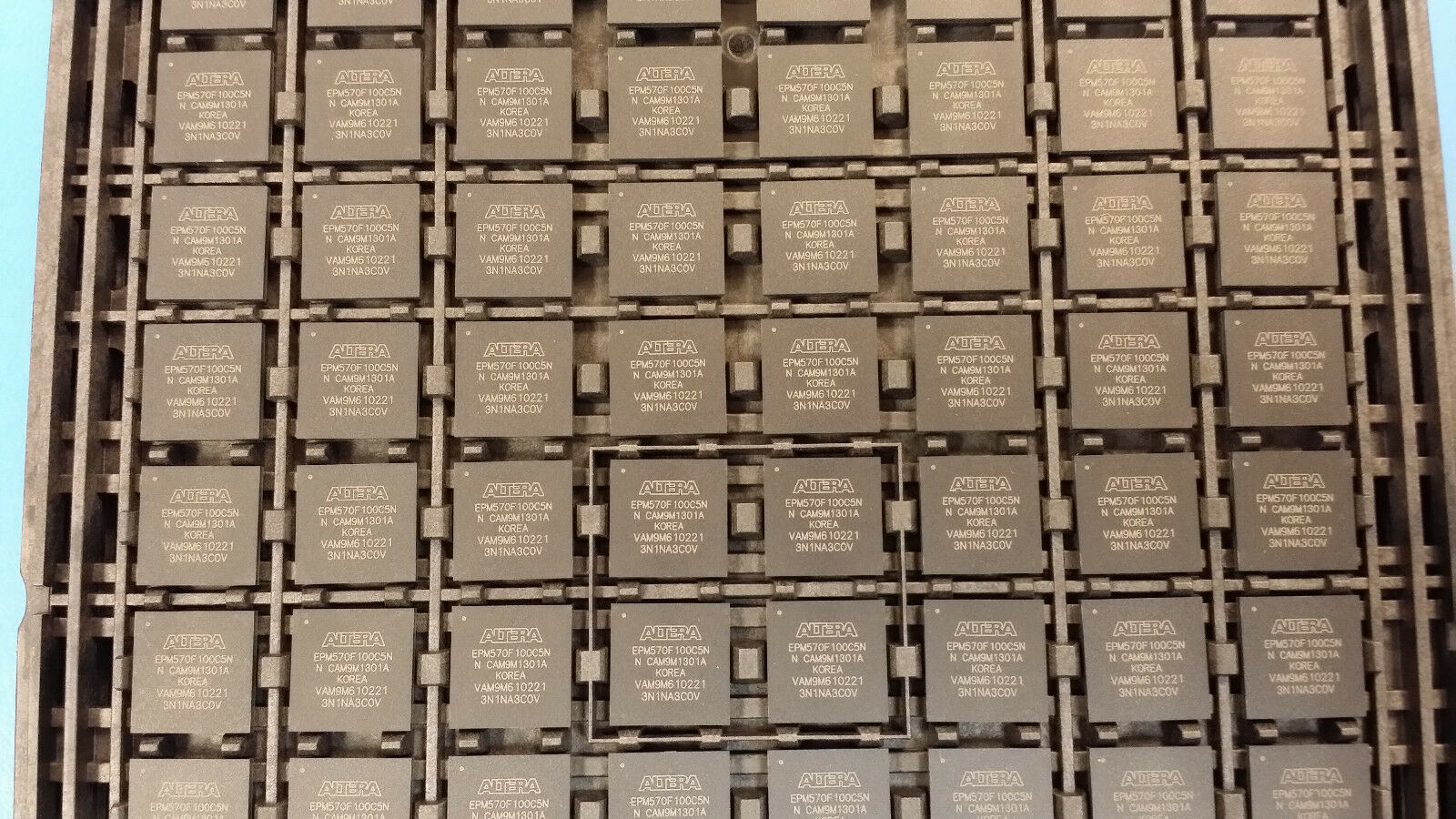

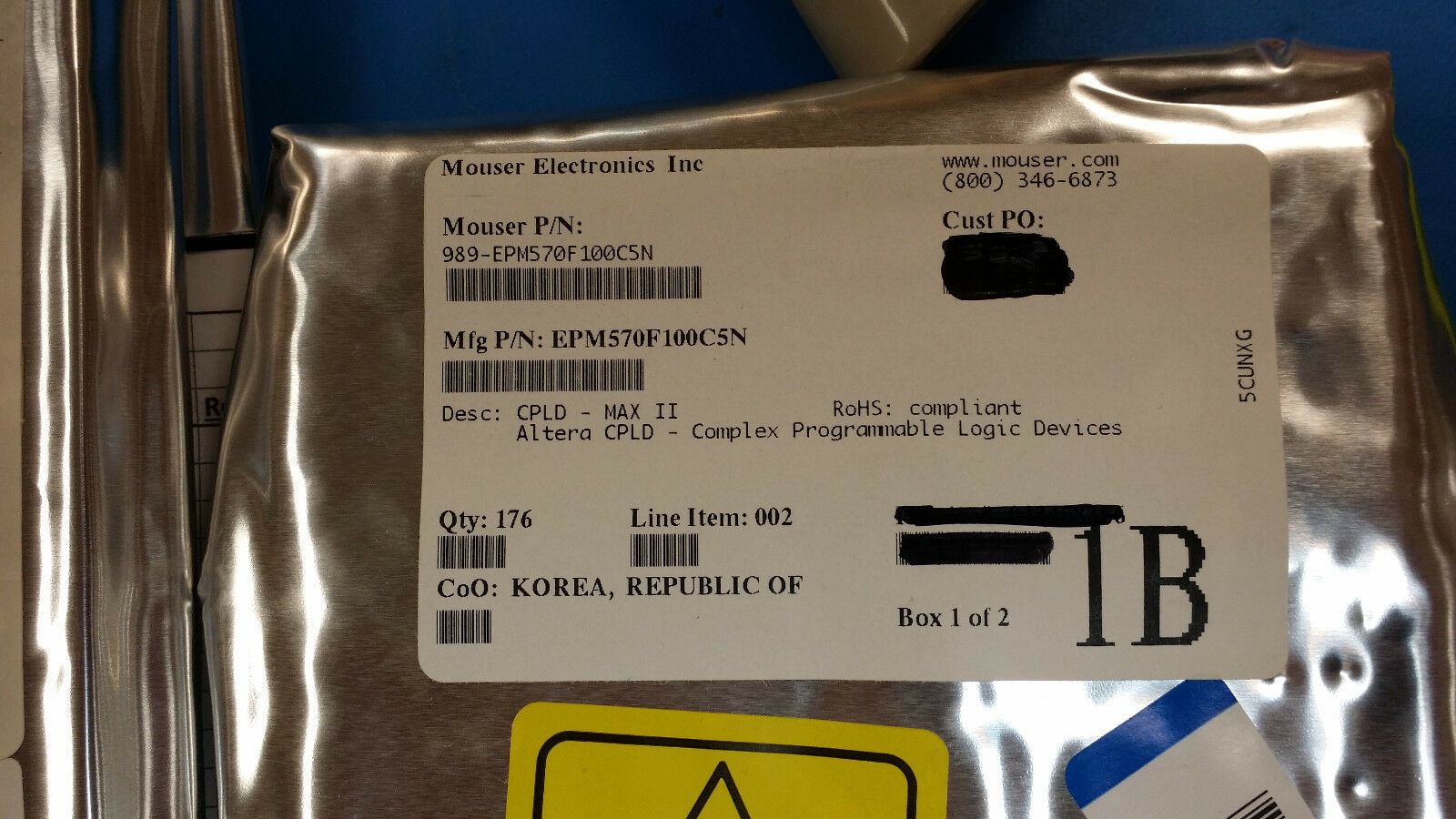

THIS LISTING IS FOR (100 PCS) OF EPM570F100C5N BY ALTERA CORPORATION
FLASH PLD, PBGA100

CPLD MAX II Family 440 Macro Cells 201.1MHz 0.18um Technology 2.5V/3.3V 100-Pin TFBGA

Part #: EPM570F100C5N

Part Category: Programmable Logic ICs
Manufacturer: Altera Corporation

Mfr Package Description	11 X 11 MM, 1 MM PITCH, LEAD FREE, FBGA-100
REACH Compliant	Yes
EU RoHS Compliant	Yes
China RoHS Compliant	Yes
Status	Active
Programmable Logic Type	FLASH PLD
In-System Programmable	YES
JESD-30 Code	S-PBGA-B100
JESD-609 Code	e1
JTAG BST	YES
Moisture Sensitivity Level	3
Number of Dedicated Inputs	0.0
Number of I/O Lines	76
Number of Macro Cells	440
Number of Terminals	100
Operating Temperature-Min	0.0 Cel
Operating Temperature-Max	85 Cel
Organization	0 DEDICATED INPUTS, 76 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	LBGA
Package Equivalence Code	BGA100,10X10,40
Package Shape	SQUARE
Package Style	GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Cel)	260
Power Supplies	1.5/3.3,2.5/3.3
Propagation Delay	8.7 ns
Qualification Status	Not Qualified
Seated Height-Max	1.7 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Nom	2.5 V
Supply Voltage-Min	2.38 V
Supply Voltage-Max	2.62 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form	BALL
Terminal Pitch	1 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	40
Length	11 mm
Width	11 mm
Additional Feature	IT CAN ALSO OPERATE AT 3.3V
