(100 PCS) BFS17(E1)GS08 TEMIC Trans GP BJT NPN 15V 0.025A 3-Pin TO-236AB
Tax included.

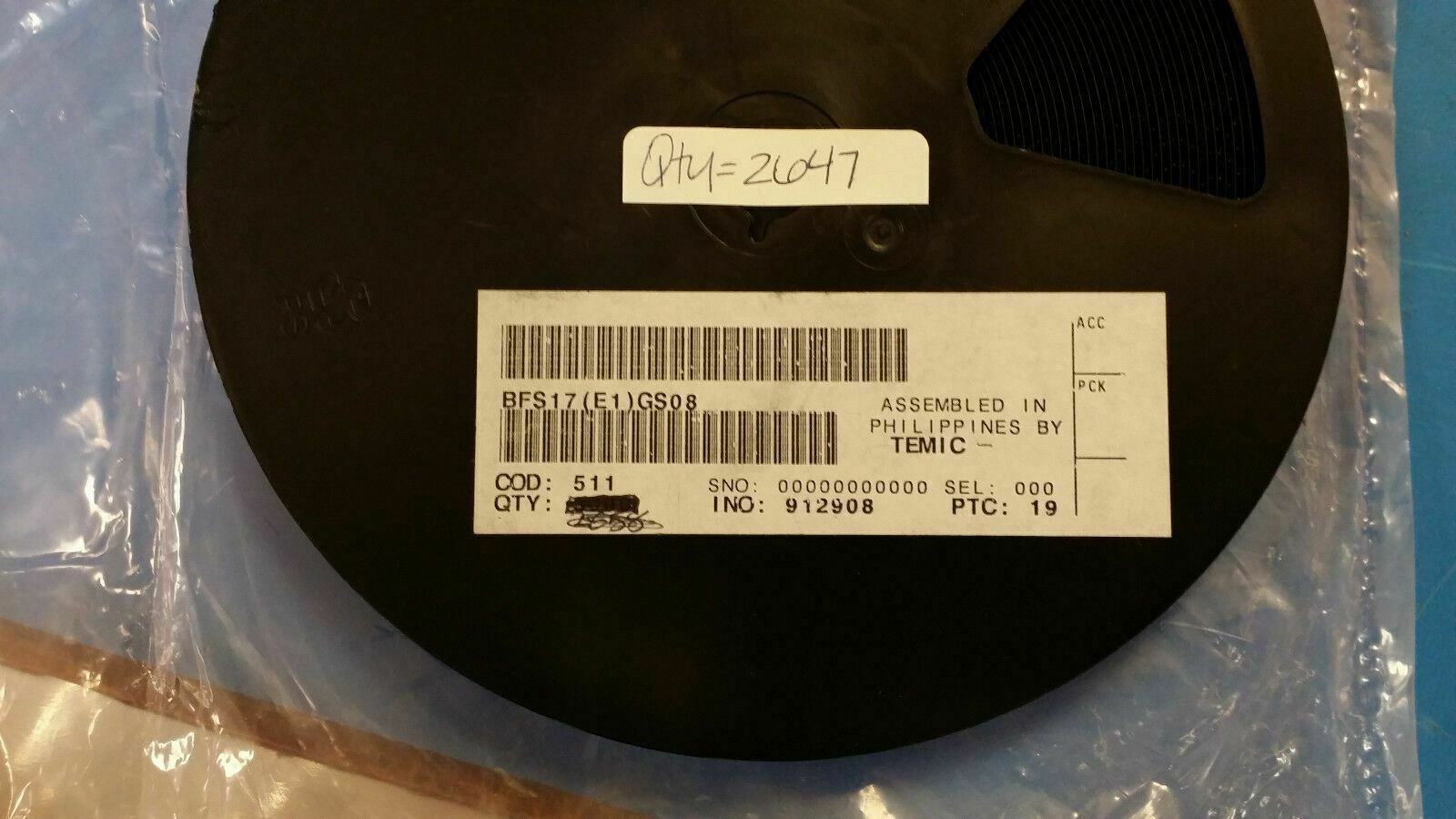

THIS LISTING IS FOR (100 PCS) OF BFS17(E1)GS08 BY TEMIC
Trans GP BJT NPN 15V 0.025A 3-Pin TO-236AB
Trans GP BJT NPN 15V 0.025A 3-Pin TO-236AB
| Configuration | Single |
| Type | NPN |
| Maximum Collector Emitter Voltage (V) | 15 |
| Maximum Collector Base Voltage (V) | 25 |
| Maximum Emitter Base Voltage (V) | 2.5 |
| Maximum DC Collector Current (A) | 0.025 |
| Material | Si |
| Maximum Power Dissipation (mW) | 280 |

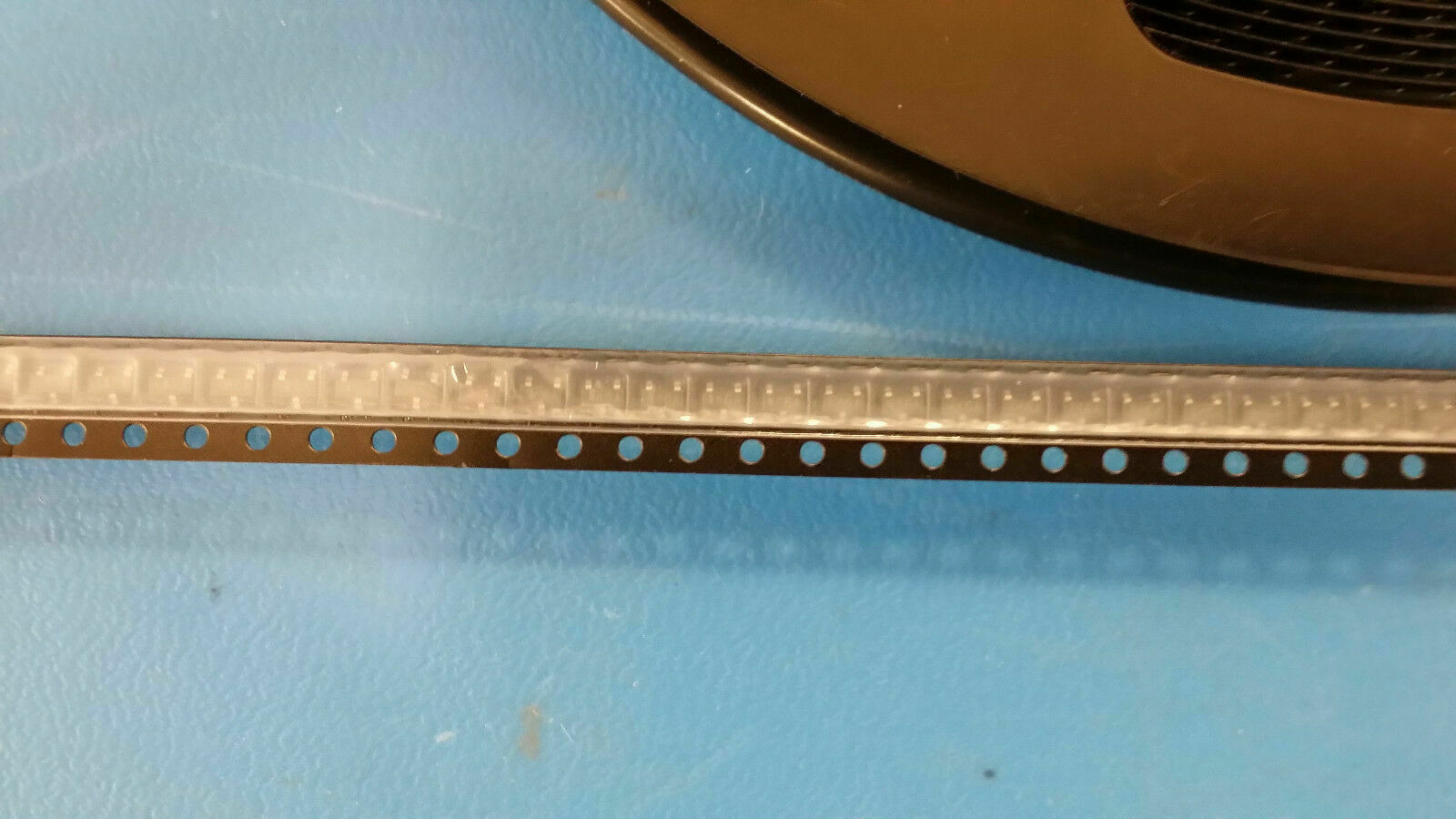

| Packaging | Tape and Reel |
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 150 |
| Temperature Flag | Opr |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain Range | 2 to 30|30 to 50 |
| Minimum DC Current Gain | 40@2mA@1V|20@25mA@1V |
| Maximum Transition Frequency (MHz) | 2.5(Typ) |
| Maximum DC Collector Current Range (A) | 0.001 to 0.06 |
| Maximum Collector Emitter Voltage Range (V) | <20 |
| Maximum Collector Emitter Saturation Voltage (V) | 0.4@1mA@10mA |
| Mounting | Surface Mount |
| Package Height (mm) | 1(Max) |
| Package Length (mm) | 2.9 |
| Package Width (mm) | 1.3 |
| PCB | 3 |
| Standard Package Name | TO-236 |
| Supplier Package | TO-236 |
| Pin Count | 3 |
| Lead Shape | Gull-wing |
