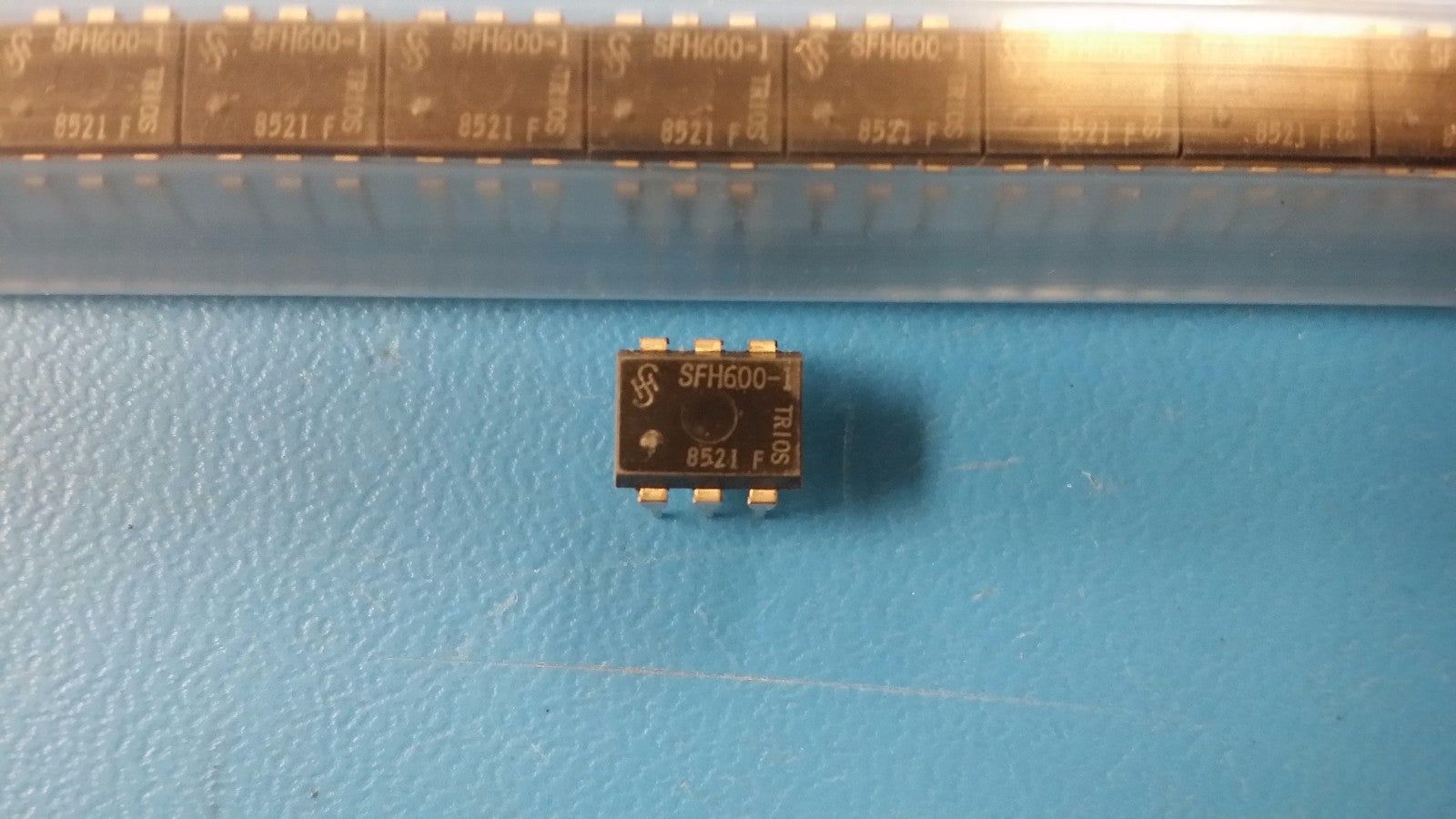

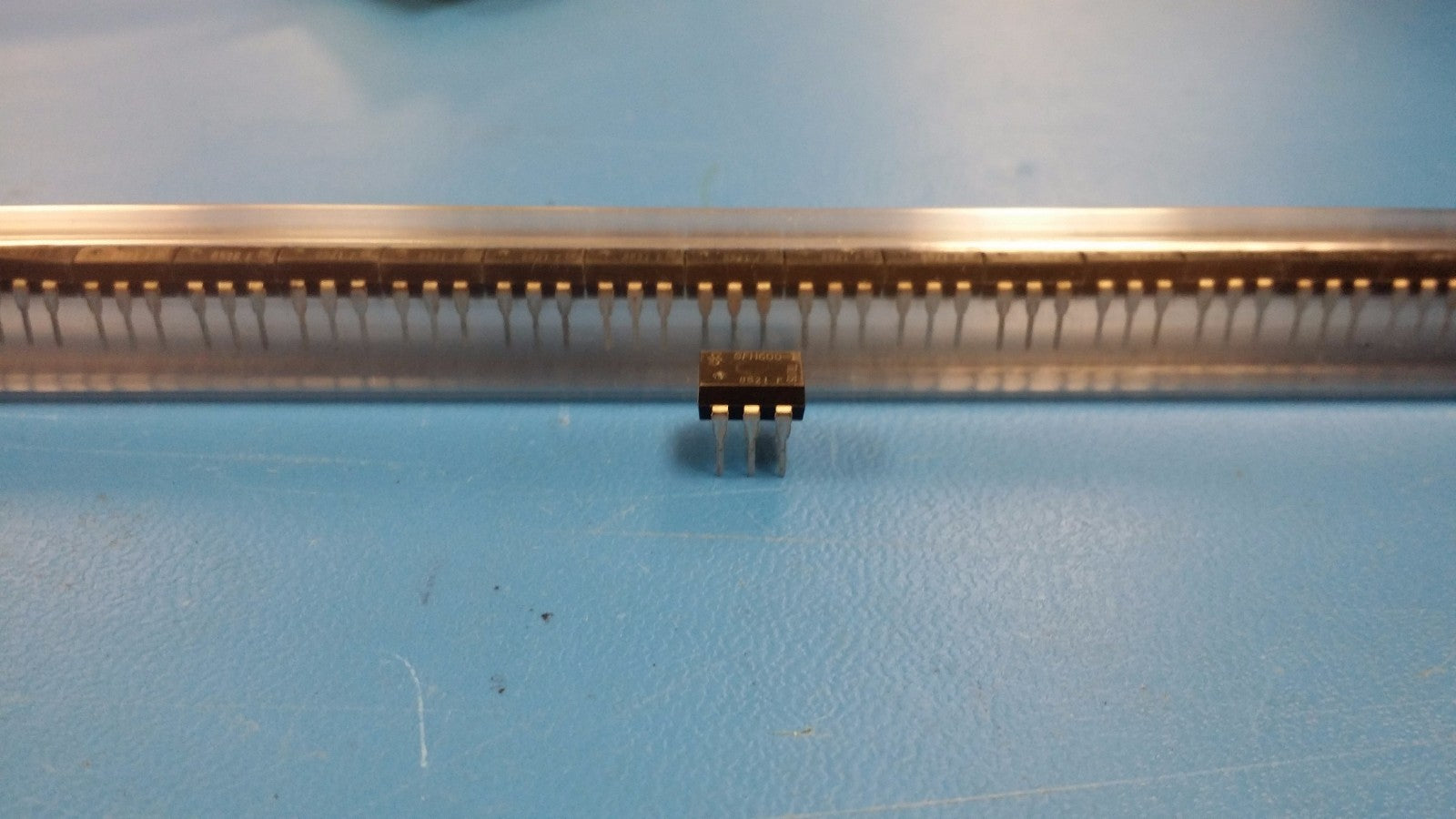

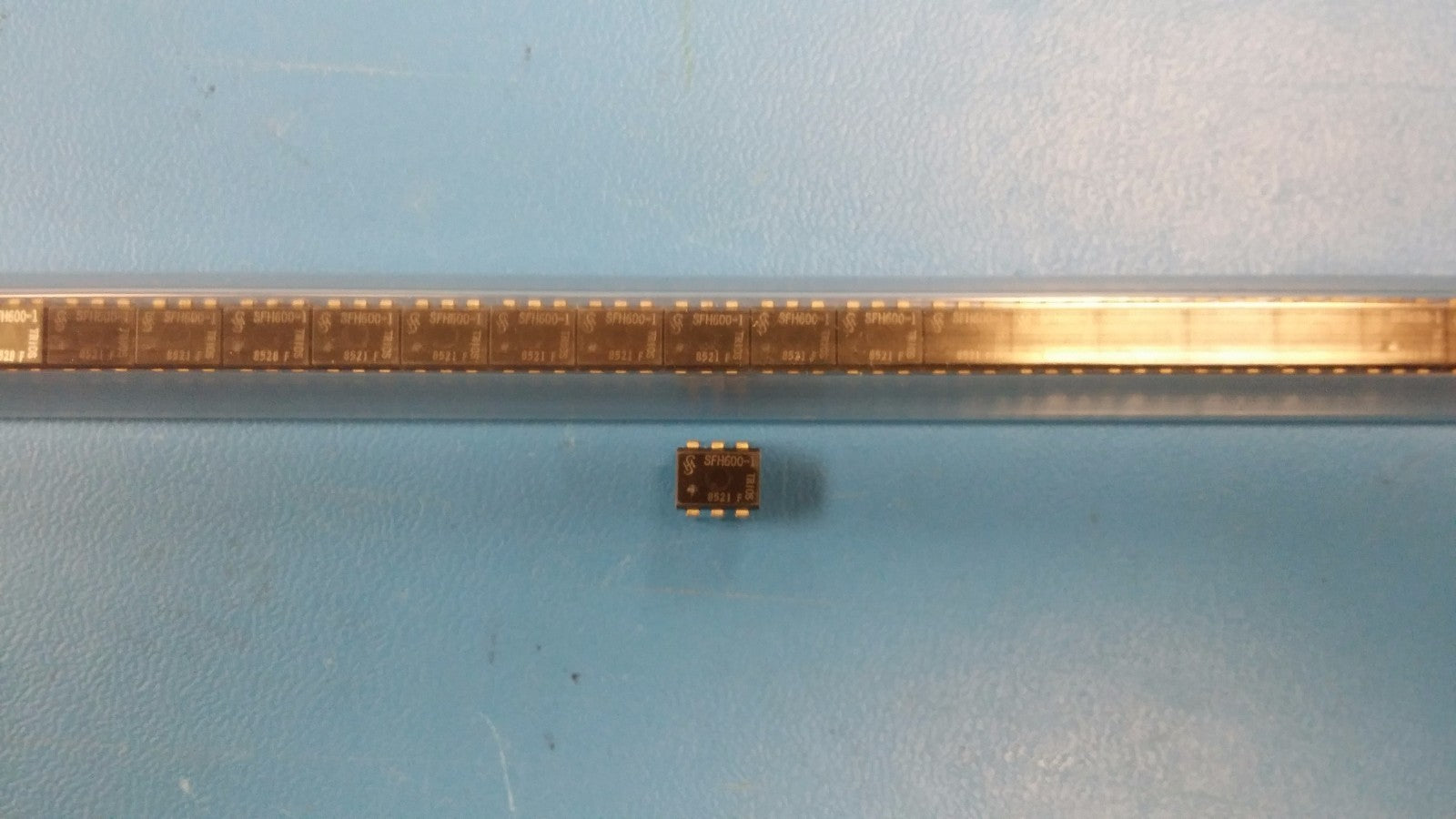

(10) SFH600-1 Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
Tax included.
THIS LISTING IS FOR (10 PCs) OF SFH600-1 BY INFINEON
Optoisolator Transistor with Base Output 5300Vrms 1 Channel 6-DIP
Manufacturer: Vishay
Product Category: Transistor Output Optocouplers
RoHS: NO
Package / Case: DIP-6
Output Type: NPN Phototransistor
Number of Channels: 1 Channel
If - Forward Current: 60 mA
Maximum Collector Emitter Voltage: 70 V
Maximum Collector Current: 100 mA
Isolation Voltage: 5300 Vrms
Maximum Collector Emitter Saturation Voltage: 0.4 V
Vf - Forward Voltage: 1.65 V
Vr - Reverse Voltage: 6 V
Pd - Power Dissipation: 150 mW
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 100 C
Packaging: Tube
Configuration: 1 Channel
Height: 3.81 mm
Length: 8.7 mm
Width: 6.5 mm
Brand: Vishay Semiconductors
Mounting Style: Through Hole
Current Transfer Ratio: 125 %
Product Type: Transistor Output Optocouplers
Factory Pack Quantity: 2000
Subcategory: Optocouplers
