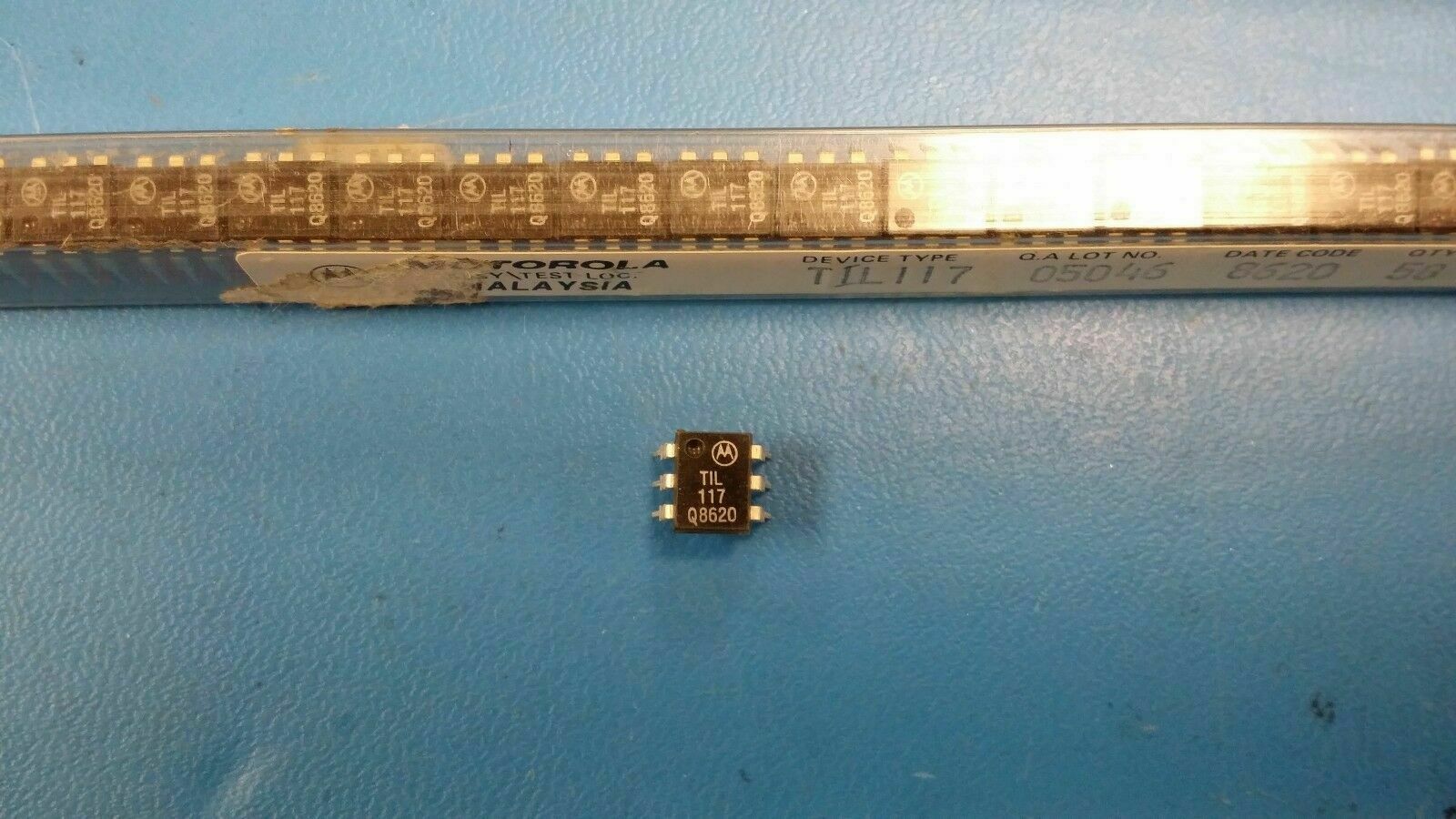

(10 PCS)TIL117 MOT Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP
Tax included.
THIS LISTING IS FOR (10 PCS) OF TIL117 BY MOT
Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP
| Product Category: | Transistor Output Optocouplers | |
| Manufacturer: | MOTOROLA | |
| RoHS: | NO | |
| Package / Case: | DIP-6 | |
| Output Type: | NPN Phototransistor | |
| Number of Channels: | 1 Channel | |
| If - Forward Current: | 16 mA | |
| Maximum Collector Emitter Voltage: | 80 V | |
| Isolation Voltage: | 5000 Vrms | |
| Maximum Collector Emitter Saturation Voltage: | 0.4 V | |
| Vf - Forward Voltage: | 1.32 V | |
| Vr - Reverse Voltage: | 6 V | |
| Pd - Power Dissipation: | 200 mW | |
| Maximum Operating Temperature: | + 110 C | |
| Minimum Operating Temperature: | - 55 C | |
| Packaging: | Tube | |
| Brand: | MOTOROLA | |
| Collector-Emitter Breakdown Voltage: | 80 V | |
| Current Transfer Ratio: | 50 % | |
| Fall Time: | 10 us | |
| Height: | 4.5 mm | |
| Length: | 7.12 mm | |
| Mounting Style: | Through Hole | |
| Rise Time: | 10 us |
