(10 PCS) ZXTC2045E6TA ZETEX TRANS NPN/PNP 30V 1.5A SOT23-6 ROHS
Tax included.

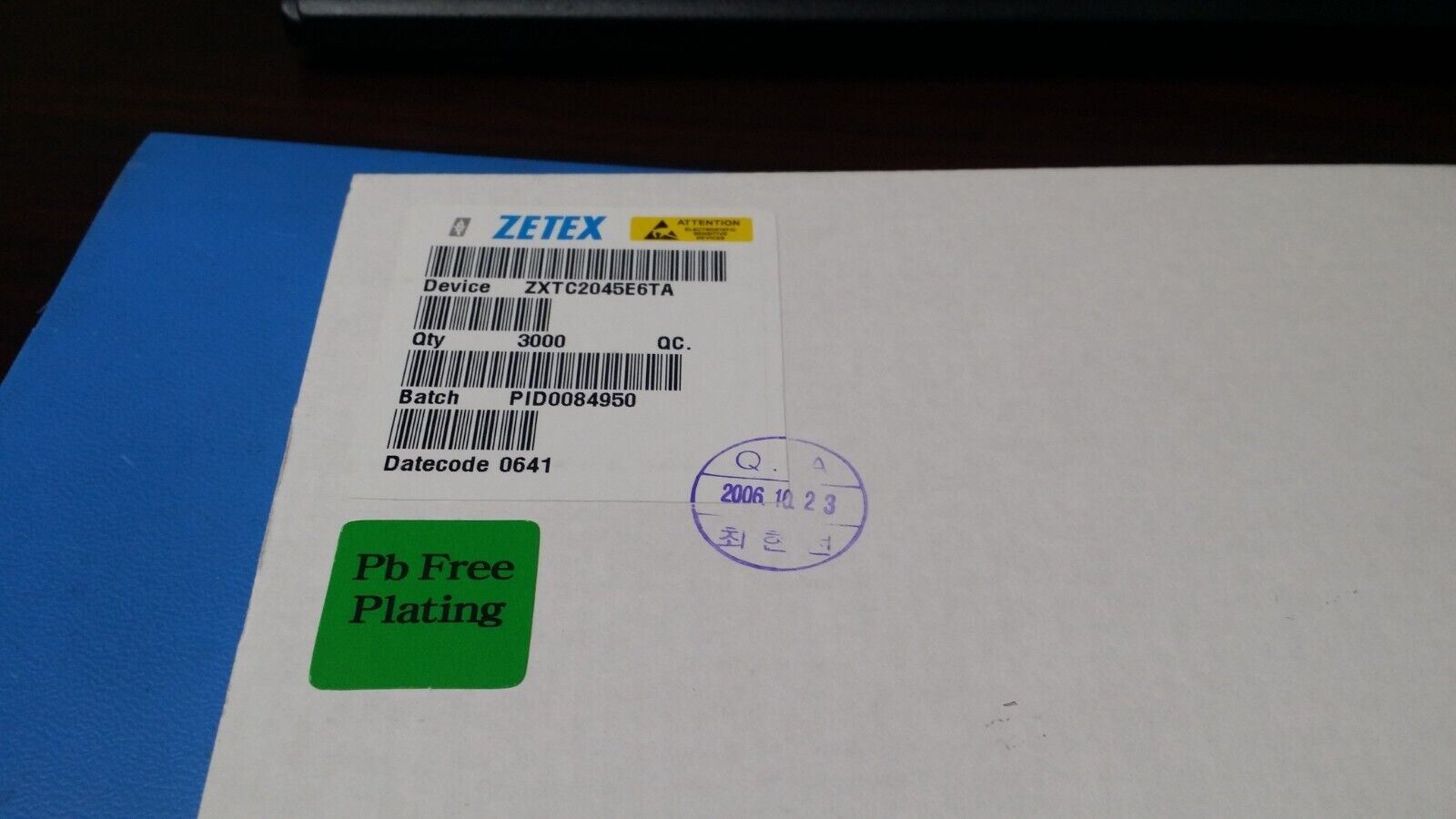

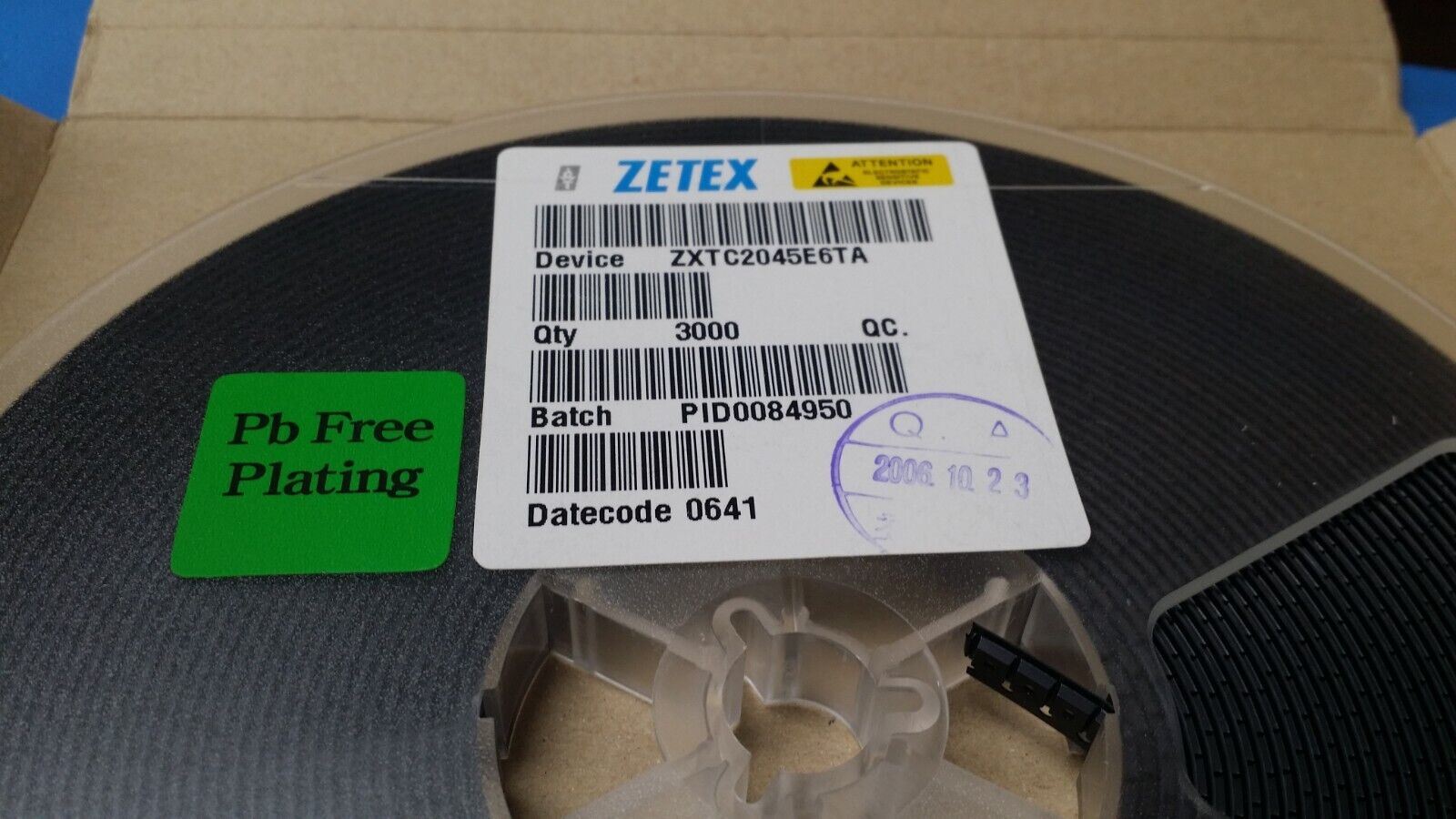

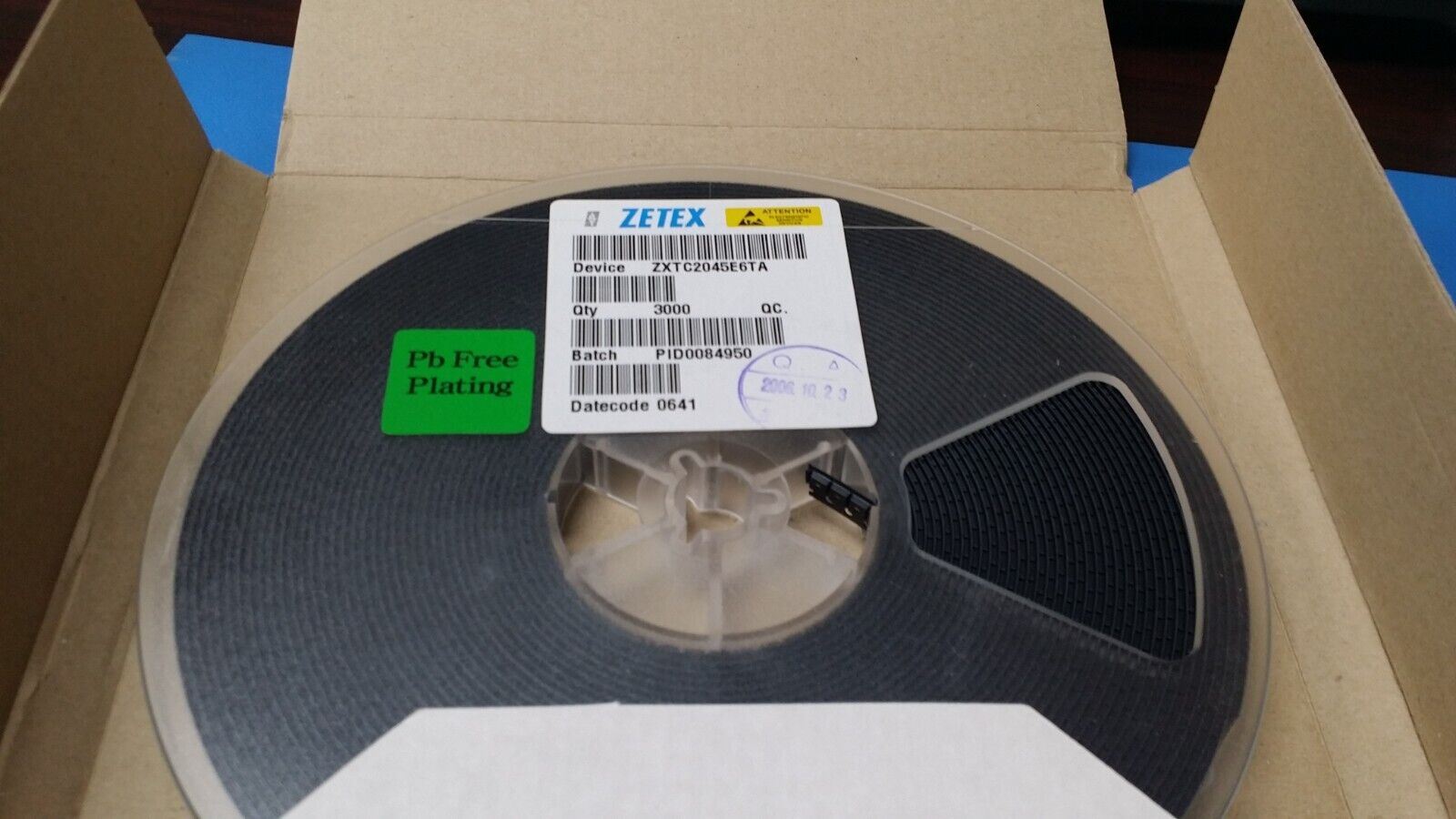

THIS IS FOR (10 PCS) OF ZXTC2045E6TA BY ZETEX
TRANS NPN/PNP 30V 1.5A SOT23-6 ROHS
Manufacturer: Diodes Incorporated
Product Category: Bipolar Transistors - BJT
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: SOT-26-6
Transistor Polarity: NPN, PNP
Configuration: Dual
Collector- Emitter Voltage VCEO Max: 30 V
Collector- Base Voltage VCBO: 40 V
Emitter- Base Voltage VEBO: 7 V
Collector-Emitter Saturation Voltage: 375 mV
Maximum DC Collector Current: 1.5 A
Pd - Power Dissipation: 1.7 W
Gain Bandwidth Product fT: 265 MHz, 195 MHz
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Series: ZXTC2045
Packaging: Reel
Packaging: Cut Tape
Brand: Diodes Incorporated
DC Collector/Base Gain hfe Min: 180 at 100 mA, 2 V
DC Current Gain hFE Max: 180 at 100 mA, 2 V
Height: 1.3 mm
Length: 3.1 mm
Product Type: BJTs - Bipolar Transistors
3000
Subcategory: Transistors
Technology: Si
Width: 1.8 mm
Unit Weight: 0.000529 oz
