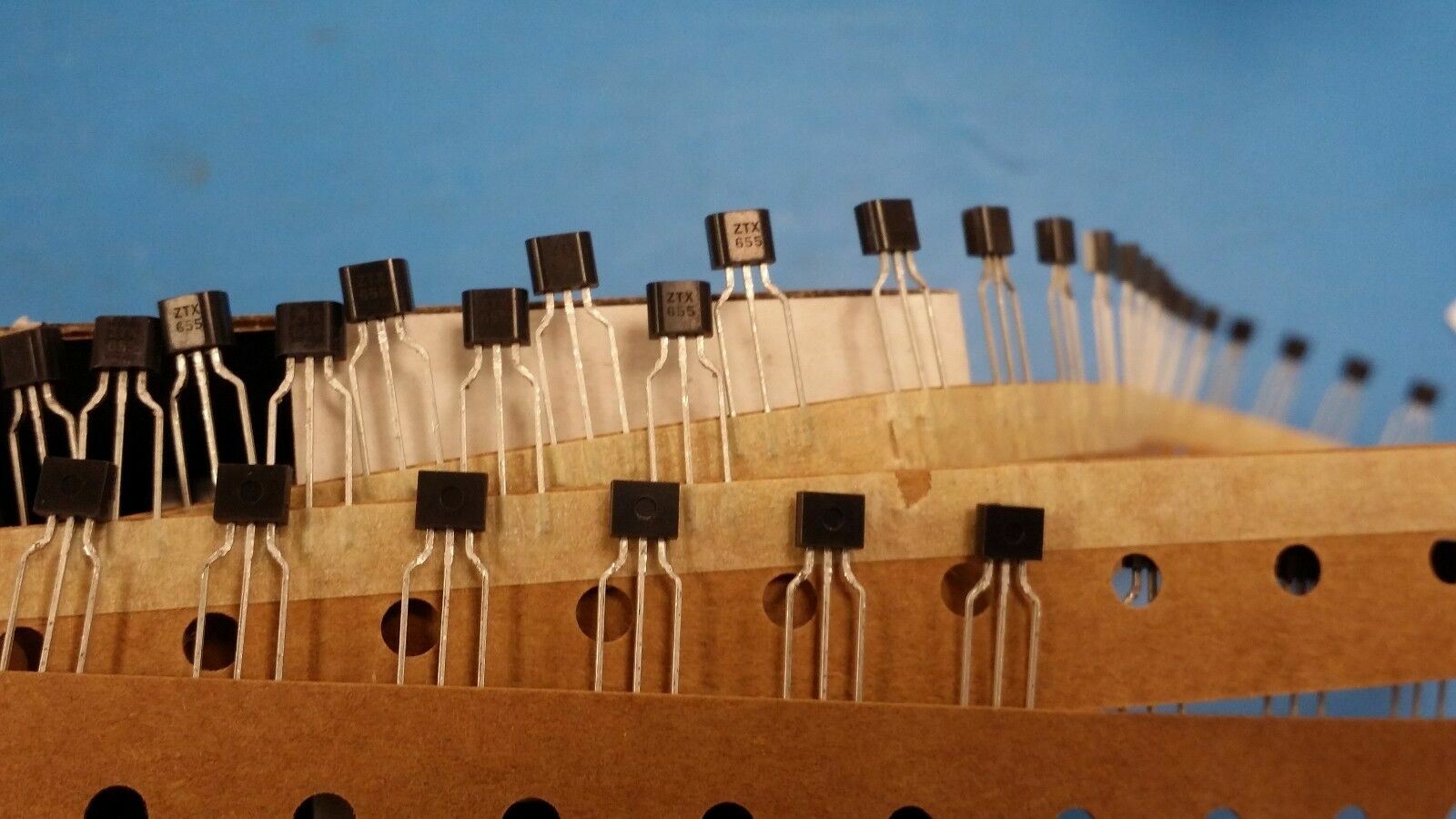

(10 PCS) ZTX655STZ ZETEX Trans GP BJT NPN 150V 1A 3-Pin E-Line TO-92 ROHS

  • $7.95
    Unit price per
Tax included.

Only 49 left!

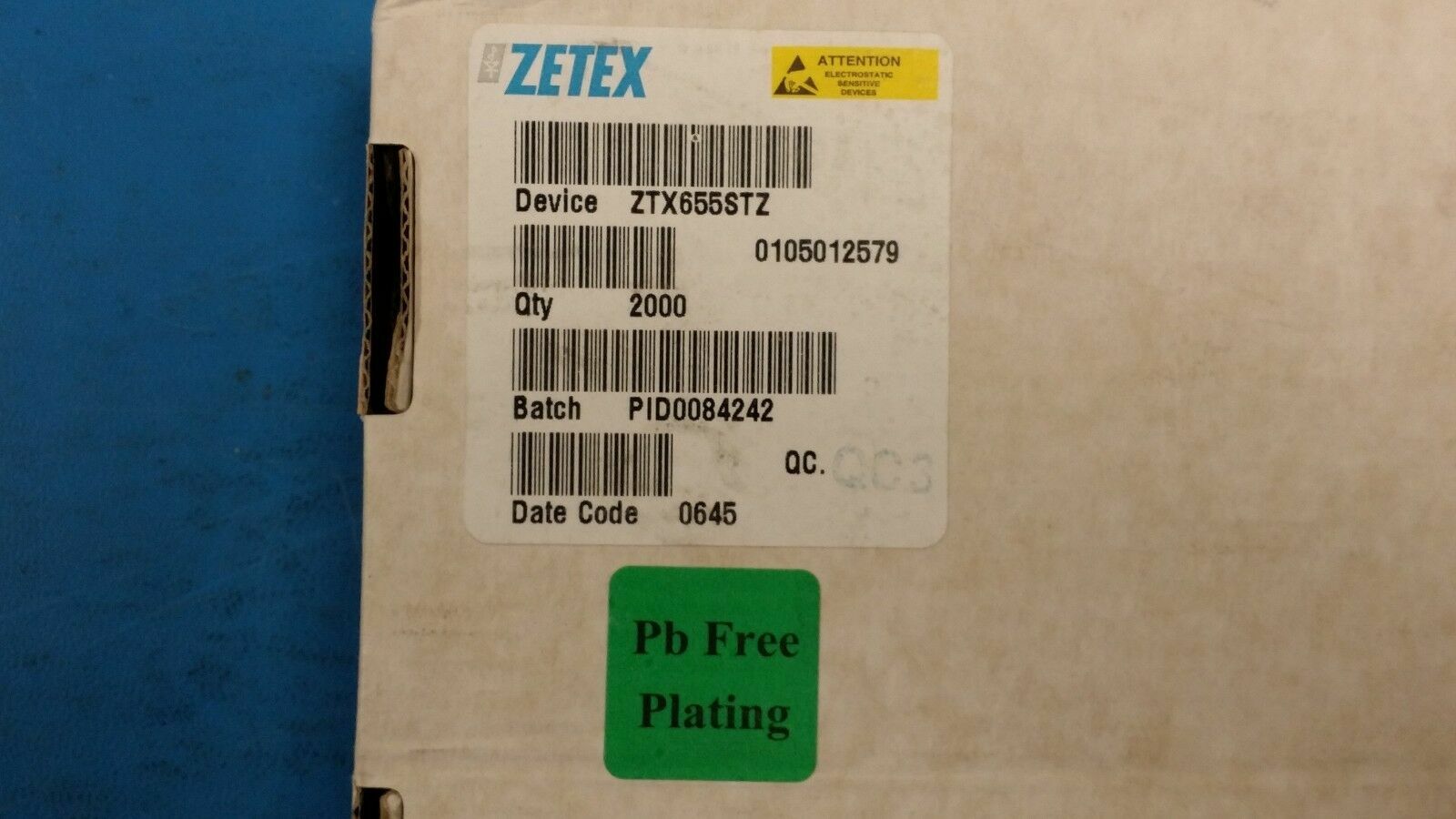

THIS LISTING IS FOR (10 PCS) OF ZTX655STZ ZETEX/DOIDES INC
Bipolar Transistors - BJT NPN Super E-Line ROHS

Part #: ZTX655STZ

Part Category: Transistors
Manufacturer: DIODES Incorporated
Description: Small Signal Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 1-Element, NPN, Silicon

Mfr Package Description TO-92 COMPATIBLE, E-LINE PACKAGE-3
REACH Compliant Yes
EU RoHS Compliant Yes
Status Transferred
Collector-base Capacitance-Max 20.0  pF
Collector Current-Max (IC) 1.0  A
Collector-emitter Voltage-Max 150.0  V
Configuration SINGLE
DC Current Gain-Min (hFE) 20.0
JESD-30 Code R-PSIP-W3
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Max 200.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type NPN
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form WIRE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 40
Transistor Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 30.0  MHz
VCEsat-Max 0.5  V
