(10 PCS) Z0840004PSC Z80 CPU ZILOG Microprocessor, 8-Bit, 4MHz, NMOS, PDIP40
Tax included.

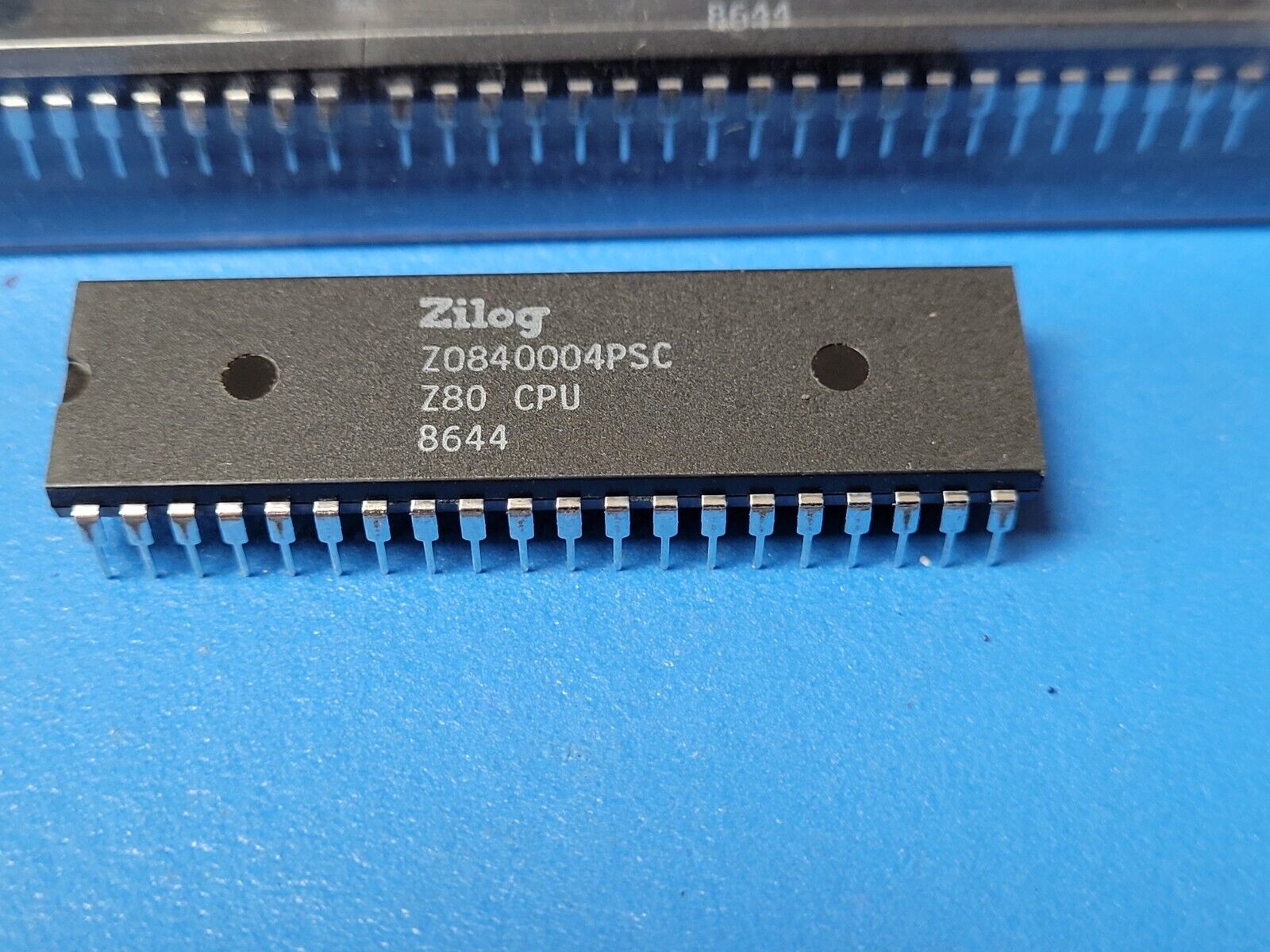

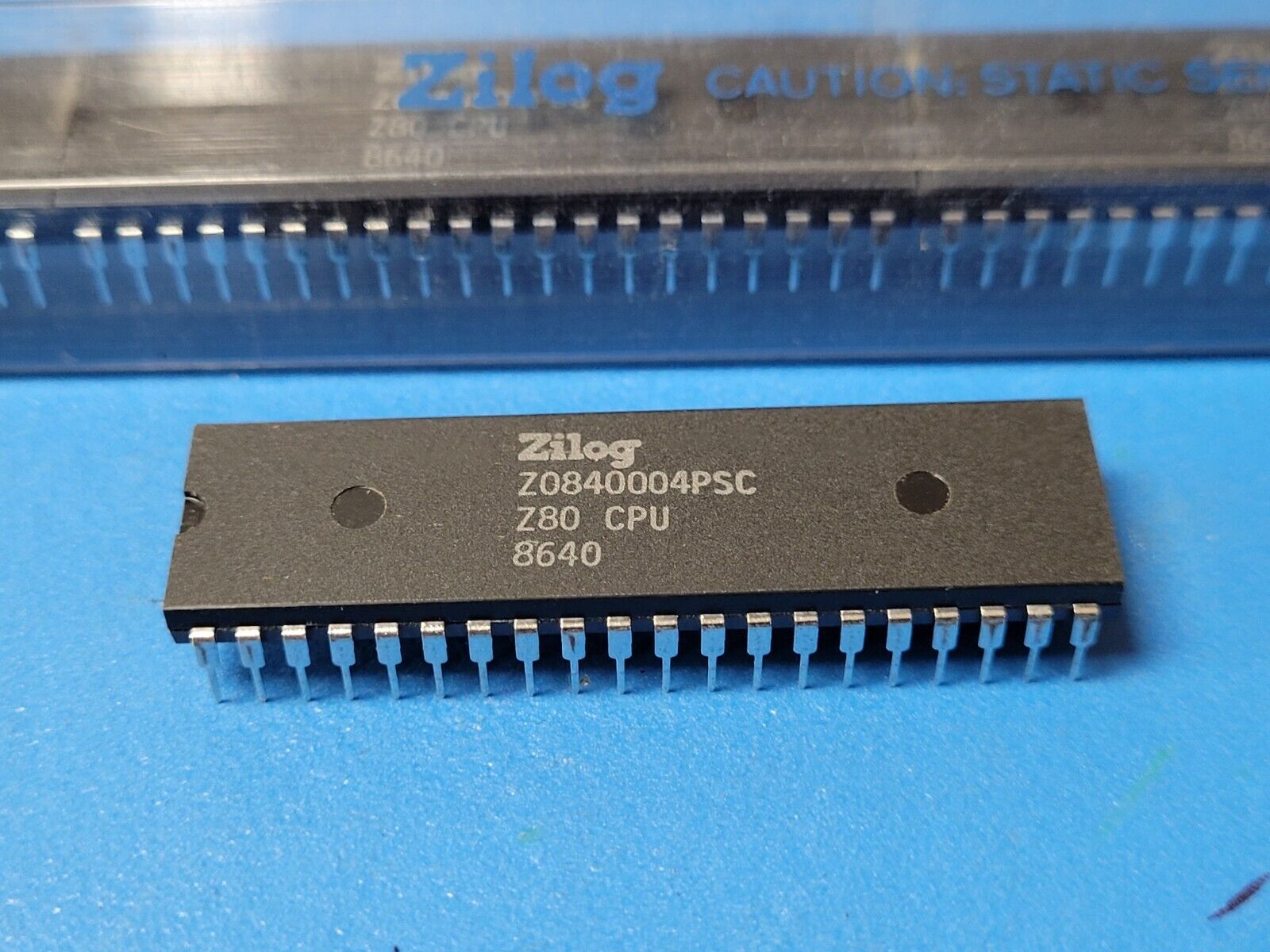

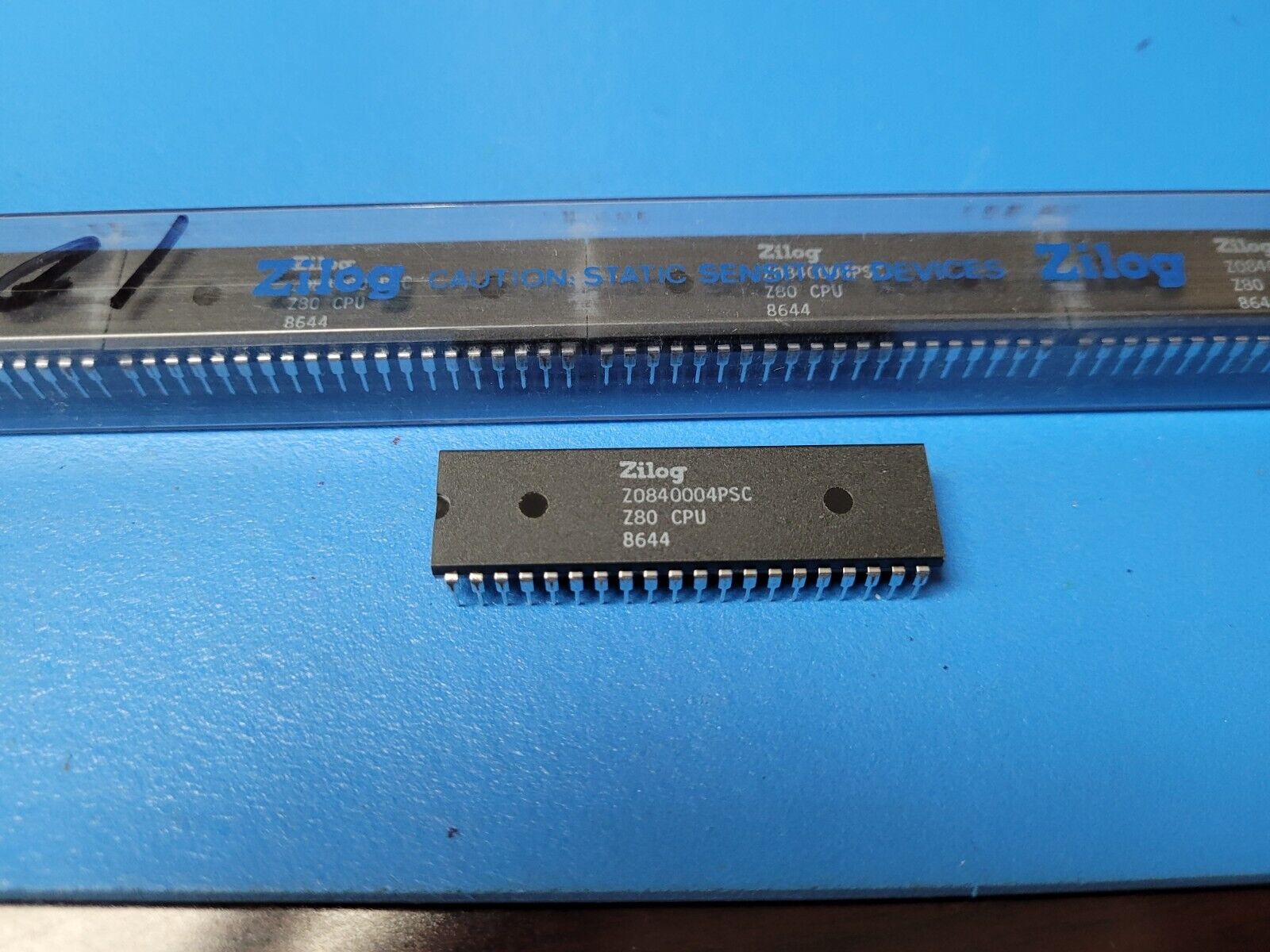

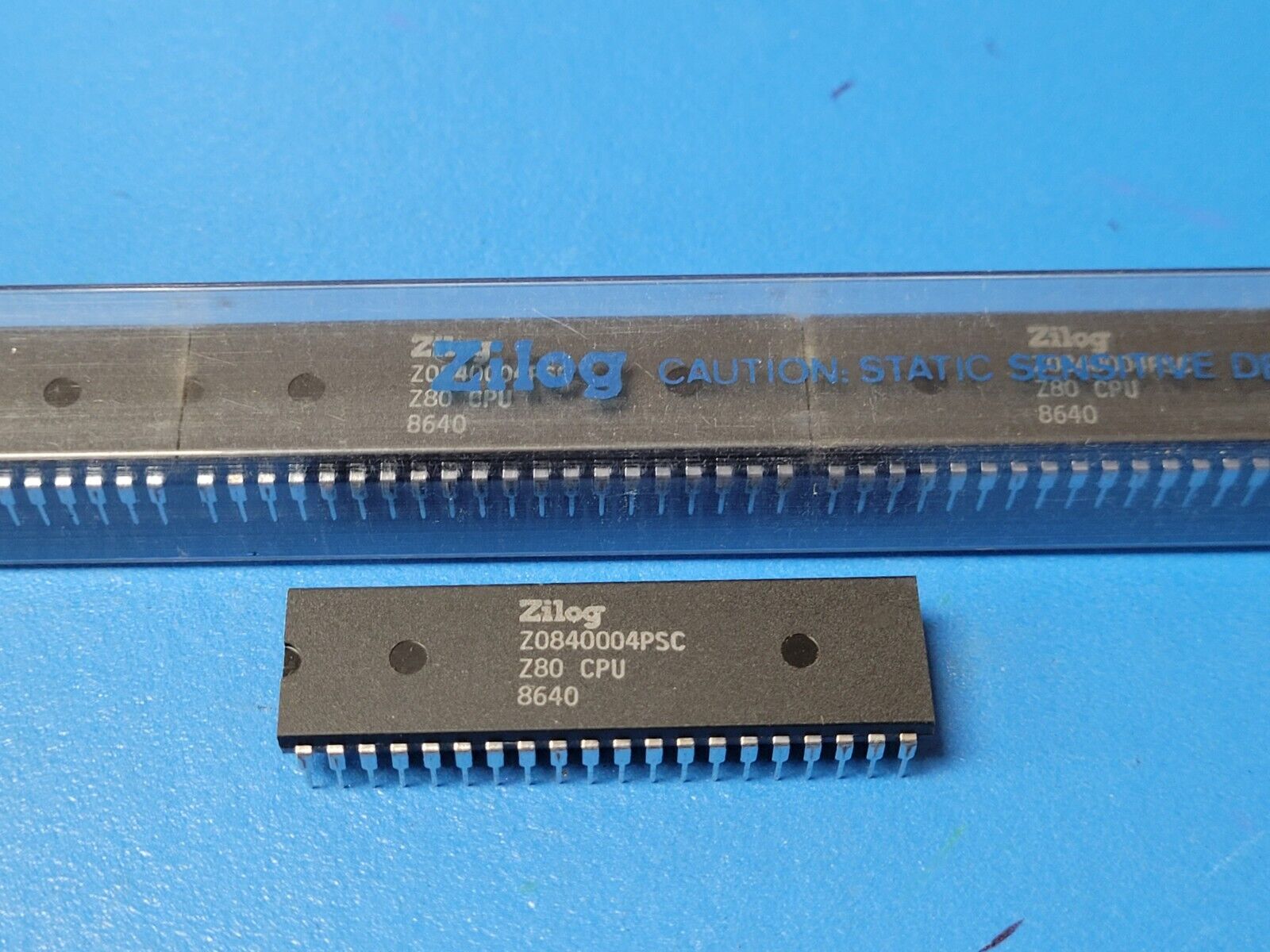

THIS IS FOR (10 PCS) OF Z0840004PSC Z80 CPU BY ZILOG
Microprocessor, 8-Bit, 4MHz, NMOS, PDIP40
Part #: Z0840004PSC
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Zilog
Description: Microprocessor, 8-Bit, 4MHz, NMOS, PDIP40
Mfr Package Description DIP-40
Status Discontinued
Address Bus Width 16.0
Bit Size 8
Boundary Scan NO
Clock Frequency-Max 4.0 MHz
External Data Bus Width 8.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T40
JESD-609 Code e0
Low Power Mode NO
Number of DMA Channels 0.0
Number of External Interrupts 2.0
Number of Serial I/Os 0.0
Number of Terminals 40
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 240
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 0
Seated Height-Max 4.75 mm
Speed 4.0 MHz
Sub Category Microprocessors
Supply Current-Max 200.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology NMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 52.325 mm
Width 15.24 mm
Additional Feature DRAM MEMORY REFRESH COUNTER
