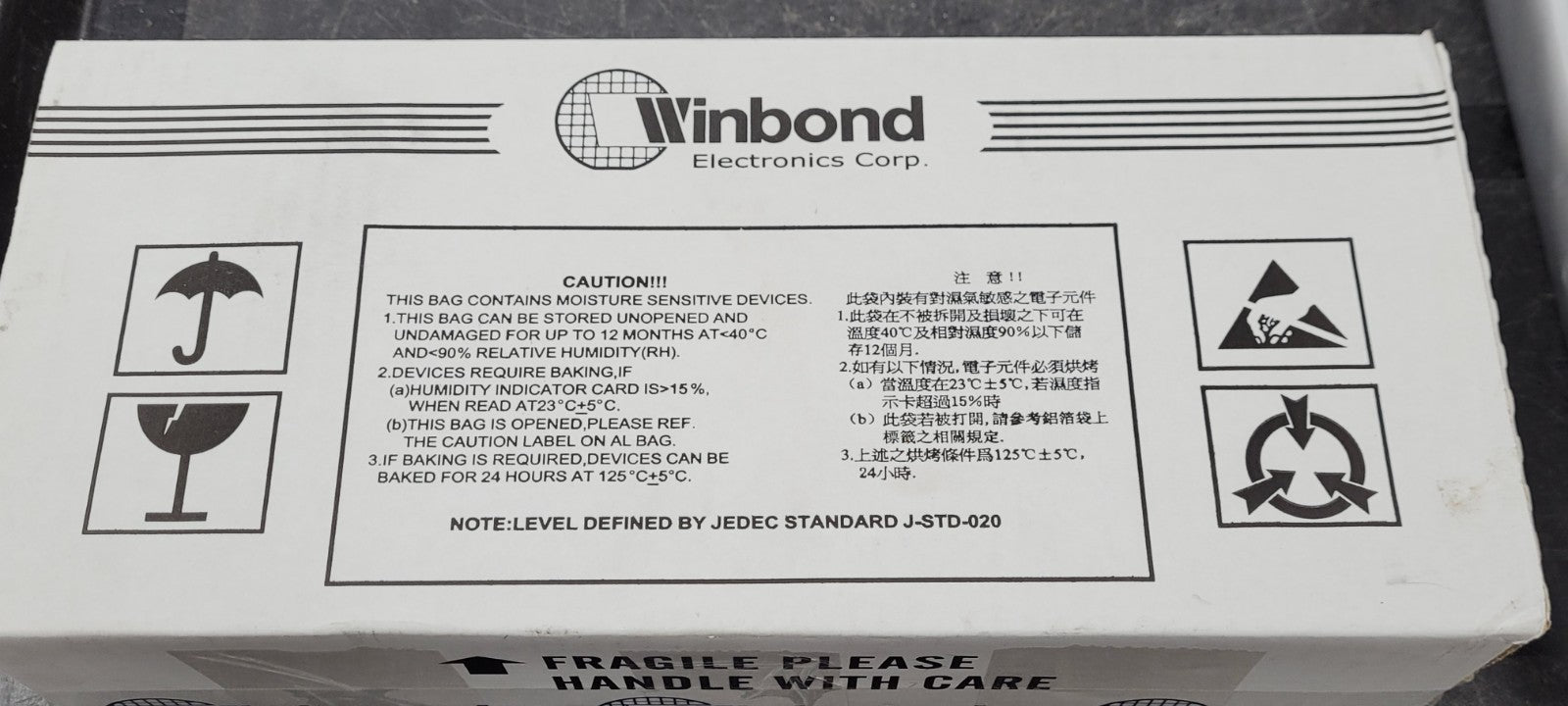

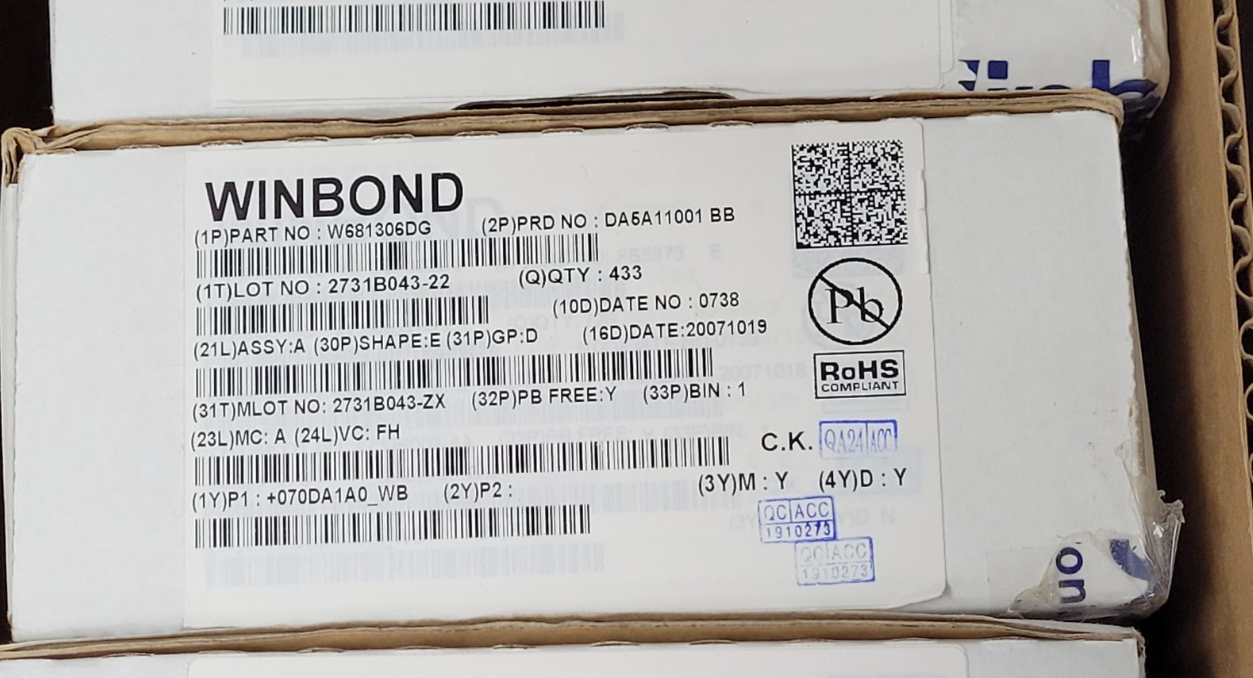

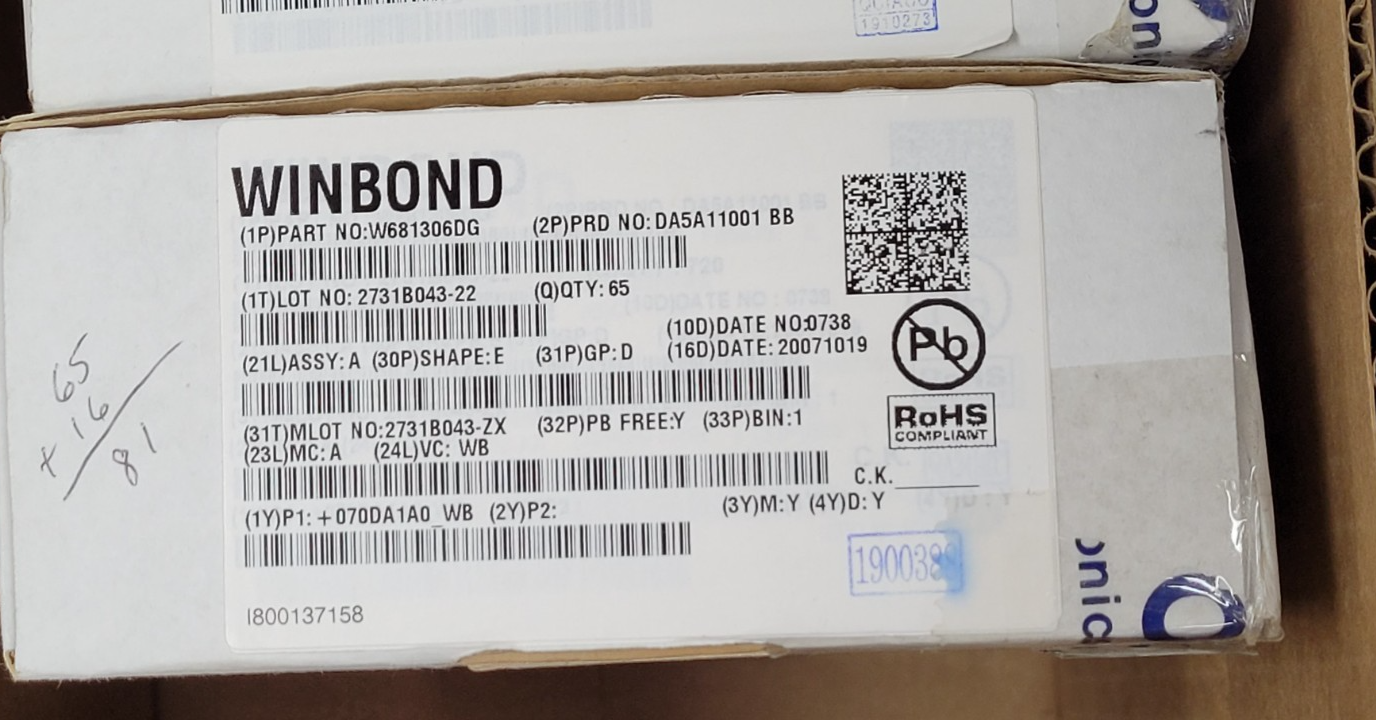

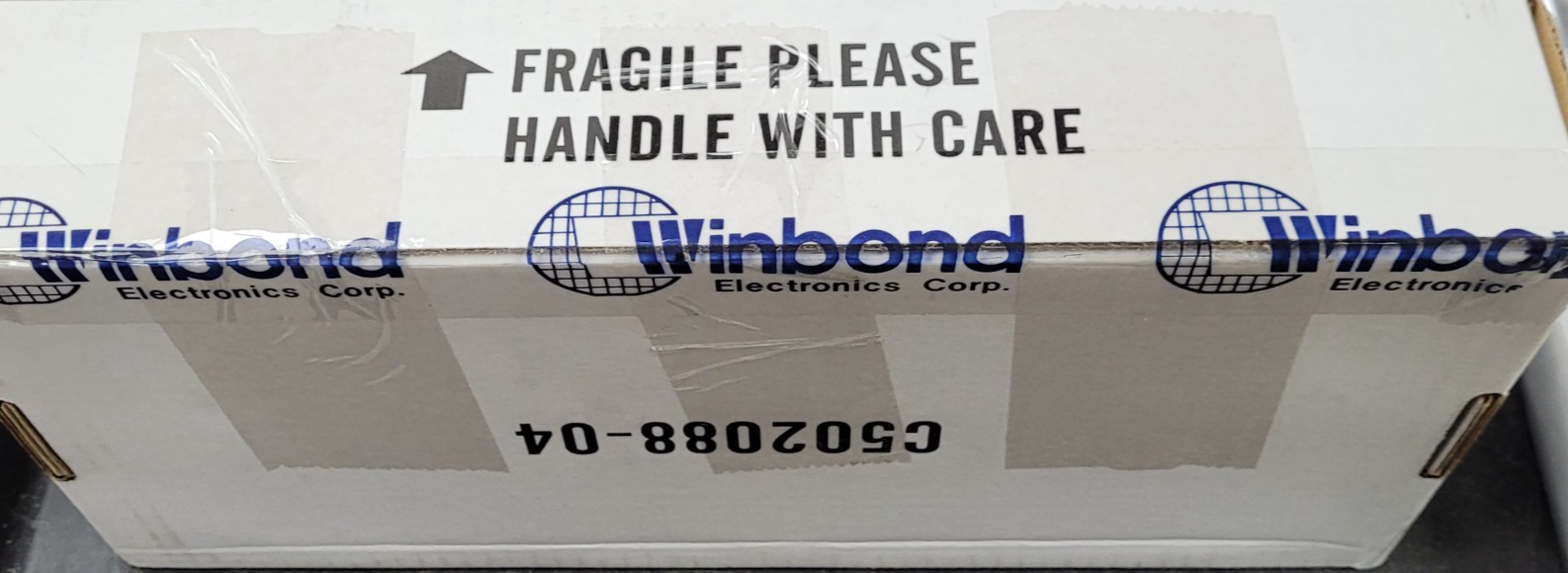

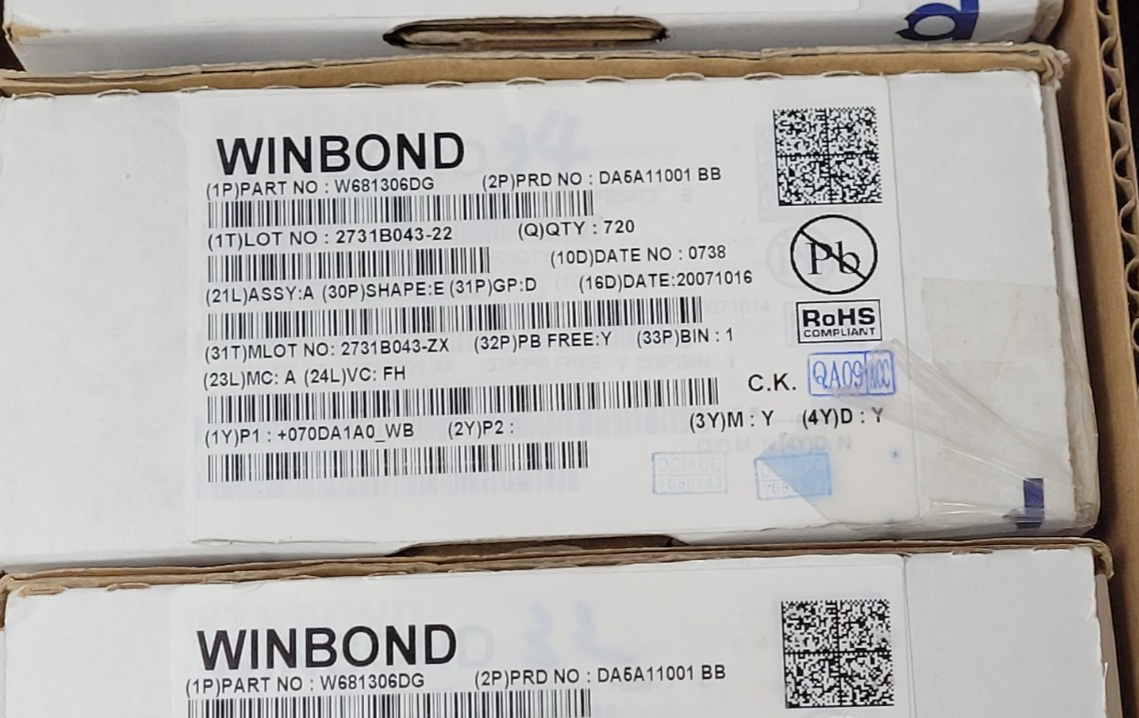

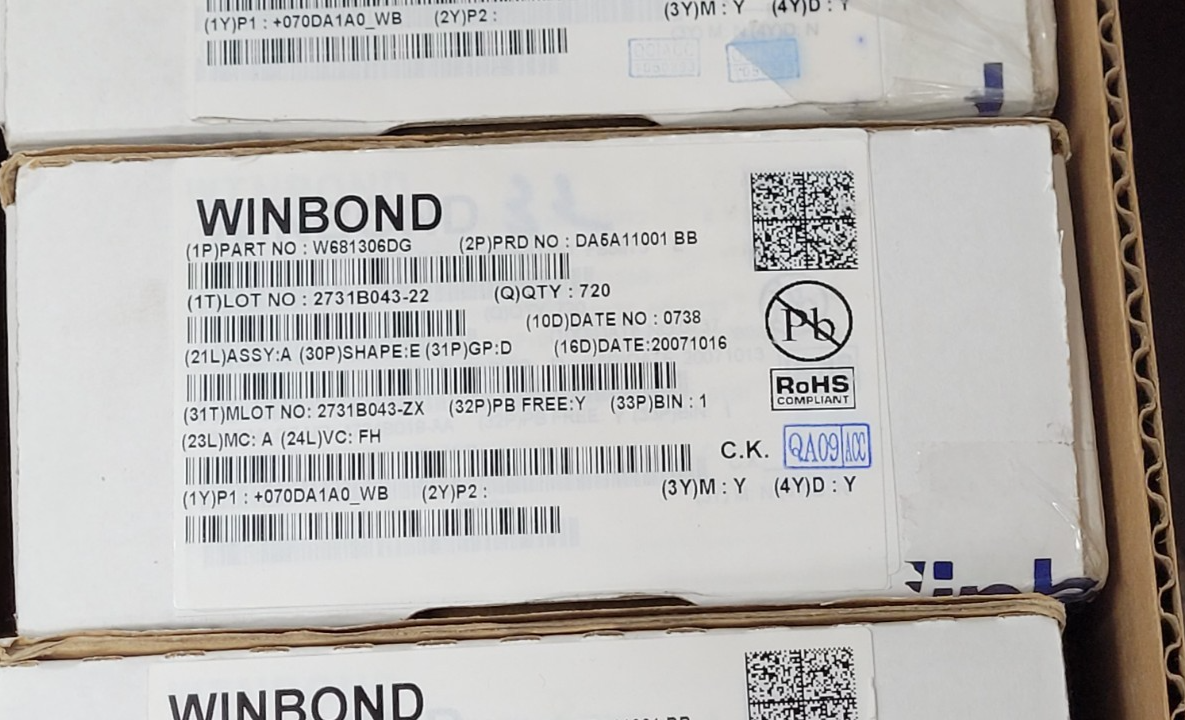

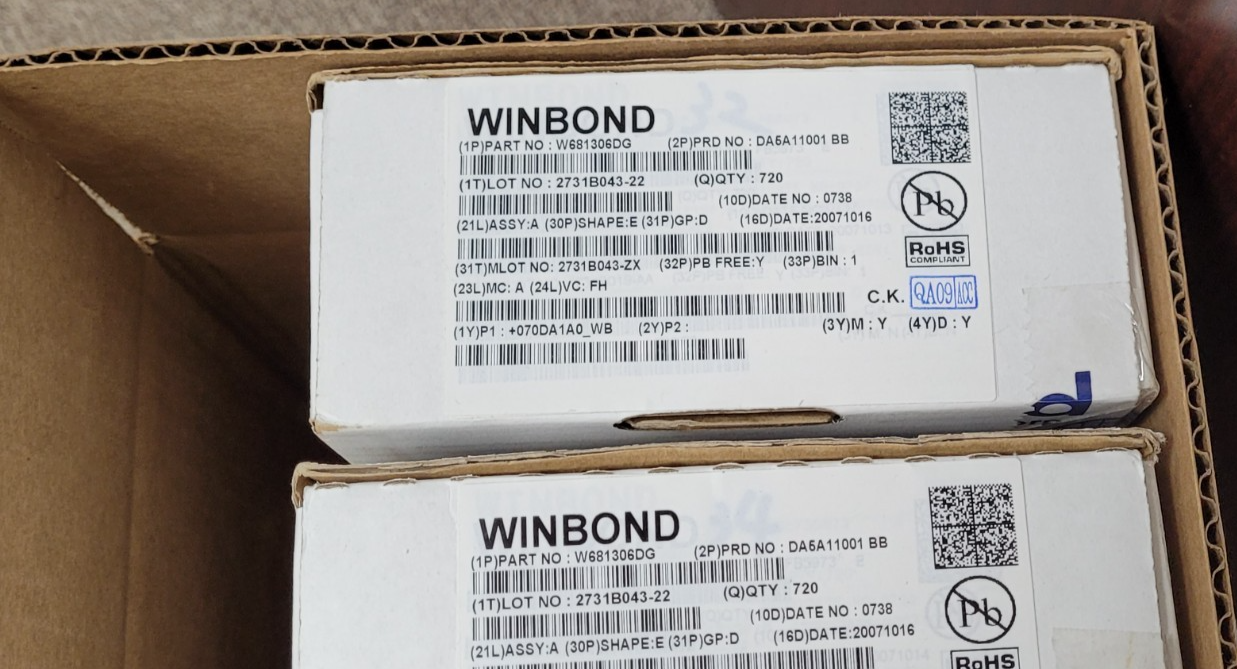

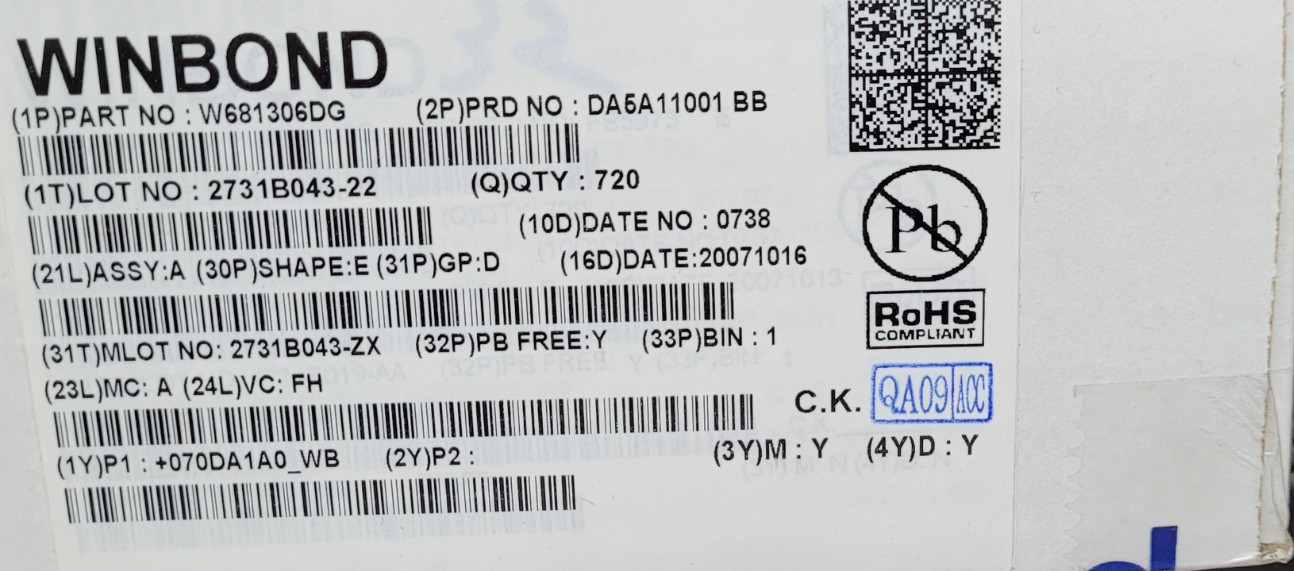

(10 PCS) W681306DG WINBOND USB Controller Interface

The W681306DG operates within a digital supply voltage range typical for USB 2.0 compliant devices, generally between 3.0V and 3.6V, which aligns with standard USB bus power delivery constraints. Unlike general-purpose microcontrollers that may support wider voltage ranges or require external regulators, this device integrates USB protocol handling and audio data processing on a single chip, reducing system-level power management complexity. During sustained data streaming—such as stereo audio playback at 48 kHz/24-bit—the device maintains stable operation without exceeding junction temperature limits, assuming proper PCB layout and thermal vias are implemented. Its power dissipation is primarily determined by clock speed and data throughput rather than analog circuitry, distinguishing it from mixed-signal converters that exhibit higher dynamic current draw.

When designing with the W681306DG in space-constrained applications like portable audio players or USB DACs, special attention must be paid to impedance control on high-speed USB differential pairs. The USB 2.0 Full-Speed signaling requires controlled impedance traces (typically 90 Ω differential) routed away from noisy digital signals such as switching regulators or clock oscillators. Ground plane continuity beneath the 100LQFP package is critical to minimize ground bounce and ensure reliable enumeration across all host platforms. Additionally, decoupling capacitors should be placed within 2 mm of each VDD pin using low-ESR ceramics rated for the operating voltage. The device lacks built-in termination resistors, so external pull-up/pull-down configurations must comply with USB specification timing requirements.

The W681306DG offers significant advantages over FPGA-based approaches in cost-sensitive, medium-volume audio products where development time and verification effort are constrained. As a dedicated USB audio controller, it includes pre-verified firmware stacks for class-compliant audio streaming, eliminating the need for complex USB protocol implementation in HDL code. This reduces BOM count by removing external PHY components in some configurations and simplifies EMC testing due to reduced switching activity. However, FPGAs provide greater flexibility for custom packet formatting, real-time DSP integration, or multi-protocol support—capabilities not available on fixed-function devices like the W681306DG. The choice ultimately depends on required feature set versus time-to-market pressure.

Yes, the W681306DG supports asynchronous USB audio clocking, which allows the internal oscillator to operate independently of the incoming USB frame timing. This decouples the source clock from the host’s reference, enabling more precise sample rate conversion when interfacing with high-quality DACs. In practice, this can reduce measured jitter by several picoseconds relative to synchronous mode, particularly beneficial when driving DACs sensitive to clock phase noise. However, achieving optimal results requires careful firmware calibration of the internal PLL and adherence to USB timing tolerances specified in the UAC2 standard. Misconfiguration may lead to buffer underruns or clock instability, especially at non-standard sample rates.

While the W681306DG contains an integrated precision oscillator, many professional audio designs opt for a high-stability external crystal (e.g., ±1 ppm) to minimize frequency drift over temperature and aging. This becomes relevant when synchronizing multiple devices or maintaining long-term clock accuracy across extended operational lifetimes. External crystals also allow independent tuning of the USB clock domain separate from the audio subsystem, improving isolation against digital noise coupling. The decision hinges on application requirements: consumer devices may tolerate internal oscillator limitations, but broadcast or studio environments demand superior spectral purity and stability.

No universal incompatibilities exist between the W681306DG and common host controllers (e.g., Renesas, Cypress, or integrated USB hubs), as compliance with USB Audio Device Class Specification ensures broad interoperability. However, certain legacy hosts may exhibit enumeration failures if the device fails to meet timing margins during reset signaling or lacks proper pull-up resistor values on D+ line. To mitigate risks, designers should validate enumeration across multiple host types (Windows, macOS, Linux, embedded systems) and implement robust error recovery in firmware. Adding series termination resistors (22–33 Ω) near the connector can improve signal quality on longer cables.

The 100-pin LQFP provides sufficient I/O density to expose all functional pins while maintaining manageable pitch (0.5 mm), facilitating automated pick-and-place assembly. Its exposed pad enhances heat dissipation compared to QFN packages without requiring solder mask-defined pads, though additional thermal vias under the die attach area may still be needed for high-current paths. Electrically, the larger body size allows shorter trace lengths to peripheral components, reducing parasitic inductance and capacitance that could degrade USB signal integrity. Smaller packages like 64-pin TQFP would force routing congestion or compromise decoupling effectiveness, potentially increasing EMI susceptibility.

The W681306DG functions strictly as a digital interface controller and does not include analog-to-digital or digital-to-analog conversion stages. Consequently, it cannot natively process sigma-delta encoded streams without external decoding hardware. For high-resolution audio (e.g., 32-bit/384 kHz), designers must pair it with discrete converters featuring native support for such formats, ensuring both devices share compatible clocking schemes and data alignment protocols. This architecture choice keeps die size small and cost low but shifts ADC/DAC responsibilities to external components, increasing overall system complexity compared to fully integrated solutions.
