(10 PCS) W530-02H CYPRESS Clock Generator, 166MHz, CMOS, SSOP-20
Tax included.

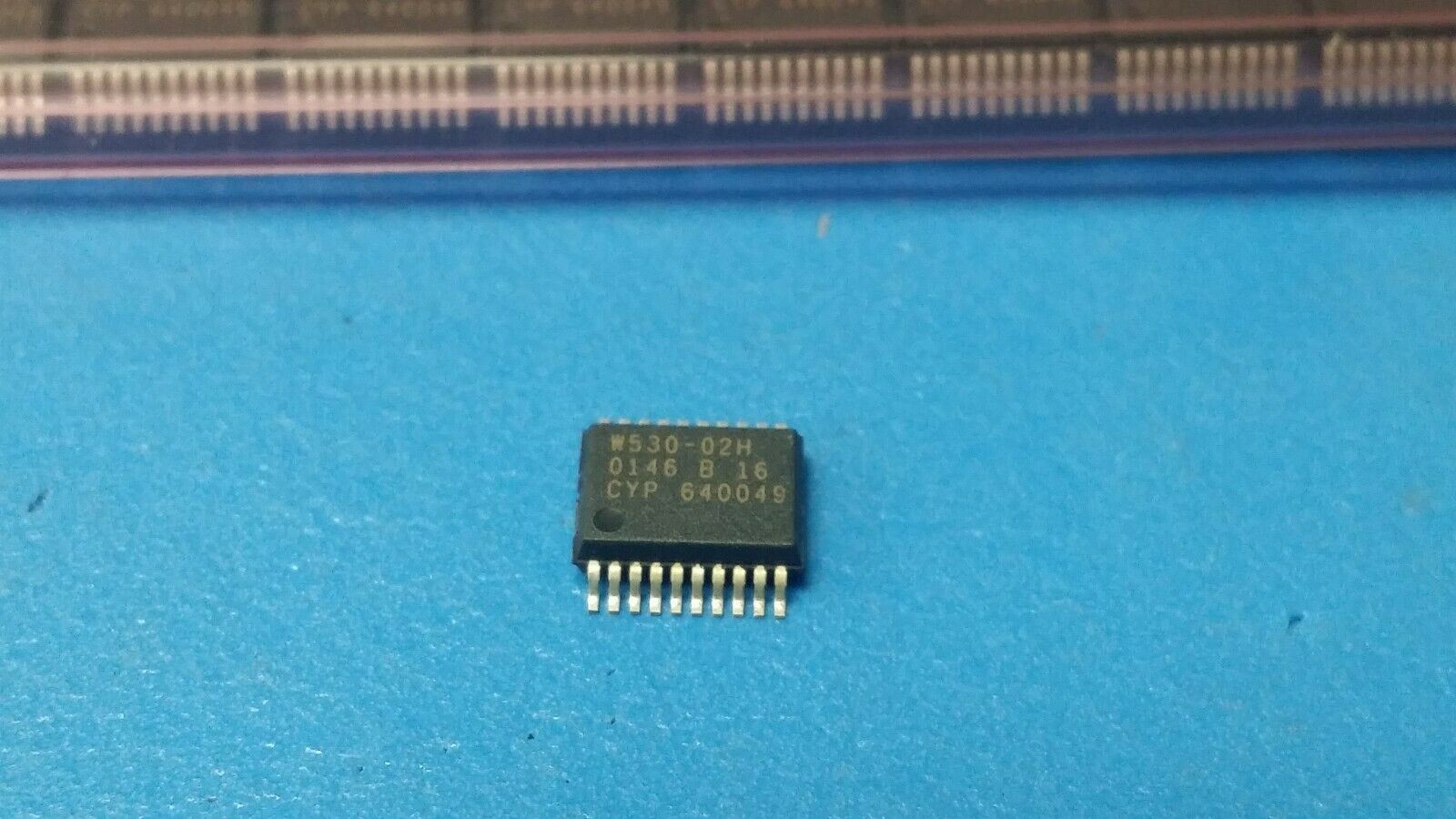

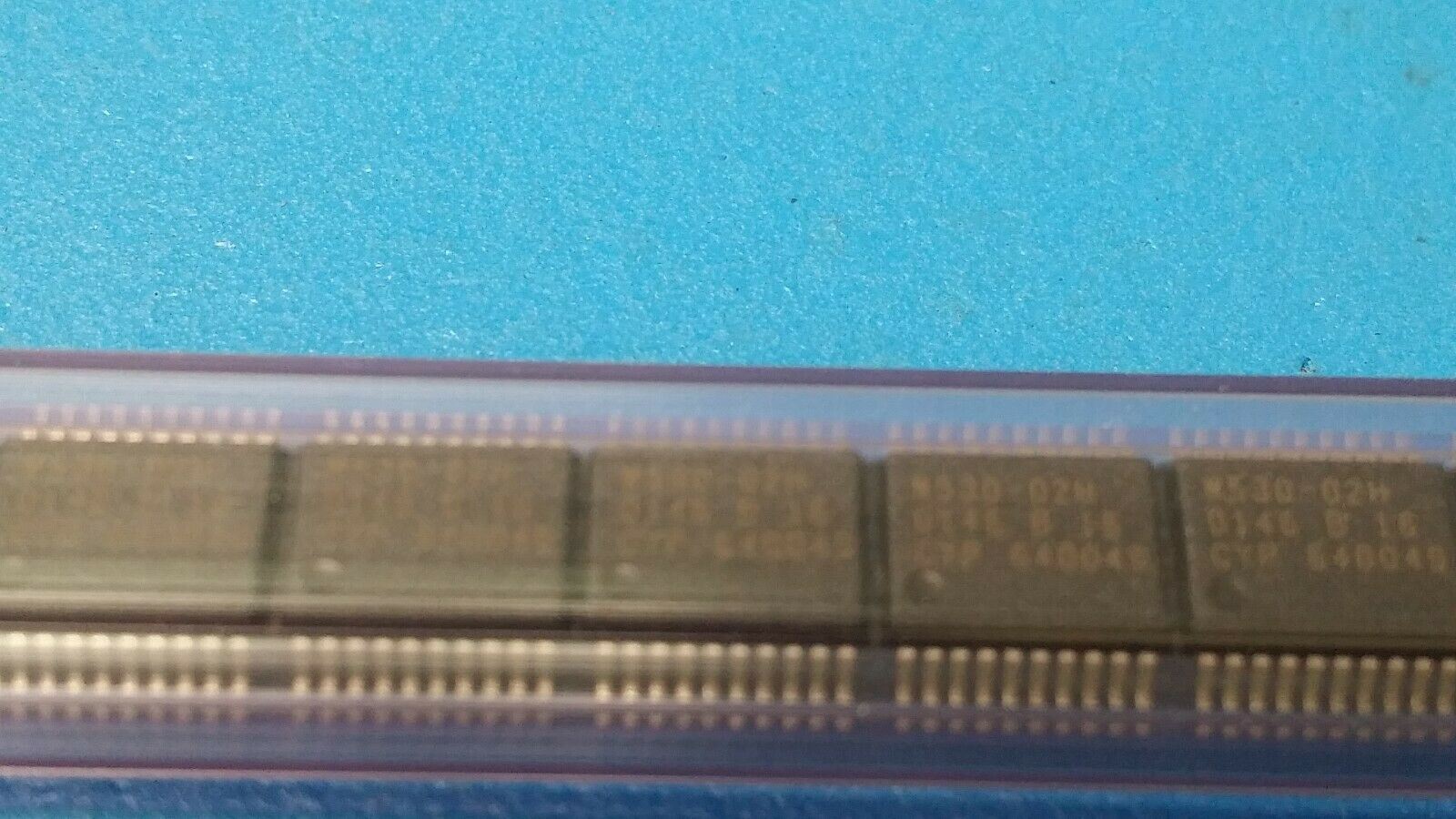

THIS LISTING IS FOR (10 PCS) OF W530-02H BY CYPRESS
Clock Generator, 166MHz, CMOS, SSOP-20
Part #: W530-02H
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Cypress Semiconductor Corp.
Description: Clock Generator, 166MHz, CMOS, PDSO20
Mfr Package Description 0.209 INCH, PLASTIC, SSOP-20
Status Discontinued
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Terminals 20
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Clock Frequency-Max 166.0 MHz
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 220
Primary Clock/Crystal Frequency-Nom 166.0 MHz
Qualification Status Not Qualified
Seated Height-Max 2.0 mm
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 7.2 mm
Width 5.3 mm
Additional Feature ALSO OPERATES AT 5V SUPPLY
