(10 PCS) W24L257S70LL WINBOND Standard SRAM, 32KX8, 70ns, CMOS, SOP28
Tax included.

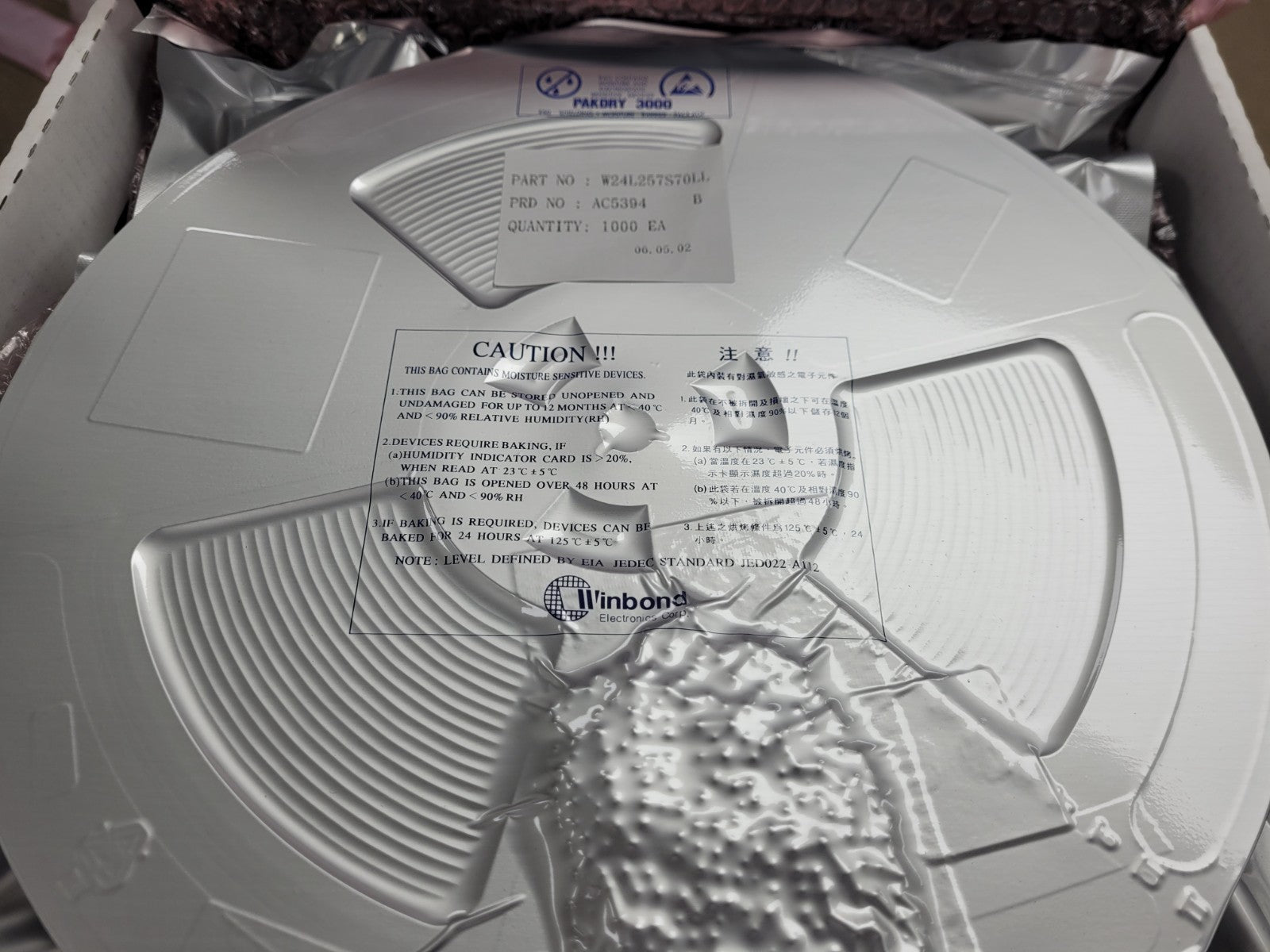

THIS IS FOR (10 PCS) OF W24L257S70LL BY WINBOND
Standard SRAM, 32KX8, 70ns, CMOS, SOP28

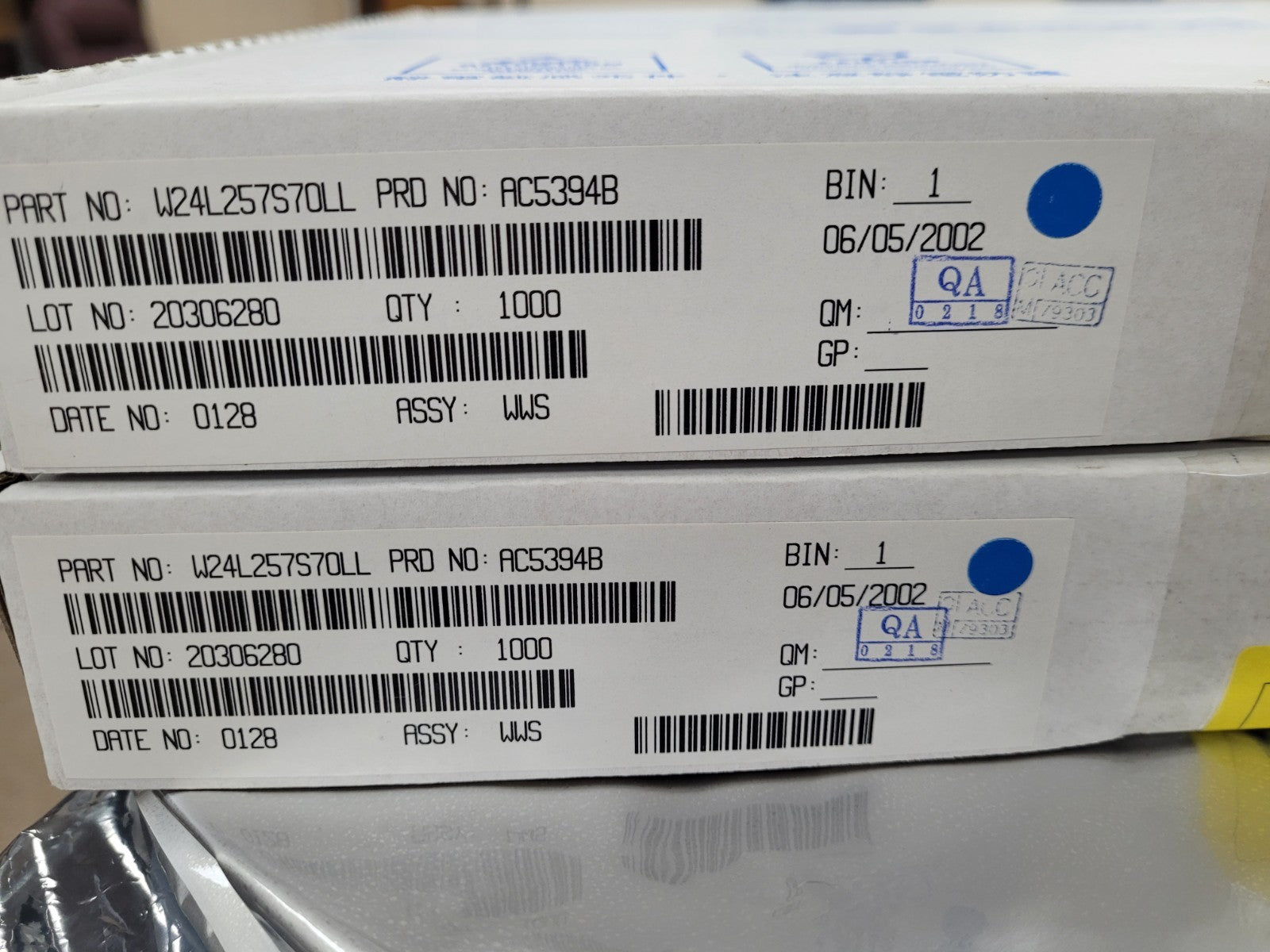

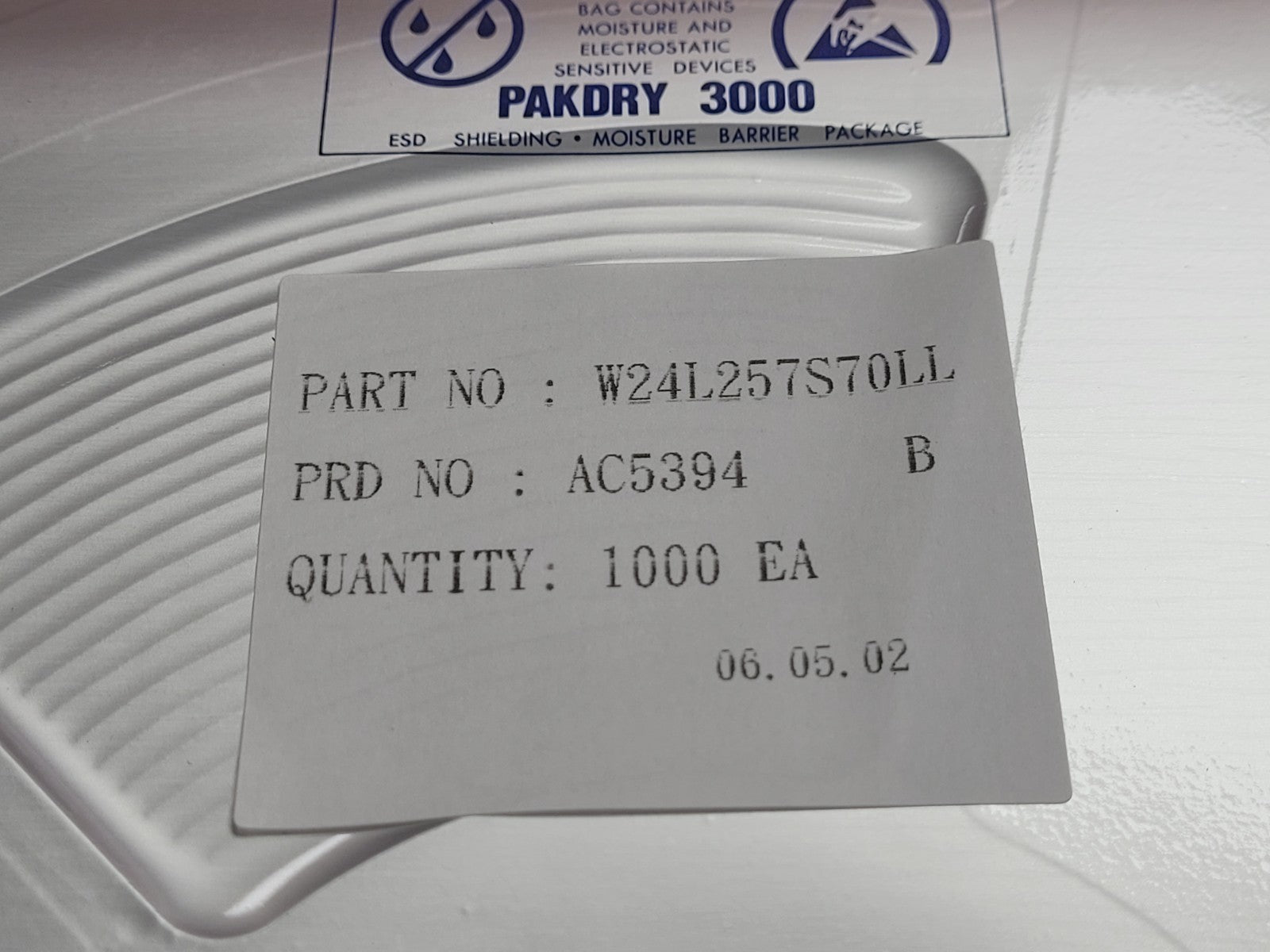

Part #: W24L257S70LL
Obsolete
Part Category: SRAMs
Manufacturer: WINBOND ELECTRONICS CORP
Description: Standard SRAM, 32KX8, 70ns, CMOS, PDSO28
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Terminals 28
Number of Words (words) 32768.0000000000000000
Number of Words Code 32K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 32KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.45
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
DLA Qualification Not Qualified
Seated Height-Max (mm) 2.8500
Standby Voltage-Min (V) 2.000000
Supply Current-Max (mA) 70.000000000000000
Supply Voltage-Max (V) 3.46500
Supply Voltage-Min (V) 3.13500
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 8.4100
