(10 PCS) ST1284-02A8RL ST MICRO 17-LINE 4700ohm OTHER TERMINATOR, PDSO28
Tax included.

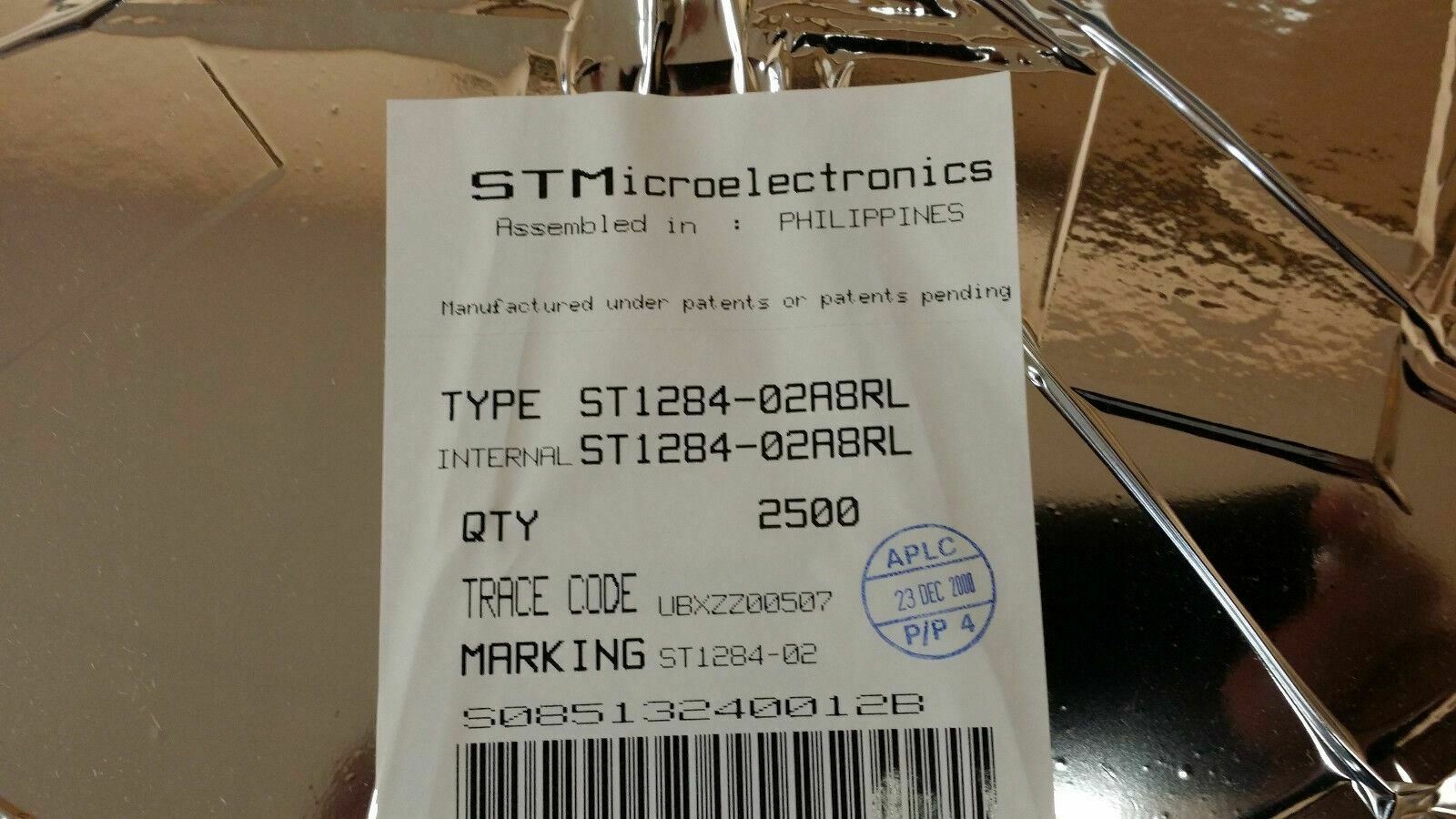

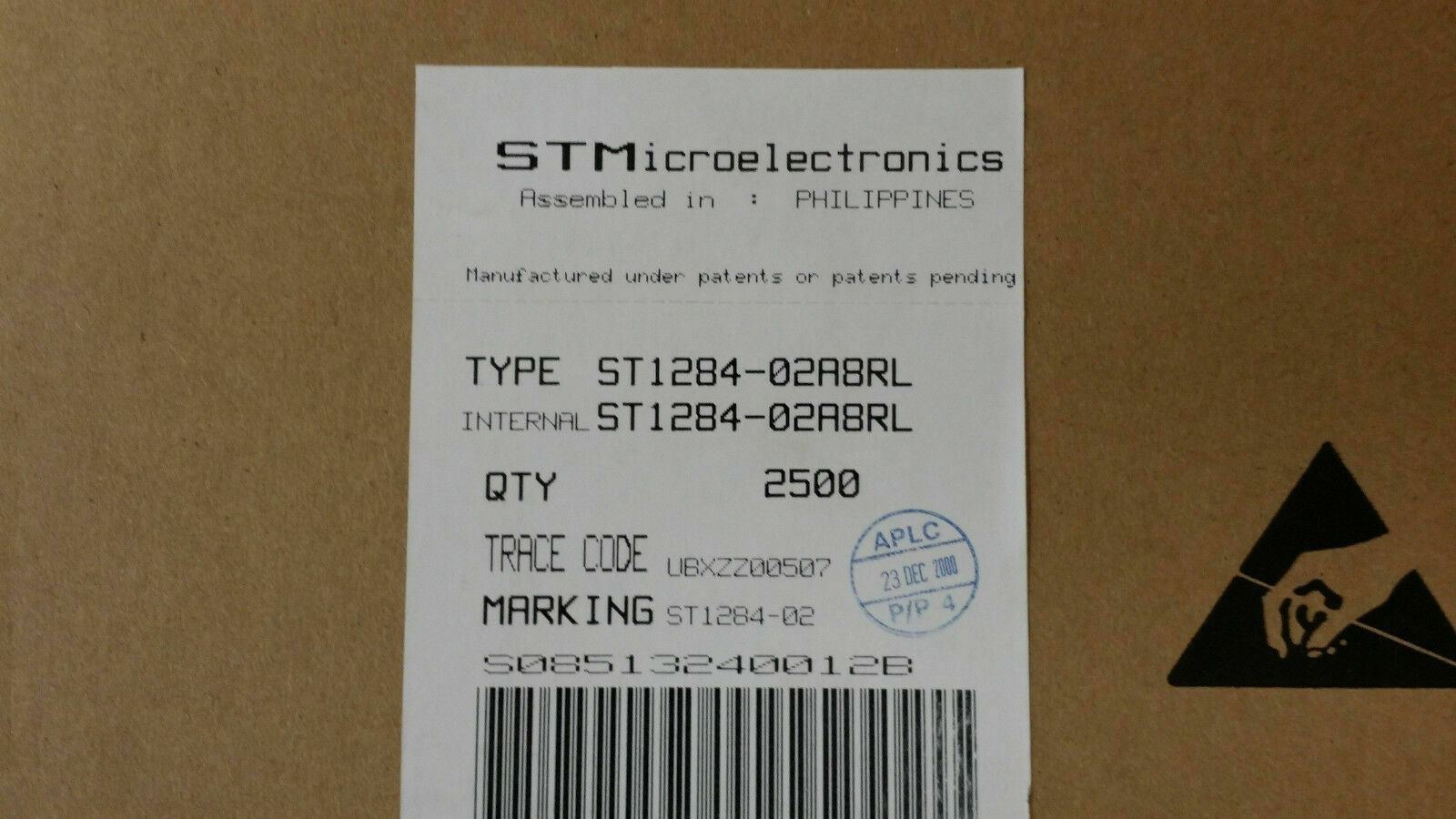

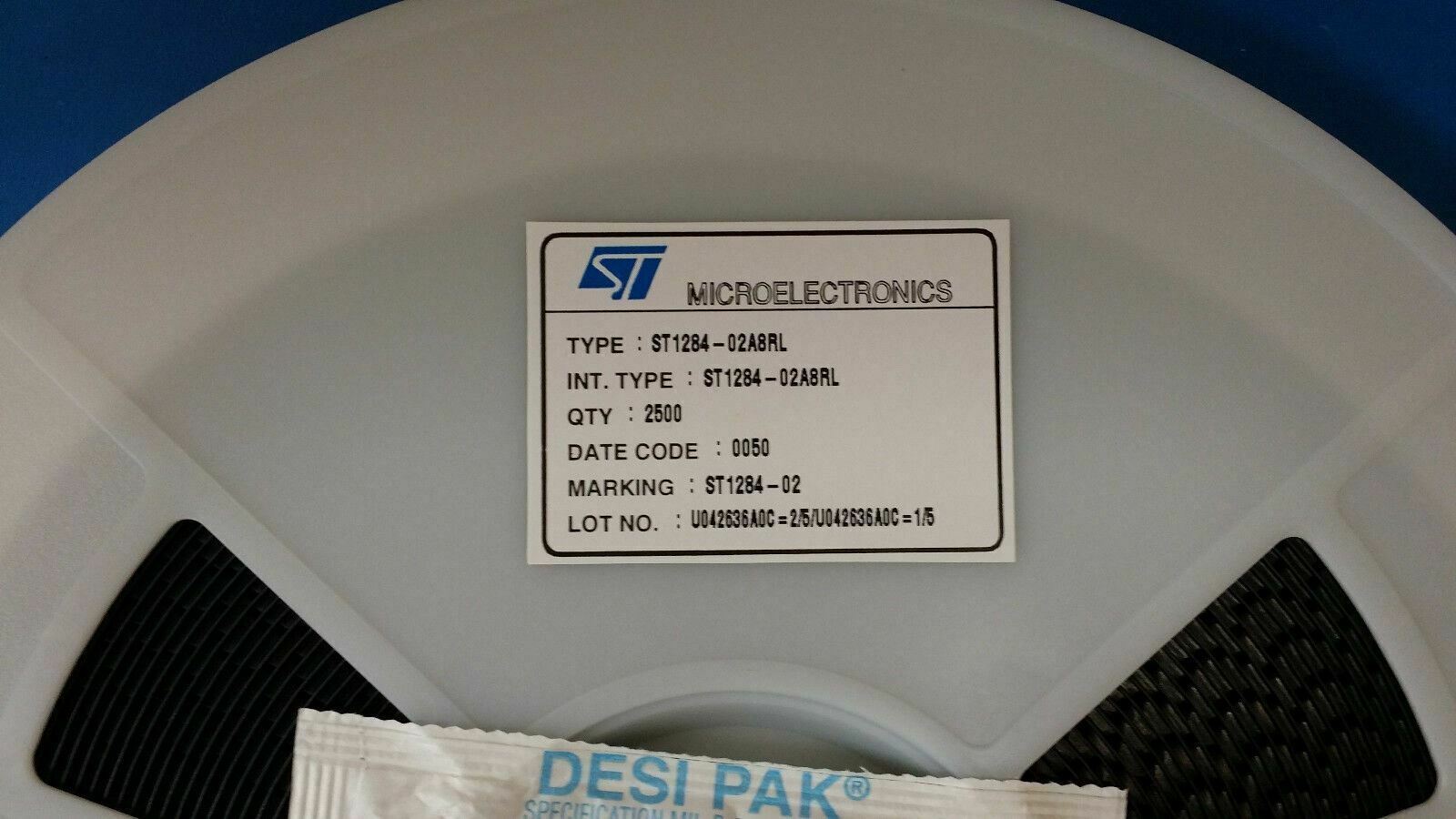

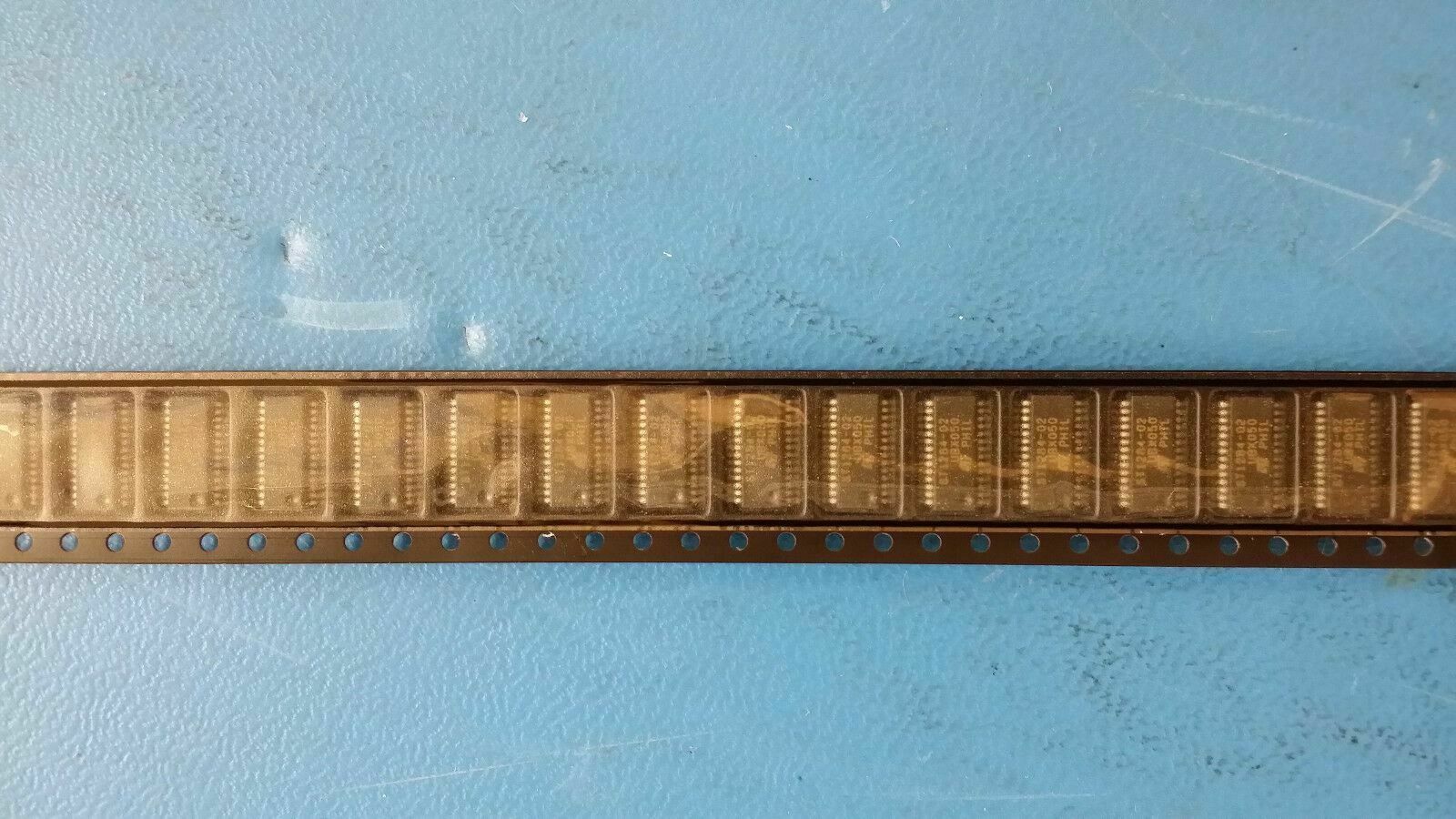

THIS LISTING IS FOR (10 PCS) OF ST1284-02A8RL BY ST MICRO
17-LINE 4700ohm OTHER TERMINATOR, PDSO28
Manufacturer: STMicroelectronics, Inc.
Description: 17-LINE 4700ohm OTHER TERMINATOR, PDSO28
Mfr Package Description
17-LINE 4700ohm OTHER TERMINATOR, PDSO28
Part #: ST1284-02A8RL
Part Category: Interface ICsManufacturer: STMicroelectronics, Inc.
Description: 17-LINE 4700ohm OTHER TERMINATOR, PDSO28
Mfr Package Description
| PLASTIC, QSOP-28 | |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Discontinued |
| Interface IC Type | OTHER TERMINATOR |
| Differential Output | NO |
| JESD-30 Code | R-PDSO-G28 |
| JESD-609 Code | e3 |
| Number of Functions | 1 |
| Number of Signal Lines | 17.0 |
| Number of Terminals | 28 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SSOP |
| Package Equivalence Code | SSOP28,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 5 |
| Pull-up Resistance-Nom | 4700.0 ohm |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Sub Category | Bus Terminators |
| Supply Voltage-Nom | 5.0 V |
| Surface Mount | YES |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.635 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 9.9 mm |
| Width | 3.9116 mm |
|
|
|
