(10 PCS) SN74LS241N AMD IC BUF NON-INVERT 5.25V 20DIP
Tax included.

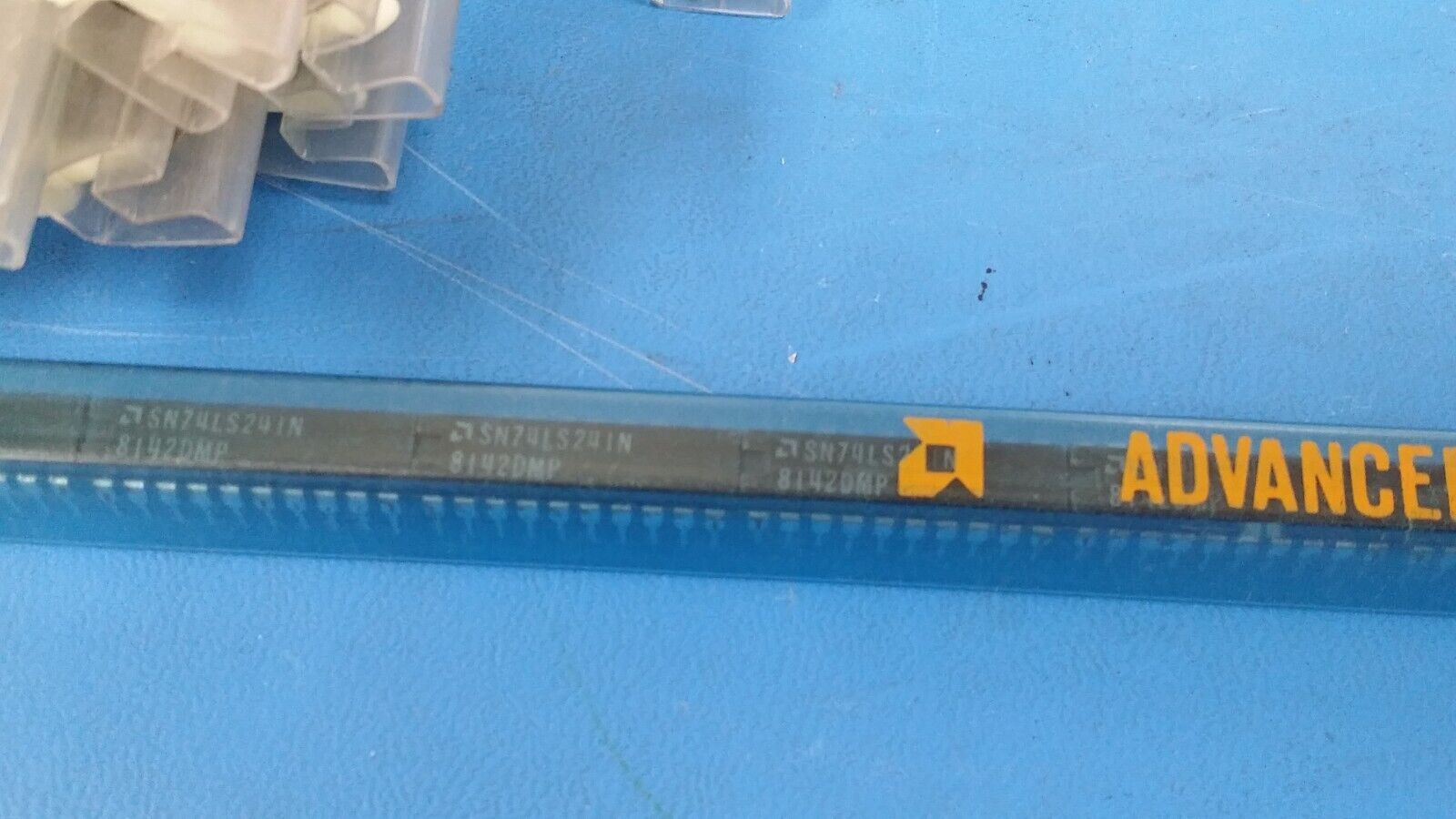

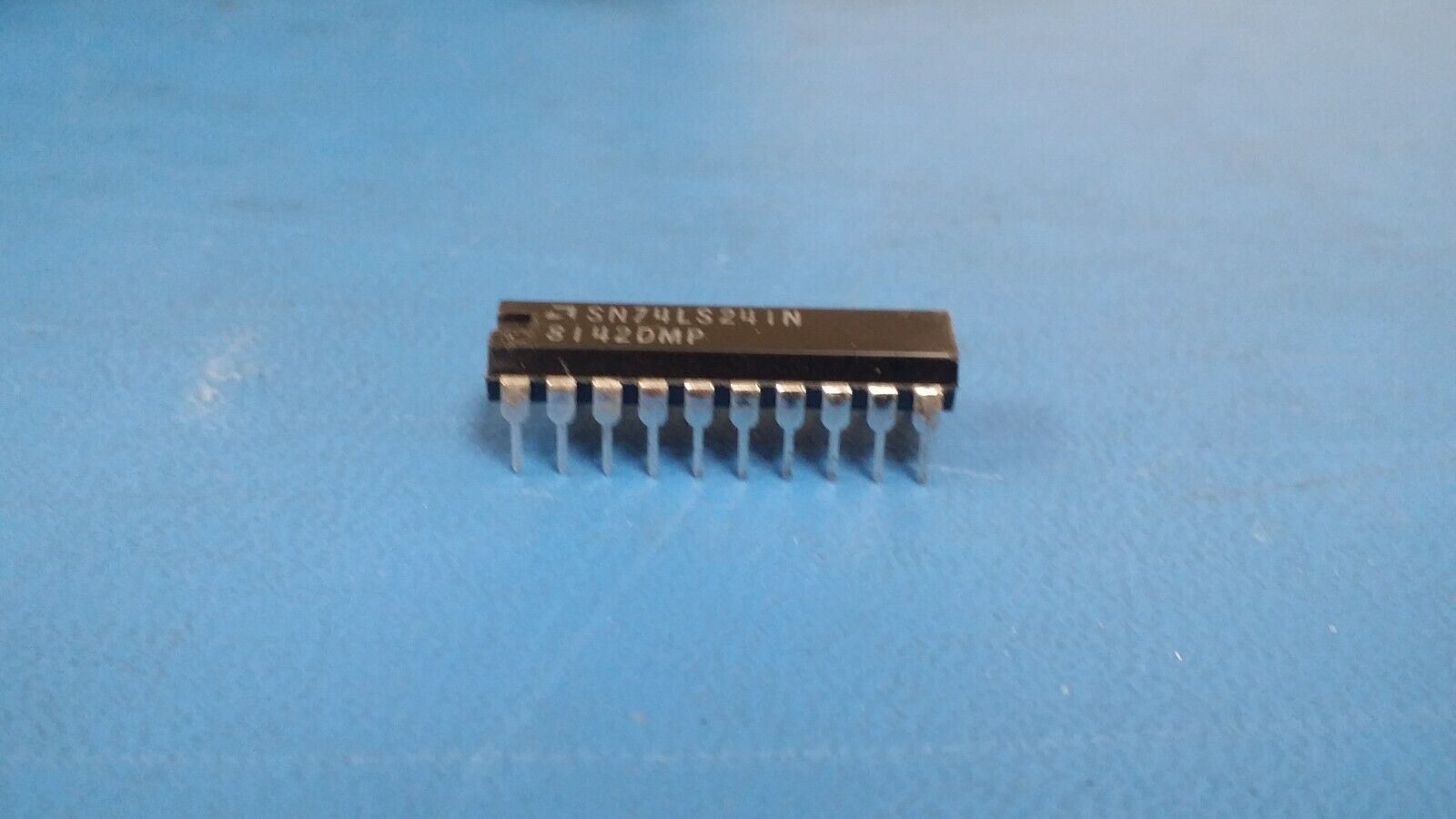

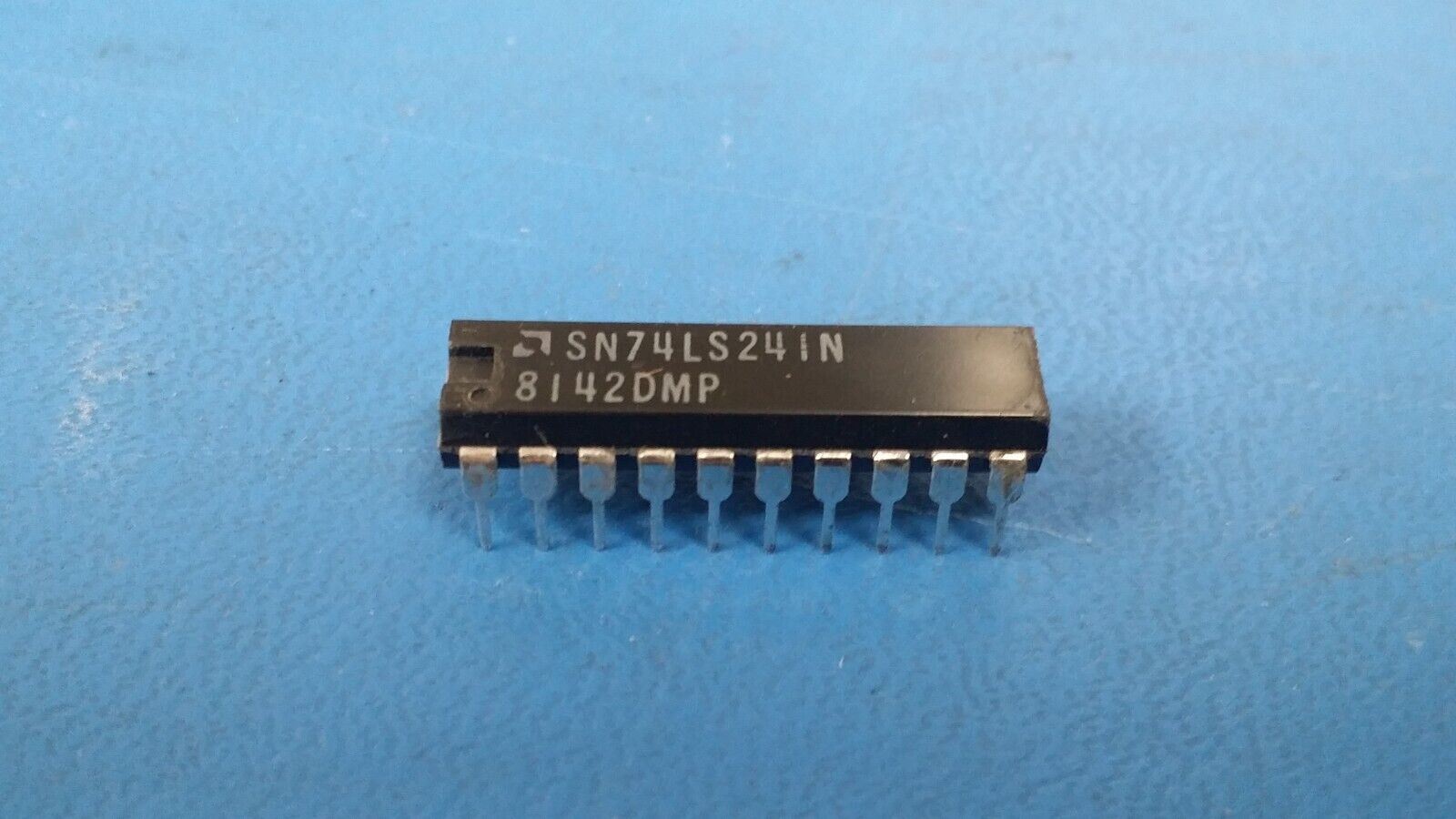

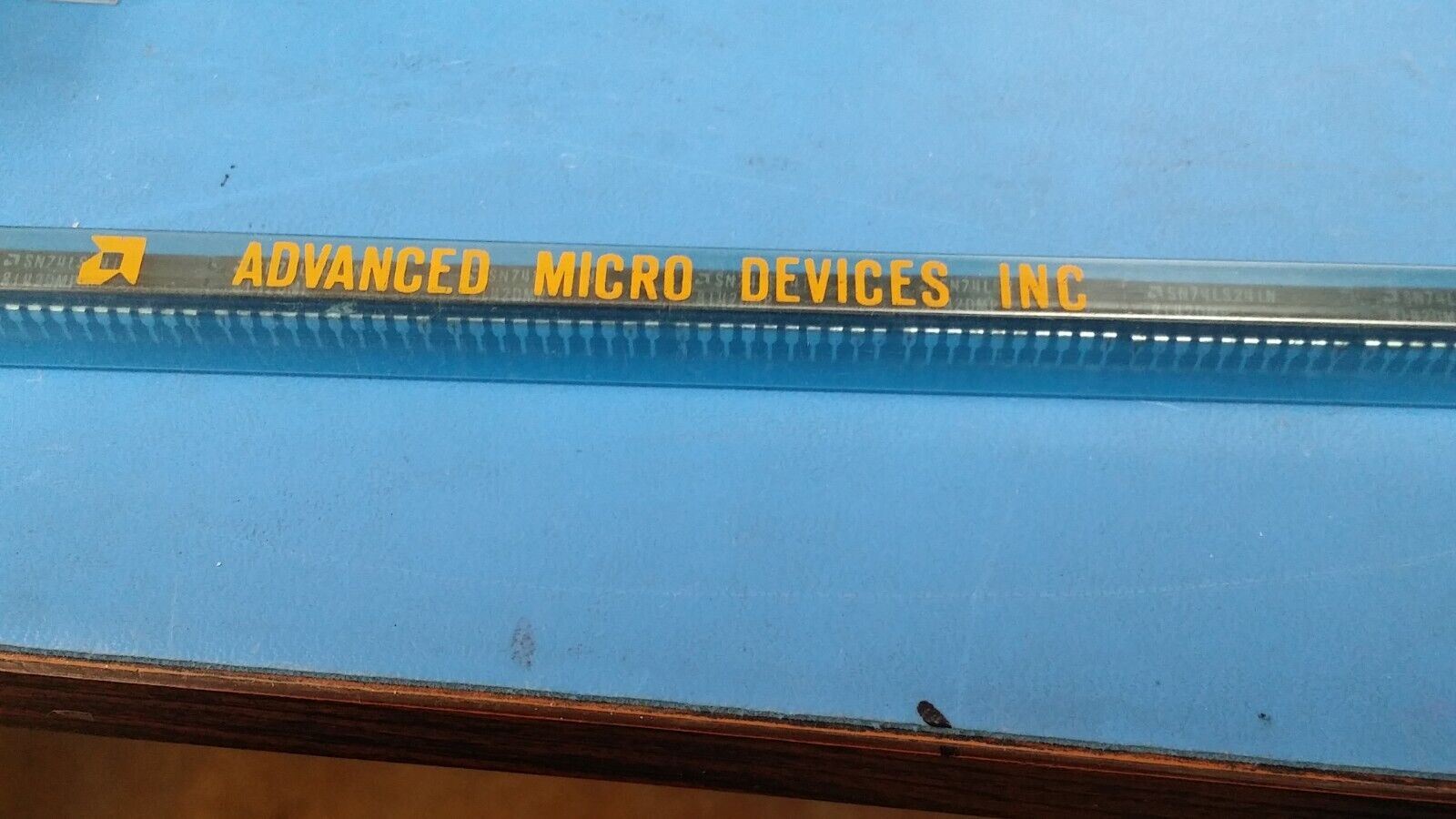

THIS IS FOR (10 PCS) OF SN74LS241N BY AMD
IC BUF NON-INVERT 5.25V 20DIP
Manufacturer: AMD
Product Category: Buffers & Line Drivers
RoHS: N
Number of Input Lines: 8 Input
Number of Output Lines: 8 Output
Polarity: Non-Inverting
High Level Output Current: - 15 mA
Low Level Output Current: 24 mA
Quiescent Current: 27 mA
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 4.75 V
Operating Supply Current: 46 mA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package / Case: PDIP-20
Packaging: Tube
Brand: AMD
Function: Buffer/Line Driver
Height: 4.57 mm
Input Signal Type: Single-Ended
Length: 24.33 mm
Logic Family: LS
Logic Type: Bipolar
Number of Channels: 8
Operating Supply Voltage: 4.75 V to 5.25 V
Operating Temperature Range: 0 C to + 70 C
Output Type: 3-State
Product Type: Buffers & Line Drivers
Propagation Delay Time: 18 ns at 5 V
Series: SN74LS241
20
Subcategory: Logic ICs
Supply Current - Max: 46 mA
Technology: Bipolar
Width: 6.35 mm
Unit Weight: 0.042297 oz
