(10 PCS) SN74LS03N TI IC GATE NAND 4CH 2-INP 14DIP
Tax included.

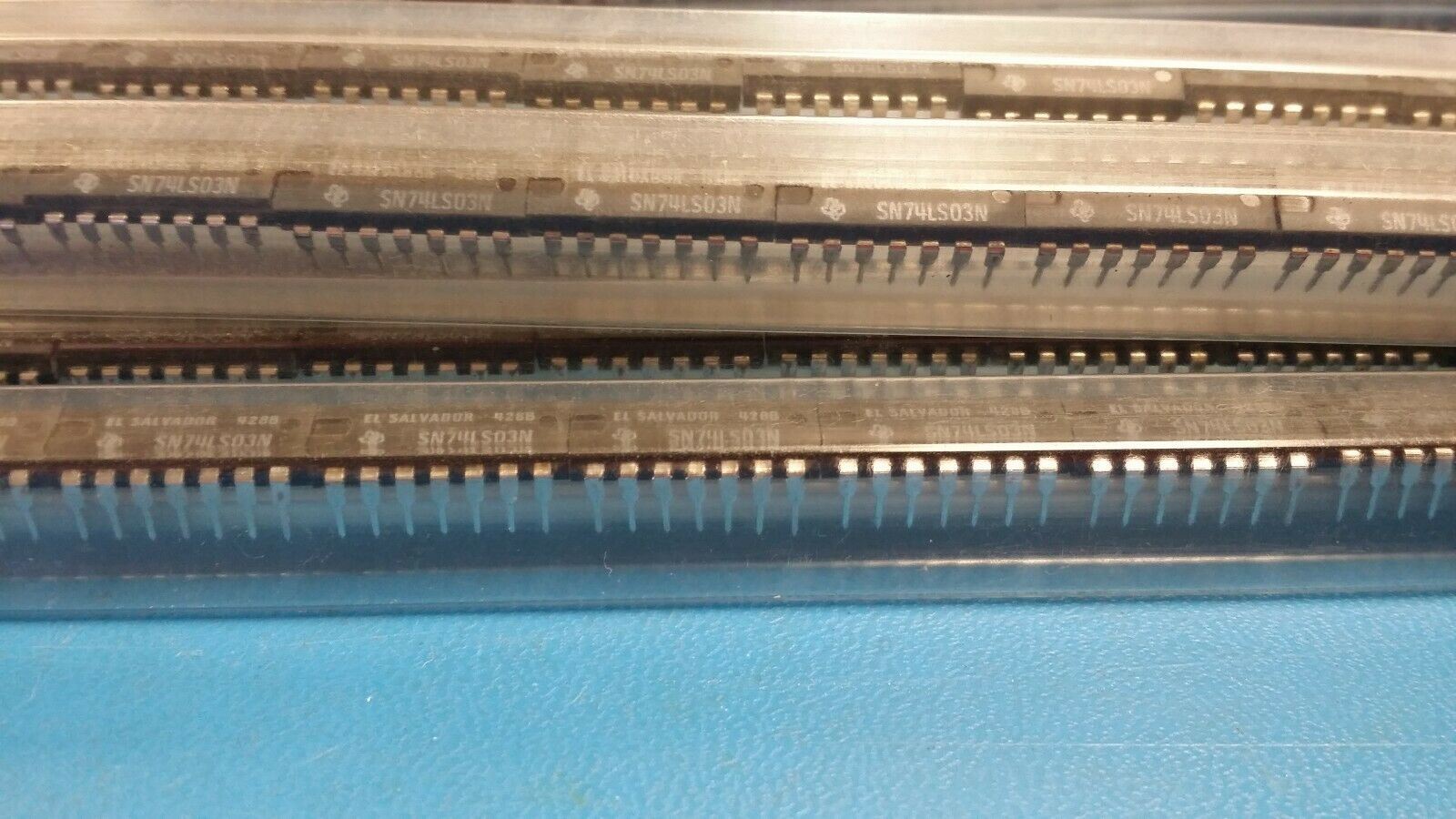

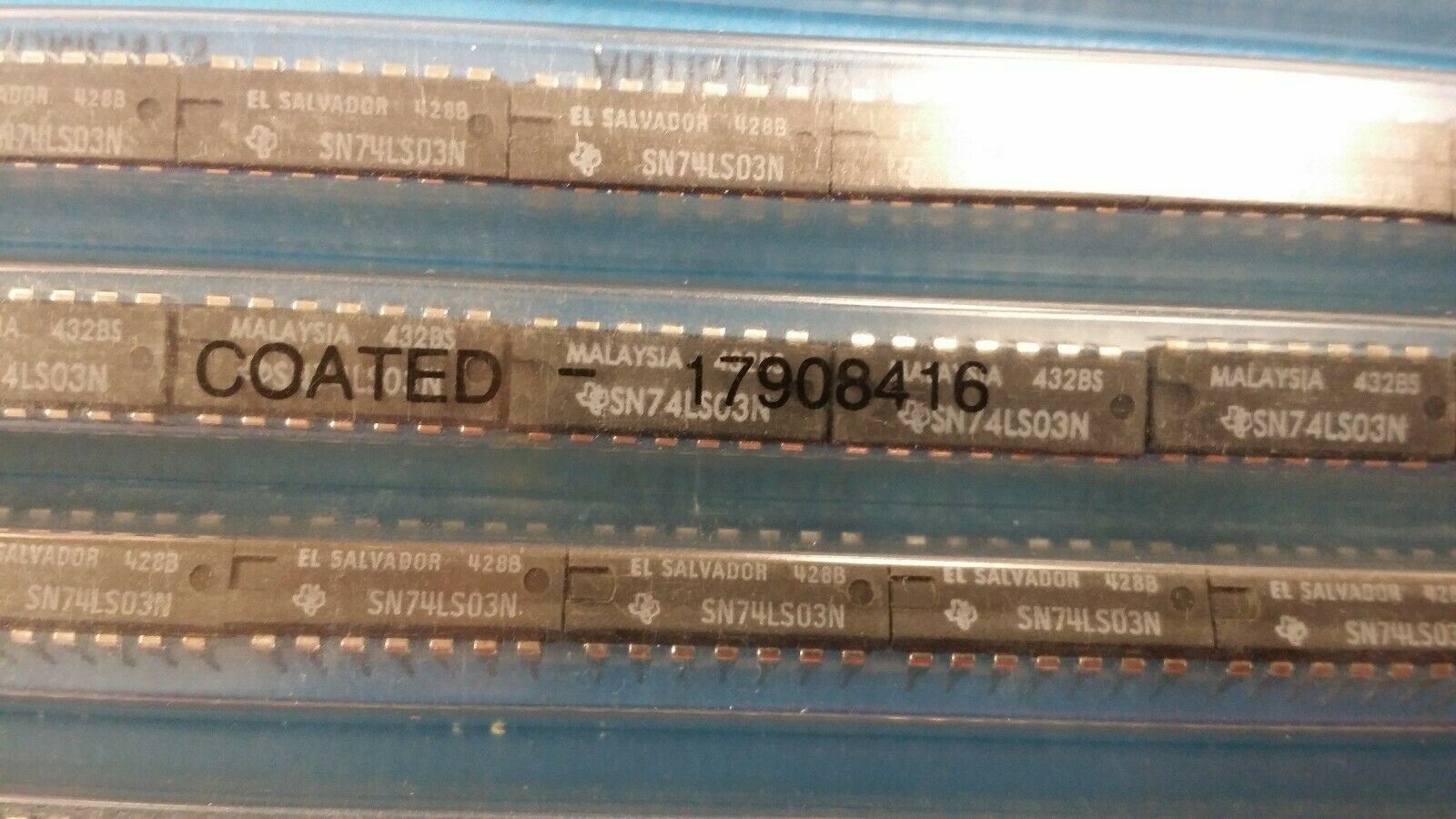

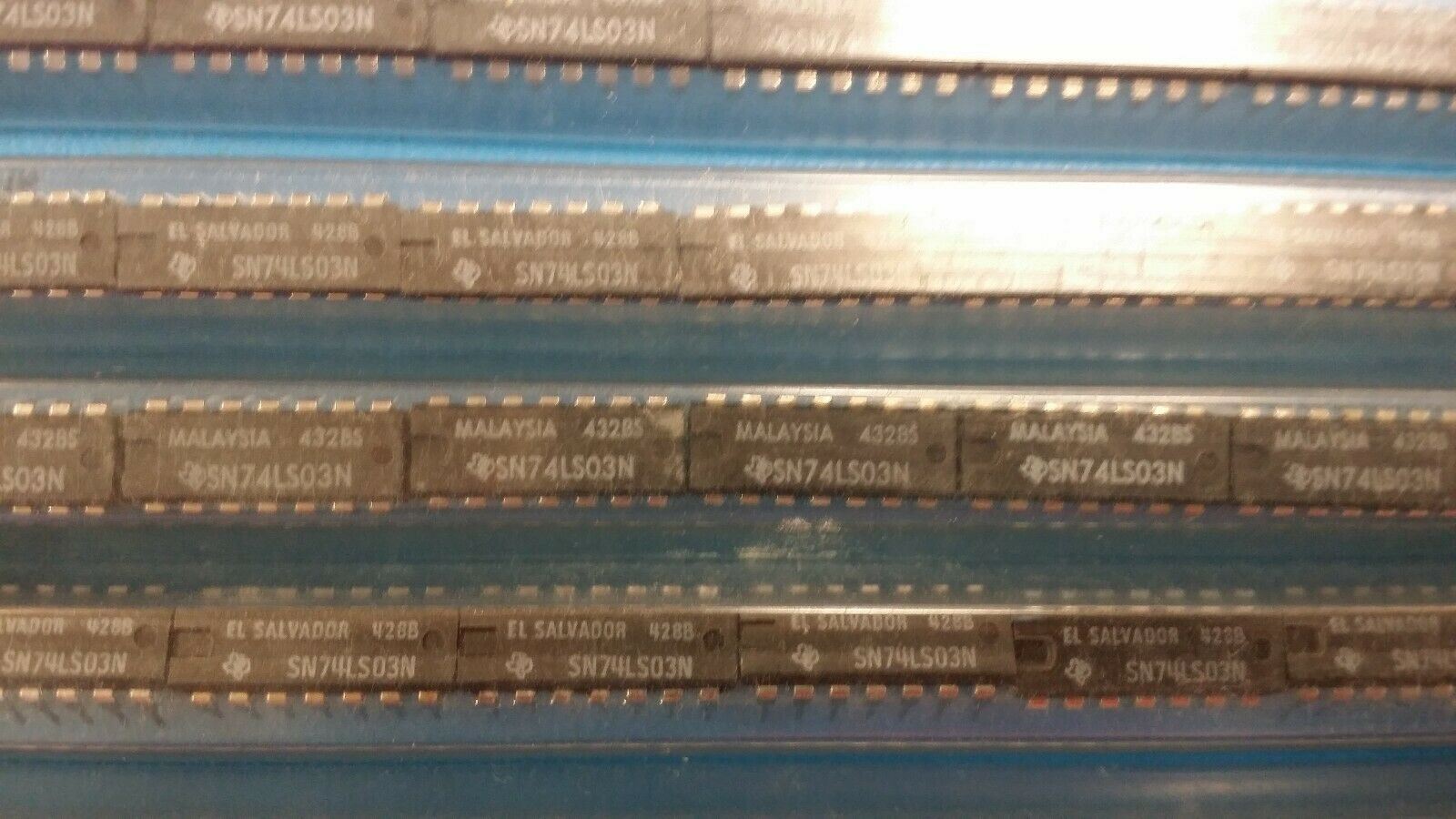

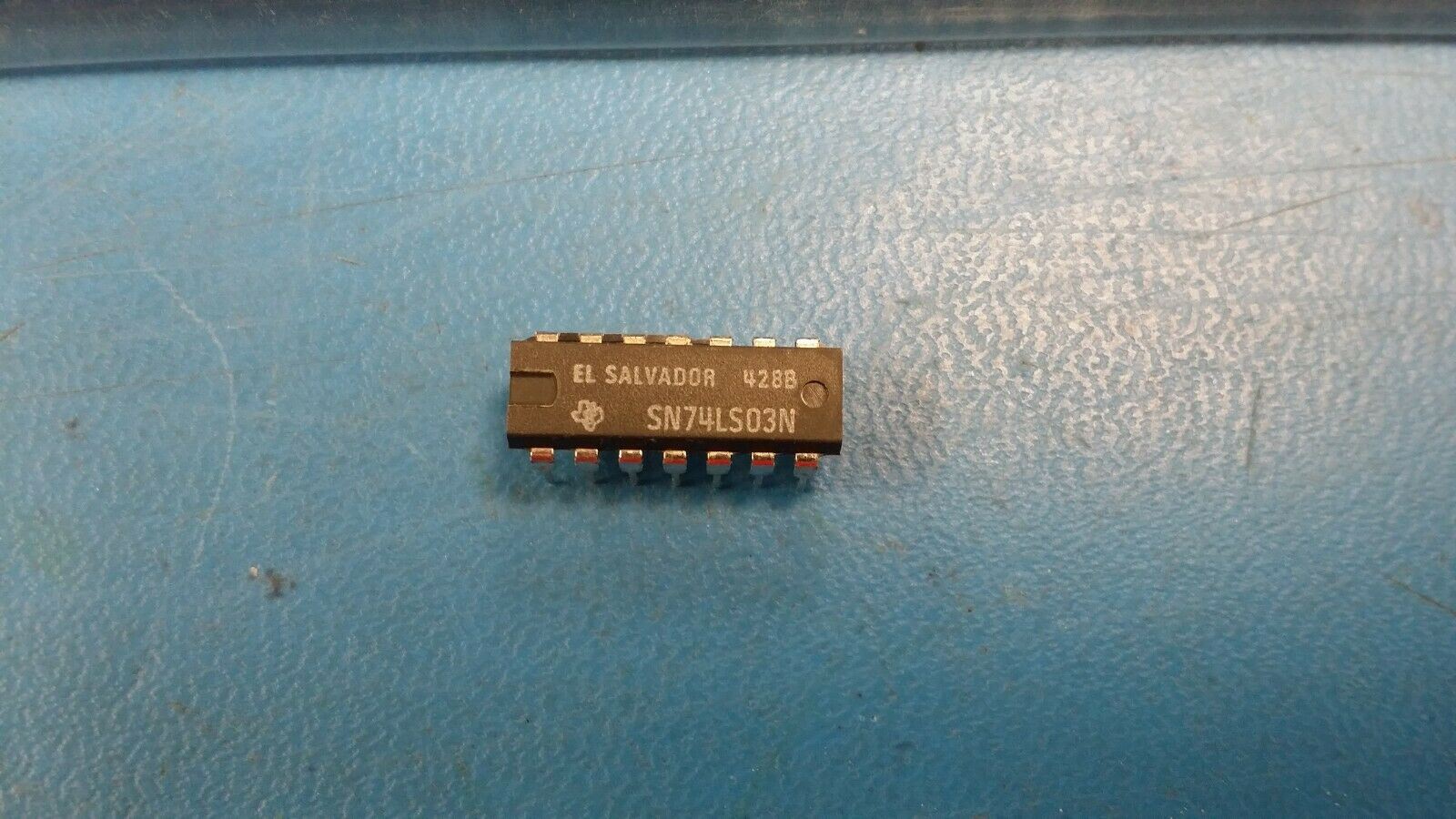

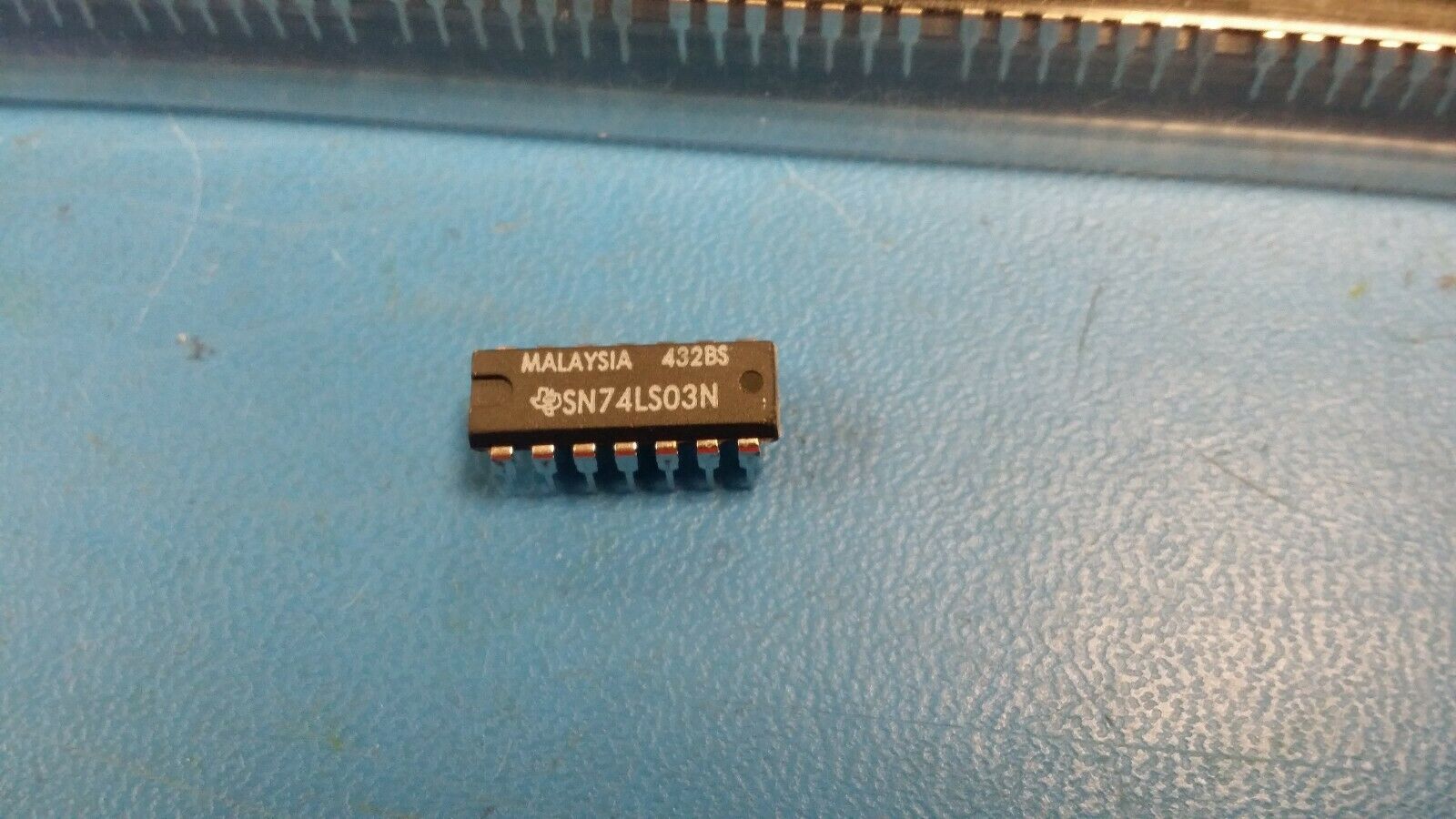

THIS LISTING IS FOR (10 PCS) OF SN74LS03N BY TI
IC GATE NAND 4CH 2-INP 14DIP
Categories Integrated Circuits (ICs)
Logic - Gates and Inverters
Manufacturer Texas Instruments
Series 74LS
Packaging Tube
Part Status Active
Logic Type NAND Gate
Number of Circuits 4
Number of Inputs 2
Features Open Collector
Voltage - Supply 4.75V ~ 5.25V
Current - Output High, Low -, 8mA
Logic Level - Low 0.8V
Logic Level - High 2V
Max Propagation Delay @ V, Max CL 32ns @ 5V, 15pF
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Supplier Device Package 14-PDIP
Package / Case 14-DIP (0.300", 7.62mm)
